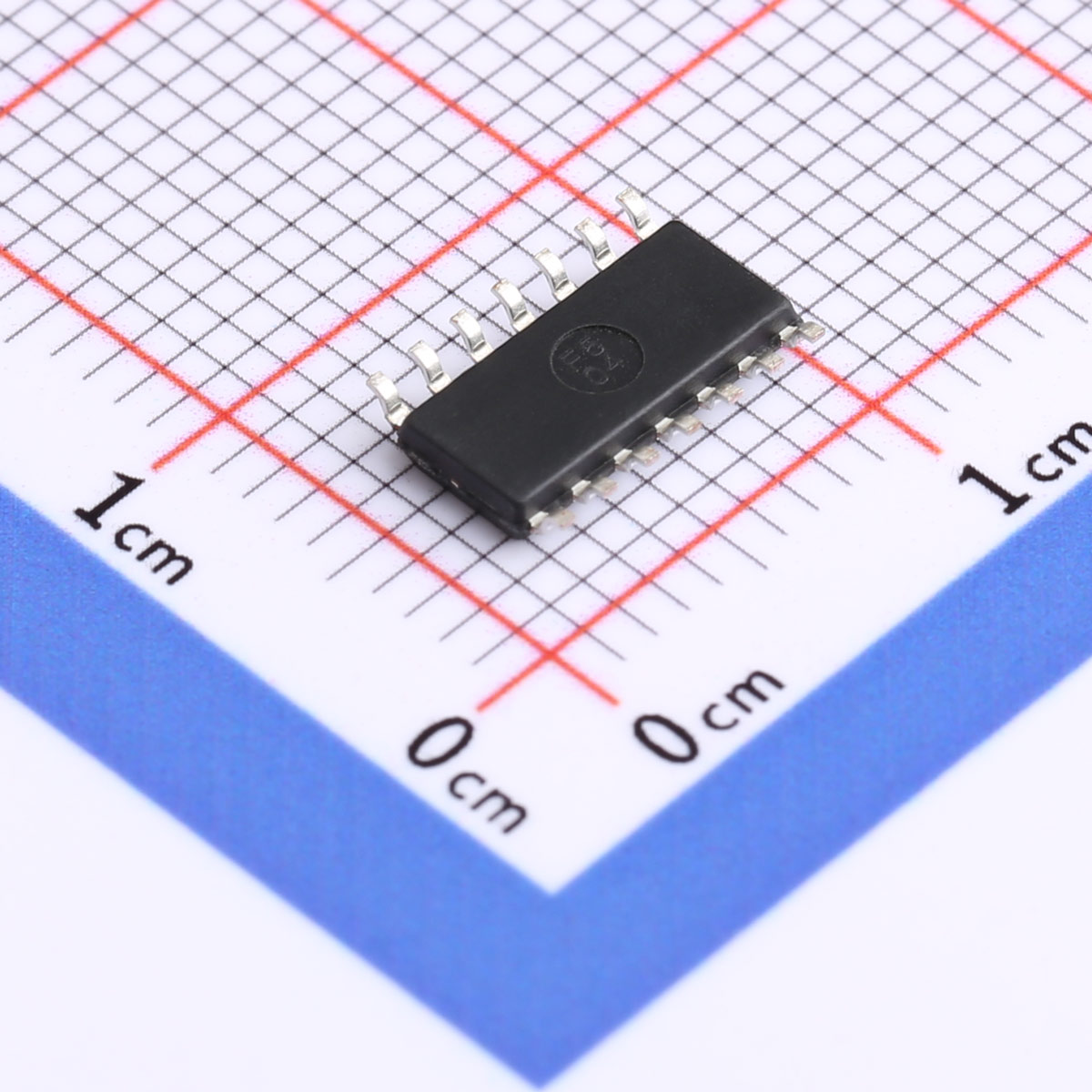

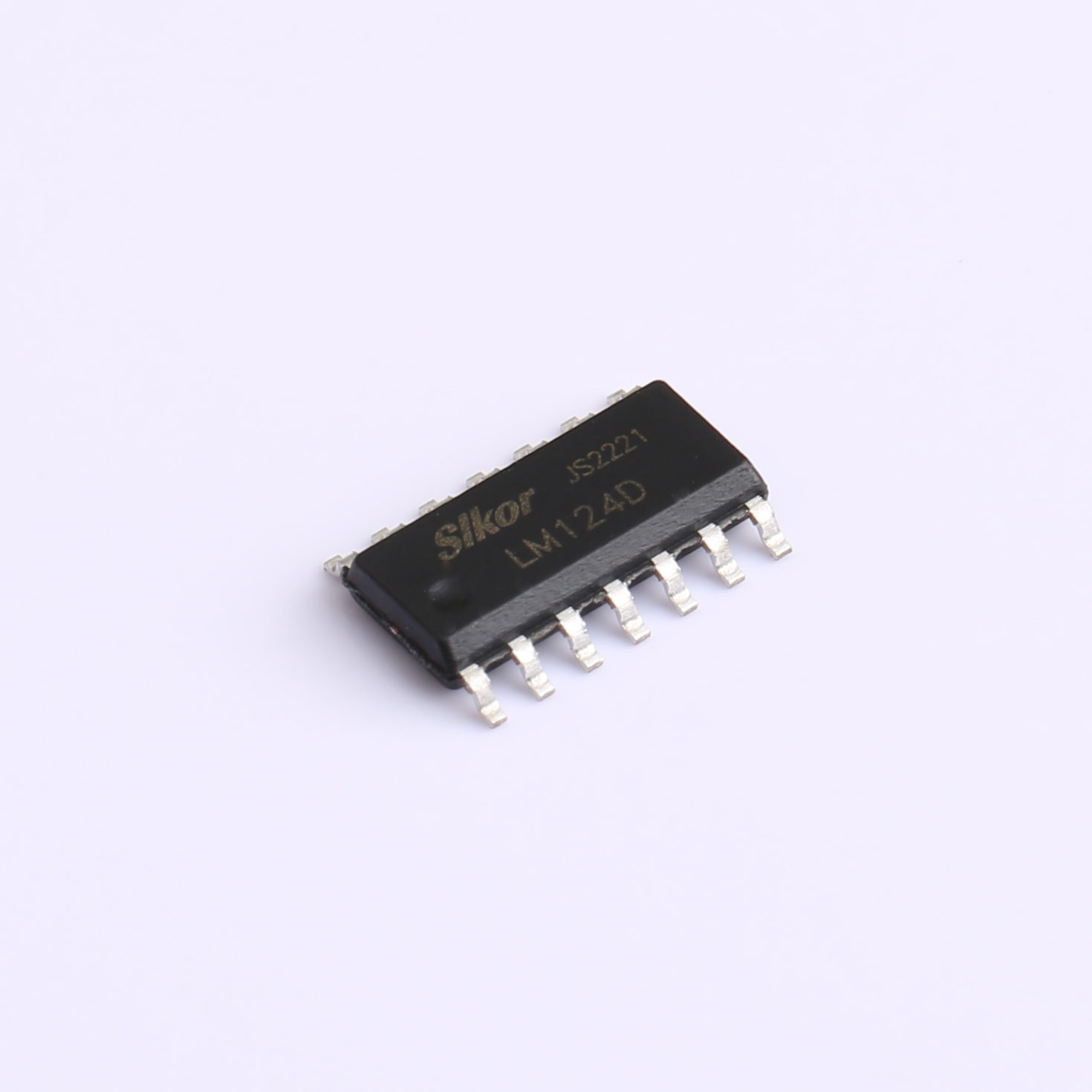

quadruple Operational / Ketso ya ho qhekanyetsa Ali-mplifiers

Tlhaloso

l Lisebelisoa tsena li na le li-amplifiers tse 'ne tse ikemetseng tse lefelloang ke maqhubu a phahameng tse etselitsoeng ka ho khetheha hore li sebetse ho tsoa phepelong e le' ngoe holim'a mefuta e mengata ea li-voltage. Ts'ebetso e tsoang ho lisebelisoa tse arohaneng e ka khoneha hape ha phapang pakeng tsa lisebelisoa tse peli e le 3V ho 30V (bakeng sa LM2902 le LM2902Q, 3V ho 26V) le Vcc bonyane 1.5V e ntle ho feta motlakase oa mokhoa o tloaelehileng. drain e ikemetse ho boholo ba motlakase oa phepelo.

Likaroloana

l Mefuta e mengata e fapaneng ea li-voltages tsa phepelo: Phepelo e le 'Ngoe…3V ho ea ho 30V (LM2902 le LM2902Q 3V to 26V), kapa Dual Supplies

l Mokelikeli o Tlase oa Hona Joale o Ikemetseng ho Matla a Phepelo …0.8mATyp

l Common-Mode Input Voltage Range e kenyeletsa Ground Allowing Sensing Direct Near Ground

l Mekhahlelo e Tlase ea ho Kena le Li-parameter tsa Offset:

          Input Offset Voltage … 3mV Typ

          A Versions… 2 mV Mofuta

          Kena Offset ea Hona Joale … ​​2nATyp

          Kena Leeme la Hona Joale … ​​20nATyp

          A Versions … 15nATyp

l Differential Input Voltage Range Equal to

          Maximum-Reated Supply Voltage… 32V

          (26V bakeng sa LM2902 le LM2902Q)

l Open-Loop Differential Voltage

           Matlafatso … Mofuta oa 100V/mV

l Internal Frequency Compensation

kopo

l Likopo li kenyelletsa li-transducer amplifiers, dc amplification blocks, le li-circuits tsohle tse tloaelehileng tsa ts'ebetso tsa amplifier tseo hajoale li ka kengoang ts'ebetsong habonolo lits'ebetsong tsa motlakase o le mong. Mohlala, LM124 e ka sebetsoa ka kotloloho ho tsoa phepelong e tloaelehileng ea 5-V e sebelisoang lits'ebetsong tsa dijithale mme e fana habonolo ka sebopeho se hlokahalang sa elektronike ntle le ho hloka lisebelisoa tse eketsehileng tsa ± 15-V.
