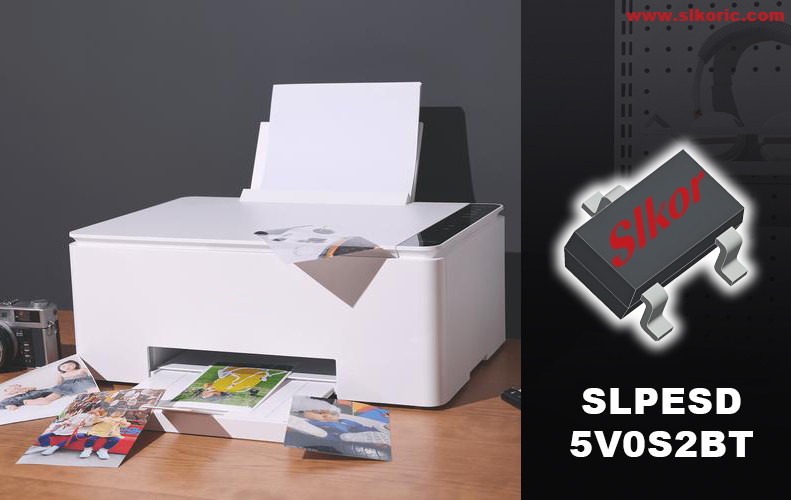

In modern office settings, printers are essential output devices, and the reliability of their circuit systems directly impacts their lifespan and user experience. However, electrostatic discharge (ESD) remains an invisible threat to the stable operation of printers. Static voltages generated by human contact, paper friction, and dry environments can reach thousands of volts. If not effectively suppressed, these can easily break down sensitive components such as control chips and sensors. Slkor's SLPESD5V0S2BT, an ESD protection device designed specifically for low-speed signal lines, offers an efficient and cost-effective electrostatic protection solution for printer circuits, thanks to its precise parameters and compact packaging.

1. Electrostatic Threats and Protection Needs in Printer Circuits

Inside printers, there are multiple low-speed control signal lines, such as paper sensor interfaces, button control signals, motor drive signals, and LED status indicator lines. These lines typically operate at frequencies below 1 MHz and have relatively low signal integrity requirements. However, they are exposed to the following electrostatic risks:

1. Human Contact Discharge: When operators touch the printer casing or interfaces, static electricity from the human body can be conducted to the internal circuits through metal contacts.

2. Paper Friction Charging: The static charges generated by the friction between paper and rollers or sensors during paper feeding can be conducted to the control board via mechanical structures.

3. Environmental Static Accumulation: In dry environments, electrostatic fields generated by plastic components rubbing against the air inside the device can lead to indirect discharge.

Traditional protection solutions often use varistors or Zener diodes. However, the former has slow response times and high leakage currents, while the latter may impact signal quality due to its high junction capacitance. The introduction of the SLPESD5V0S2BT precisely fills the gap for low-speed control lines that require fast response and low-capacitance ESD protection.

2. Core Parameters of SLPESD5V0S2BT

The device's parameters are designed to meet the protection requirements of printer control circuits:

VRWM=3.3V: The maximum working voltage covers the 3.3V power rails and digital signal levels commonly used in printers, ensuring the device stays in a high-impedance state during normal operation to avoid affecting signal transmission.

VBR≥4.5V: The breakdown voltage is precisely set above the safety threshold, effectively distinguishing normal operating voltage from ESD transient voltages to prevent false triggering.

VC=7V (at 8/20μs): Under the standard 8/20μs ESD pulse, the clamping voltage is strictly controlled to within 7V, much lower than the breakdown voltage of most CMOS devices (usually above 10V), providing ample protection margin for subsequent circuits.

CJ=60pF: The junction capacitance is designed to balance protection performance and signal integrity, making it suitable for low-speed control buses (such as I²C, SPI) and digital signal lines, while avoiding signal distortion due to capacitive loading.

IR=125μA (at VRWM): The extremely low leakage current ensures that the device does not significantly increase system power consumption over time, making it particularly suitable for battery-powered portable printers.

3. Typical Application Scenarios and Layout Optimization

In printer circuit designs, the SLPESD5V0S2BT can be deployed at the following key points:

1. Sensor Interface Protection: Parallel the device at analog signal input points like paper detection sensors and cover switches to suppress electrostatic impact on operational amplifier circuits.

2. Button Control Module: Provide bidirectional ESD protection for the row/column lines of matrix keyboards or individual keys, preventing electrostatic damage to the control chips when operators touch the buttons.

3. Motor Drive Lines: Insert the protection device in the stepper motor or DC motor control signal lines to prevent damage caused by back EMF and external static during motor startup and shutdown.

4. LED Driver Circuit: Provide electrostatic buffering for PWM control signals of status indicator LEDs to ensure stable operation of light source modules.

In terms of packaging, the compact SOT-23 size (2.9×2.8×1.45mm) allows engineers to place the protection device directly near connectors or signal entry points prone to electrostatic attacks, reducing the protection path length and minimizing the impact of parasitic inductance on protection performance. It is recommended that during actual layout, the "close to protected device" principle be followed and that the ESD device's grounding path be as short and direct as possible to maximize energy dissipation efficiency.

4. Reliability Verification and Cost Advantages

Slkor's SLPESD5V0S2BT has passed the IEC 61000-4-2 standard Level 4 (contact discharge 8kV, air discharge 15kV) tests, making it suitable for harsh industrial electrostatic requirements. Compared to multilayer varistors (MLVs) or polymer ESD suppressors, this device demonstrates significant advantages in response speed (sub-nanosecond level), temperature stability (working range from -55°C to 150°C), and long-term reliability.

From a cost-efficiency perspective, a single SOT-23 packaged ESD diode is significantly cheaper than building a protection circuit with discrete components, and it does not require additional PCB space. For medium to high-end printer product lines with an annual production of tens of thousands of units, adopting an integrated protection solution can reduce board costs by approximately 15%-20%, while also improving production and assembly efficiency.

5. Industry Application Expansion and Future Trends

As printers become increasingly intelligent, the introduction of new components such as WiFi modules and touch panels places higher demands on electrostatic protection. The low-capacitance characteristics of the SLPESD5V0S2BT make it suitable for static buffering in 2.4GHz wireless communication lines, preventing signal attenuation caused by excessive junction capacitance in traditional protection devices. Additionally, its bidirectional conduction feature is also suitable for differential lines that require protection for both positive and negative signals, such as LVDS display interfaces used in some printers.

Looking ahead, as IoT devices continue to pursue miniaturization and high reliability, specialized protection devices like the SLPESD5V0S2BT that offer both performance and cost advantages will play an increasingly important role in office equipment such as printers and scanners. By precisely matching the electrical characteristics and protection needs of the application scenario, engineers can establish a complete electrostatic [敏感词] system from the board level to the system level, ultimately achieving the dual goals of extending device lifespan and reducing maintenance costs.
