Slkor, a company with deep expertise in basic circuit protection, recently highlighted the significance of its flagship product, the SLPESD5V0S1BA ESD protection diode, in ensuring the reliability of various universal electronic devices. This component is specifically designed to protect voltage-sensitive elements from transient overvoltage events such as Electrostatic Discharge (ESD) and Electrical Fast Transients (EFT). Its core advantages lie in its robust peak power dissipation capability (400W), ultra-low leakage current, fast response speed, and ultra-compact SOD-323 package size, making it the go-to solution for reliable and efficient ESD protection in designs with limited board space.

The primary function of the SLPESD5V0S1BA is to protect sensitive semiconductor components connected to various universal data lines, control lines, and transmission interfaces (e.g., microcontroller I/O ports, sensor signal lines, status indicator lines, basic communication buses, etc.). It effectively shields against ESD and EFT events caused by everyday operations, such as hot-plugging connectors, human contact, device movement, or switch toggling, ensuring stable operation in complex electrical environments and prolonging device lifespan.

Key Features and Exceptional Protection Performance:

Powerful Transient Energy Absorption:

One of the standout features of the SLPESD5V0S1BA is its impressive peak pulse power dissipation capability of 400W (8/20μs waveform). This is significantly higher than many comparable devices, meaning it can comfortably handle larger surge impacts and provide greater safety margins for the downstream circuit.

Strict International Standard Compliance:

The device complies with stringent IEC protection standards:

IEC 61000-4-2 (ESD): Provides ESD protection up to ±15kV (air discharge) and ±8kV (contact discharge).

IEC 61000-4-4 (EFT): Withstands EFT shocks of up to 40A (5/50ns).

Outstanding Electrical Protection Characteristics:

Low Clamping Voltage (VC): Typical value as low as 9.8V @ IPP. During transient events, it quickly clamps the overvoltage within a safe range well below the maximum tolerance of the protected device (working voltage VRWM=5V, minimum breakdown voltage VBR min=5.8V), significantly reducing electrical stress on sensitive components.

Extremely Low Leakage Current (IR): Under normal operating conditions (5V bias), the typical leakage current is just 1μA, which barely contributes to the system’s static power consumption, making it ideal for battery-powered portable devices.

Optimized Junction Capacitance (CJ): Typical value of 30pF. While not "ultra-low," this capacitance value strikes a balance between protection performance and signal integrity in various general non-high-speed signal applications (e.g., control signals, status signals, mid-to-low frequency analog signals, basic data transmission), ensuring clear and reliable signals without excessive distortion or attenuation due to the protection device.

Industry-Leading Miniaturized Packaging:

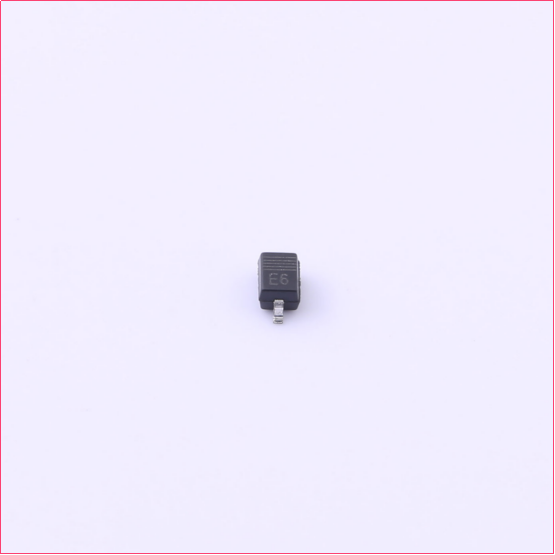

The device features an SOD-323 package, which is even more compact than the common SOD-523 (approximately 1.7mm x 1.25mm) and weighs just about 0.001g. This provides unparalleled layout flexibility for high-density PCB designs. The terminals are gold-plated to ensure excellent solderability and long-term connection reliability, meeting MIL-STD-750 method 2026 standards. The device is packaged in 7-inch reels, perfectly suited for modern automated SMT assembly processes, enhancing manufacturing efficiency.

Addressing Core Protection Challenges in Universal Electronics Designs:

Extreme Space Constraints:

  Modern consumer electronics, portable devices, and industrial control modules continually strive for miniaturization. The SLPESD5V0S1BA’s SOD-323 package allows easy deployment in extremely cramped areas, such as connector entrances, IC pins, or between densely packed components.

Reliability in Harsh Environments:

  Devices inevitably encounter human static, switch noise, or power fluctuations during regular use. The 400W surge absorption capability and compliance with IEC standards for ESD/EFT protection provide a solid [敏感词] against these electrical threats, greatly improving overall system robustness and durability.

Balancing Signal Quality and Power Consumption:

  The 30pF junction capacitance maintains acceptable signal integrity when protecting non-high-speed critical signals, while the 1μA leakage current has a negligible effect on system power consumption. This balance ensures effective operation across a wide range of applications without significant burdens.

Manufacturing Compatibility:

  Standard reel packaging and excellent solderability ensure seamless integration into large-scale automated production, ensuring product quality and consistency.

Broad Range of Application Scenarios (Strictly Avoiding High-Speed Interfaces):

Portable Electronics:

Smartphone, tablet, digital camera, portable audio player, handheld gaming console key interfaces, charging ports, basic data interfaces (non-high-speed), sensor interfaces, power management signal lines.

Computer & Server Peripherals:

Keyboard, mouse interfaces, serial/parallel ports (traditional low-speed), fan control lines, status indicators, low-speed management buses, peripheral control signals.

Industrial Control & Automation:

PLC discrete I/O modules, sensor (temperature, pressure, proximity switch, etc.) signal interfaces, relay control lines, low-speed field buses (e.g., basic RS-485 nodes), industrial control panel buttons/indicators.

Power & Energy Management:

AC-DC adapters, switch-mode power supplies (SMPS) control and feedback signal protection, battery management system (BMS) voltage/temperature monitoring signal lines.

Consumer Electronics & Home Appliances:

TV, set-top box remote control receivers, control buttons; white goods (refrigerators, washing machines) control board user interfaces, status signals; smart home device control signals and sensor interfaces.

Medical Electronics (Non-Life-Critical):

Portable monitoring device sensor interfaces, control buttons, basic data recording interfaces.

Communication Equipment (Non-High-Speed Core):

Fixed telephone interfaces, network device status indicators, and control signals.

Design Deployment Recommendations:

To maximize the protective effectiveness of the SLPESD5V0S1BA, it should be placed as close as possible to the interface connector or IC pin requiring protection. This "front-line [敏感词]" strategy ensures that transient overvoltages are effectively clamped and dissipated before reaching sensitive chips. Its small form factor makes this close placement layout easy to implement.

Conclusion:

The Slkor SLPESD5V0S1BA ESD protection diode is a meticulously engineered solution designed to meet the protection needs of universal electronic device interfaces. With its 400W surge absorption capability as a core advantage, combined with IEC 61000-4-2/4-4-compliant ESD/EFT protection, low clamping voltage (9.8V), microampere leakage current (1μA), balanced signal integrity with 30pF junction capacitance, and industry-leading miniaturized SOD-323 packaging, it offers design engineers an ideal choice for high-level, high-reliability circuit protection in extremely limited space. Whether for space-constrained portable devices or industrial equipment facing harsh electrical environments, the SLPESD5V0S1BA effectively enhances system immunity to interference and long-term operational stability, making it an indispensable guardian of electronic device quality.
