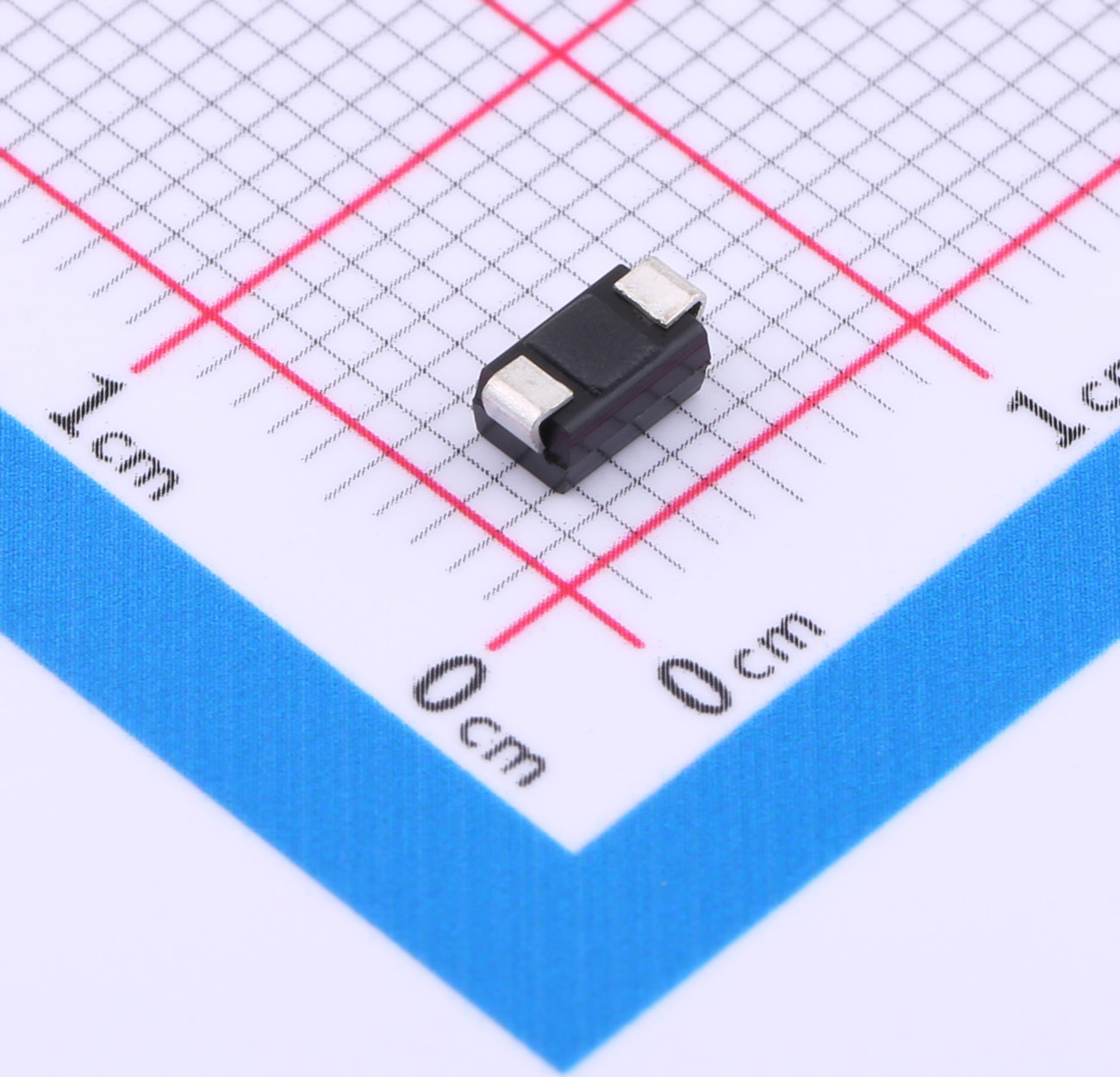

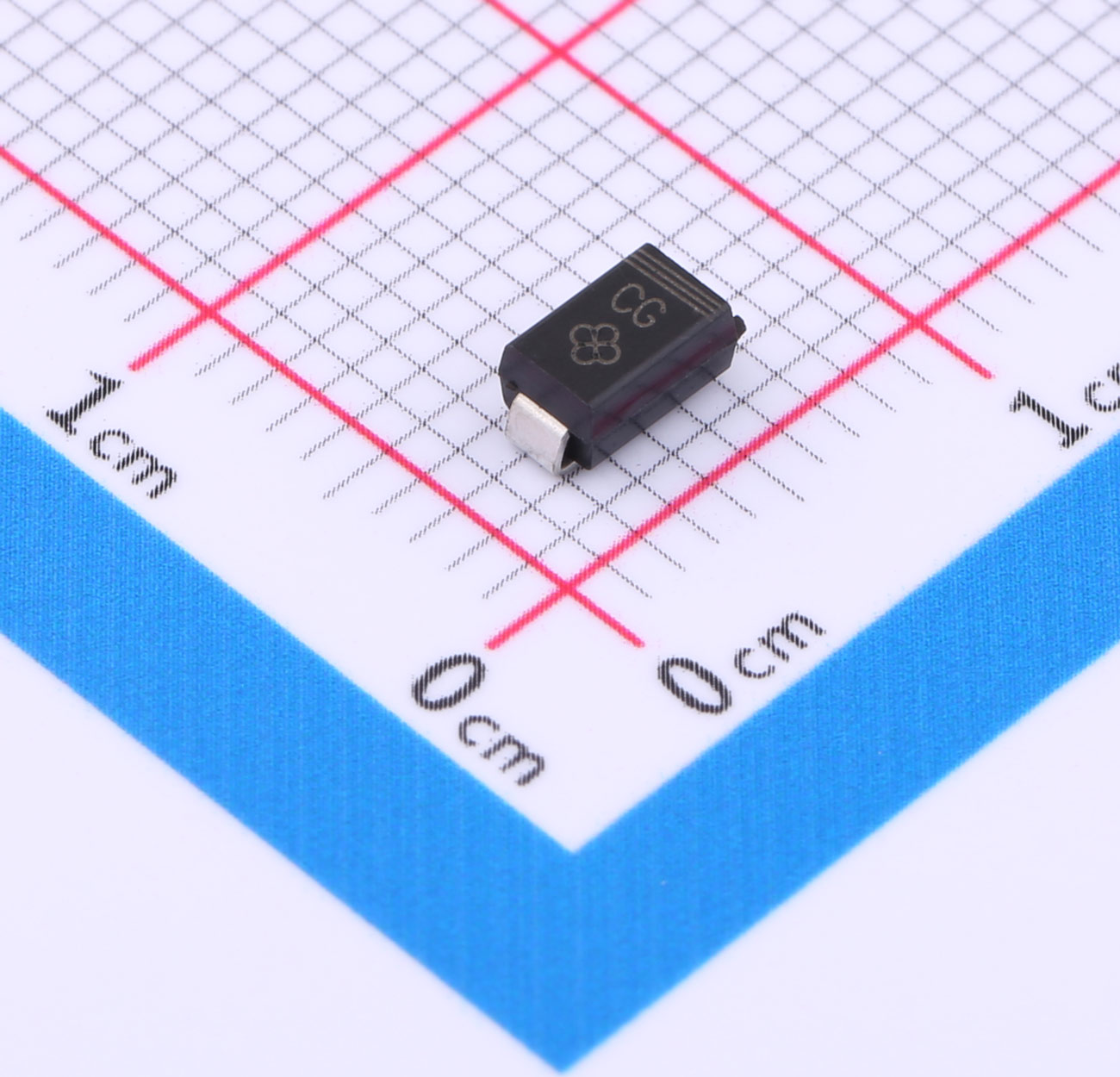

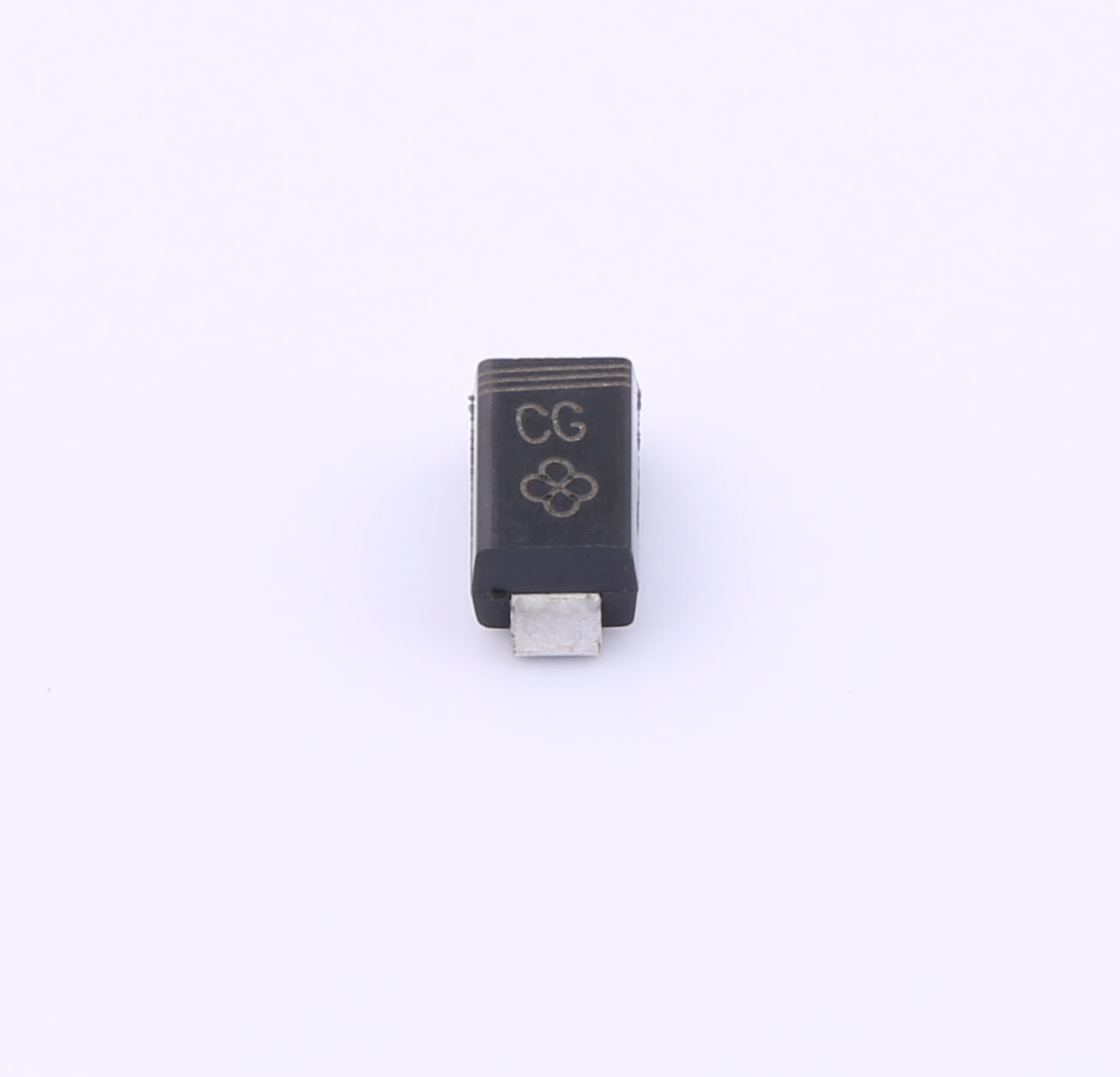

SMAJ28A TVS Transient Voltage Suppression DO-214AC SMAJ28A TVS Transient Voltage Suppression DO-214AC SMAJ28A TVS Transient Voltage Suppression DO-214AC
SMAJ28A TVS Transient Voltage Suppression DO-214AC

Polar: Bidirectional

Vrwm: 28V

VBR(min): 31.1V

VBR(max): 34.4V

Ir: 5μA

VC: 45.4V

Ppp@10/1000μs: 400W

Product Details

SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR


FEATURES

Glass Passivated Die Construction

Uni-Directional and Bi-Directional Versions Available

Excellent Clamping Capability

Fast Response Time

Plastic Case Material has UL Flammability Classification Rating 94V-O


MECHANICAL DATA

Case: JEDEC SMA(DO-214AC),Transfer Molded Epoxy

Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026

Polarity Cathode Band Except Bi-Directional
