Features

For surface mounted applications

Low profile package

Built-instrain relief ideal for automated placement

Glass Passivated chip junction

High temperature soldering guaranteed 250℃/10 second atterminals

Mechanical Data

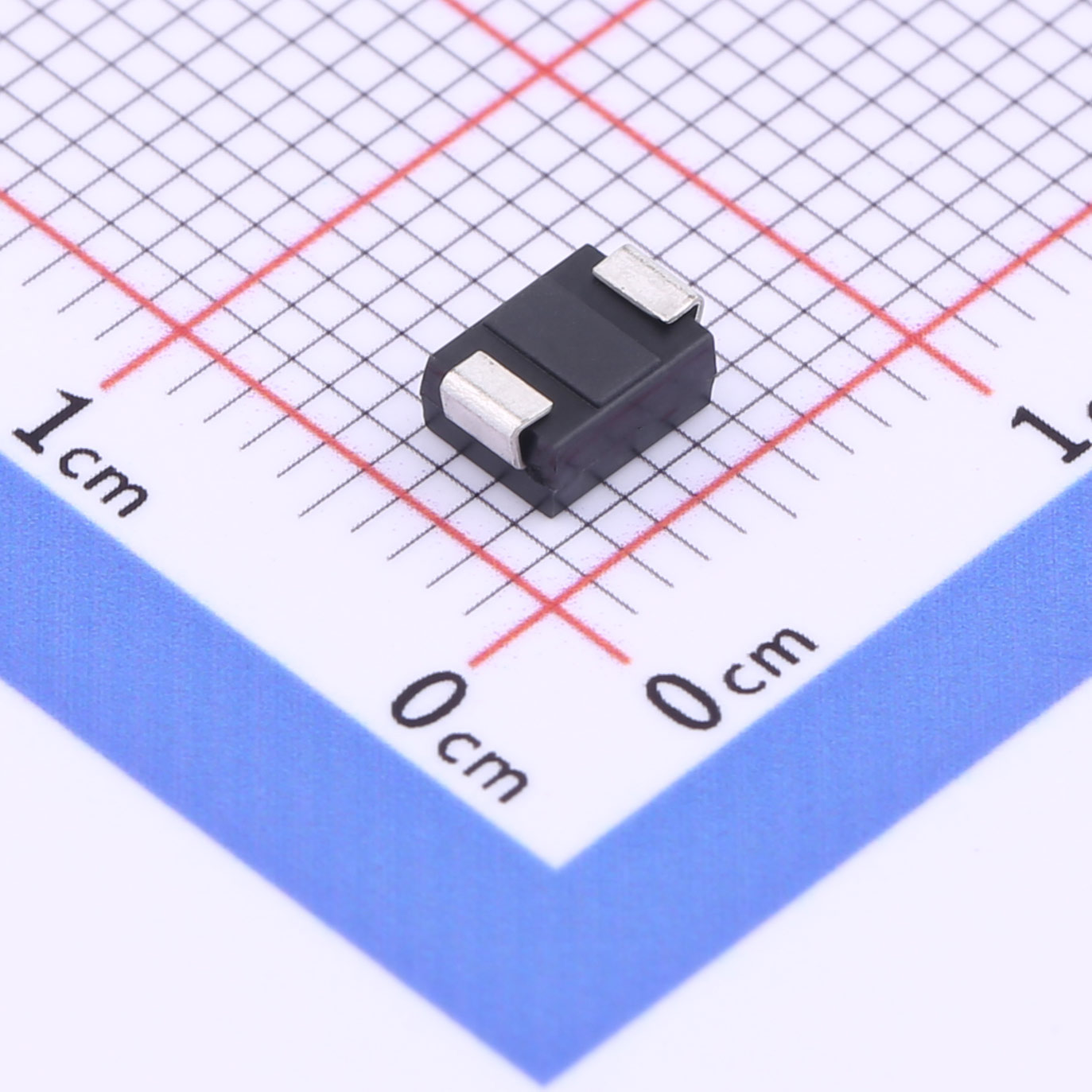

Case:JEDEDDO-214 AA molded plastic over glass passivated chip

Terminals:Solderplated, SolderableperMIL-STD-750, method2026

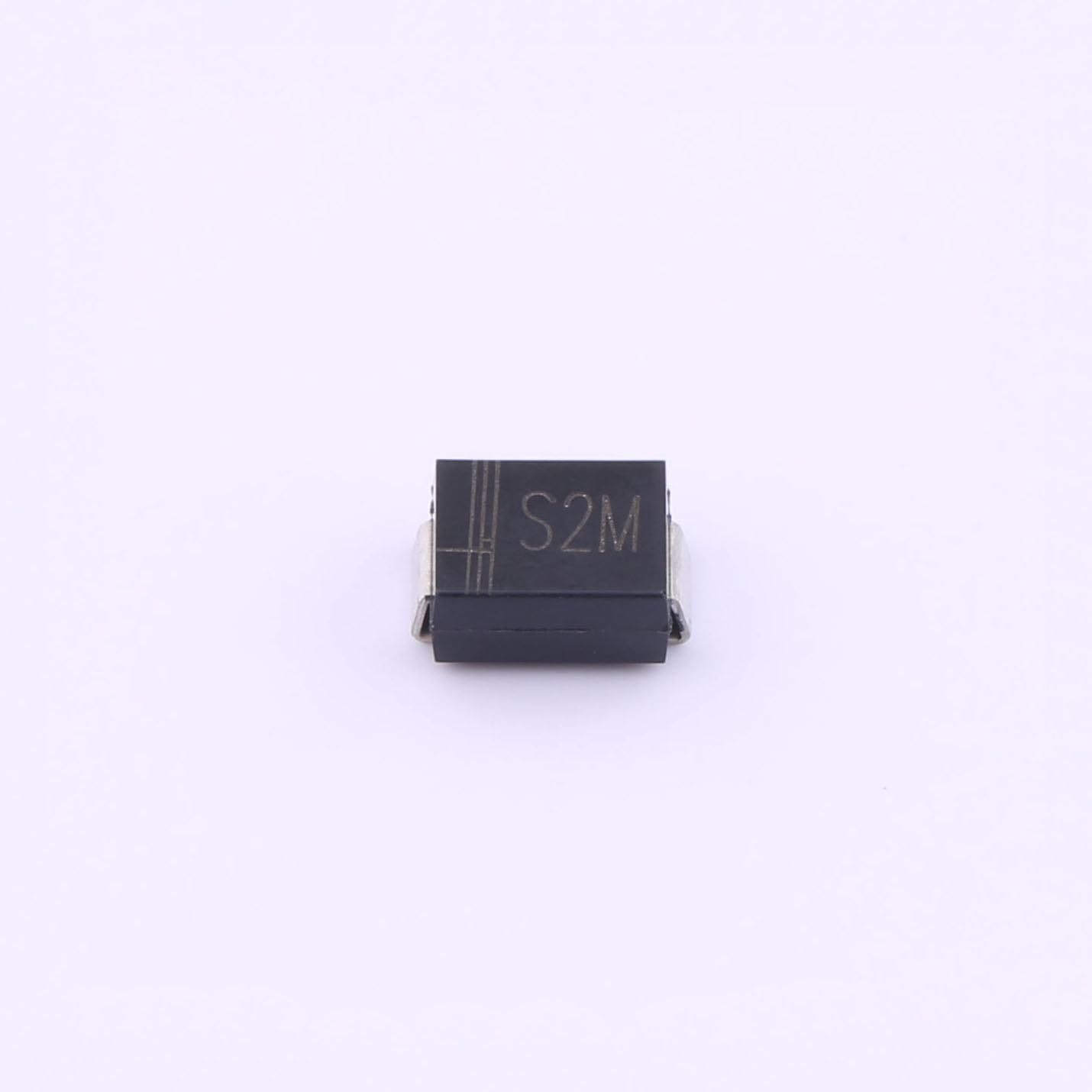

Polarity:Color band denotes cathode end

Weight: 0.002ounce, 0.064gram

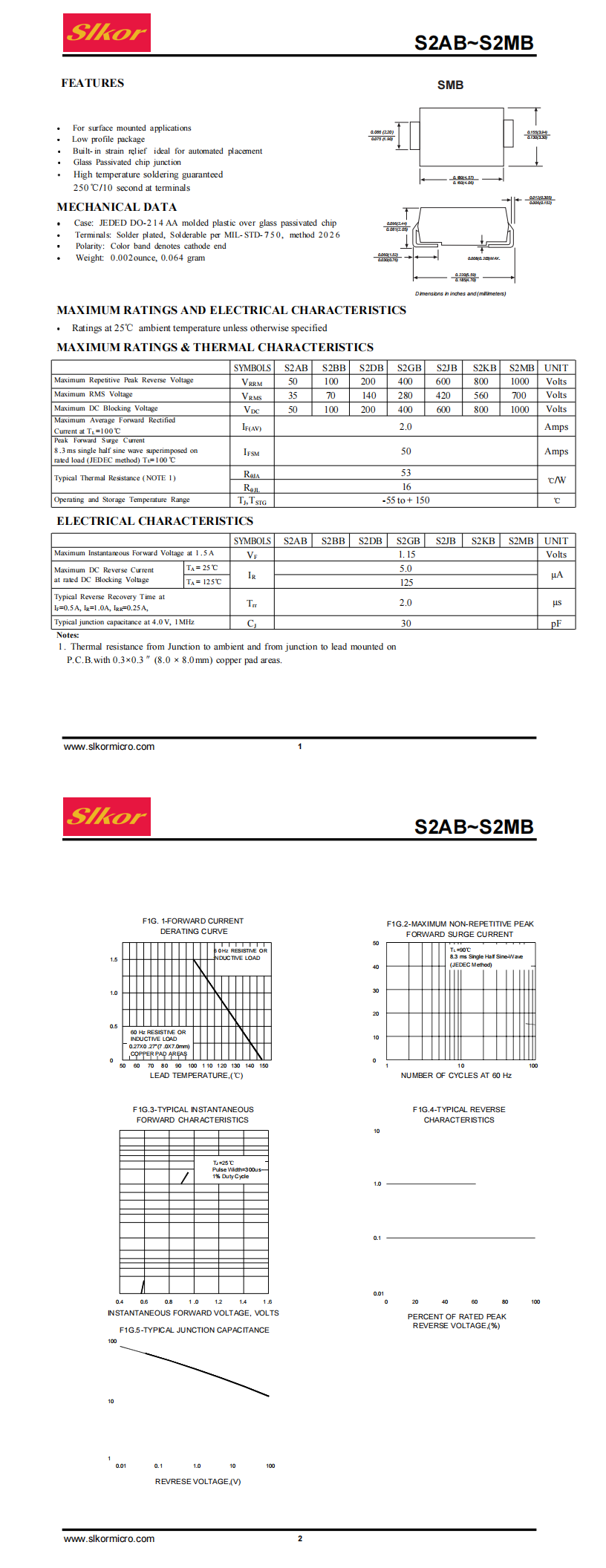

Maximum Ratings And Electrical Characteristics

Ratings at 25℃ ambient temperature unless otherwise specified
