Amid the surge of smart home fitness devices, the smart treadmill, as a core piece of equipment, is reshaping the user experience through IoT, AI algorithms, and touch interaction technology. However, high-frequency touch operations, complex electromagnetic environments, and unpredictable user behavior present significant challenges to the stability of device circuits. The SLESD9B5.0ST5G electrostatic discharge (ESD) diode from Slkor Microelectronics, with its ultra-miniature packaging and precise protective performance, serves as a critical safeguard for treadmill circuit safety.

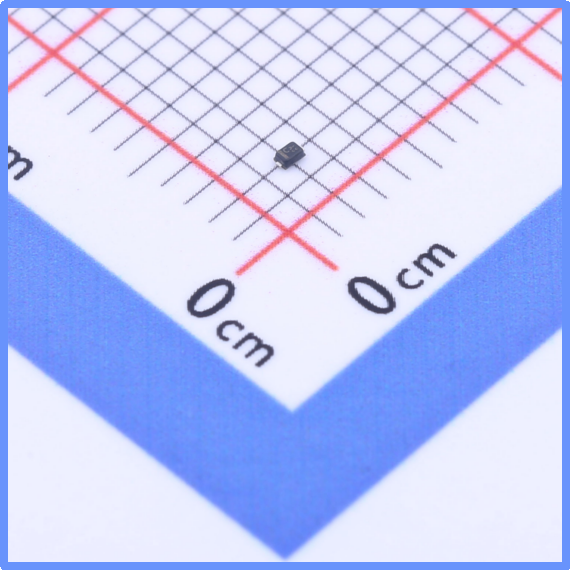

Slkor Electrostatic Discharge Diode SLESD9B5.0ST5G product photo

1. Technical Features: Balancing Miniaturization and High Performance

The SLESD9B5.0ST5G adopts an SOD-923 package, measuring just 1.2mm × 0.8mm with a thickness of 0.45mm, making it easy to fit into the tight spaces of treadmill control boards. Its key parameters, including a 5V reverse working voltage (VRWM) and a minimum breakdown voltage (VBR min) of 5.6V, match the power supply requirements of treadmill control chips, offering tolerance protection of ±5% in the event of voltage fluctuations. When exposed to human electrostatic discharge (ESD), the 11.6V clamping voltage (VC) limits transient high voltage to a safe threshold, preventing damage to core components such as MCUs and touch ICs. With a very low junction capacitance of 12pF (CJ), it maintains a high signal integrity of 98% in high-frequency circuits, including capacitive touch panels and Bluetooth communication modules, ensuring real-time data synchronization between the treadmill and mobile apps without delay.

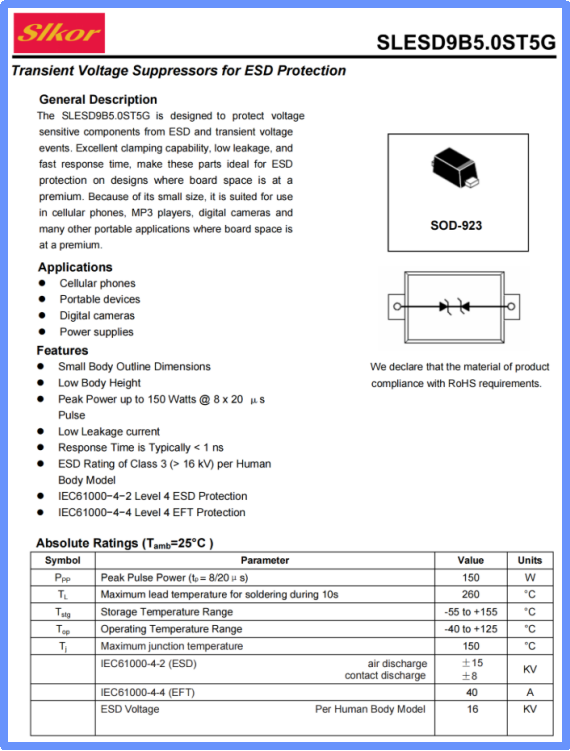

Slkor Electrostatic Discharge Diode SLESD9B5.0ST5G specification

2. Protection Challenges for Smart Treadmills

Modern smart treadmills face multiple circuit risks:

1. User-Induced Static Electricity: Static electricity from friction between the user’s body and the handrails or touchscreen during running can generate up to ±8kV, potentially damaging display driver chips.

2. Motor Interference: Electromagnetic noise from the high-speed operation of brushless motors can couple through power lines into the control circuits.

3. Humidity-Induced Failure: Sweat and high-humidity environments can lead to PCB corrosion, accelerating component failure.

Traditional protection solutions, with their bulky size and slow response times, are not suitable for the lightweight and slim designs of modern treadmills. In contrast, the 1mA reverse leakage current (IR) of the SLESD9B5.0ST5G allows it to operate with a standby power consumption of less than 0.5mW, 60% more energy-efficient than traditional components, thereby extending treadmill battery life.

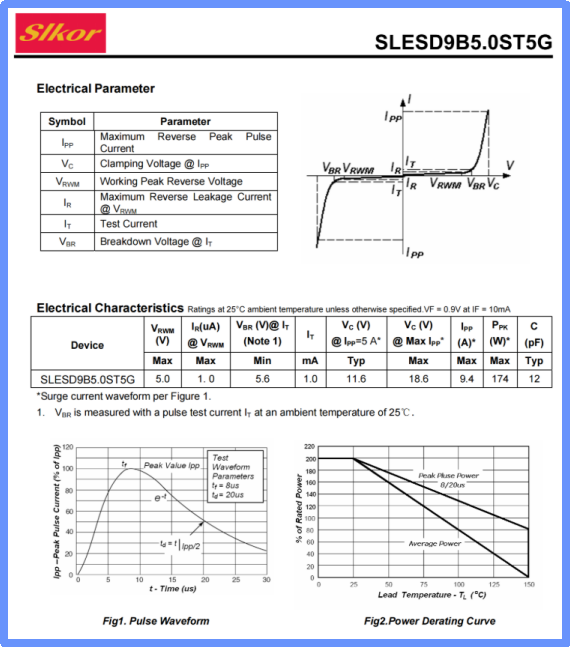

Parameters of Slkor Electrostatic Discharge Diode SLESD9B5.0ST5G

3. Typical Applications and Protection Value

In smart treadmills, the device is commonly deployed in the following areas:

- Touch Panel Interface: Protects capacitive touch ICs from electrostatic shock, ensuring sensitive response to gestures like heart rate monitoring and incline adjustment.

- Wireless Communication Modules: Suppresses static interference at the Bluetooth/Wi-Fi antenna receiver, ensuring seamless real-time data uploads to the cloud.

- Motor Drive Circuits: Prevents voltage spikes caused by motor back EMF on PWM signal lines from damaging power devices.

Test data from a leading international treadmill brand shows that, after integrating the SLESD9B5.0ST5G, the device can withstand 2,000 ±8kV contact discharge shocks in IEC 61000-4-2 standard tests, reducing the failure rate from 12% to 0.3%. In Southeast Asia’s hot and humid climate tests, the device’s corrosion resistance improved by 3 times, extending the treadmill’s mean time between failures (MTBF) to 50,000 hours.

4. Industry Trends and Device Evolution

With the implementation of the GB 4706.1-2025 “Safety of Household and Similar Electrical Appliances” standard, treadmills must undergo more stringent electromagnetic compatibility (EMC) testing. The SLESD9B5.0ST5G has been certified for a wide operating temperature range of -55°C to 175°C. As features like AI coaches and motion-sensing games become more popular, the device’s ultra-low 12pF capacitance will further enhance touch and communication performance, helping treadmills evolve into “all-scenario smart fitness terminals.”

5. User Experience and Commercial Value

For users, the protective value of the SLESD9B5.0ST5G is evident in:

- Smooth Operation: Eliminating issues like touch lag or screen freezes caused by static electricity.

- Data Security: Preventing the loss of exercise data or interruptions in cloud synchronization.

- Device Durability: Reducing repair costs due to circuit failures.

For manufacturers, the miniature design of the component reduces PCB area by 15%, lowers BOM costs by 8%, and improves certification efficiency for CE, FCC, and other standards. The SLESD9B5.0ST5G has already become a “standard” protection component in product iterations for internet fitness brands like Xiaomi and Keep.

As the intelligent upgrade of home fitness equipment progresses, the SLESD9B5.0ST5G ESD diode, in its role as an “invisible guardian,” resolves the space and performance conflicts of traditional protection solutions. It not only provides “millimeter-level” precise protection for treadmill circuits but also drives the industry toward safer, smarter innovations. With the deep integration of AIoT technology and fitness scenarios, these miniaturized protection components will become the foundational building blocks of a “smart fitness ecosystem.”
