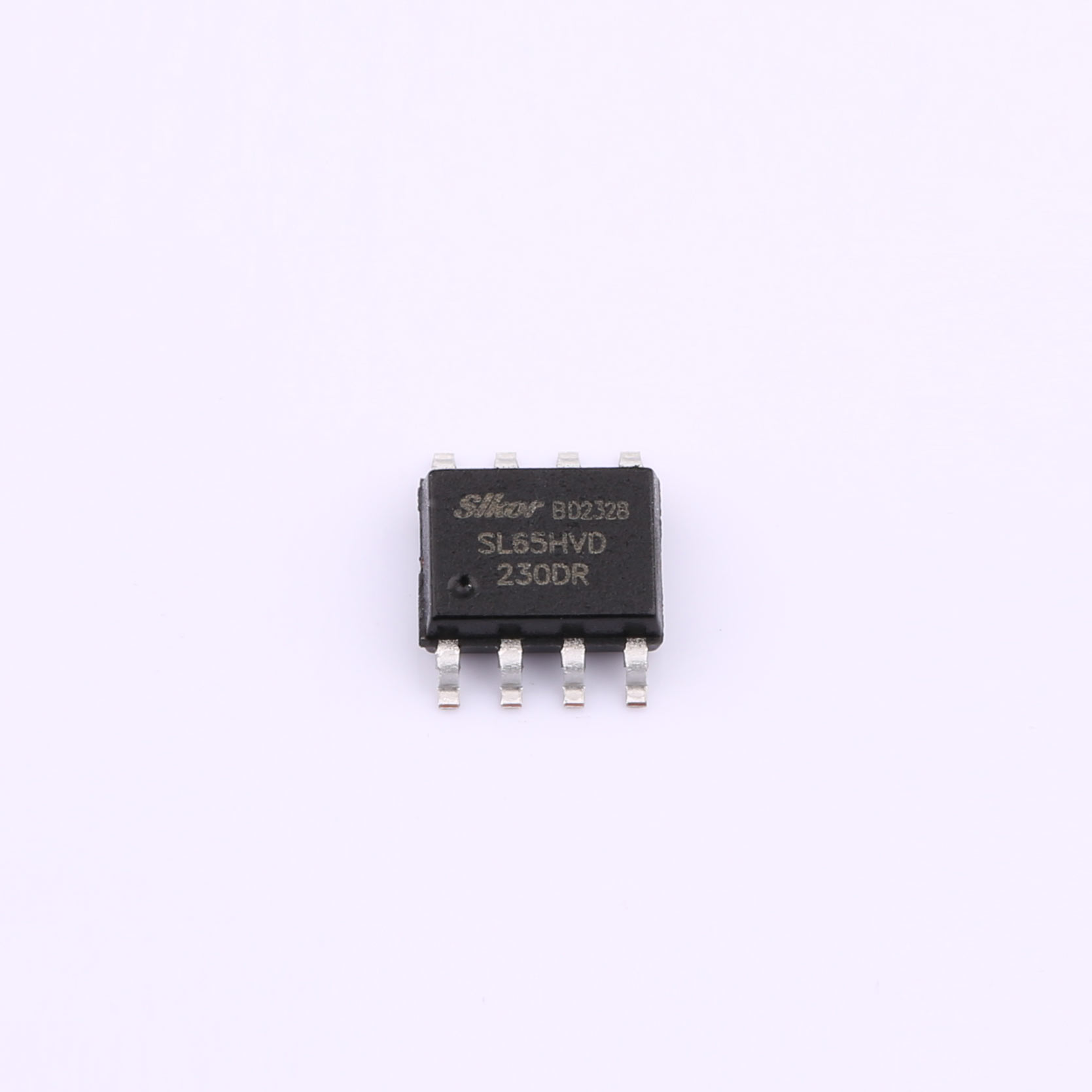

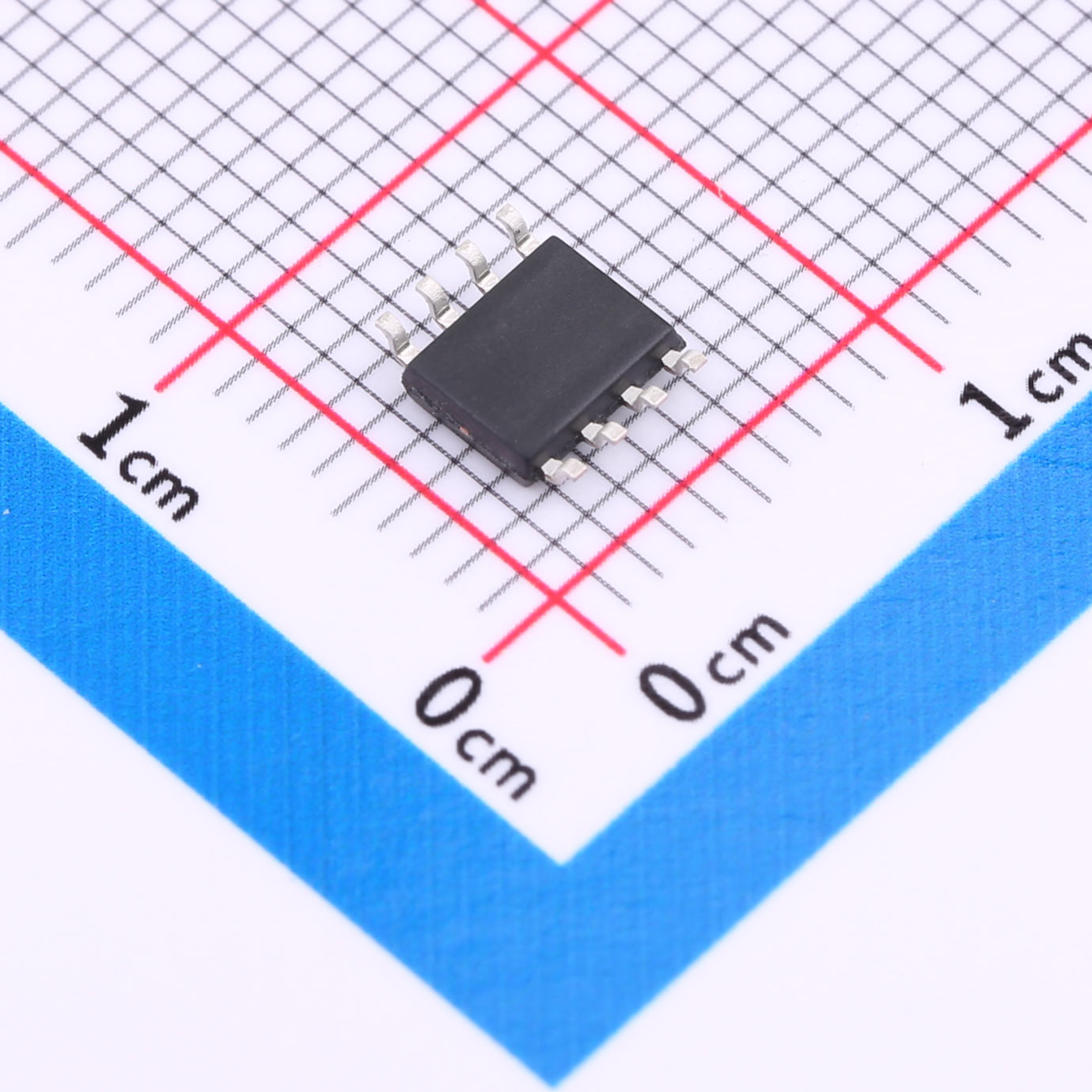

3.3V, High ESD Protected ,1Mbps High Speed CAN Transceiver

Description

l The SL65HVD230 is the interface between the Controller Area Network (CAN) protocol controller and the physical bus. It is designed for use with the 3.3V µPs, MCUs and DSPs with CAN controllers, or with equivalent protocol controller devices. It is used in Industrial Automation, Control, Sensors and Drive Systems, Motor and Robotic Control, Building and Climate Control (HVAC), Telecom and Basestation Control and Status. The devices are intended for use in applications employing the CAN serial communication physical layer in accordance with the ISO 11898 standard.

Features

l Operates with a single 3.3 V Supply

l Compatible With ISO 11898-2 Standard

l Bus Pin ESD Protection Exceeds ±15 kV HBM

l High Input Impedance Allows for Up to 120 Nodes

l Adjustable Driver Transition Times for Improved Emissions Performance

l Low Current Standby Mode 650μA typical

l Designed for Data Rates up to 1 Mbps

l Thermal Shutdown Protection

l Open Circuit Fail-Safe Design

l Glitch Free Power Up and Power Down Protection for Hot Plugging Applications
