5V power supply, 1Mbps high-speed CAN transceiver
Description

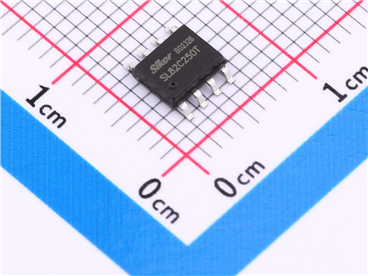

l SL82C250 is the interface between the Controller Area Network (CAN) protocol controller and the physical bus. It is primarily intended for applications up to 1Mbps and is used for in-vehicle and industrial control. The device provides differential transmit capability to the bus and differential receive capability to the CAN controller.
Features
l Full compatible with ISO 11898 standard
l Thermally protected
l Over-current protection function
l Low-current standby mode (<5μA)
l Unpowered nodes don’t interfere with the bus
l At least 110 nodes can be connected
l High-speed CAN, transmit rate up to 1 Mbps
l High anti-electromagnetic interference ability
