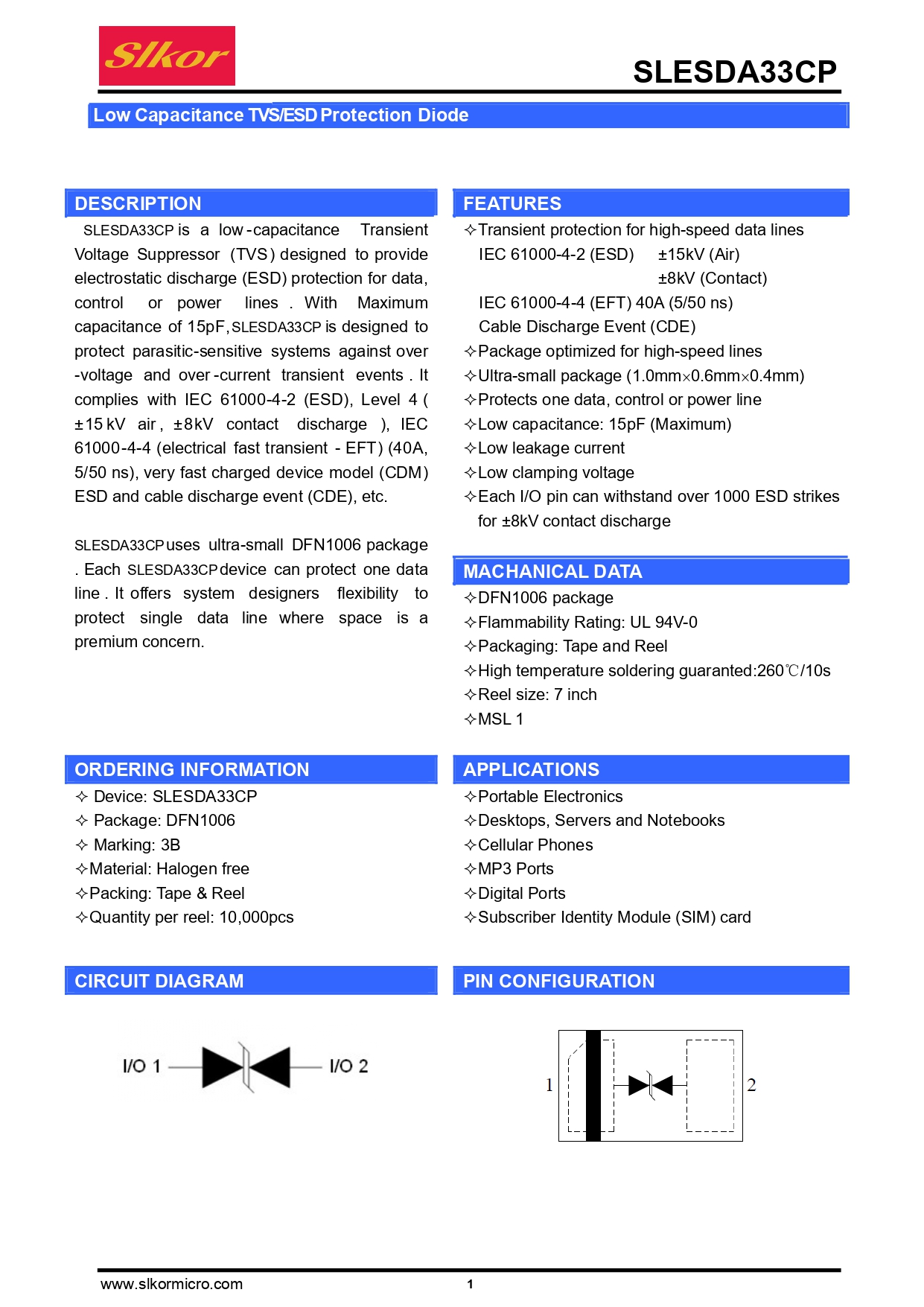

DESCRIPTION

SLESDA33CP is a low-capacitance Transient Voltage Suppressor (TVS) designed to provide electrostatic discharge (ESD) protection for data, control or power lines. With Maximum capacitance of 15pF, SLESDA33CP is designed to protect parasitic-sensitive systems against over-voltage and over-current transient events. It complies with IEC 61000-4-2 (ESD), Level 4 ( ±15kV air, ±8kV contact discharge ), IEC 61000-4-4 (electrical fast transient - EFT) (40A, 5/50 ns), very fast charged device model (CDM) ESD and cable discharge event (CDE), etc.

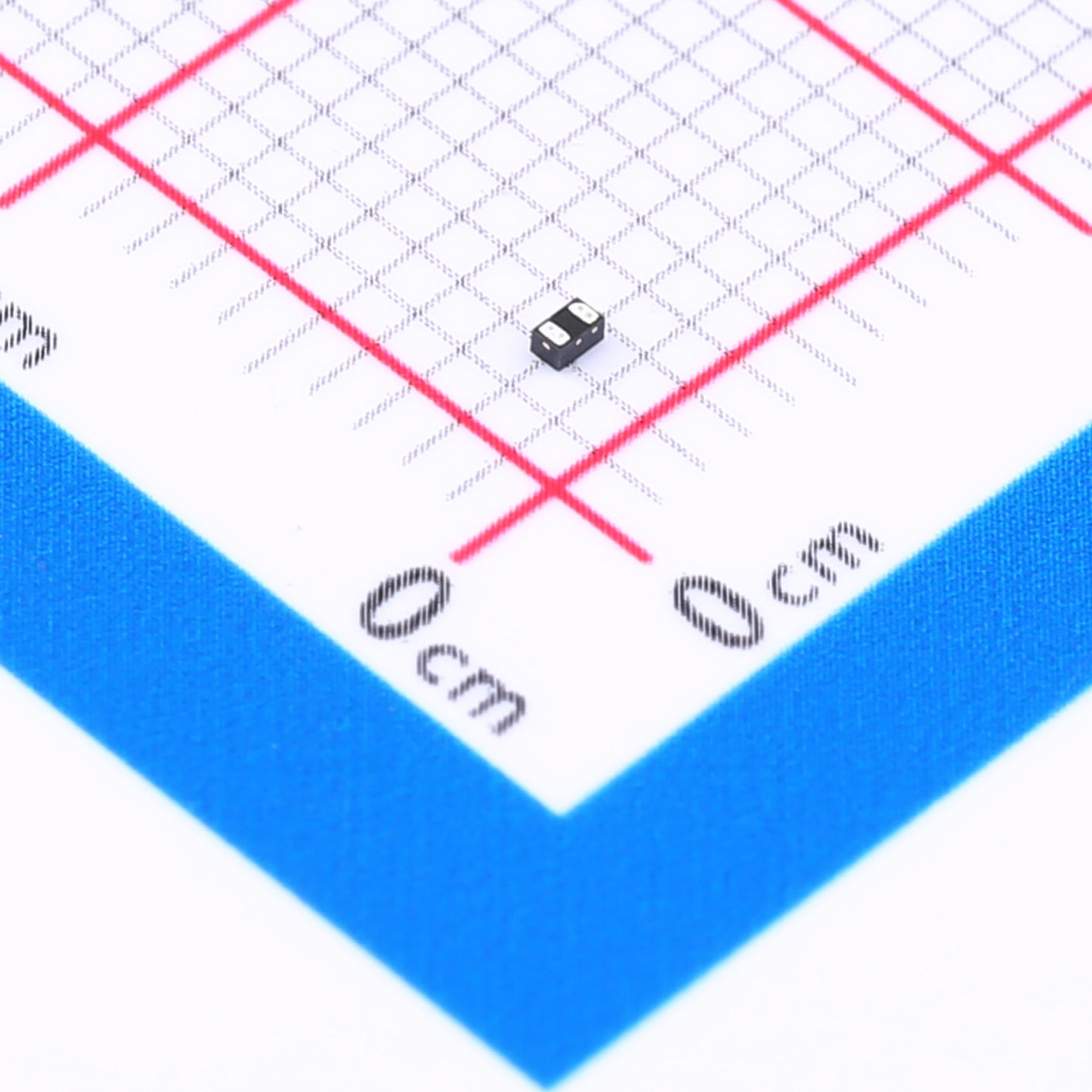

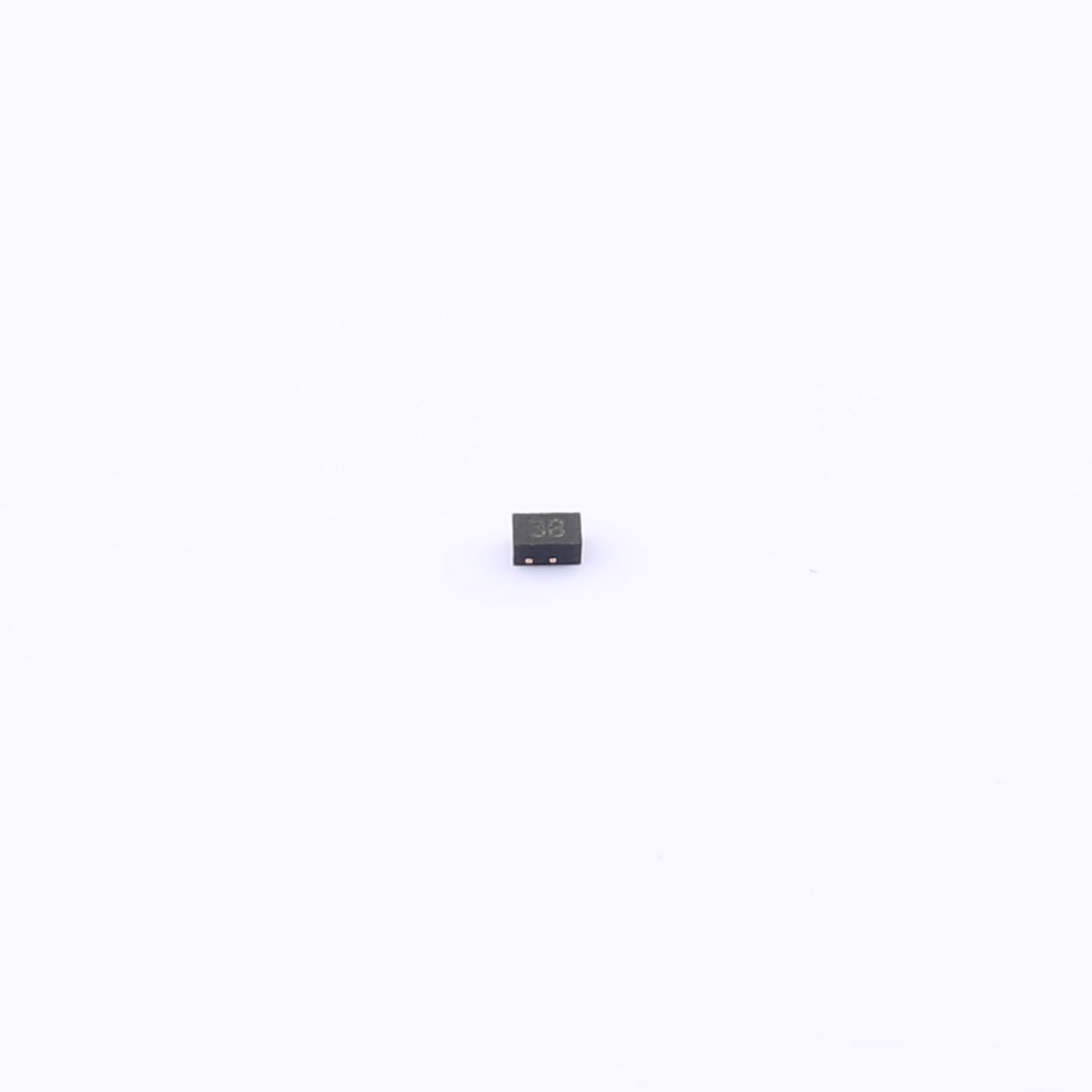

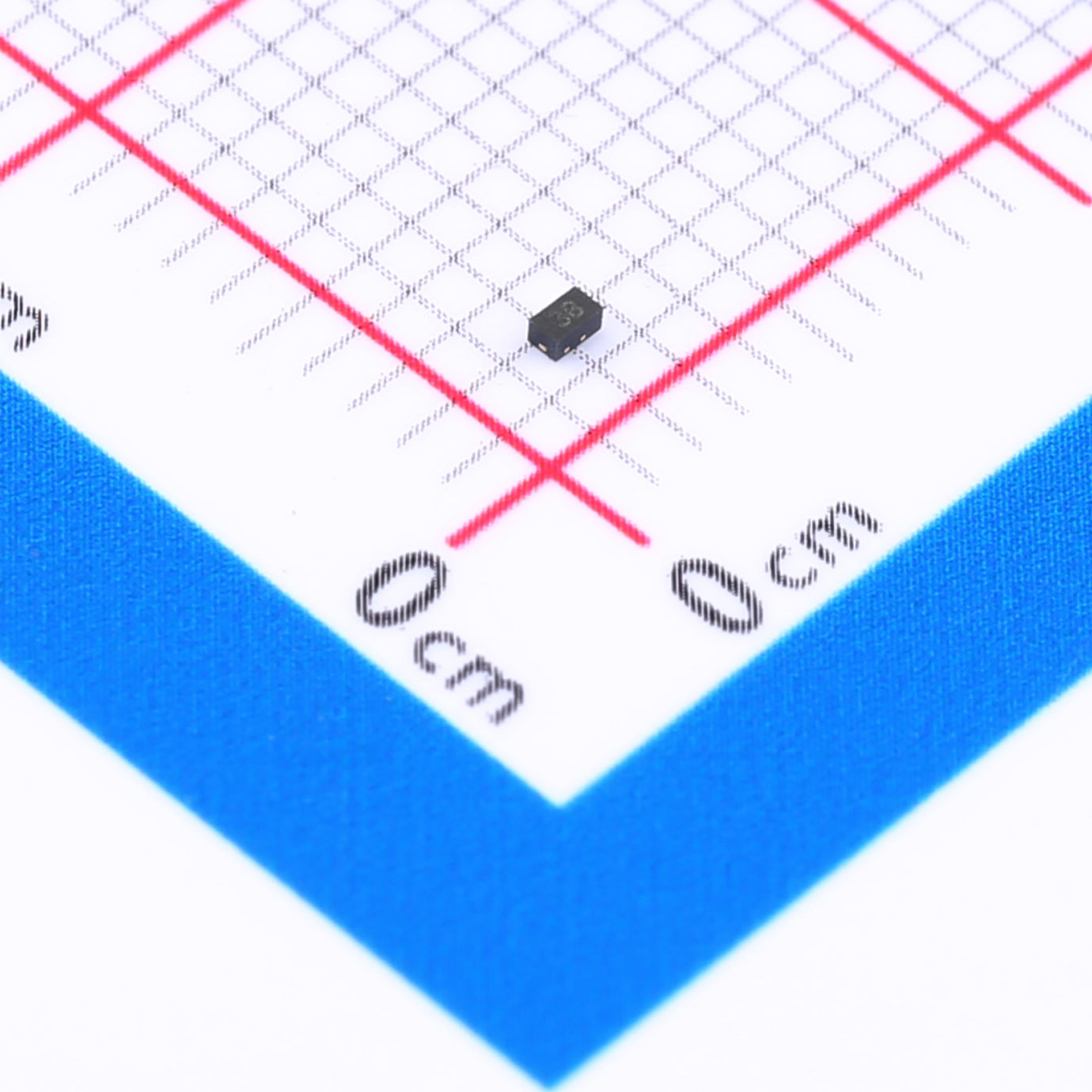

SLESDA33CP uses ultra-small DFN1006 package . Each SLESDA33CP device can protect one data line. It offers system designers flexibility to protect single data line where space is a premium concern.

FEATURES

• Transient protection for high-speed data lines

• IEC 61000-4-2 (ESD)  ±15kV (Air) ±8kV (Contact)

• IEC 61000-4-4 (EFT) 40A (5/50 ns)

• Cable Discharge Event (CDE)

• Package optimized for high-speed lines

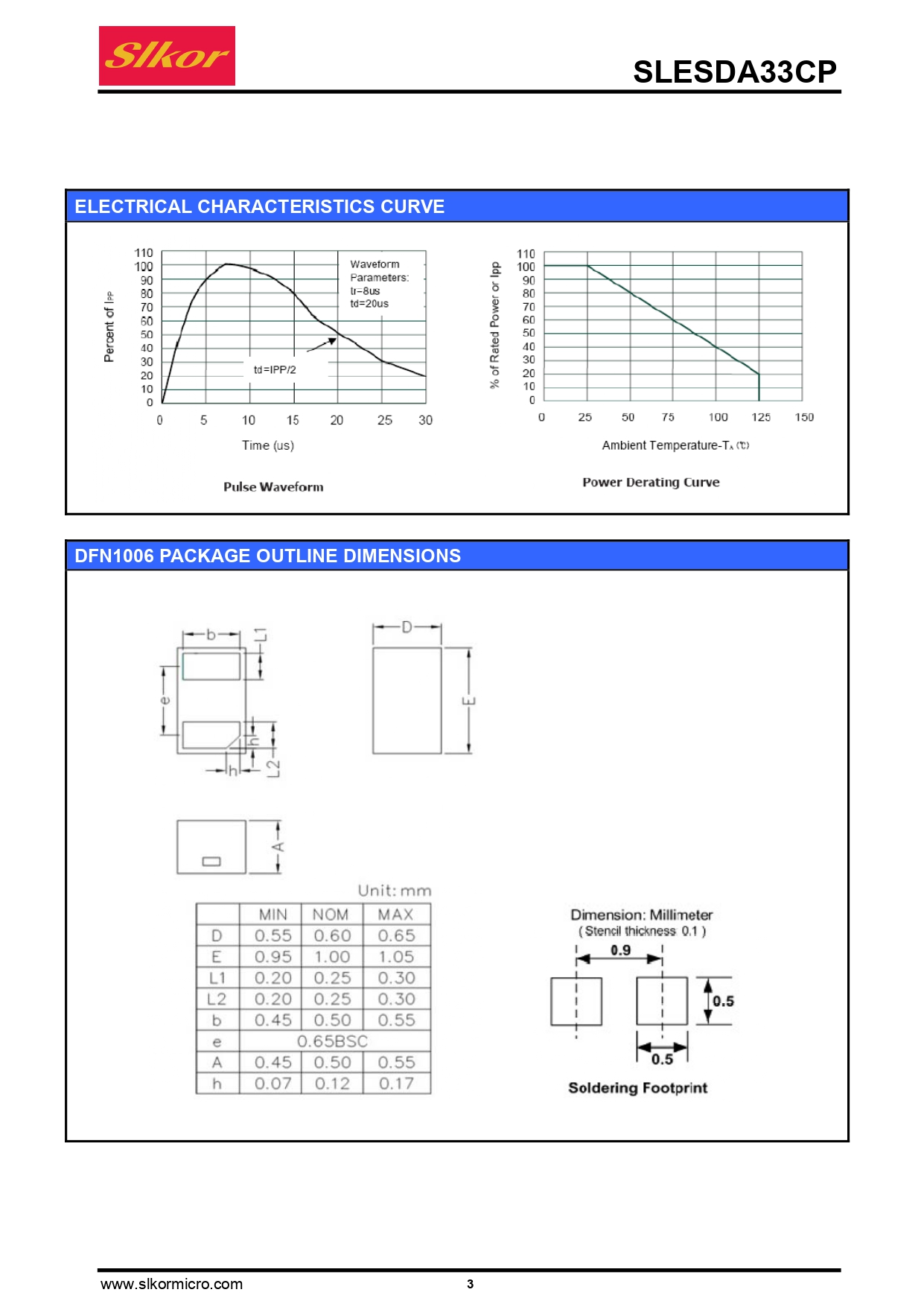

• Ultra-small package (1.0mm 0.6mm 0.4mm) 

• Protects one data, control or power line 

• Low capacitance: 15pF (Maximum)

• Low leakage current

• Low clamping voltage

• Each I/O pin can withstand over 1000 ESD strikes for ±8kV contact discharge

APPLICATIONS

• Portable Electronics

• Desktops, Servers and Notebooks

• Cellular Phones

• MP3 Ports

• Digital Ports

• Subscriber Identity Module (SIM) card
