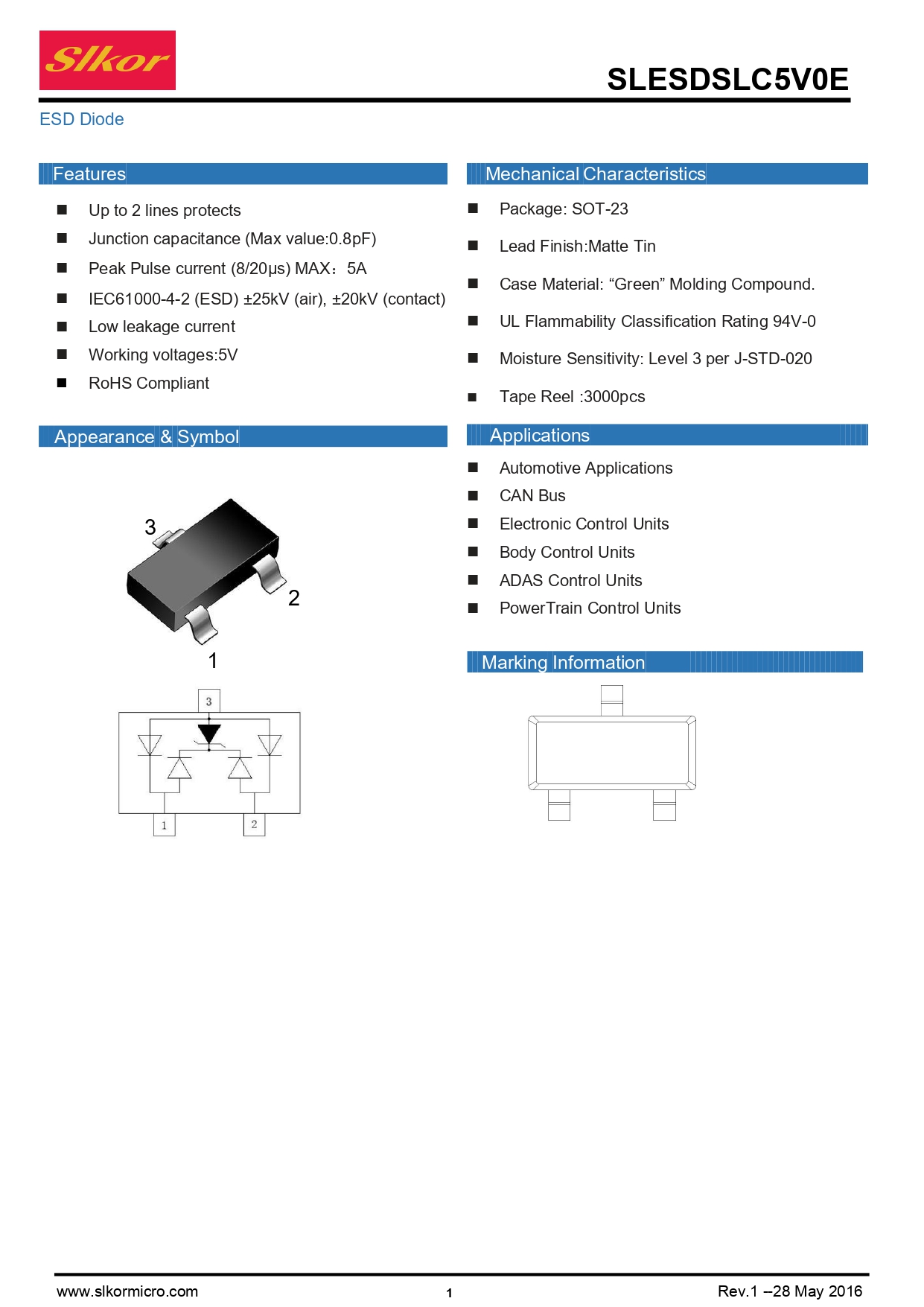

Features

• Up to 2 lines protects

• Junction capacitance (Max value:0.8pF)

• Peak Pulse current (8/20μs) MAX：5A

• IEC61000-4-2 (ESD) ±25kV (air), ±20kV (contact)

• Low leakage current

• Working voltages:5V

• RoHS Compliant

Mechanical Characteristics

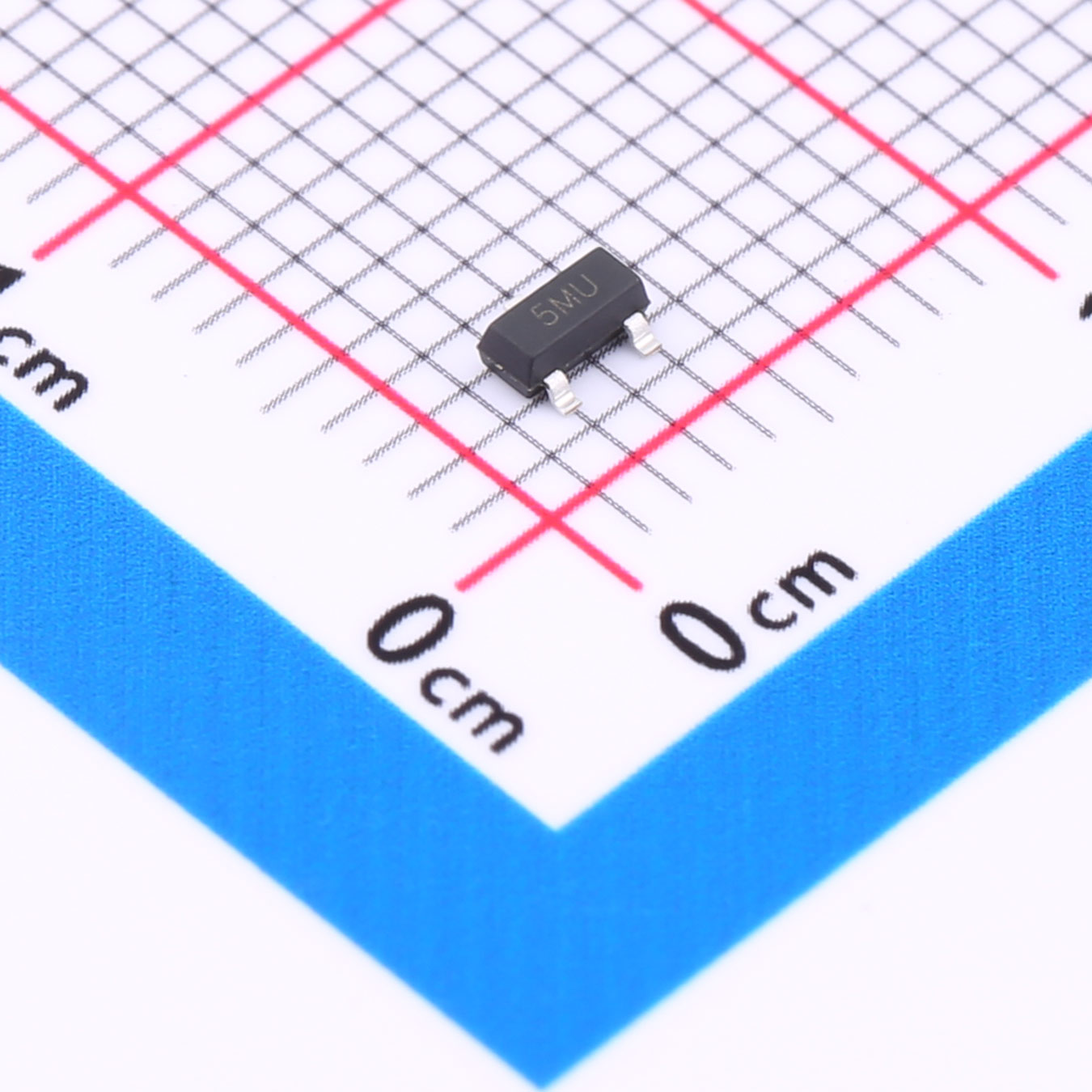

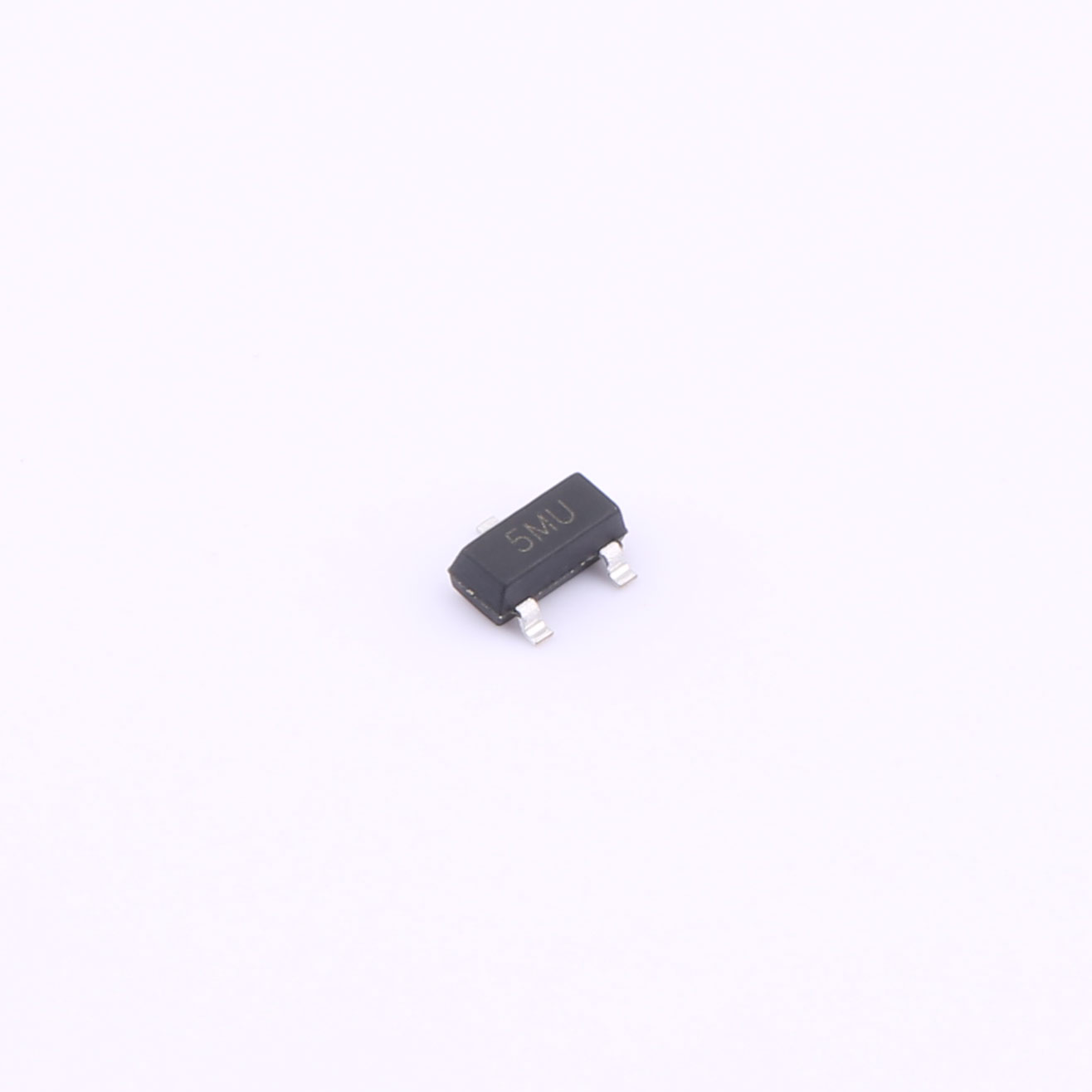

• Package: SOT-23

• Lead Finish:Matte Tin

• Case Material:“Green”Molding Compound. 

• UL Flammability Classification Rating 94V-0

• Moisture Sensitivity: Level 3 per J-STD-020

• Tape Reel : 3000pcs

Applications

• Automotive Applications

• CAN Bus

• Electronic Control Units

• Body Control Units

• ADAS Control Units

• PowerTrain Control Units
