In today’s rapidly evolving smart home ecosystem, smart TVs, as the central entertainment hub, are advancing toward ultra-high-definition displays, high-speed data transmission, and IoT connectivity. However, with increased hardware integration and more complex interfaces, the threat of electrostatic discharge (ESD) to sensitive electronic components has become more prominent. The CESD2510LC5VU ESD protection diode, with its outstanding electrical characteristics and compact design, has become a key component in ensuring the stable operation of smart TVs.

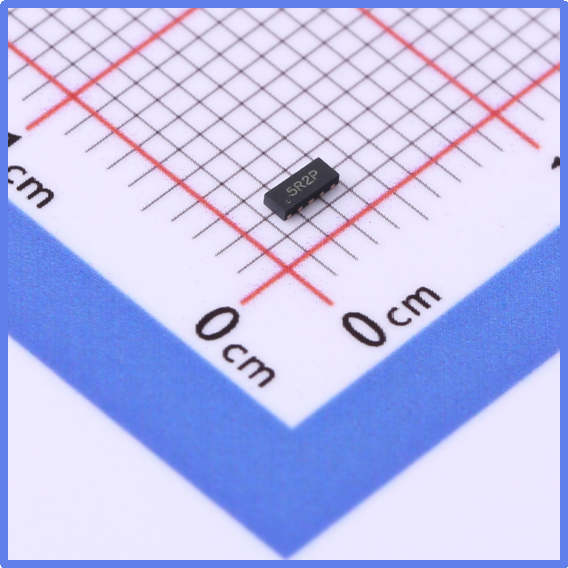

Slkor Electrostatic Discharge Diode CESD2510LC5VU product photo

The Invisible Challenge of Smart TV Interface Protection

Modern smart TVs integrate high-speed interfaces like HDMI 2.1, USB 3.2, Wi-Fi 6E, and Bluetooth 5.3. While these ports enable 4K/8K video streaming and multi-device connectivity, they are also exposed to ESD risks. Electrostatic pulses caused by human contact, environmental interference, or device plugging and unplugging can damage chip pins, data buses, or even display driver circuits, leading to screen freezes, signal interruptions, or permanent hardware failure. Industry statistics show that about 30% of consumer electronics repair cases are ESD-related, necessitating protection devices that offer fast response, low clamping voltage, and high reliability.

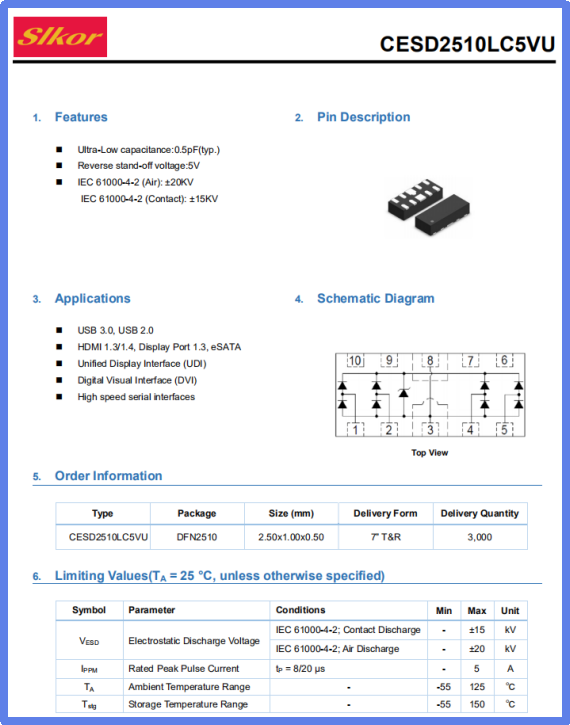

Slkor Electrostatic Discharge Diode CESD2510LC5VU specification

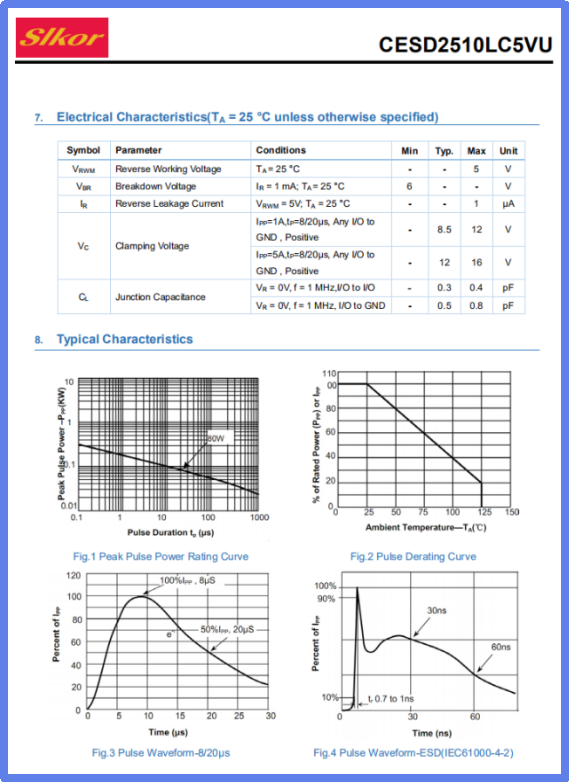

Parameters of Slkor Electrostatic Discharge Diode CESD2510LC5VU

Key Technological Advantages of CESD2510LC5VU

1. Precise Voltage Clamping Capability

The CESD2510LC5VU features a Reverse Working Voltage (VRWM) of 5V, perfectly matching the 3.3V/5V logic levels of mainstream smart TV interfaces. When an ESD surge occurs, its Breakdown Voltage (VBR) minimum of 6V ensures it maintains a high impedance state under normal operating voltages, while its Clamping Voltage (VC) of 16V@5A limits transient over-voltage to a safe range, preventing damage to downstream circuits due to voltage overshoot. This feature is crucial for the integrity of HDMI TMDS signals.

2. Ultra-Low Leakage Current and Capacitance Design

The device’s reverse leakage current (IR) is only 1μA, significantly reducing power consumption in standby mode, meeting energy efficiency standards for smart TVs. Its extremely low junction capacitance (CJ) of 0.8pF minimizes impact on high-speed signals, ensuring that the 10Gbps data transmission rate of USB 3.2 Gen2 is not attenuated while avoiding signal distortion in the 6GHz frequency band of Wi-Fi 6E.

3. Miniaturized Packaging for Compact Designs

The DFN2510 package (2.5mm × 1.0mm) is 60% smaller than the traditional SOT-23, providing spatial redundancy for the dense layout of smart TV motherboards. Its flat structure also enhances heat dissipation, making it suitable for high-heat environments typical of long-term TV operation, thus extending the device’s lifespan.

Typical Application Scenarios in Smart TVs

HDMI Interface Protection: The CESD2510LC5VU is deployed between the HDMI connector and the SoC to suppress ±15kV contact discharge and ±8kV air discharge, ensuring lossless transmission of 4K@120Hz signals.

USB-C Port Protection: For USB-C interfaces supporting DP Alt mode, the device’s low capacitance characteristics prevent video signal attenuation, while its 5A clamping capability handles high-current fast-charging scenarios.

Wireless Module ESD Shielding: Integrated at the Wi-Fi/Bluetooth antenna feed lines, the device prevents spatial ESD interference from degrading RF performance, maintaining stable IoT connectivity.

Side Buttons and Touchpads: The small size of the DFN2510 allows it to be mounted inside ultra-thin frames, protecting physical buttons like the power button and volume controls from electrostatic damage.

Industry Value and Future Outlook

As smart TVs evolve toward Mini LED backlighting, 240Hz variable refresh rates (VRR), and AI-powered picture enhancement, the need for stringent ESD protection in circuit systems is becoming more critical. The CESD2510LC5VU balances protection levels with signal integrity, offering a cost-effective solution for high-end models. Its wide operating temperature range of -55°C to 150°C makes it adaptable to emerging applications such as outdoor displays.

In the smart manufacturing sector, the device meets the AEC-Q101 automotive-grade standard, laying the groundwork for future reliability in in-vehicle entertainment systems. Through deep collaboration with smart TV manufacturers, the CESD2510LC5VU is driving the evolution of consumer electronics protection solutions from "passive response" to "active optimization," building a safer, faster audiovisual experience infrastructure.

Conclusion

The CESD2510LC5VU ESD protection diode, with its precise electrical parameters, miniaturized design, and scene-specific adaptability, acts as an invisible shield against electrostatic threats in smart TVs. In an era where hardware innovation and user experience are deeply interconnected, breakthroughs in such fundamental components are the cornerstone supporting the consumer electronics industry’s advancement to higher levels.
