In the smart home ecosystem, smart air conditioners have evolved from traditional temperature control devices into integrated systems that combine environmental sensing, intelligent interaction, and energy management. However, with the integration of features such as touch controls, wireless communication, and variable frequency drives, the threat of electrostatic discharge (ESD) to circuit systems has become increasingly prominent. The CESD882UC5VB ESD protection diode, with its ultra-low leakage current, miniature packaging, and precise voltage clamping capabilities, has become a key component in ensuring the stable operation of smart air conditioners.

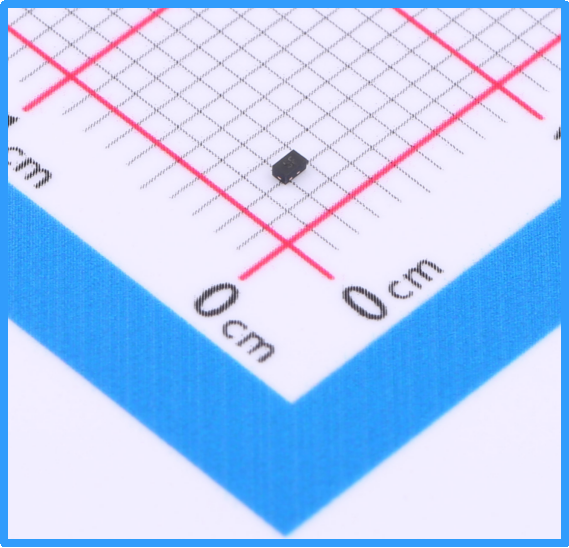

Slkor Electrostatic Discharge Diode CESD882UC5VB product photo

The Challenges of Electrostatic Protection in Smart Air Conditioners

Modern smart air conditioners use touch screens, voice assistants, and mobile apps for human-machine interaction, while also incorporating variable frequency compressors, air quality sensors, infrared human detection modules, and more. These delicate circuits are highly susceptible to ESD intrusions:

1. Touch Panel: Static generated by a user’s fingers could puncture the capacitive touch screen driver chip, leading to touch malfunctions or display issues.

2. Wireless Communication Module: Wi-Fi/Bluetooth antennas may experience signal disruptions or data loss due to spatial ESD interference during data transmission.

3. Power Interface: Transient overvoltage caused by lightning strikes or power grid fluctuations may damage power management chips, leading to system crashes.

4. Variable Frequency Drive Circuit: ESD interference on the gate control signals of IGBT modules could cause compressor malfunctions or power component damage.

According to industry statistics, approximately 25% of failures in consumer electronics are related to ESD. As smart air conditioners have a high degree of integration and are used in complex environments, their protection needs are even more urgent.

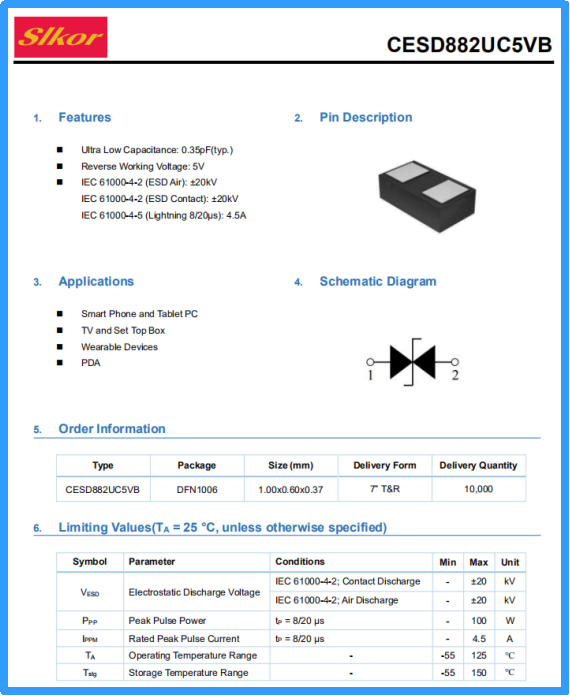

Slkor Electrostatic Discharge Diode CESD882UC5VB specification

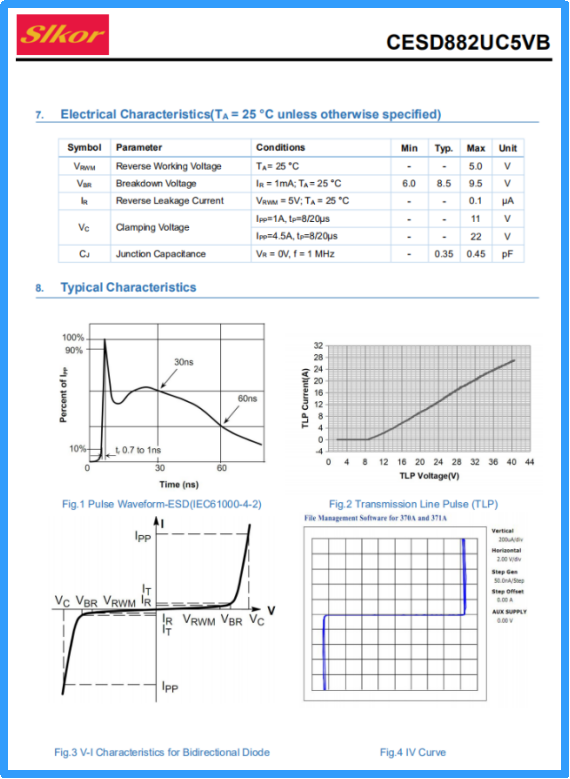

Parameters of Slkor Electrostatic Discharge Diode CESD882UC5VB

Technological Breakthrough of CESD882UC5VB

Manufactured by Slkor, the CESD882UC5VB is designed specifically for small electronic devices. Its technical features are perfectly suited to the needs of smart air conditioners:

1. Precise Voltage Clamping and Low Residual Voltage Design

   - VRWM (Reverse Working Voltage): 5V, compatible with the 3.3V/5V logic levels of mainstream control chips in smart air conditioners.

   - VBR min (Minimum Breakdown Voltage): 6V, ensuring a high impedance state under normal operating voltages.

   - VC (Clamping Voltage): 22V@4.5A, effectively limiting transient overvoltage and protecting downstream circuits.

2. Ultra-Low Leakage Current and Power Consumption Optimization

   - IR (Reverse Leakage Current): 0.1μA, significantly reducing standby power consumption and complying with energy efficiency standards for smart air conditioners.

3. Miniaturized Packaging and Spatial Adaptation

   - DFN1006 Package (1.0mm×0.6mm), 80% smaller than traditional SOT-23 packages, suitable for the dense layout of smart air conditioner motherboards.

4. Ultra-Low Junction Capacitance and Signal Integrity

   - CJ (Junction Capacitance): 0.45pF, minimizing the impact on high-frequency signals and ensuring the signal integrity of Wi-Fi 6E and Bluetooth 5.3.

Typical Applications in Smart Air Conditioners

1. Touch Panel Protection

   The CESD882UC5VB is deployed between the touch screen and the main control chip to suppress ±15kV contact discharge and ±8kV air discharge, ensuring the sensitivity and accuracy of touch operations.

2. Wireless Module ESD Shielding

   Integrated at the Wi-Fi/Bluetooth antenna feedline to prevent spatial ESD interference from affecting radio frequency performance, maintaining stable IoT connectivity.

3. Power Interface Protection

   At the air conditioner power input, the diode’s low residual voltage characteristic effectively absorbs transient overvoltage caused by lightning or power grid fluctuations, protecting power management chips.

4. Variable Frequency Drive Circuit

   In the gate drive circuit of IGBT modules, the CESD882UC5VB suppresses switching noise and ESD interference, ensuring smooth operation and energy efficiency of the compressor.

Industry Value and Future Outlook

As smart air conditioners evolve towards fresh air systems, AI-based adaptive temperature control, and multi-device interconnection, the need for ESD protection in circuit systems becomes more stringent. The CESD882UC5VB strikes a balance between protection level and signal integrity, providing the most cost-effective solution for high-end models. With a wide operating temperature range of -55°C to 150°C, it is also suitable for emerging applications like vehicle air conditioning systems.

In the field of smart manufacturing, this device meets the AEC-Q101 automotive grade standards, providing technological support for the reliability of future vehicle air conditioning systems. Through deep collaboration with smart air conditioner manufacturers, the CESD882UC5VB is advancing consumer electronics protection from "passive response" to "active optimization," helping to create safer and smarter indoor environment control systems.

Conclusion

The CESD882UC5VB ESD protection diode, with its precise electrical parameters, miniaturized design, and tailored adaptation capabilities, has become an invisible shield protecting smart air conditioners from electrostatic threats. In today’s environment where hardware innovation is deeply tied to user experience, such breakthroughs in basic components are the cornerstone supporting the smart home industry’s advancement to higher dimensions.
