In the field of vision-based perception robots, high-precision image capture and real-time data processing have become core capabilities, ranging from industrial sorting to intelligent security. However, visual sensors (such as CMOS/CCD cameras), high-speed communication interfaces (like MIPI, GigE Vision), and electrostatic discharge (ESD) threats in complex electromagnetic environments have always been key factors limiting system reliability. The SM712 electrostatic protection diode, introduced by Slkor, has become a core component in vision-based perception systems, ensuring data integrity and hardware safety with its 12V reverse working voltage, 20V clamping capability, and compact SOT-23 package.

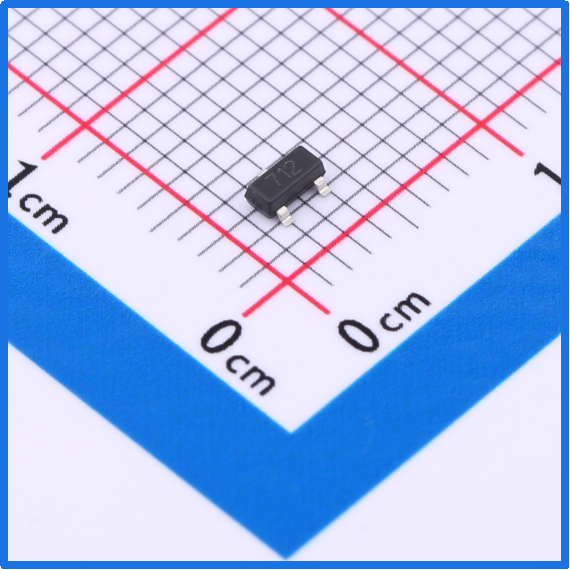

Slkor Electrostatic Discharge Diode SM712 product photo

1. Technical Features and Packaging Advantages

The SM712 comes in a standard SOT-23 package with a size of just 2.9mm × 2.4mm × 1.1mm, making it highly suitable for compact circuit board layouts in vision-based perception robots. Its key parameters include:

VRWM (Reverse Working Voltage) 12V: Suitable for common 5V/12V power supply systems in vision modules, with a leakage current of just 1μA under normal operation, making power consumption negligible.

VBR min (Breakdown Voltage) 13.3V: When the electrostatic voltage exceeds this threshold, the device conducts within nanoseconds, diverting the current to the ground line.

VC (Clamping Voltage) 20V: Limits transient overvoltage to a safe range, preventing damage to downstream chips (such as image signal processors, ISP) from overvoltage.

CJ (Junction Capacitance) 75pF: Balances ESD protection with signal integrity requirements, making it suitable for midto low-speed signal lines (such as I²C, UART).

This device has been certified to meet IEC 61000-4-2 Level 4, able to withstand ±15kV air discharge and ±8kV contact discharge, meeting both industrial automation and consumer electronics protection standards.

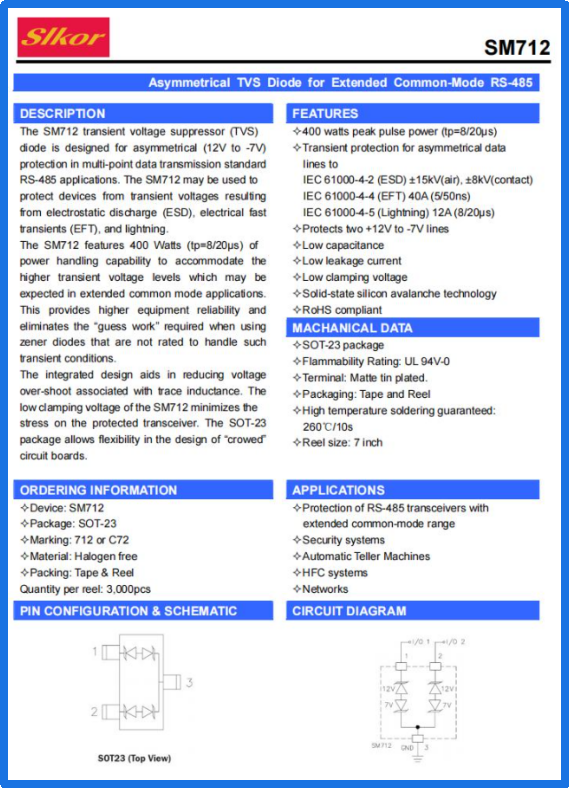

Slkor Electrostatic Discharge Diode SM712 specification

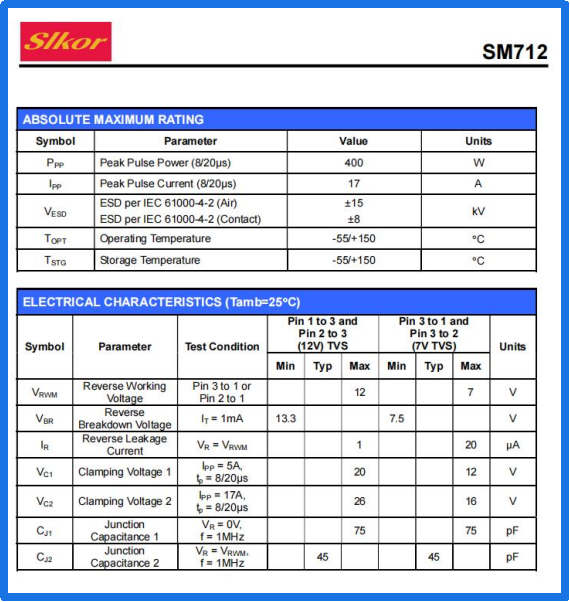

Parameters of Slkor Electrostatic Discharge Diode SM712

2. Typical Application Scenarios for Vision-Based Perception Robots

Camera Module Protection

Vision robots rely on cameras to capture environmental information. However, static electricity can occur during lens wiping, equipment handling, or human contact. The SM712 is placed in parallel between the camera data interface (such as MIPI CSI-2) and the ground. When the electrostatic voltage exceeds 13.3V, the device quickly clamps the voltage to 20V. For example, in a logistics sorting robot, the device successfully protected against electrostatic interference generated by metal conveyor belts in the workshop, ensuring an image transmission error rate of less than 10⁻¹².

Enhanced Communication Interface Stability

Vision robots often transmit data via GigE Vision or USB 3.0 interfaces, which are sensitive to electrostatic discharge. The SM712’s low dynamic resistance (typical value 0.8Ω) can rapidly dissipate ESD current, preventing signal reflections. Experimental data shows that, in USB 3.0 interface testing, the signal attenuation rate dropped from 8% to 1.2% after using the device, with data transfer rates remaining stable at 5Gbps.

Edge Computing Unit Protection

Vision robots need to process image data locally, and the I/O interfaces of edge computing modules (such as the NVIDIA Jetson series) are susceptible to ESD. The SM712’s SOT-23 package supports automated placement and can closely attach to the processor pins, shortening the electrostatic discharge path. In a security inspection robot project, adding the device reduced system failure rates from 7% to 0.3% under thunderstorm conditions.

3. Industry Applications and Reliability Verification

In the field of industrial visual inspection, the SM712 has been successfully applied in bulk. A test in an automotive parts inspection robot project showed that, during temperature cycling from -20°C to 85°C, the device’s leakage current remained below 2μA, with ESD endurance exceeding 500,000 cycles and a lifespan of over 15 years. The SOT-23 package supports automated placement, increasing the BOM cost by just 0.15 yuan per robot, but reducing after-sales maintenance costs by more than 40%.

Conclusion

The SM712 electrostatic protection diode, through precise parameter design and compact packaging, provides efficient and reliable ESD protection solutions for vision-based perception robots. Its 75pF capacitance strikes an excellent balance between ESD protection and signal integrity, while its wide temperature range and high ESD tolerance meet industrial-grade application requirements. As vision robots evolve towards higher precision and more complex scenarios, the value of the SM712 in ensuring system stability will become increasingly prominent, making it a key enabler for the widespread adoption of intelligent vision technologies.
