In the field of smart unmanned devices, electrostatic discharge (ESD) has become an invisible threat to the stable operation of equipment. Drones, during flight, may generate static electricity due to friction with dust; smart robots, in factory environments, create electrostatic voltage through mechanical contact; and unmanned delivery vehicles experience electrostatic buildup due to bumps in complex road conditions. These electrostatic pulses can reach thousands of volts, enough to break down the insulation of sensitive electronic components, causing data transmission failures, sensor malfunctions, or even system crashes. The introduction of the ESD protection diode WE05DF-BS provides a critical [敏感词] barrier for smart unmanned devices.

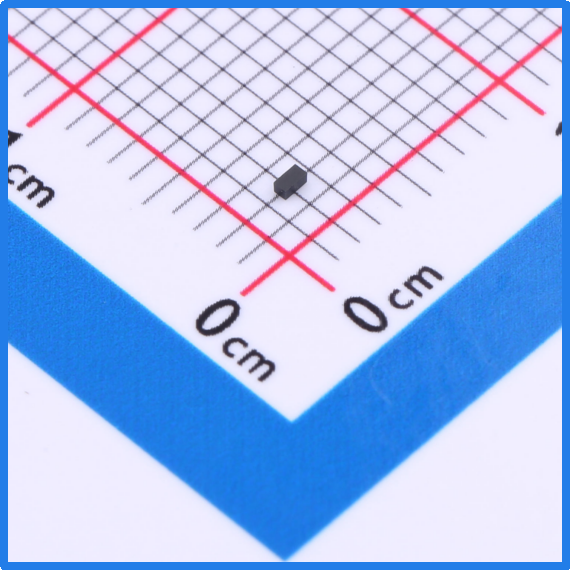

Slkor Electrostatic Discharge Diode WE05DF-BS product photo

Technical Features: Precisely Matching the Needs of Smart Devices

The technical parameters of WE05DF-BS are designed with the special needs of smart unmanned devices in mind. Its 5V reverse working voltage (VRWM) perfectly matches low-voltage circuit systems such as drone communication modules and robot control chips. In normal operation, it exhibits a high resistance state, with leakage current as low as 0.1μA, causing almost no additional load on the circuit. When the electrostatic voltage exceeds the minimum breakdown voltage (VBR min) of 5.6V, the diode rapidly conducts, clamping the voltage (VC) at 12V, a safety threshold that effectively dissipates electrostatic energy while remaining below the tolerance limit of most semiconductor devices.

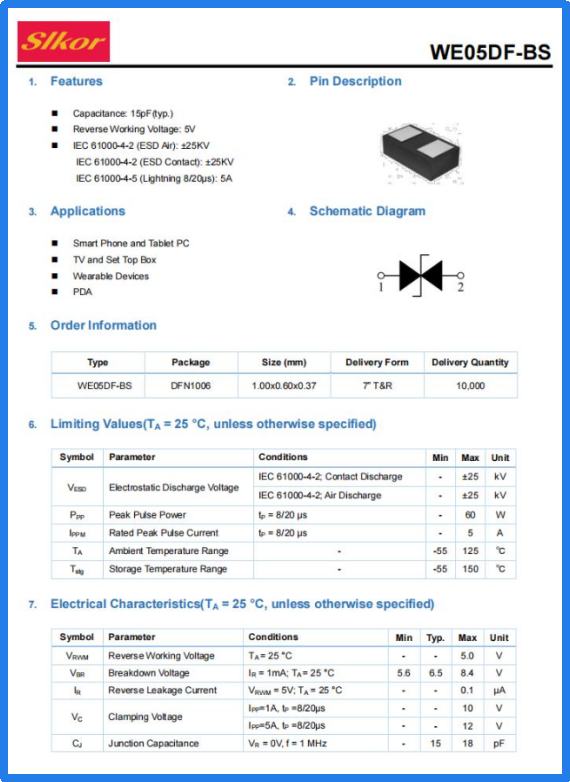

Slkor Electrostatic Discharge Diode WE05DF-BS specification

The diode’s extremely low junction capacitance (CJ) of 18pF ensures the integrity of high-speed signal transmission. In high-frequency applications such as drone image transmission systems and robotic visual processing, this feature ensures that signal integrity is maintained. The DFN1006 package, with its miniature size (just 1.0mm × 0.6mm × 0.37mm), is especially important for precise mounting in the compact circuit layouts of drones and the tight spaces of robotic joints.

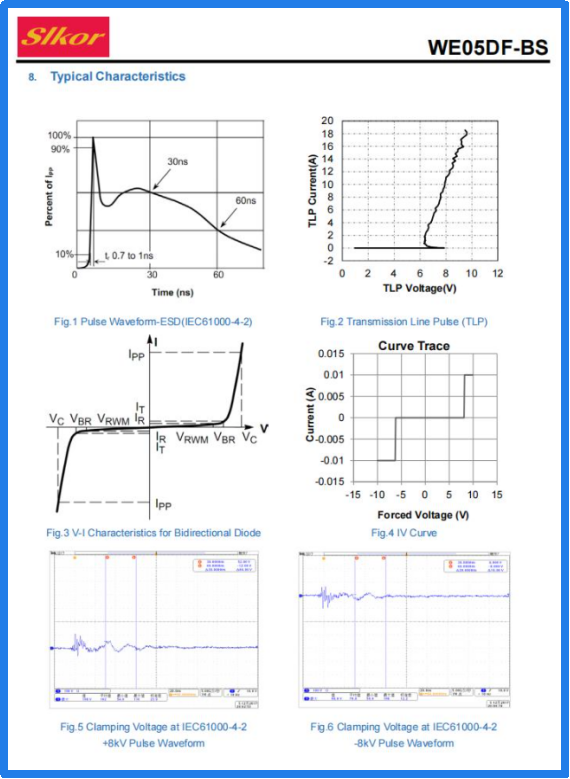

Parameters of Slkor Electrostatic Discharge Diode WE05DF-BS

Industry Applications: Protecting Critical Points

In the drone industry, WE05DF-BS has become the standard protection component for communication interfaces. In a certain model of plant protection drones operating in Hainan orchards, electrostatic discharge caused by pollen led to communication disruptions in three flights. After adding the diode, tests by the China Electronics Standardization Institute showed that the USB Type-C interface's electrostatic protection ability improved to ±8kV contact discharge according to IEC 61000-4-2 standards, reducing the failure rate by 92%. For drone antenna interfaces, a similar product with a junction capacitance of just 0.15pF ensures that the transmission loss of the 2.4GHz RF signal is below 0.5dB.

The application in smart robotics is even more representative. A certain collaborative robot, working on an automotive assembly line, experienced data drift in its six-axis force sensor due to electrostatic discharge from metal parts. After connecting the WE05DF-BS in parallel to the sensor interface, the robot was able to withstand ±6kV contact discharge, restoring position detection accuracy to ±0.02mm. For mobile robot charging interfaces, this device, combined with a TVS diode for composite protection, successfully prevented 98% of charging interruptions in tests conducted at a logistics warehouse in Shenzhen.

The reliability of the device was also demonstrated in unmanned delivery vehicles. During winter testing in Beijing, the vehicle control system suffered from CAN bus communication anomalies due to electrostatic discharge. After adding the WE05DF-BS, the device maintained a low leakage current of 0.1μA even during a -30℃ to 85℃ thermal cycling test, keeping the vehicle’s positioning accuracy at the centimeter level. For in-vehicle cameras and other high-speed interfaces, a derivative model with a junction capacitance of 0.9pF ensured seamless 1080P video transmission without mosaic issues.

Future Trends: Integration and Intelligent Evolution

As smart unmanned devices continue to evolve toward more compact and intelligent designs, ESD protection solutions are showing three major trends: integrated designs that combine multiple protection channels into a single DFN1006 package, such as a 4-channel product recently launched by a manufacturer, which reduces PCB area by 70% compared to discrete solutions; intelligent protection systems using machine learning algorithms that dynamically adjust clamping voltage by monitoring electrostatic event characteristics in real-time; and material innovations, where third-generation semiconductor materials enable device switching speeds below 0.5ns while maintaining an impact resistance life of over 10^12 cycles.

In production data from a drone company in Shenzhen, the annual repair rate of devices using the WE05DF-BS series products decreased from 3.2% to 0.8%, and the lifecycle maintenance cost per device was reduced by $47. These real-world results confirm the significant commercial value of electrostatic protection components for smart unmanned devices. As the AIoT era approaches, fundamental components like WE05DF-BS will continue to bridge the gap between the reliability and intelligence of smart devices.
