In today's world of heightened awareness about personal health, devices such as smart wristbands, health monitors, and home medical equipment are penetrating daily life with an annual growth rate of over 20%. These devices rely on biosensors to collect real-time data on vital signs such as heart rate, blood oxygen levels, and body temperature, providing a scientific foundation for health management. However, behind the sophisticated sensor arrays and wireless transmission modules, an invisible threat—electrostatic discharge (ESD)—is jeopardizing the stability of these devices. This article will focus on the SLESD5Z5V0 electrostatic protection diode, highlighting its crucial protective value in smart health devices.

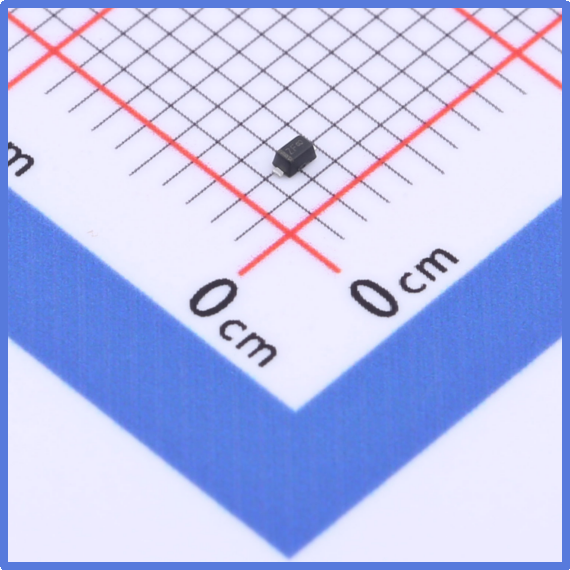

Slkor Electrostatic Discharge Diode SLESD5Z5V0 product photo

1. ESD Challenges in Smart Health Devices: Tiny Components Facing Intense Interference

The user interfaces of smart health devices are highly integrated, with sensitive components such as touchscreens, bioelectrodes, and wireless charging coils directly exposed to the environment. When the human body carries static electricity (e.g., the thousands of volts generated by friction from winter clothing) and comes into contact with these devices, three major risks can arise:

1. Sensor Accuracy Loss: ESD impacts could cause MEMS sensors to drift, leading to heart rate monitoring errors of over ±5%.

2. Communication Module Failure: Bluetooth/Wi-Fi chips might lose data packets under ESD stress, resulting in health data synchronization failures.

3. Component Damage: Repeated ESD impacts accelerate the aging of components such as capacitors and resistors, shortening the device's lifespan.

For instance, in a medical-grade pulse oximeter, its optical sensor is highly sensitive to voltage fluctuations. A single ESD event could cause measurement deviations of over 10%, directly affecting clinical diagnostic accuracy.

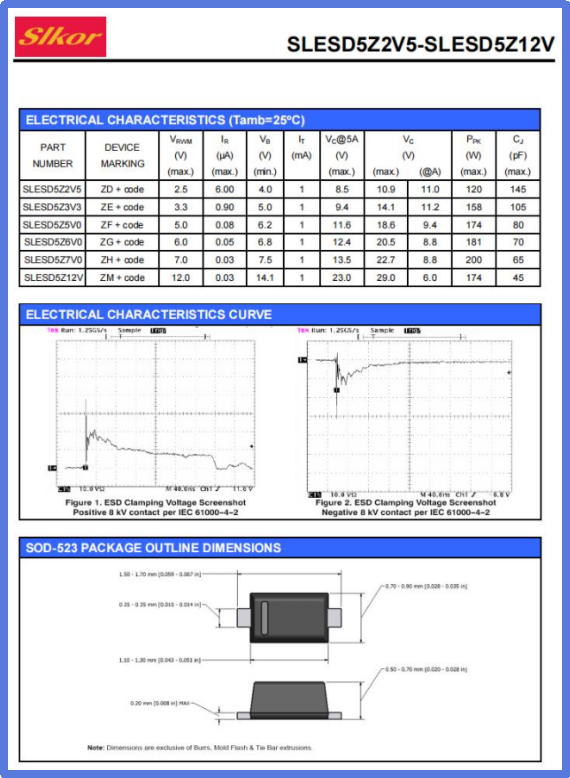

Slkor Electrostatic Discharge Diode SLESD5Z5V0 specification

2. SLESD5Z5V0 Technical Features: Precisely Matching the Needs of Health Devices

As an ESD protection device designed for portable electronics, the SLESD5Z5V0 offers efficient protection with its ultra-compact SOD-523 package (measuring just 1.2×0.8mm). Its key parameters are finely tuned to meet the requirements of smart health devices:

- VRWM=5V (Reverse Working Voltage): Perfectly matches the 3.3V/5V power systems commonly used in health devices, maintaining a high impedance state under normal operating voltages to prevent signal degradation.

- VBR min=6.2V (Breakdown Voltage Lower Limit): When ESD voltage exceeds 6.2V, the diode rapidly conducts and clamps the voltage to a safe level. This threshold design effectively filters out low-amplitude interference such as switching power supply noise, while responding to high-pressure ESD threats.

- VC=11.6V (Clamping Voltage): In IEC 61000-4-2 tests (contact discharge ±8kV), the SLESD5Z5V0 limits transient voltages to within 11.6V, well below the maximum voltage tolerance of health device main control chips (typically rated at 12-15V), providing reliable protection.

- CJ=80pF (Junction Capacitance): The moderate capacitance design balances signal integrity and protection performance. For example, in electrocardiogram monitoring, the 80pF capacitance results in less than 0.2dB signal attenuation at 0.1-100Hz, ensuring that data remains distortion-free.

- IR=0.08μA (Reverse Leakage Current): At a 5V operating voltage, the leakage current is just 0.08μA, with annual power consumption under 0.007mWh, making its impact on battery-powered health devices negligible.

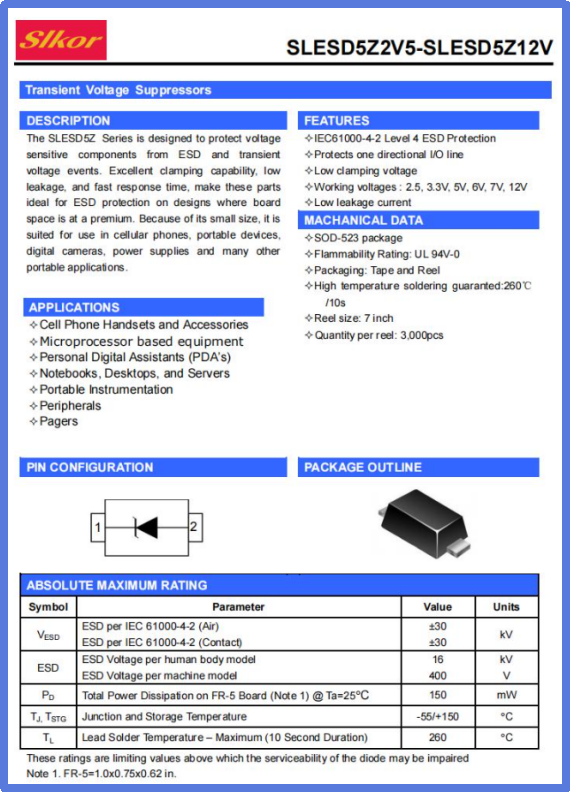

Parameters of Slkor Electrostatic Discharge Diode SLESD5Z5V0

3. Typical Application Scenarios in Smart Health Devices

- Biosensor Protection:

In photoplethysmography (PPG) sensor circuits, the SLESD5Z5V0 is connected in parallel between the sensor pins and ground to discharge static electricity in real time. Its fast response time (<1ns) effectively suppresses electromagnetic interference (EMI) caused by ESD, preventing erratic heart rate monitoring data.

- Wireless Charging Interface Protection:

For wireless charging coil feedlines, the SLESD5Z5V0 uses a π-type filter network design. In addition to suppressing ESD, its 80pF capacitance and inductance form a low-pass filter that attenuates high-frequency noise during the charging process, enhancing charging stability.

- Touch Interface Protection:

In capacitive touch screen circuits, the SLESD5Z5V0 is deployed at the I/O ports of the touch controller chip, preventing ESD from damaging the touch sensor array and preventing high-voltage backflow to the main control chip, ensuring smooth operation.

4. Conclusion: The Future Evolution of Invisible Guardians

As smart health devices evolve towards medical-grade precision and multi-modal monitoring, the demands for ESD protection will become more stringent. The SLESD5Z5V0 represents the "small size, low capacitance, and high integration" technological trend, which is rapidly becoming the industry standard. In the future, through deep collaboration with the main control chips of health devices, ESD protection devices may implement adaptive threshold adjustment and fault diagnosis capabilities, further solidifying the security foundation of health monitoring.

Every time users wear health devices to monitor their vital signs, the SLESD5Z5V0 quietly fulfills its mission—neutralizing invisible threats, ensuring that technological care truly reaches the realm of health management.
