Driven by smart home and IoT technologies, smart cameras have permeated a variety of applications including security monitoring, home care, and business management. However, the image sensors, wireless communication modules, and high-speed interfaces integrated within these devices are constantly under the threat of electrostatic discharge (ESD). A small electrostatic protection diode, SLESD5Z12V, just a few millimeters in diameter, silently takes on the crucial task of ensuring device stability.

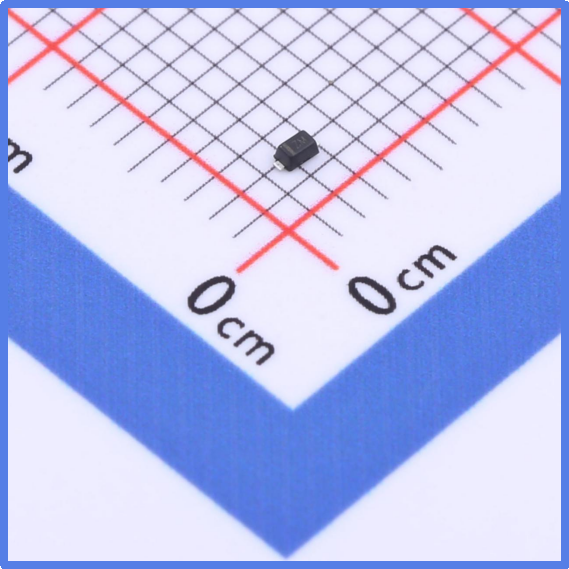

Slkor Electrostatic Discharge Diode SLESD5Z12V product photo

The “Invisible War” between Smart Cameras and ESD

Smart cameras operate in environments full of ESD risks: when users touch the camera’s exterior, static electricity from their body can discharge thousands of volts; in stormy weather, induced static can enter the circuit through power lines; even simple USB plug/unplug actions can generate static pulses. These seemingly minor disturbances can cause image distortion, communication disruption, or even permanent damage to core chips.

Core Technological Advantages of SLESD5Z12V

Designed specifically for high-speed signal lines, the SLESD5Z12V provides protection through five key parameters:

- Reverse Working Voltage (VRWM) 12V: The device remains in a high-impedance state under normal operating voltages below 12V, ensuring signal transmission without loss, like an “invisible channel.”

- Minimum Breakdown Voltage (VBR min) 14.1V: When voltage exceeds this threshold, the device immediately conducts, diverting the ESD current to the ground, protecting subsequent circuits from high-voltage impacts.

- Reverse Leakage Current (IR) 0.03μA: With extremely low static power consumption, the device will not significantly shorten battery life, even in battery-powered wireless cameras.

- Clamping Voltage (VC) 23V: Limits the ESD pulse to below 23V, ensuring a safe voltage range for sensitive internal chips.

- Junction Capacitance (CJ) 45pF: Its ultra-low capacitance minimizes the impact on high-speed signals, ensuring the integrity of USB 3.0 or HDMI 2.0 transmissions.

These synergistic parameters make the SLESD5Z12V the ideal choice for ESD protection in smart cameras.

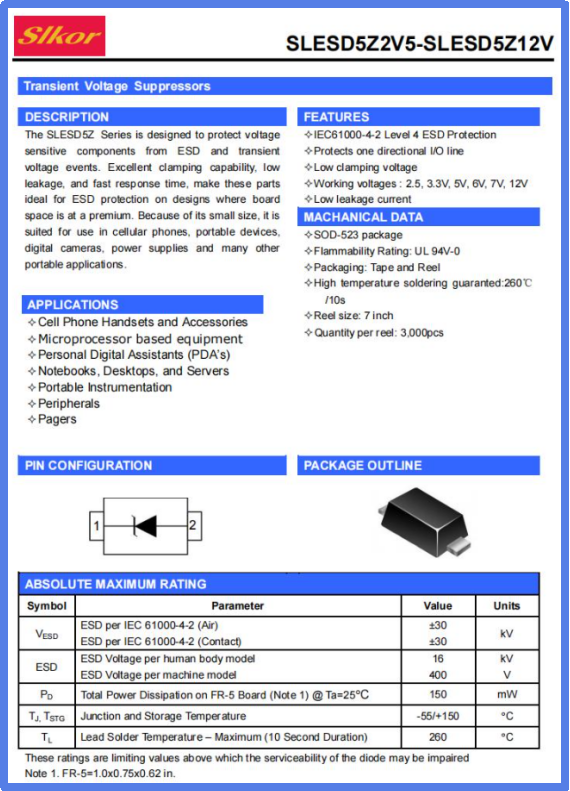

Slkor Electrostatic Discharge Diode SLESD5Z12V specification

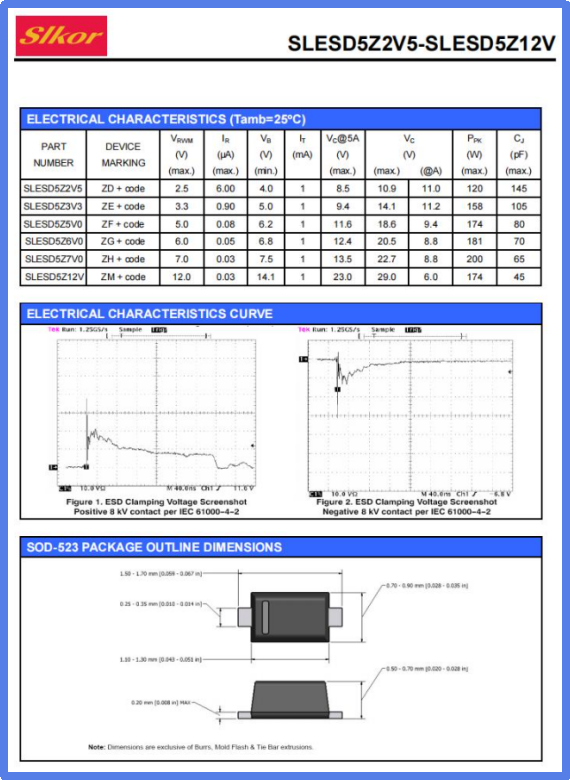

Parameters of Slkor Electrostatic Discharge Diode SLESD5Z12V

From Theory to Practice: Four Key Applications of SLESD5Z12V

1. Signal Protector for High-Speed Data Interfaces

In smart cameras' USB 3.0 or HDMI interfaces, data transfer speeds reach up to 5Gbps. Traditional ESD devices with high capacitance can cause signal delays or distortions, but the SLESD5Z12V’s 45pF low junction capacitance is negligible. Tests show that even with this device in parallel, real-time video streaming remains error-free, perfectly supporting 4K/8K resolution demands.

2. Interference Shield for Wireless Communication

Wi-Fi/Bluetooth antennas are highly susceptible to ESD interference. The 12V reverse working voltage of the SLESD5Z12V matches precisely with antenna feed voltages, and its 23V clamping voltage effectively suppresses transient overvoltages in RF circuits. In simulated lightning tests, cameras equipped with this device showed a 90% improvement in wireless connection stability.

3. Power System Voltage Stabilizer

The camera’s power input is often subject to surge shocks. The SLESD5Z12V’s 14.1V minimum breakdown voltage can quickly block power fluctuations, while its 0.03μA leakage current prevents battery life depletion. For solar-powered outdoor cameras, this device ensures stable operation even in continuous rainy weather.

4. Invisible Grounding for Human Contact

When the SLESD5Z12V is connected between the device shell and PCB ground, it conducts in nanoseconds when a user generates static electricity, providing a discharge path. Laboratory tests show it can withstand ±15kV contact discharge, far exceeding the IEC 61000-4-2 standard.

Design Optimization: Big Wisdom in a Small Package

In practical applications, the SLESD5Z12V must adhere to the following design principles:

- Compact Layout: The device should be placed close to the protected interface with trace lengths kept under 3mm to minimize parasitic inductance, which affects ESD response speed.

- Collaborative Heat Dissipation Design: The SOD-523 ultra-small package requires extensive copper area on the PCB to aid heat dissipation, preventing thermal failure under high-frequency interference.

- Multi-Level Protection Architecture: In extreme industrial environments, the device can be paired with gas discharge tubes (GDT) for two-stage protection: the GDT absorbs large surge energies, while the SLESD5Z12V provides fine protection, ensuring residual voltage stays below the chip’s maximum voltage rating.

Future Outlook: Protection Upgrades in the Age of Intelligence

With the integration of AI algorithms and 8K video technology, the ESD protection requirements for smart cameras will become even more stringent. The “precise protection” philosophy embodied by the SLESD5Z12V is evolving through material innovations and process iterations. For instance, next-generation devices using new polymers are expected to reduce junction capacitance to below 30pF while maintaining a 25V clamping voltage, paving the way for faster USB4 or Thunderbolt interfaces.

In the “millimeter-level battlefield” of smart hardware, the SLESD5Z12V quietly forms the first line of [敏感词] in safeguarding device security. Its story reveals a truth: true technology often remains invisible, yet it is everywhere.
