In the wave of smart home technology, smart speakers have become the central hub for home entertainment, information retrieval, and Internet of Things (IoT) control. However, their highly integrated electronic components and complex working environments make electrostatic discharge (ESD) protection crucial to ensure the stability of these devices. A small electrostatic protection diode, SLESD2105L, just a few millimeters in diameter, quietly shoulders the responsibility of protecting the "auditory nerves" of smart speakers.

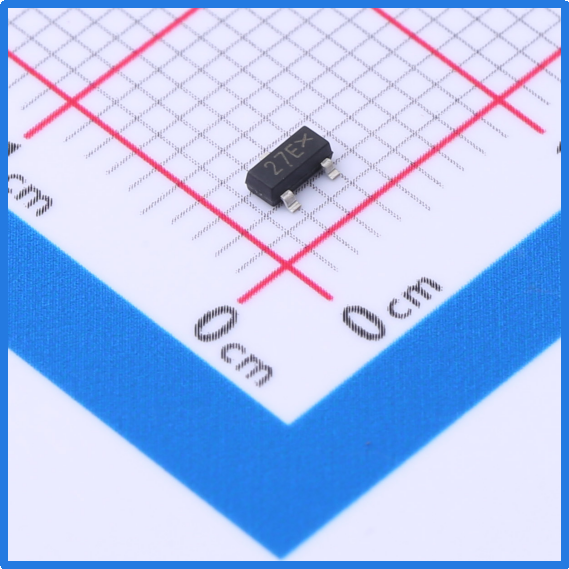

Slkor Electrostatic Discharge Diode SLESD2105L product photo

The "Invisible Battlefield" of ESD in Smart Speakers

Smart speakers capture voice commands via an array of microphones, transmit data through Wi-Fi or Bluetooth modules, and output high-quality music through audio interfaces. However, these precision components are highly sensitive to electrostatic discharge:

1. User Interaction Risks: Static electricity from the human body (which can reach thousands of volts) enters the speaker through surface contact or the microphone port.

2. Environmental Interference Threats: Induced static electricity from lightning strikes or power grid fluctuations may invade the power supply lines.

3. Interface Vulnerability: High-frequency interfaces, such as USB charging ports and AUX audio jacks, are prone to transient voltages from frequent plug and unplug actions.

Without proper protection, ESD can cause issues such as malfunctioning voice recognition, audio distortion, data interruptions, and even permanent hardware damage.

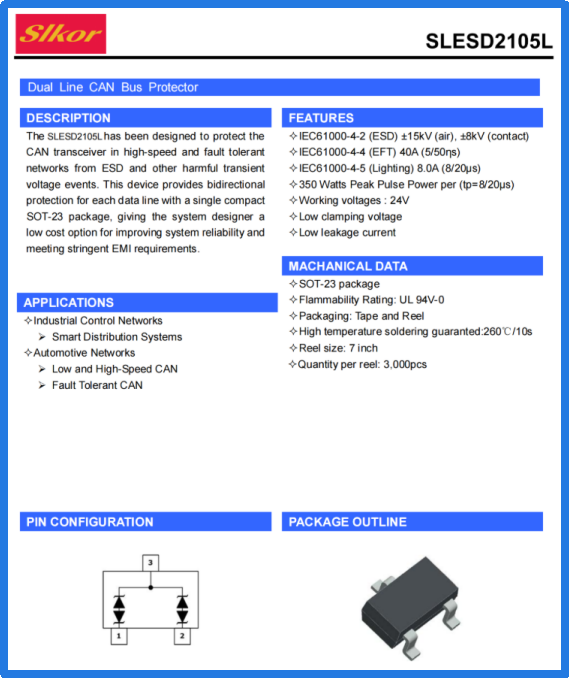

Slkor Electrostatic Discharge Diode SLESD2105L specification

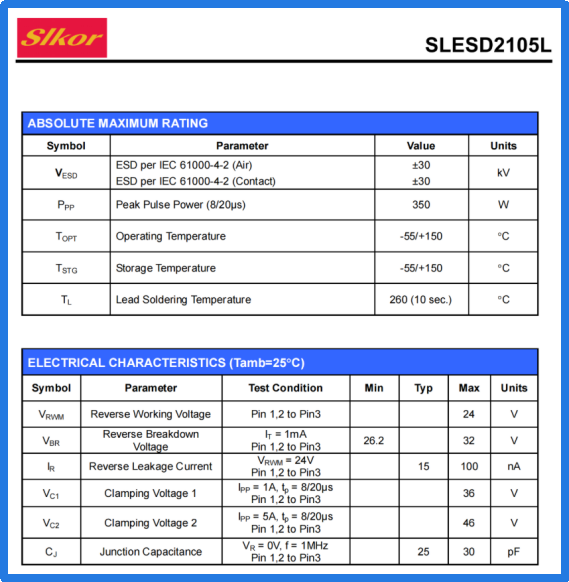

Parameters of Slkor Electrostatic Discharge Diode SLESD2105L

Core Technical Advantages of the SLESD2105L

Designed specifically for ESD protection in audio and power lines, the SLESD2105L creates a protective barrier through five key parameters:

- Reverse Working Voltage (VRWM) 24V: The device remains in a high-impedance state at normal operating voltages below 24V, preventing signal attenuation.

- Minimum Breakdown Voltage (VBR min) 26.2V: When voltage exceeds this threshold, the device rapidly conducts, directing ESD current to ground.

- Reverse Leakage Current (IR) 1μA: Ensures low-power consumption while maintaining acceptable performance.

- Clamping Voltage (VC) 36V: Limits ESD pulses to 36V, protecting downstream circuits from over-voltage damage.

- Junction Capacitance (CJ) 25pF: Minimizes the impact on audio signals with ultra-low capacitance, ensuring clear sound quality.

The synergy of these parameters makes the SLESD2105L an ideal choice for ESD protection in smart speakers.

From Theory to Practice: Three Key Application Scenarios for SLESD2105L

1. "Auditory Guardian" for Microphone Arrays

   The microphone array in smart speakers needs to capture faint voice signals below 30dB. The 24V reverse working voltage of the SLESD2105L matches the microphone's bias voltage precisely, and its 25pF low junction capacitance is negligible, ensuring that voice commands are transmitted without distortion. Laboratory tests show that even when simulating human electrostatic discharge, the speaker's voice recognition accuracy remains above 99%.

2. "Fidelity Shield" for Audio Interfaces

   When transmitting analog signals via the AUX audio interface, ESD interference may increase noise or distort the signal. The 36V clamping voltage of the SLESD2105L effectively suppresses transient over-voltage, while the 25pF junction capacitance prevents high-frequency signal attenuation. Audio quality tests show a 10dB improvement in signal-to-noise ratio, resulting in purer sound.

3. "Voltage Stabilization Core" for Power Systems

   The power input of smart speakers often faces surge impacts. The 26.2V minimum breakdown voltage of the SLESD2105L quickly blocks power fluctuations, while the 1μA leakage current prevents battery life degradation. In lightning surge tests, the device can withstand ±15kV contact discharge, ensuring stable operation of the speaker in harsh environments.

Design Optimization: Small Device, Big Intelligence

In practical applications, the SLESD2105L needs to be designed according to the following principles:

- Compact Layout: The device should be placed close to the protected interface, with trace lengths controlled to within 3mm to minimize the impact of parasitic inductance on ESD response speed.

- Heat Dissipation Coordination: The SOT-23 package should be used with large copper areas on the PCB to assist heat dissipation and avoid thermal failure under high-frequency interference.

- Multi-stage Protection Architecture: In extreme industrial environments, the device can be paired with a gas discharge tube (GDT) to build a two-stage protection system. The GDT absorbs large energy surges, while the SLESD2105L provides fine protection, ensuring the residual voltage is below the withstand voltage of the downstream chips.

Future Outlook: Upgraded Protection in the Era of Smart Technology

As AI algorithms and high-quality audio technologies converge, the ESD protection requirements for smart speakers will become even more stringent. The "precise protection" concept represented by the SLESD2105L is evolving through material innovations and process iterations. For instance, next-generation devices using new polymers are expected to reduce junction capacitance further to below 15pF while maintaining a 40V clamping voltage, paving the way for higher-quality audio transmission.

In the "millimeter-level battlefield" of smart hardware, the SLESD2105L builds the first line of [敏感词] in silent protection, ensuring device security. Its story reveals a truth: true technology often lies in the invisible but is ever-present.
