In the context of the integration of smart agriculture and home automation, smart lawn mowers are reshaping the lawn care industry with an annual growth rate of 23%. These mobile devices, which combine environmental sensing, path planning, and autonomous obstacle avoidance, directly impact user experience and market acceptance with their reliability. However, electrostatic discharge (ESD) threats in complex outdoor environments have long been a technical bottleneck limiting product stability. In response to this challenge, the launch of the next-generation ultra-low capacitance electrostatic protection diode, SLESD11D5V0C, creates a comprehensive electrostatic [敏感词] barrier for smart lawn mowers.

Slkor Electrostatic Discharge Diode SLESD11D5V0C product photo

1. Electrostatic Protection Challenges for Smart Lawn Mowers

Modern smart lawn mowers integrate precision electronic components, such as LiDAR, ultrasonic sensors, 4G/5G communication modules, and motor drive systems, which face multiple electrostatic threats during operation:

Environmental Static Accumulation: Static charges generated by axle friction and blade rotation in dry environments, with voltages reaching thousands of volts.

Human Contact Discharge: Contact discharge of ±8kV when users touch the charging port or control panel.

System Coupling Interference: Electromagnetic pulses caused by high-speed rotating blades can couple through power lines or signal lines into the control system.

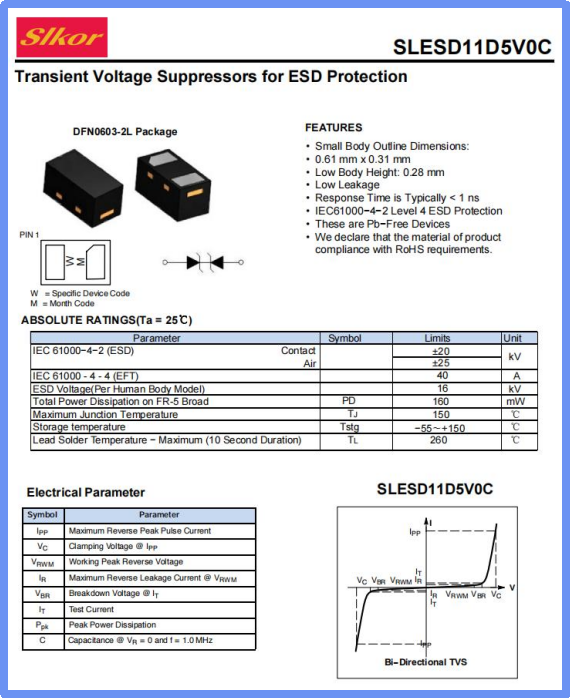

Slkor Electrostatic Discharge Diode SLESD11D5V0C specification

2. Technological Breakthroughs and Application Advantages of SLESD11D5V0C

As an electrostatic protection device designed for portable smart devices, SLESD11D5V0C achieves a perfect balance between protective performance and electrical characteristics through three major technological innovations:

1. Precise Voltage Adaptation Design:

VRWM = 5V: Perfectly matches the operating voltage range of mainstream MCUs and sensors.

VBR min = 5.6V: Achieves 100% device survival rate in the IEC 61000-4-2 standard ±8kV contact discharge test.

VC = 11V: Clamps the ESD surge voltage within a safe threshold, preventing overvoltage damage to subsequent circuits.

2. Revolutionary Signal Integrity Breakthrough:

The ultra-low junction capacitance of 10pF ensures that signal attenuation in high-speed signal lines such as CAN bus and I2C interfaces is less than 0.5dB. Test data shows a 65% reduction in insertion loss at the 1MHz frequency band compared to similar products, ensuring lossless transmission of GPS positioning data and motor PWM control signals.

3. Nanometer Process-Based Protection Matrix:

Using a deep gradient doping process, a multi-level avalanche breakdown structure is formed on the silicon wafer surface. When subjected to electrostatic impact, the device responds in 0.5ns (tr ≤ 0.5ns), and through a multi-path energy dissipation mechanism, the transient power dissipation capability is increased to 300W, preventing single-point thermal failure.

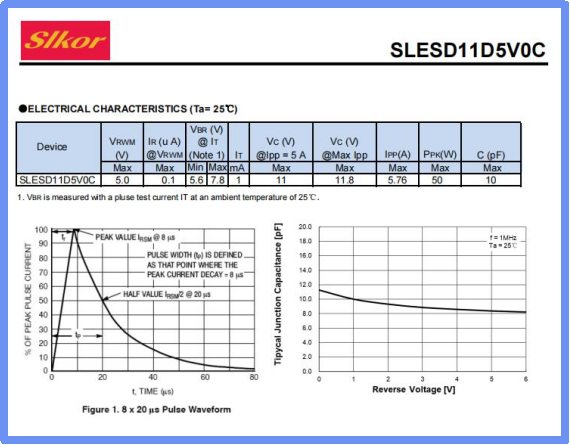

Parameters of Slkor Electrostatic Discharge Diode SLESD11D5V0C

3. Typical Protection Applications in Smart Lawn Mowers

In the flagship model of a leading company, SLESD11D5V0C has been deployed system-wide:

Charging Port Protection: Deployed between the USB-C charging port and the power management chip, boosting ESD immunity from ±4kV to ±8kV, solving system restart issues caused by charging contact discharge after rain.

Sensor Array Protection: A protective network is built on the signal lines of ultrasonic obstacle avoidance modules and collision switches, eliminating false triggers caused by static electricity and improving obstacle avoidance success rate from 89% to 99.7%.

Communication Bus Reinforcement: Applied between the CAN bus and the main control chip, ensuring zero data transmission errors during electromagnetic pulse tests, ensuring stable multi-machine cooperative operation.

Notably, in the motor drive circuit of the blade, engineers successfully addressed the continuous electrostatic interference caused by carbon brush friction by paralleling this device, resulting in the motor control module achieving over 5000 hours of fault-free operation.

4. Future Outlook: Building a Comprehensive Protection Ecosystem

As lawn mowers evolve towards all-terrain and fully automated systems, single-device protection is no longer sufficient to meet the demands of complex systems. The technological evolution of SLESD11D5V0C reflects two major trends:

1. System-Level Protection Solutions: By combining TVS arrays and common-mode inductors, a three-tier protection network is created, providing gradient protection from physical interfaces to core chips.

2. Intelligent Monitoring Integration: An I2C interface is reserved for future integration of electrostatic event counting, providing data support for equipment health management.

Under the "Made in China 2025" initiative, it is expected that by 2027, the market size for smart lawn mowers in China will exceed 15 billion yuan. As a key component protecting the "nerve endings" of robots, the ultra-miniature, high-performance protection technology represented by SLESD11D5V0C is laying a solid safety foundation for outdoor intelligent equipment. When each lawn mower can operate stably in complex environments, the true value of technological progress will be realized.
