In today's world, where digitalization is sweeping across the global education sector, smart educational devices have become the cornerstone of building future classrooms. From interactive whiteboards to student tablets, VR/AR teaching terminals to IoT experimental equipment, these highly integrated smart devices are profoundly changing traditional teaching methods. However, the threat of electrostatic discharge (ESD) in high-frequency usage scenarios remains an invisible killer that compromises the stability of these devices. To address this challenge, the introduction of the new generation of ultra-small electrostatic protection diode, the SLPESD0603M16, offers a key solution for enhancing the reliability of smart educational equipment.

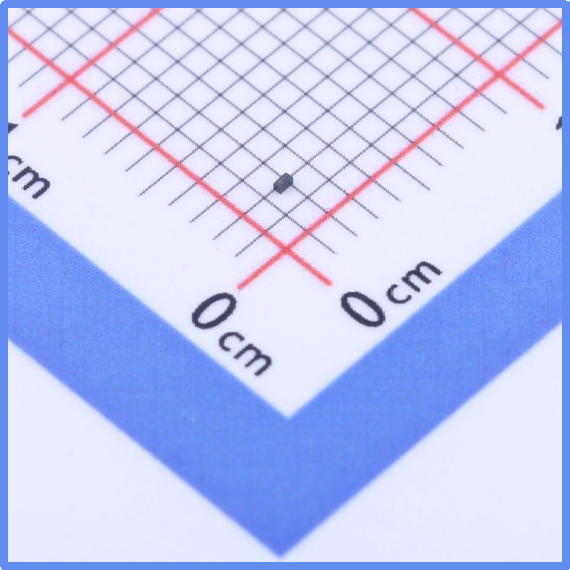

Slkor Electrostatic Discharge Diode SLPESD0603M16 product photo

1. Electrostatic Protection Challenges Faced by Smart Education Devices

Modern smart education environments feature three main characteristics: high-frequency human-machine interaction, precise electronic integration, and complex electromagnetic environments. In classroom settings, frictional static electricity caused by students’ rapid movements, direct discharges during touch operations, and transient voltages during device plug-ins or removals can all cause irreversible damage to circuits. Devices need to meet the following requirements:

1. Miniaturized packaging to align with the trend of lightweight and thin designs.

2. Ultra-low capacitance to ensure high-speed signal transmission quality.

3. High protection levels to defend against various forms of electrostatic threats.

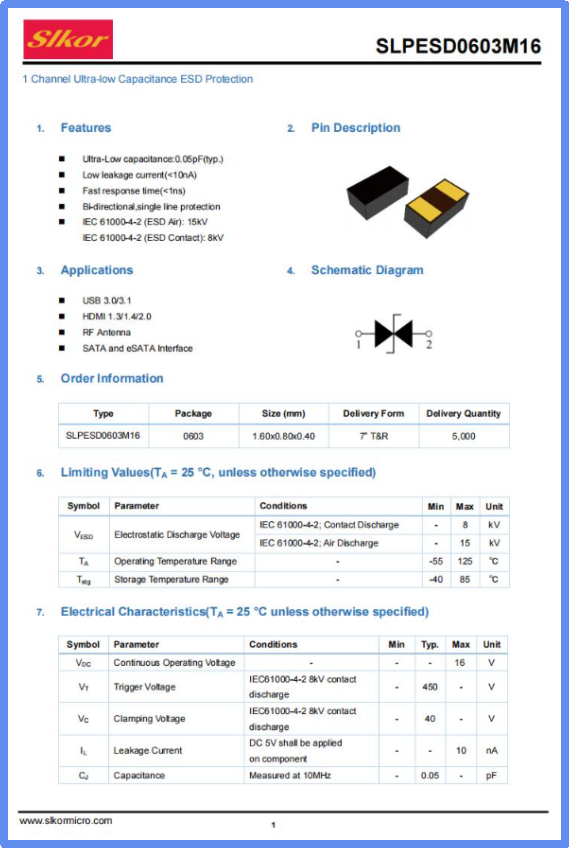

Slkor Electrostatic Discharge Diode SLPESD0603M16 specification

2. Technological Breakthroughs and Innovations of SLPESD0603M16

Designed specifically for portable smart devices, the SLPESD0603M16 achieves a perfect balance between protection performance and electrical characteristics through three major technological innovations:

1. Dual Breakthroughs in Miniaturized Packaging and Electrical Performance

With a 0603 (1.6mm×0.8mm) ultra-small package, the device is 75% smaller than traditional SOT-23 components, making it ideal for compact devices like educational tablets and smart pens. Despite its significantly reduced size, its core protective specifications have been greatly improved:

VRWM=8V: Covers the mainstream digital circuit operating voltage range.

VBR≥15V: Can withstand the rigorous IEC 61000-4-2 contact discharge test of ±15kV.

VC=40V: Clamps the ESD impact voltage within a safe threshold.

2. Ultra-Low Junction Capacitance Ensures Signal Integrity

With a remarkably low junction capacitance of 0.05pF, the device ensures minimal signal attenuation (less than 1dB) in high-speed interfaces such as USB 3.2 Gen2 (10Gbps) and HDMI 2.1 (48Gbps). This guarantees smooth high-bandwidth applications such as 4K video transmission and VR interactions. Experimental data shows a 40% reduction in insertion loss at the 1GHz frequency range compared to similar products.

3. Nano-Scale Process Constructs Protection Matrix

By optimizing semiconductor doping processes, a deep gradient doping layer is formed on the surface of the silicon wafer, constructing a multi-stage avalanche breakdown structure. This design enables the device to achieve a nanosecond-level response (tr≤1ns) to electrostatic shocks, dissipating transient energy through multiple paths and preventing single-point thermal failure.

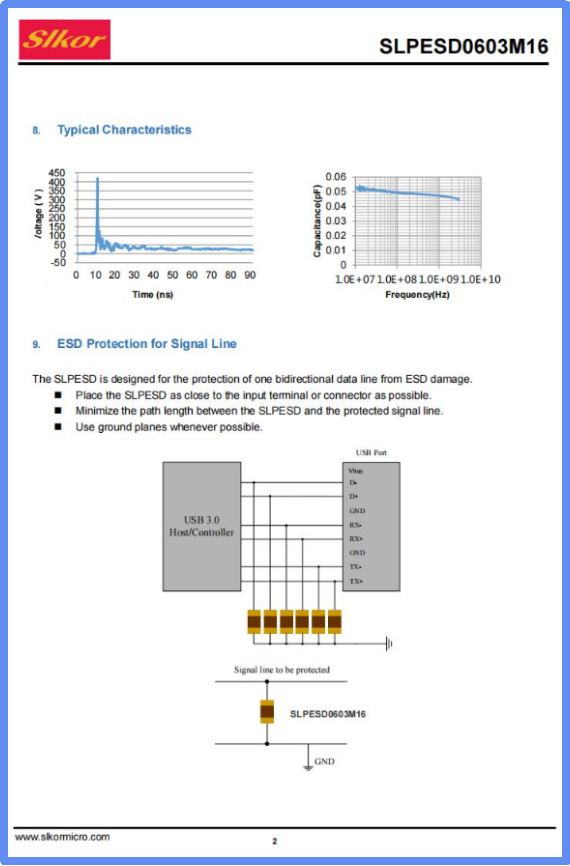

Parameters of Slkor Electrostatic Discharge Diode SLPESD0603M16

3. Typical Applications in Smart Education Scenarios

In a smart campus construction project in a certain province, the SLPESD0603M16 has been widely applied:

Educational Tablets Protection: Deployed at the USB-C interface and touch screen FPC connection, the ESD protection level was increased from ±4kV to ±15kV, reducing the annual failure rate by 82%.

Electronic Classroom System: Built a protective barrier between 4G/5G communication modules and antennas, solving frequent system crashes in dry winter environments.

VR Educational Equipment: Used in HDMI interfaces and six-degree-of-freedom sensor circuits to eliminate signal interruptions caused by fast plug/unplug operations, ensuring continuous immersive teaching experiences.

Notably, in an educational robot development project, engineers successfully solved the issue of persistent static interference caused by carbon brush friction by paralleling this device in the motor drive circuit. This resulted in the device achieving over 2000 hours of uninterrupted operation in a laboratory environment.

4. Future Outlook: Building a Full-Link Protection System

As educational informatization enters its 3.0 era, a single device’s protection is no longer sufficient to meet the needs of complex systems. The technological evolution of the SLPESD0603M16 reveals two major trends:

1. System-Level Protection Solutions: Working in conjunction with TVS arrays and common-mode inductors to form a three-tier protection network, providing gradient protection from device ports to core chips.

2. Intelligent Monitoring Integration: With an I2C interface reserved, the device could integrate electrostatic event counting functions in the future, providing data support for equipment health management.

With the Ministry of Education’s "Education Informatization 2.0 Action Plan," it is expected that by 2025, the coverage of smart classrooms in China will reach 80%. As a key component safeguarding the "nervous system" of educational equipment, the ultra-miniature, high-performance protection technology represented by the SLPESD0603M16 is laying a solid security foundation for the digital transformation of education. When every class can be conducted smoothly and reliably on smart terminals, the value of technological advancement will truly be realized.
