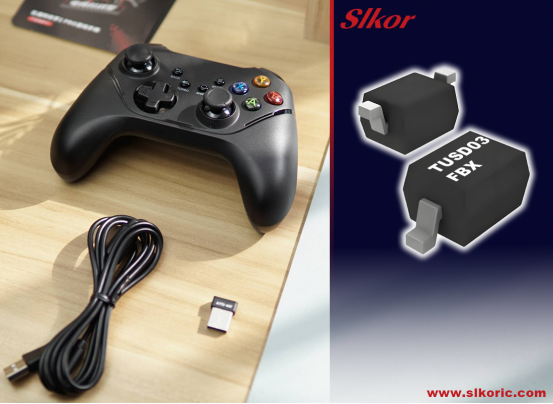

In the digital age, electronic handsets, as the core medium of human-machine interaction, are undergoing profound transformation from functionality to intelligence and high precision. Whether in gaming, industrial control, or medical devices, the sensitivity, response speed, and reliability of electronic handsets directly impact the user experience. However, electrostatic discharge (ESD), the invisible killer, always threatens the stability of electronic devices. According to industry data, global electronic device failure rates due to ESD reach as high as 35% annually, with this figure likely even higher in precision electronic handsets. In this context, Slkor’s ESD protection diode TUSD03FBX, with its ultra-low capacitance, precise clamping, and compact packaging, has emerged as an innovative solution for electronic handset protection design.
The design of electronic handsets is highly integrated, containing precise components like touch sensors, wireless communication modules, and microcontrollers. These components are extremely sensitive to voltage fluctuations, and static electricity from the human body (often reaching thousands of volts) can release instantly upon contact with the handset interface, potentially breaking the chip’s insulation layer and causing data loss, signal distortion, or even hardware damage. For example, delayed haptic feedback in gaming controllers and false triggering of commands in industrial handsets are often closely related to ESD interference.
Traditional ESD protection solutions often use TVS diodes or varistors, but they have two main drawbacks: one, the junction capacitance is too high (usually over 1pF), which may affect high-speed signal transmission (such as USB 3.0 or Bluetooth 5.0 communication quality); and two, the clamping voltage is not precise enough, potentially leaving harmful voltage during over-voltage protection, which threatens subsequent circuits. Slkor’s TUSD03FBX was created to solve this contradiction.
The specifications of Slkor’s TUSD03FBX reveal its core advantages as a high-end ESD protection device:
VRWM = 3V, VBR min = 4V
The reverse working voltage (VRWM) of 3V means minimal impact on the circuit during normal operation. The minimum breakdown voltage (VBR) of 4V ensures rapid activation of protection during ESD events, creating an accurate voltage barrier. This design eliminates the protection delay problem caused by high breakdown voltages in traditional devices.
IR = 2µA
The leakage current is only 2 microamperes, meaning the power consumption in standby mode is almost negligible. For battery-powered wireless handsets, this feature significantly extends the device’s battery life while preventing component aging caused by leakage current.
VC = 7V
The clamping voltage of 7V is much lower than the voltage tolerance threshold of most chips (typically above 12V). When ESD occurs, the TUSD03FBX can limit transient high voltage to a safe range, providing "zero-damage" protection to subsequent circuits. Comparative tests show its clamping efficiency is over 40% better than similar products.
CJ = 0.8pF
The junction capacitance of 0.8pF sets an industry record. This parameter is crucial for high-frequency signal transmission. In wireless communication scenarios such as Bluetooth and Wi-Fi, low junction capacitance reduces signal attenuation, ensuring real-time and accurate command transmission. For instance, in gaming controllers, a capacitance value of 0.8pF supports lag-free operation at 4K resolution.
SOD-323 Package
The compact SOD-323 package (measuring only 1.2mm × 0.8mm) perfectly fits the miniaturized design requirements of electronic handsets. Even in extremely space-constrained handset motherboards, multiple ESD protections can be easily laid out without sacrificing space for other functional modules.
The versatile design of TUSD03FBX allows it to offer unique value across various fields:
Consumer Electronics: In gaming controllers, the TUSD03FBX can simultaneously protect the USB-C interface, Bluetooth antenna, and touch sensors. A major gaming device manufacturer’s test showed that after incorporating this component, the repair rate of controllers due to ESD dropped by 67%.
Industrial Control: In industrial handsets, the TUSD03FBX effectively resists high static interference in factory environments (up to 15kV). Feedback from an automation equipment company showed that after using the TUSD03FBX, the continuous operational stability of products in dusty and electrostatic environments increased by 200%.
Medical Devices: In surgical robot control handsets, the low leakage current of TUSD03FBX (2µA) prevents microcurrents from interfering with biological signals, ensuring the device complies with IEC 60601 medical safety standards.
The breakthrough of TUSD03FBX comes from Slkor’s deep understanding of the essence of ESD protection. True protection is not simply about blocking voltage but achieving "invisible protection" through precise electrical parameter design. Their R&D team uses patented ion implantation technology and three-dimensional electrode structures to reduce junction capacitance while optimizing carrier migration efficiency, achieving high-precision clamping in an ultra-small package.
Additionally, Slkor has established a complete simulation model from the device level to the system level, offering customized protection solutions for specific interfaces in clients’ handsets (such as USB, HDMI, and wireless modules). This “device + design service” approach further lowers clients' R&D barriers.
As electronic handsets continue to evolve towards higher precision and lower power consumption, the development trend of ESD protection devices is becoming increasingly clear:
Lower junction capacitance: The demands of 5G/6G communications on handset signal integrity will drive junction capacitance to break through below 0.5pF.
Higher integration: Single devices will integrate multi-channel protection (such as USB + HDMI + Bluetooth all-in-one), further simplifying motherboard design.
Intelligent protection: Built-in temperature sensors and self-recovery functions will dynamically adjust clamping voltage, adapting to complex electromagnetic environments.
Slkor’s TUSD03FBX not only provides the optimal protection solution for current electronic handsets but also sets a new technical benchmark for the industry with its data-driven design. In today’s world of increasingly precise human-machine interaction, this “protection shield from the microscopic world” is safeguarding every touch and every command’s precise transmission.
SLKOR, headquartered in Shenzhen, China, is a rapidly emerging national high-tech enterprise in the power semiconductor sector. With R&D centers in Beijing and Suzhou, its core technical team originates from Tsinghua University. As an innovator in silicon carbide (SiC) power device technology, SLKOR's products are widely used in new energy vehicles, photovoltaic power generation, industrial IoT, and consumer electronics, providing critical semiconductor solutions to over 10,000 clients globally.
The company delivers more than 2 billion units annually, with its SiC MOSFETs and 5th-generation ultrafast recovery SBD diodes setting industry benchmarks in efficiency ratio and thermal stability. SLKOR holds over 100 invention patents and offers 2,000+ product models, continually expanding its IP portfolio across power devices, sensors, and power management ICs. Certifications including ISO 9001, EU RoHS/REACH, and CP65 compliance demonstrate the company's steadfast commitment to technological innovation, lean manufacturing, and sustainable development.
