In an era where smart terminals are ubiquitous and the demand for high-speed data transmission is surging, electronic devices face an increasingly prominent risk of electrostatic discharge (ESD). Industry data shows that over 20% of electronic device failures annually are caused by ESD, especially in high-frequency scenarios such as 5G communications and IoT terminals, where ESD protection has become a core link in ensuring device stability. Slkor has keenly captured this demand and launched the SLESD5341N ESD protection diode, which builds a reliable protective barrier for various electronic devices with its compact package and excellent performance.

The SLESD5341N is an ESD protection device designed by Slkor for high-reliability scenarios, utilizing advanced technology to achieve efficient electrostatic protection. Its core parameters are impressive: the reverse working voltage (VRWM) reaches 5.0V, and the typical reverse breakdown voltage (VBR) is 7.5V, enabling rapid response to overvoltage surges while ensuring normal circuit operation; the forward clamping voltage (VC) is only 10V (under 1A pulse), which can effectively limit transient voltage and protect sensitive circuits at the backend. In addition, the 10pF junction capacitance (CJ) and 0.1μA reverse leakage current (IR) give it both low interference and low power consumption advantages in high-frequency signal transmission, making it perfectly suitable for high-speed data link scenarios.

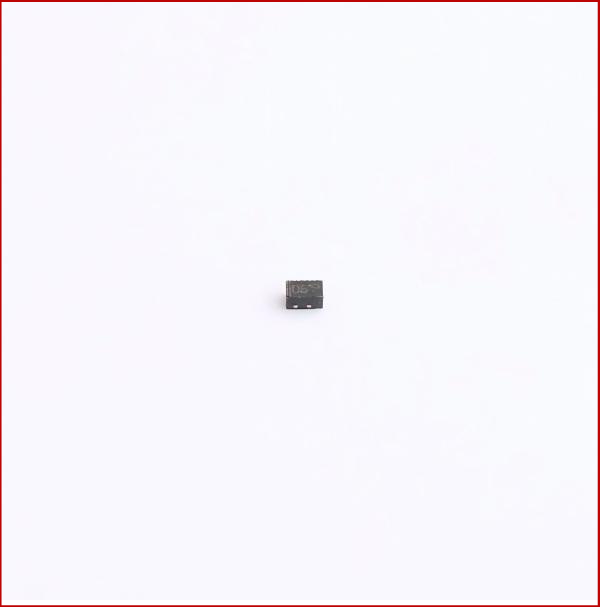

In terms of protection performance, the device complies with the IEC 61000-4-2 standard, with contact discharge up to ±25kV and air discharge up to ±30kV. The peak pulse current (8/20μs) per line reaches a maximum of 5A, combined with a response time of <1ns, which can instantly suppress electrostatic interference. It adopts the DFN1006 package (dimensions 1.00×0.60×0.45mm), which saves more space compared to the traditional MLV (0402) package. It also supports lead-free soldering processes (peak temperature of 260°C) and meets MSL 1 and ROHS compliance requirements, adapting to automated mass production processes.

The product advantages are concentrated in three dimensions:

● All-scenario protection capability: It can resist high-intensity ESD shocks from consumer electronics to industrial equipment, reducing the risk of failures;

● High-frequency compatibility: The 10pF low junction capacitance has minimal impact on high-speed signal transmission, adapting to interfaces such as 10/100/1000Mbps Ethernet and DVI;

● Energy efficiency and integration advantages: The ultra-low reverse leakage current of 0.1μA extends device battery life, and the DFN1006 package facilitates high-density PCB layouts, meeting the needs of lightweight design.

Application fields cover various electronic devices: serial and parallel ports, notebook computers, servers, projection TVs, mobile phones and accessories, portable instruments. It performs particularly well in high-speed Ethernet and Digital Visual Interface (DVI), providing stable protection for data-intensive transmission.

A responsible person from Slkor's protection device product line stated, "The core design of SLESD5341N is to balance 'high-performance protection' and 'low system impact'. By optimizing the package and electrical parameters, we enable this device to cope with extreme ESD environments without affecting high-frequency signal integrity, which is a precise response to the current trend of 'miniaturization and high-speed' in electronic devices."

Currently, the SLESD5341N has achieved stable mass production, adopting 7-inch tape and reel packaging (10,000 pieces per reel) to support bulk purchasing. For technical manuals or samples, please visit Slkor's official website (SLKOR Semiconductor: Discrete Semiconductors, TVS、ESD、diodes、 components、transistors、mosfet、igbt、Rectifier、Discrete Power Devices、SCR、TRIAC、Zener Diode; Integrated Semiconductors, Op-amp、hall sensor、 Linear Regulator / LDO、DC-DC Convertor、AC-DC Convertor and Optocoupler).
