High Voltage MOSFET Suitable for a variety of high-voltage switching circuit applications, such as high-power motor drag.

Products Documents Data

Datasheet 3D Model

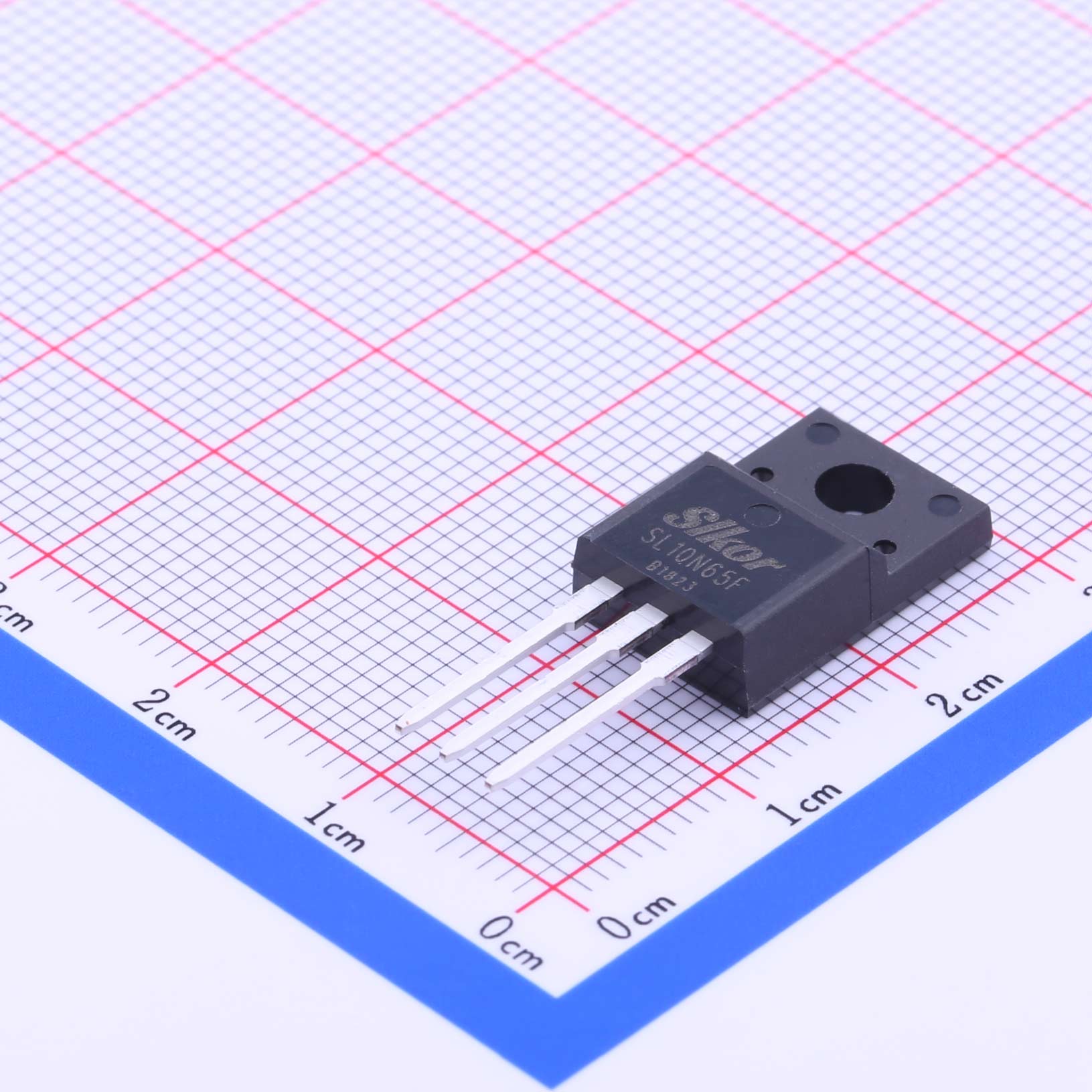

SL10N65F N-Channel Power MOSFET TO-220F Package：TO-220F VDSS(V)：650V Id(A)：10A RDSON(Ω)：940mΩ@10V,5A VTH：4.5V@250A P/N：N-Channel

Datasheet 3D Model

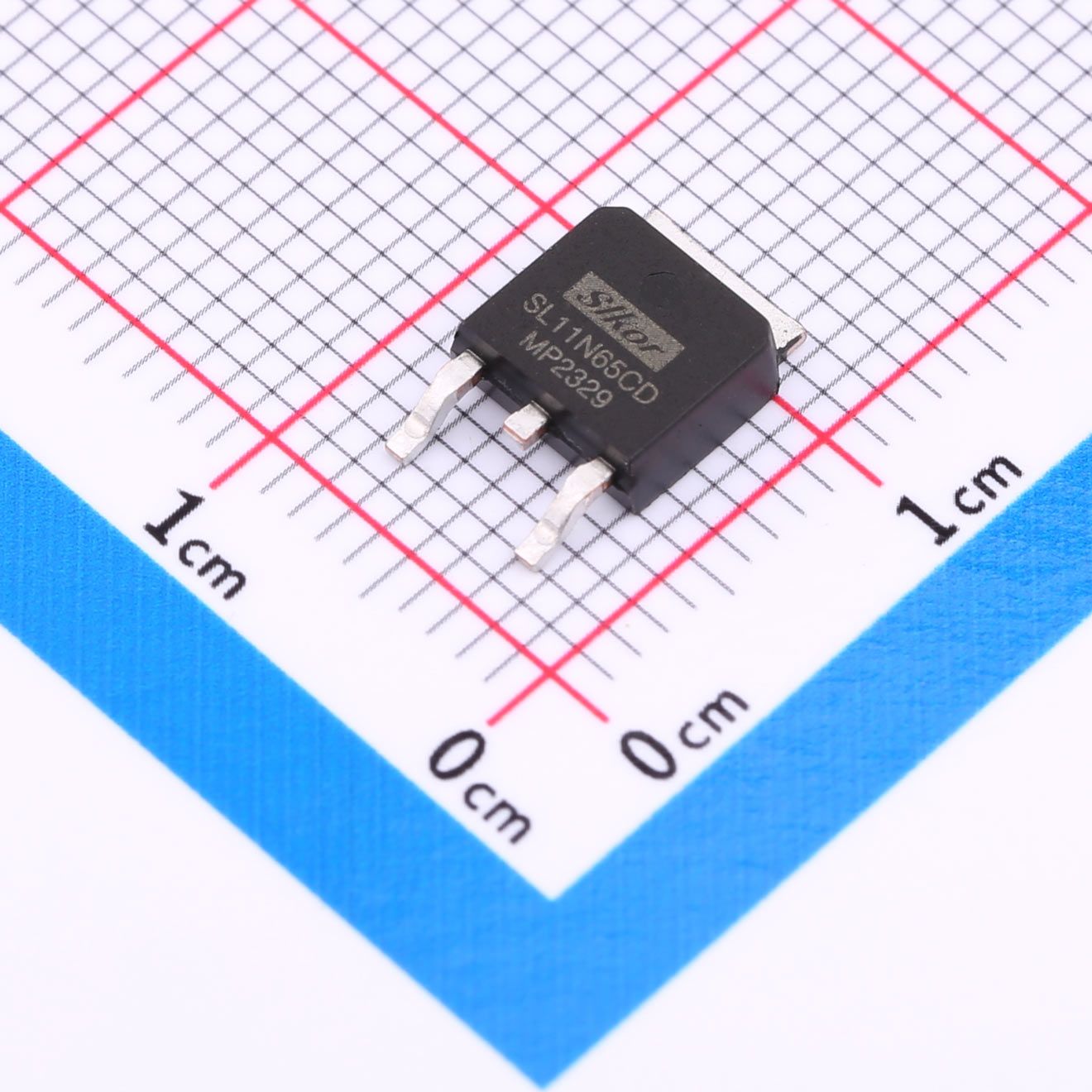

SL11N65CD N-channel Power MOSFET TO-252 Package：TO-252 VDSS(V)：650V Id(A)：11A RDSON(Ω)：318mΩ@10V,4.0A VTH：[email protected] P/N：N-Channel

Datasheet 3D Model

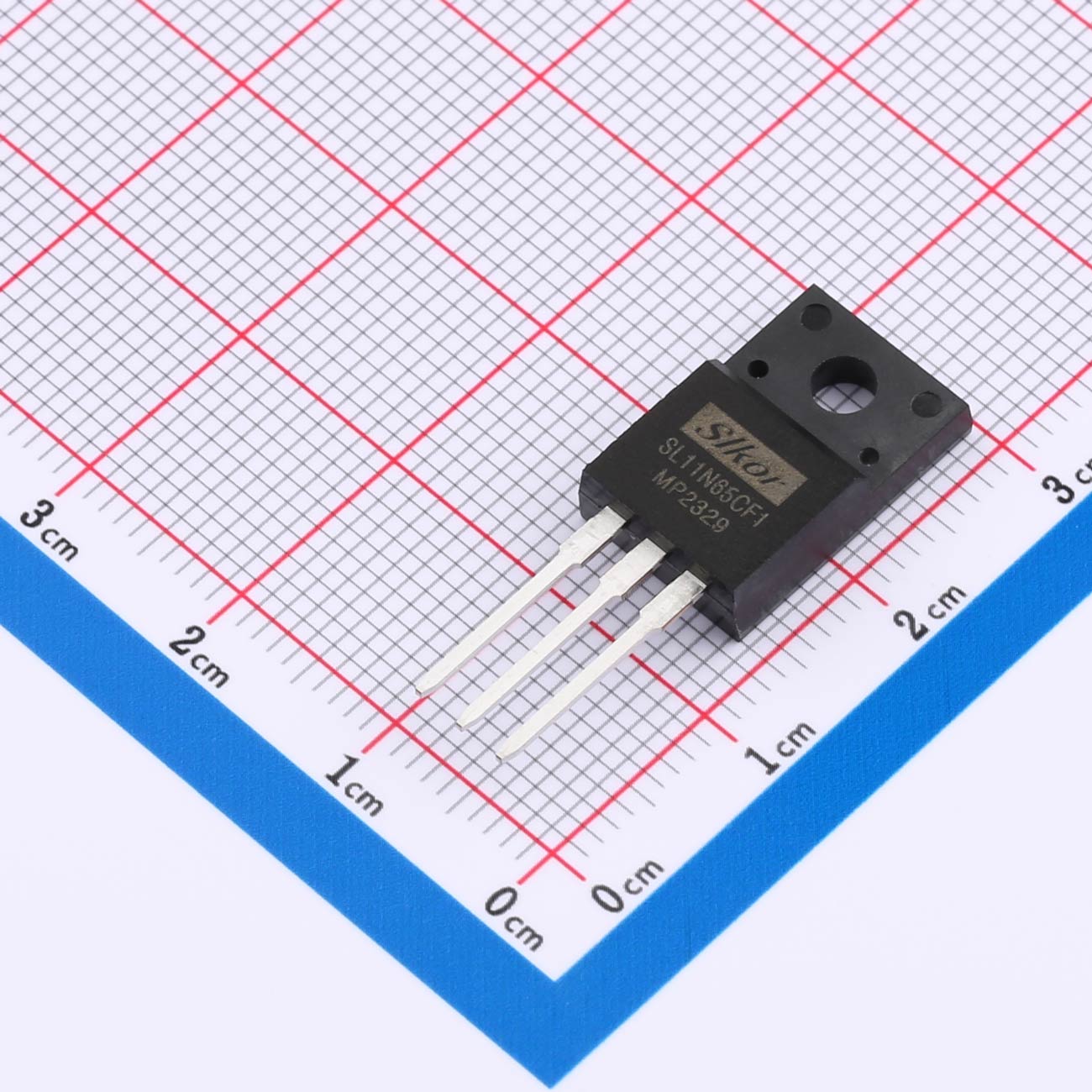

SL11N65CF1 N-channel Power MOSFET TO-220F Package：TO-220F VDSS(V)：650V Id(A)：11A RDSON(Ω)：318mΩ@10V,4.0A VTH：4.5V@250μA P/N：N-Channel

Datasheet 3D Model

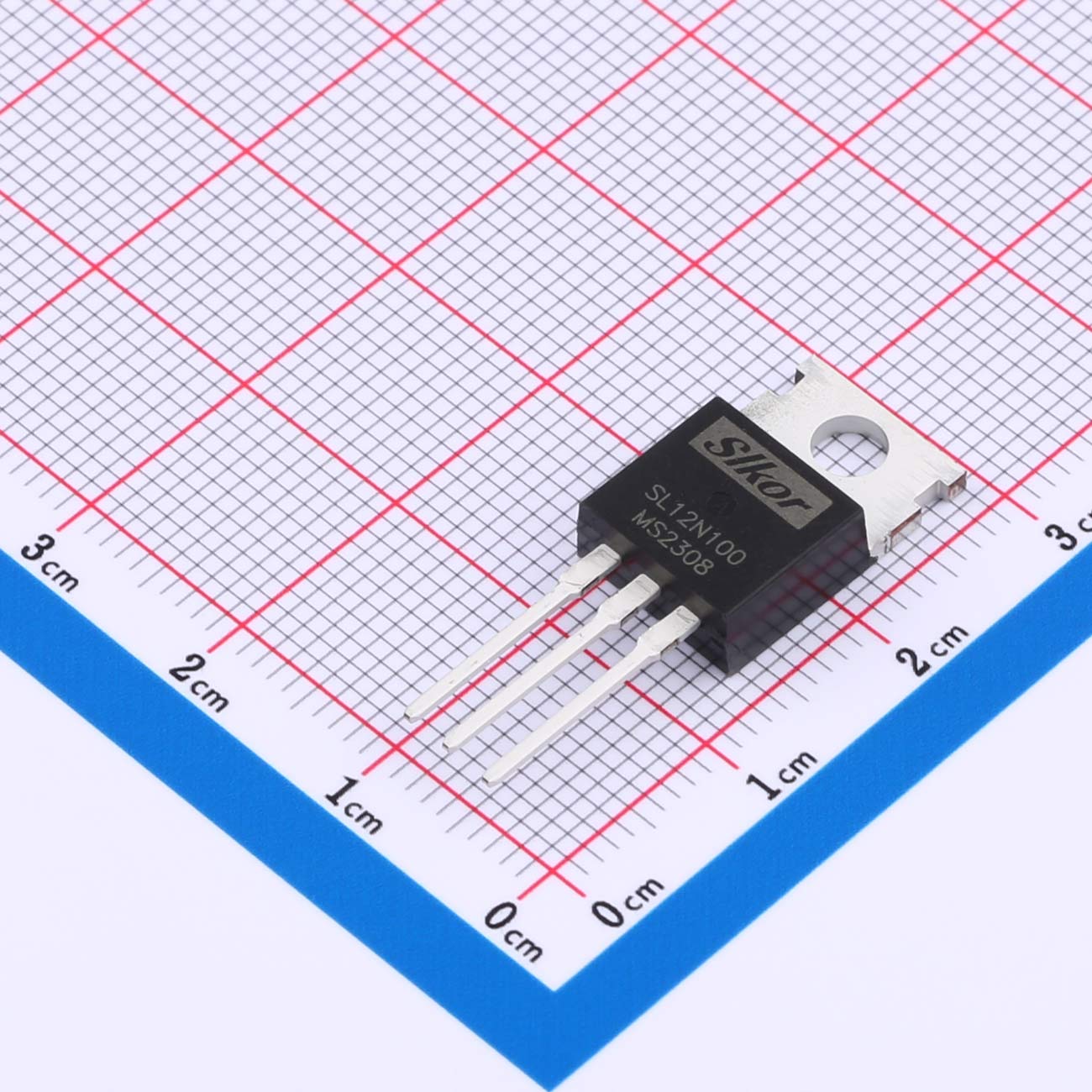

SL12N100 N-channel Power MOSFET TO-220 Package：TO-220 VDSS(V)：1000V Id(A)：12A RDSON(Ω)：1.0Ω@10V,6A VTH：5.0V@250μA P/N：N-Channel

Datasheet 3D Model

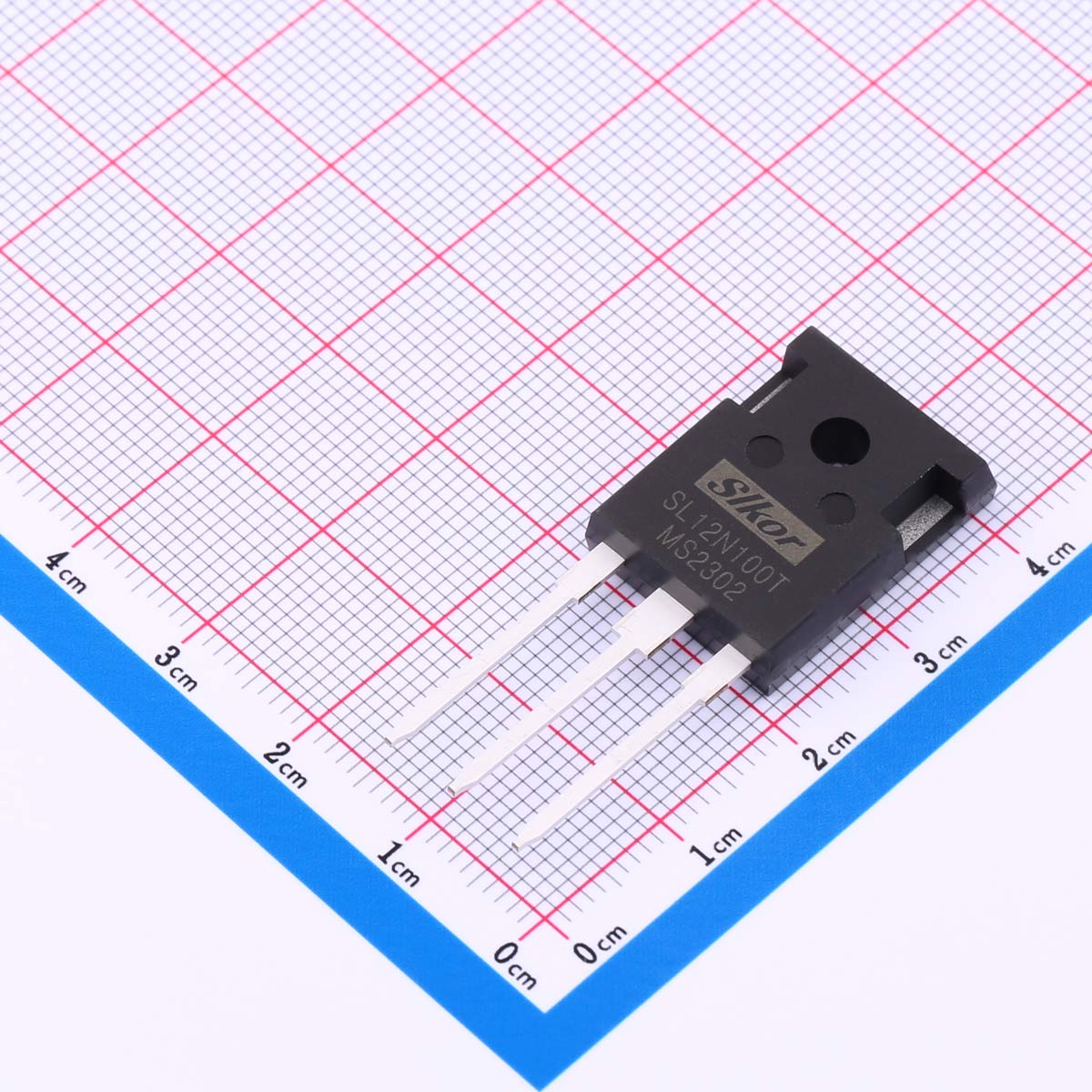

SL12N100T N-channel Power MOSFET TO-247 Package：TO-247 VDSS(V)：1000V Id(A)：12A RDSON(Ω)：1.0Ω@10V,6A VTH：5.0V@250μA P/N：N-Channel

Datasheet 3D Model

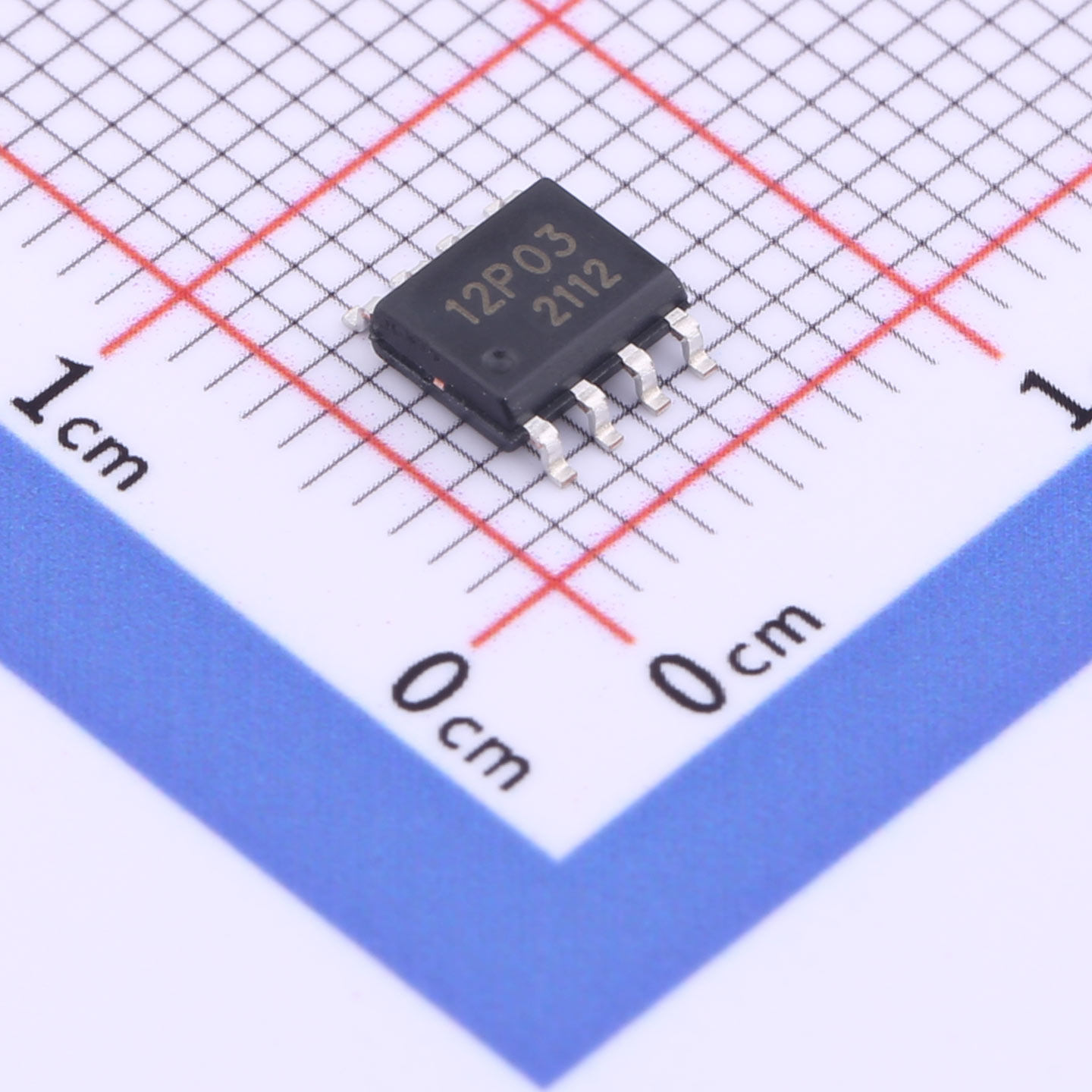

SL12P03S P-channel Power MOSFET SOP-8 Package：SOP-8 VDSS(V)：-30V Id(A)：-12A RDSON(Ω)：24mΩ@-4.5V,-5A VTH：-1.6V@-250μA P/N：P-Channel

Datasheet 3D Model

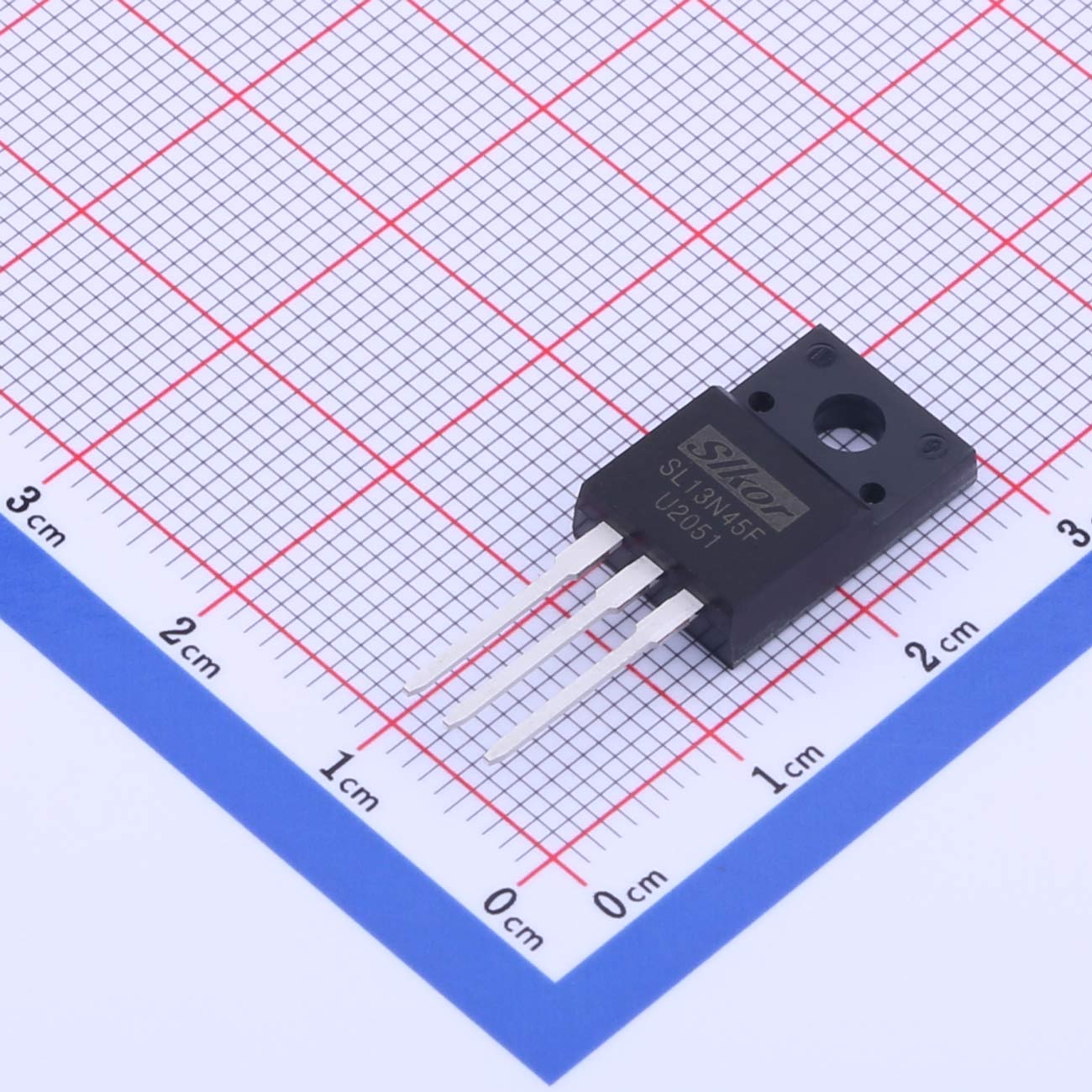

SL13N45F N-Channel Enhancement MOSFET TO-220F Package：TO-220F VDSS(V)：450V Id(A)：13A RDSON(Ω)：470mΩ@10V,5.5A VTH：4V@250uA P/N：N-Channel

Datasheet 3D Model

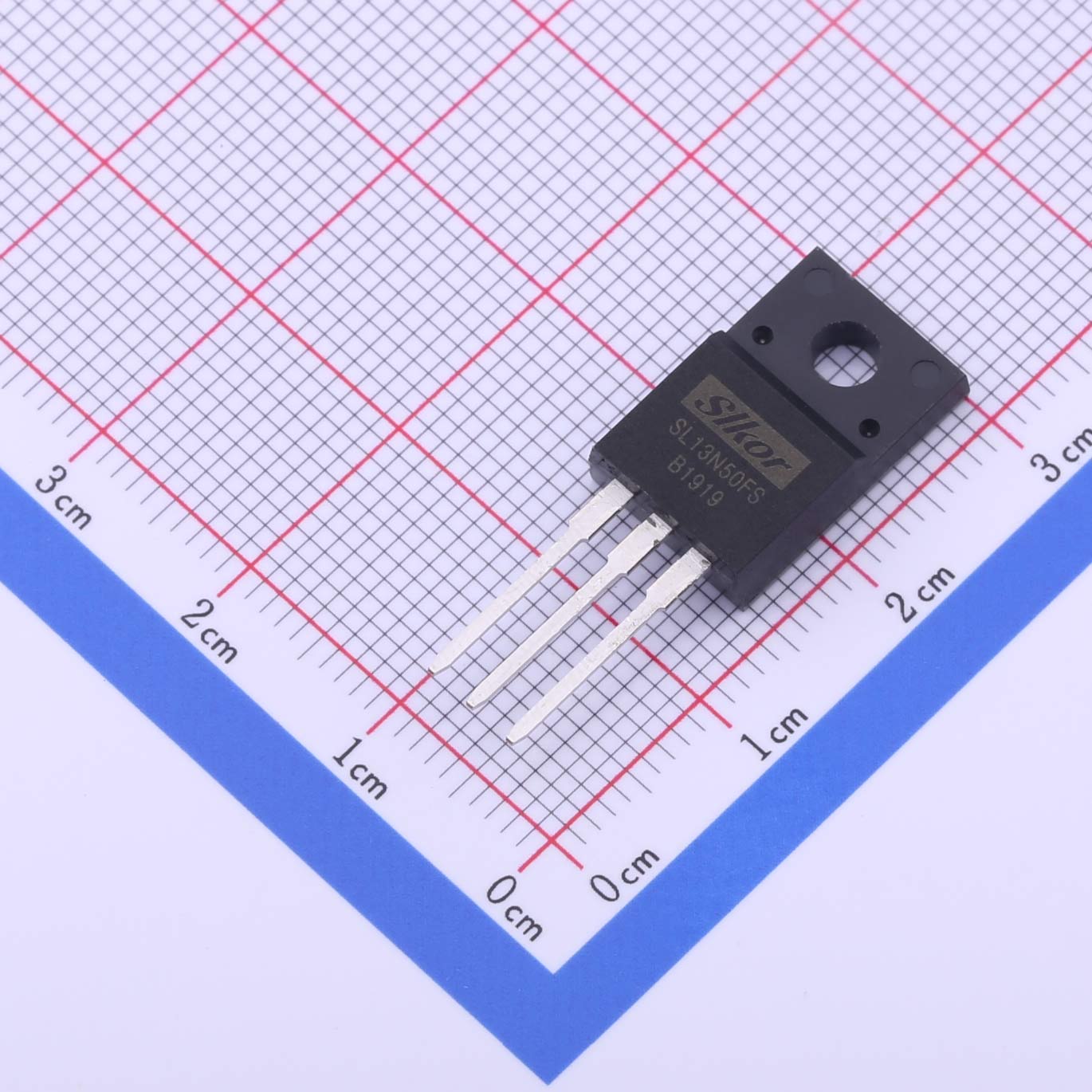

SL13N50FS N-Channel Enhancement MOSFET TO-220F Package：TO-220F VDSS(V)：500V Id(A)：13A RDSON(Ω)：520mΩ@10V,6.5A VTH：4V@250μA P/N：N-Channel

Datasheet 3D Model

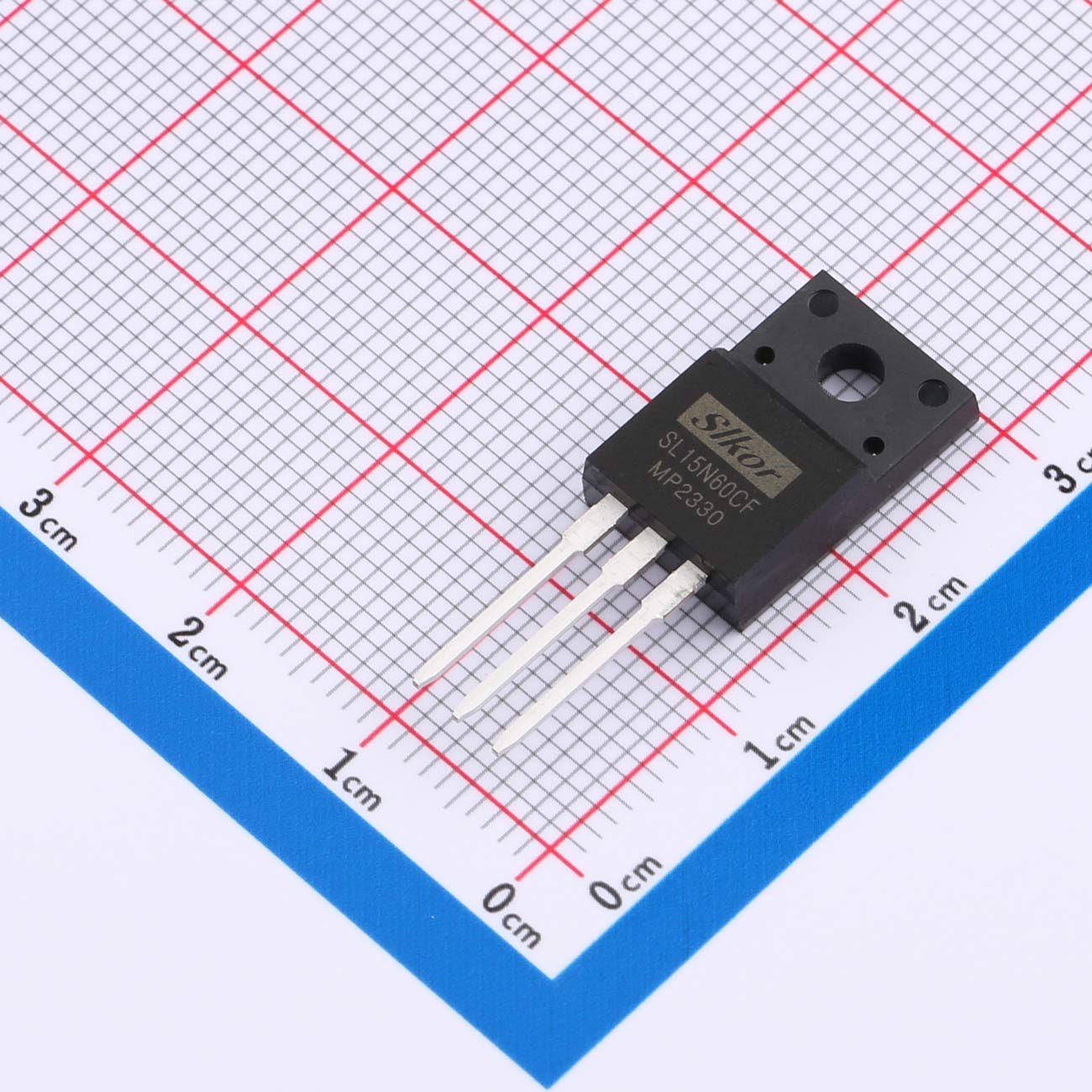

SL15N60CF N-channel Power MOSFET TO-220F Package：TO-220F VDSS(V)：650V Id(A)：15A RDSON(Ω)：238mΩ@10V,7.5A VTH：4.5V@250μA P/N：N-Channel

Datasheet 3D Model

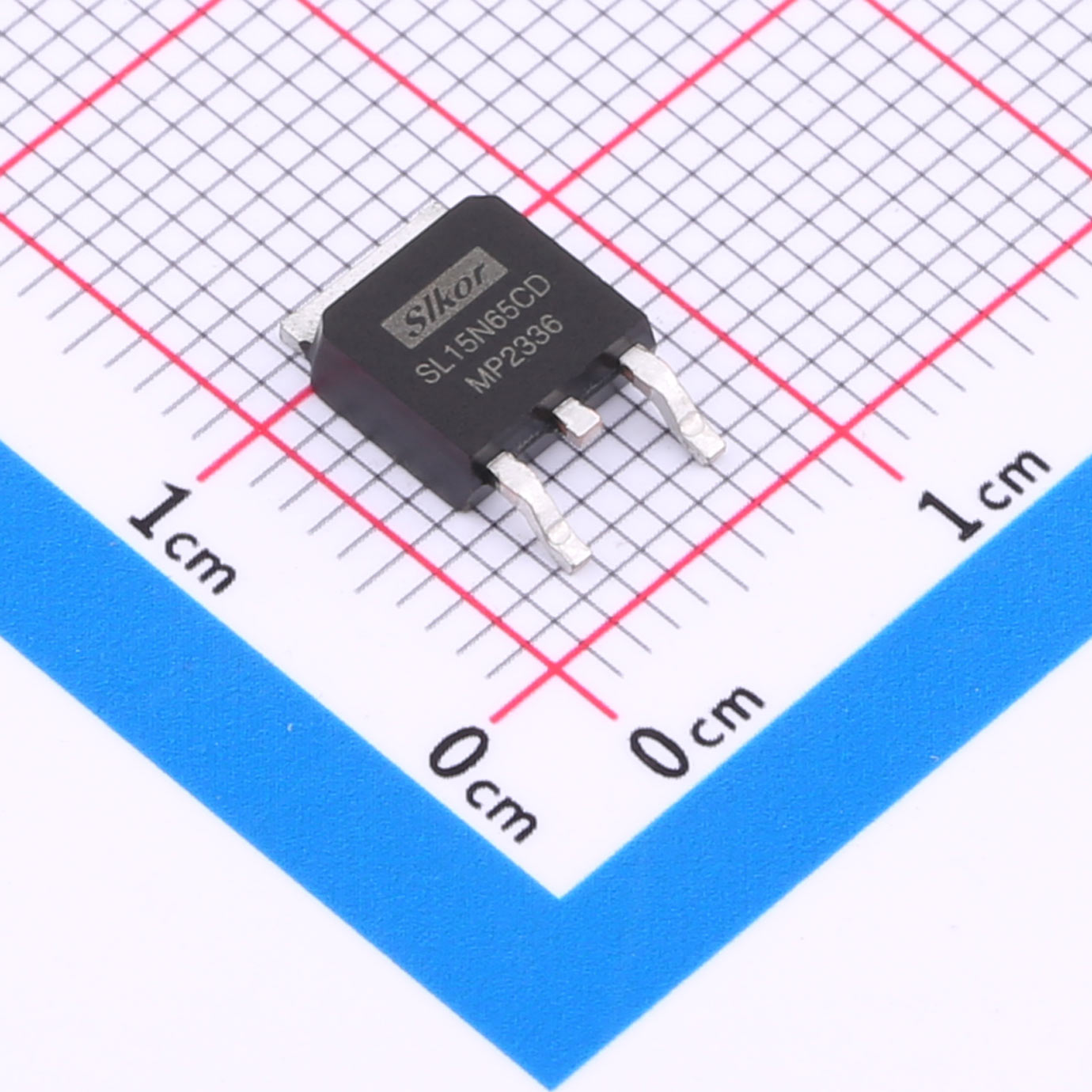

SL15N65CD N-channel Power MOSFET TO-252 Package：TO-252 VDSS(V)：650V Id(A)：15A RDSON(Ω)：238mΩ@10V,7.5A VTH：4.5V@250μA P/N：N-Channel

Datasheet 3D Model

SL18N20 N-channel Power MOSFET TO-220-3L Package：TO-220-3L VDSS(V)：200V Id(A)：18A RDSON(Ω)：120mΩ@10V,9A VTH：3.0V@250μA P/N：N-Channel

Datasheet 3D Model

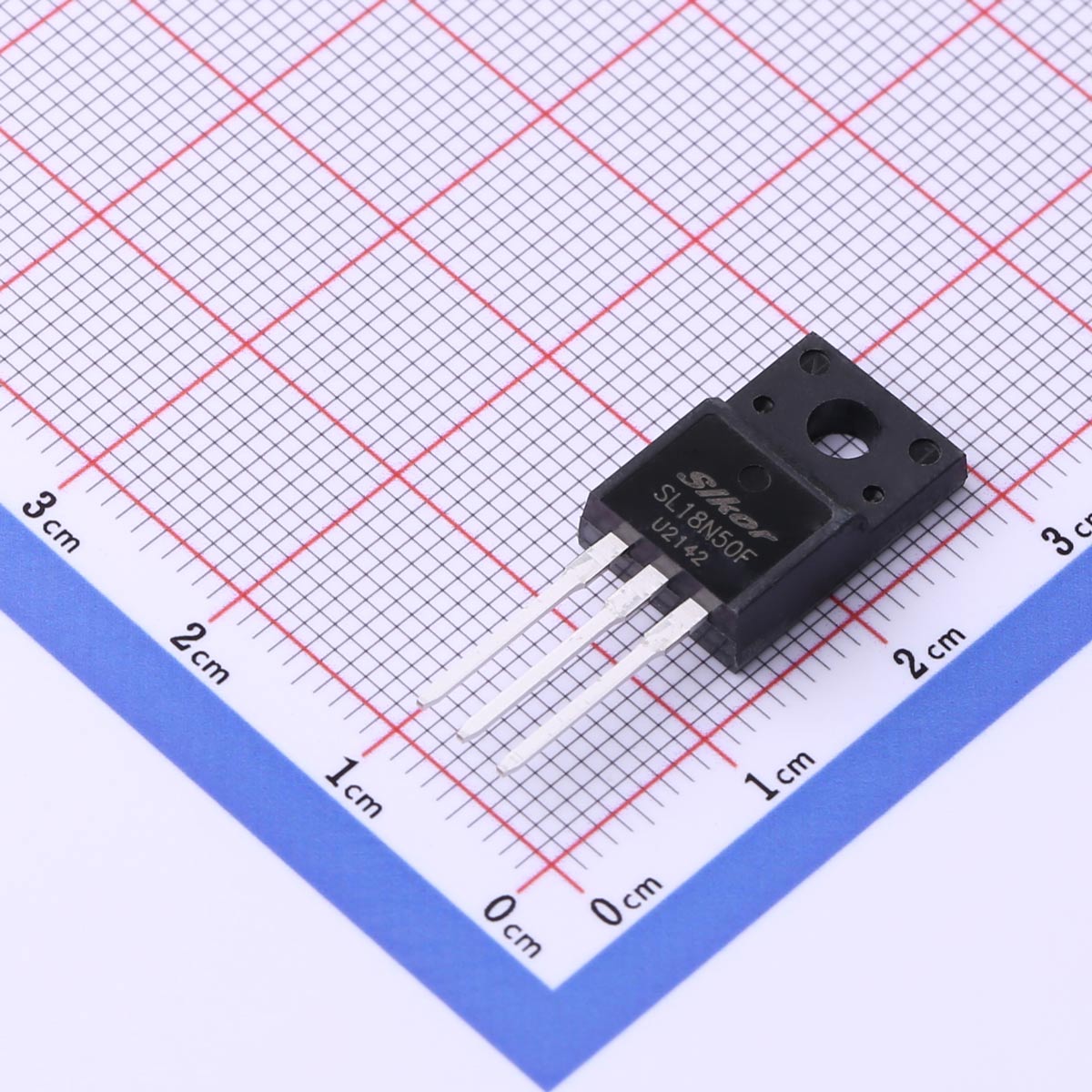

SL18N50F N-Channel Power MOSFET TO-220F Package：TO-220F VDSS(V)：500V Id(A)：18A RDSON(Ω)：0.32Ω@10V,9A VTH：4V@250μA P/N：N-Channel

Datasheet 3D Model

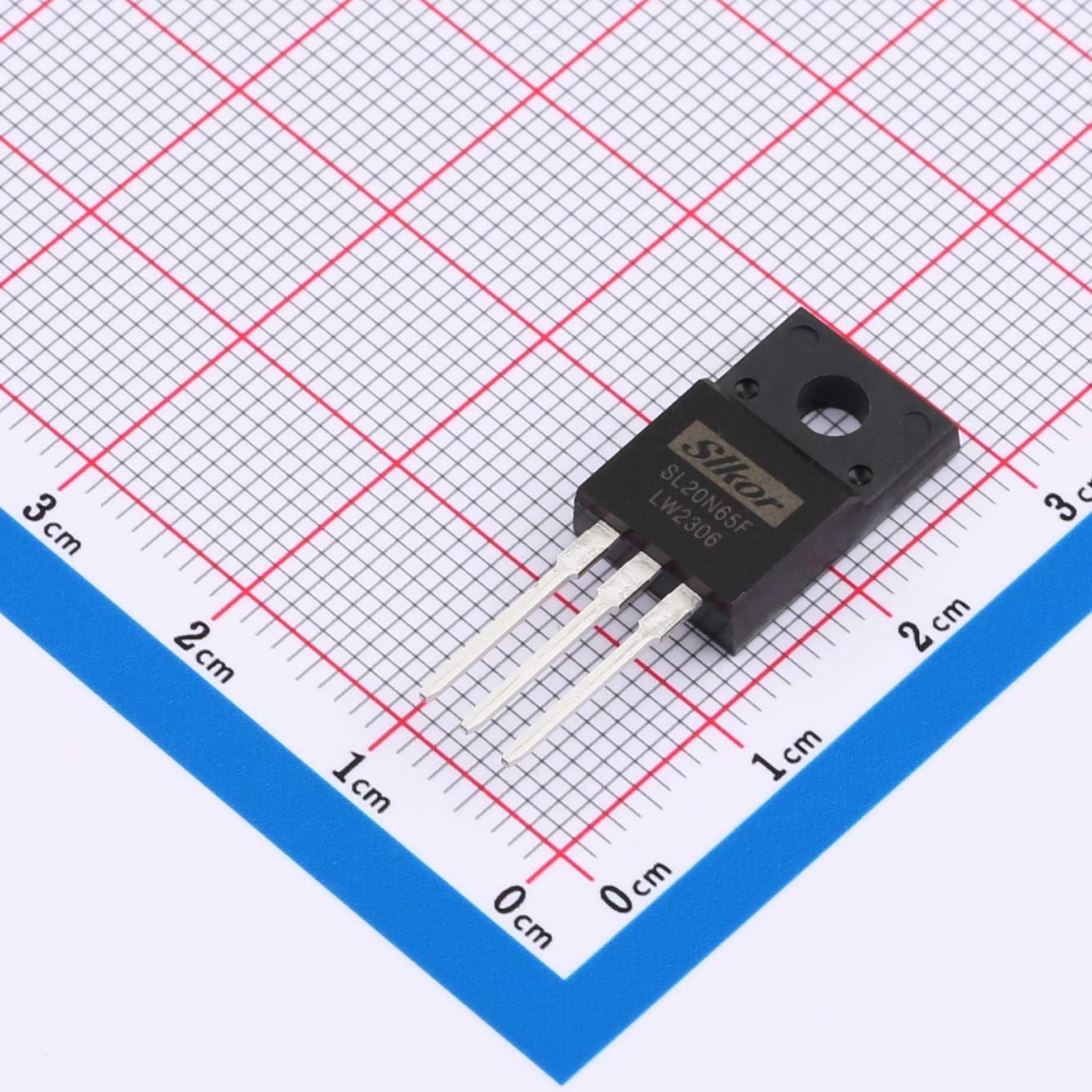

SL20N65F N-channel Power MOSFET TO-220F Package：TO-220F VDSS(V)：650V Id(A)：20A RDSON(Ω)：0.38Ω@10V,10A VTH：3.5V@250μA P/N：N-Channel

Datasheet 3D Model

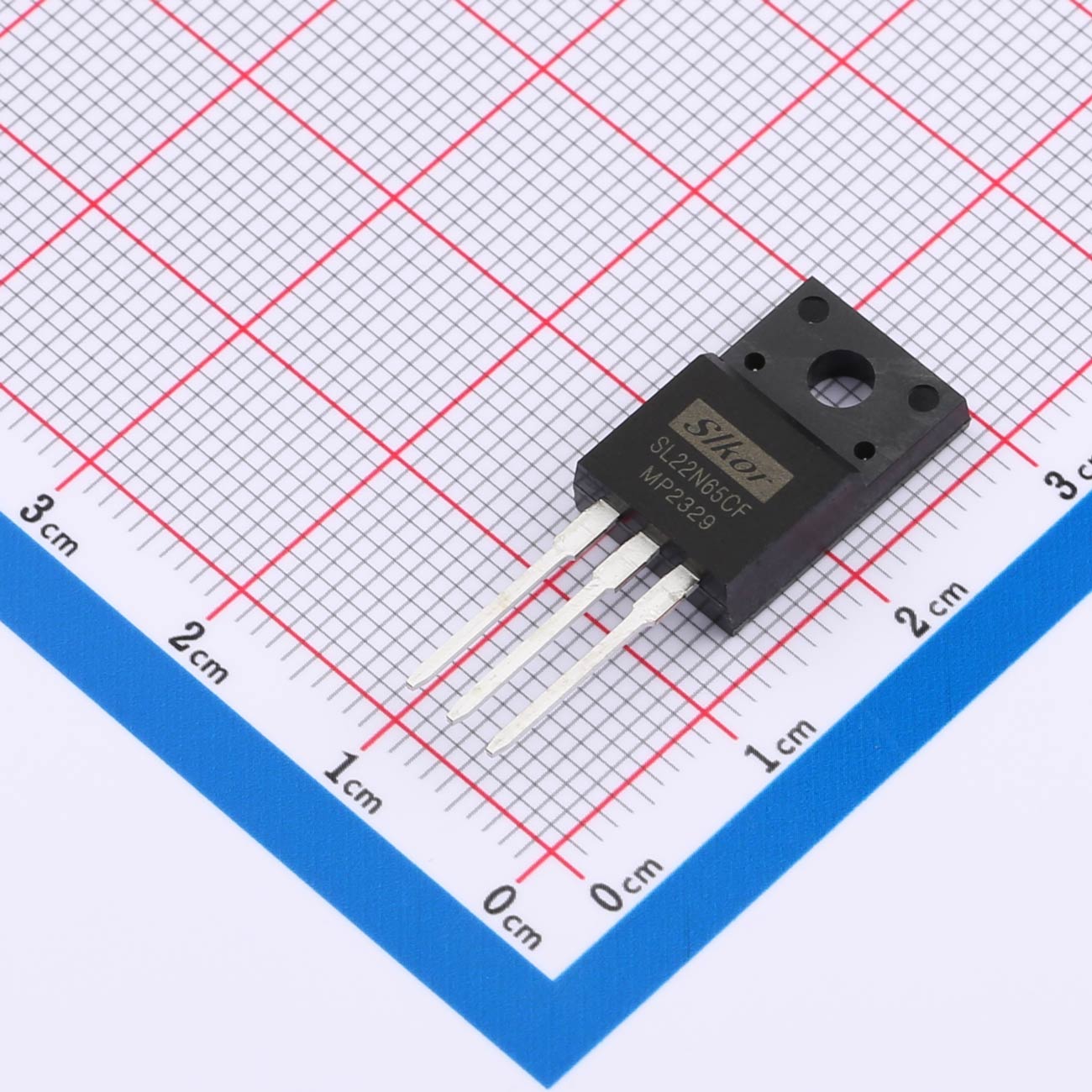

SL22N65CF N-channel Power MOSFET TO-220F Package：TO-220F VDSS(V)：650V Id(A)：22A RDSON(Ω)：150mΩ@10V,10A VTH：4.5V@250μA P/N：N-Channel

Datasheet 3D Model

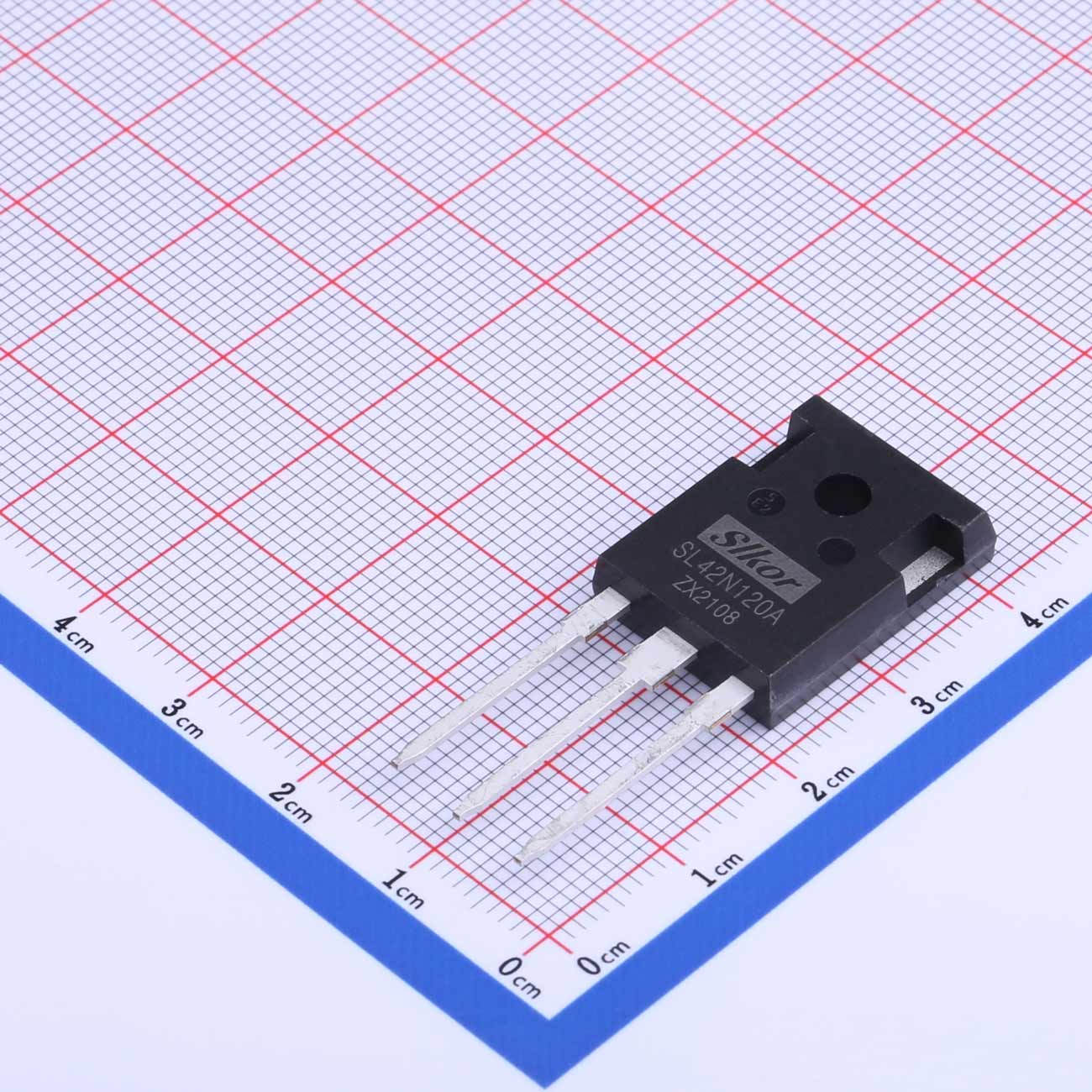

SL42N120A High Voltage MOSFET TO-247-3 Package：TO-247-3 VDSS(V)：1.2KV Id(A)：42A RDSON(Ω)：80mΩ@20V,10A VTH：[email protected] P/N：N-Channel

Datasheet 3D Model

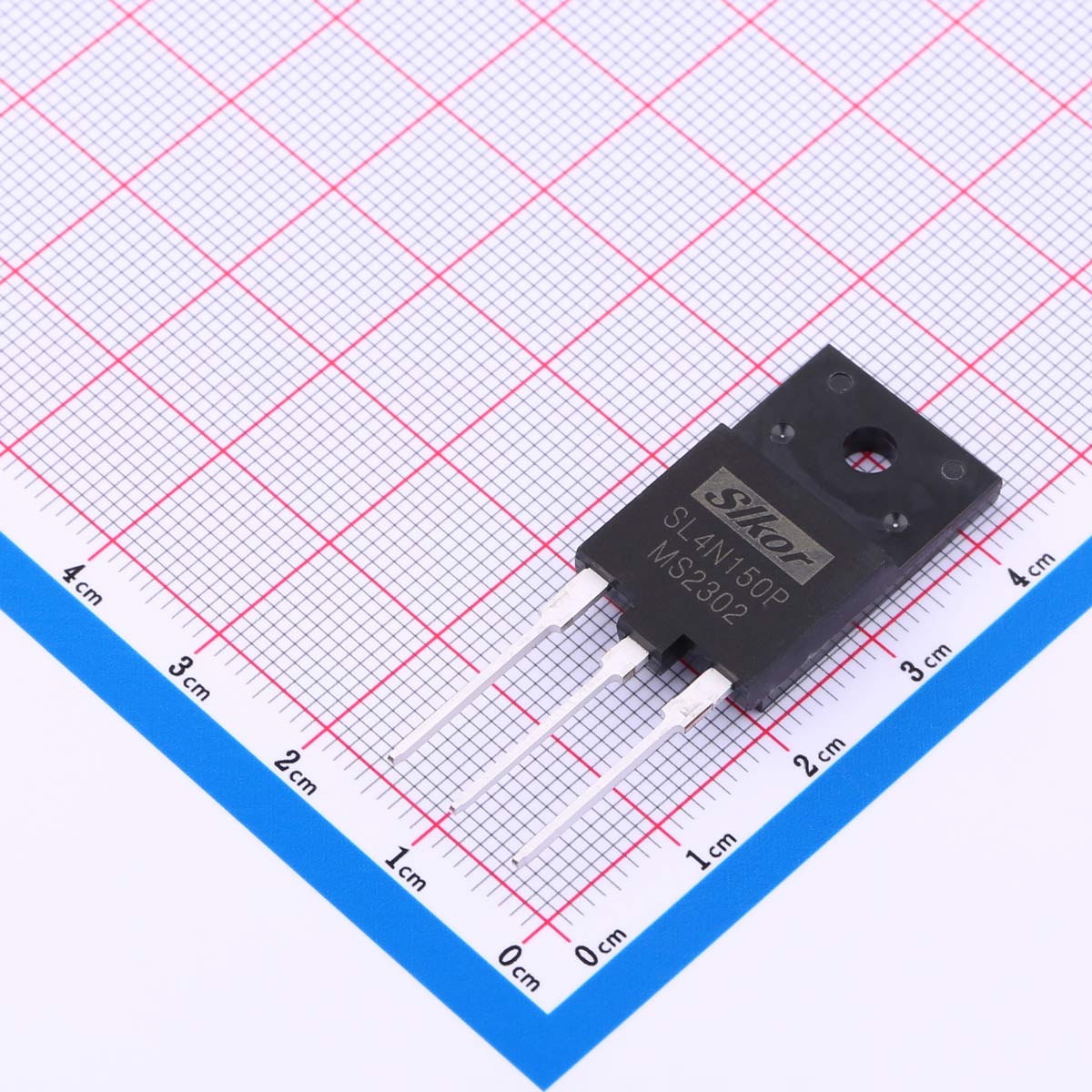

SL4N150P N-channel Power MOSFET TO-3PF Package：TO-3PF VDSS(V)：1500V Id(A)：4A RDSON(Ω)：5.8Ω@10V,1.3A VTH：4.5V@250μA P/N：N-Channel

Datasheet 3D Model

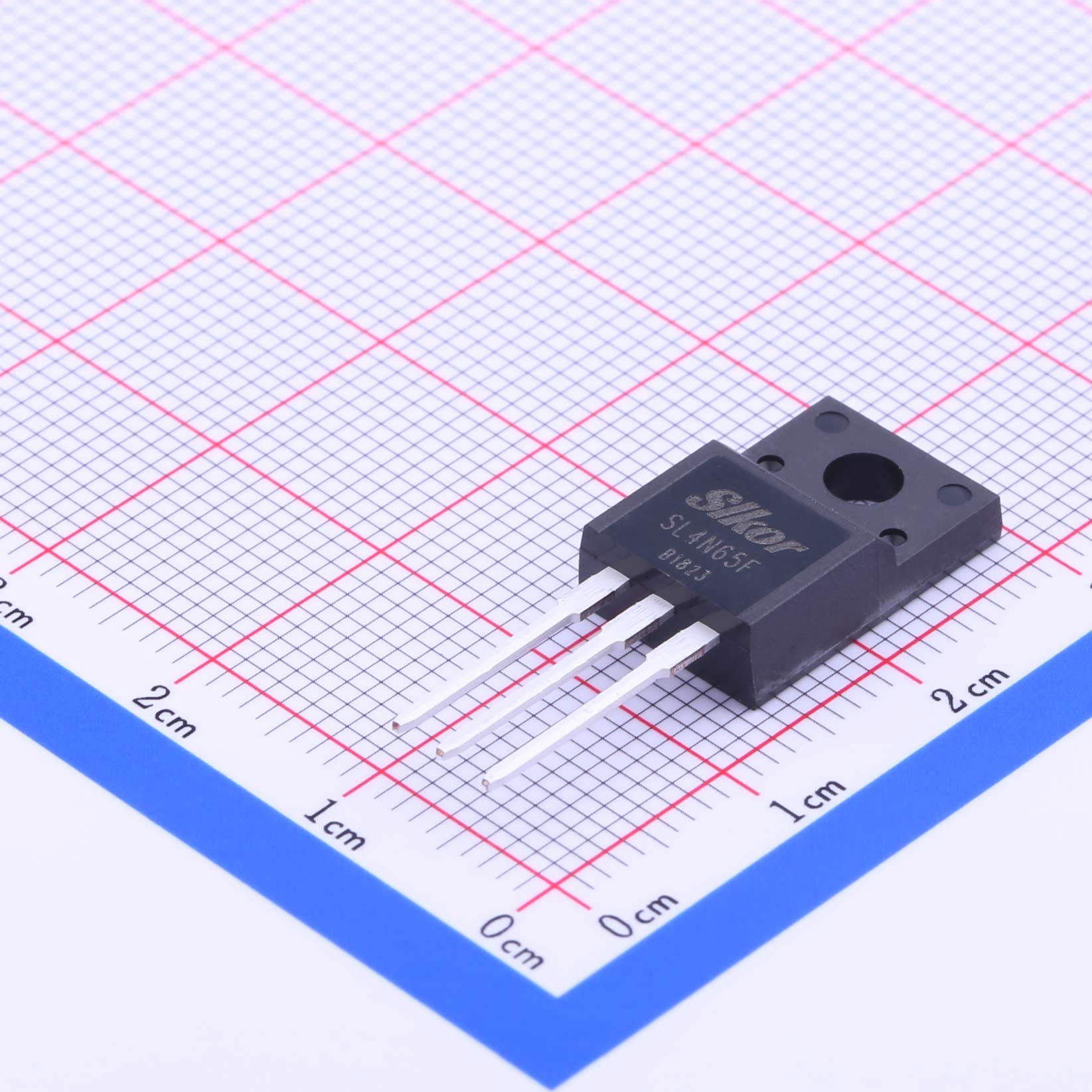

SL4N65F N-Channel Power MOSFET TO-220F Package：TO-220F VDSS(V)：650V Id(A)：4A RDSON(Ω)：2.6Ω@10V,2A VTH：4.5V@250A P/N：N-Channel

Datasheet 3D Model

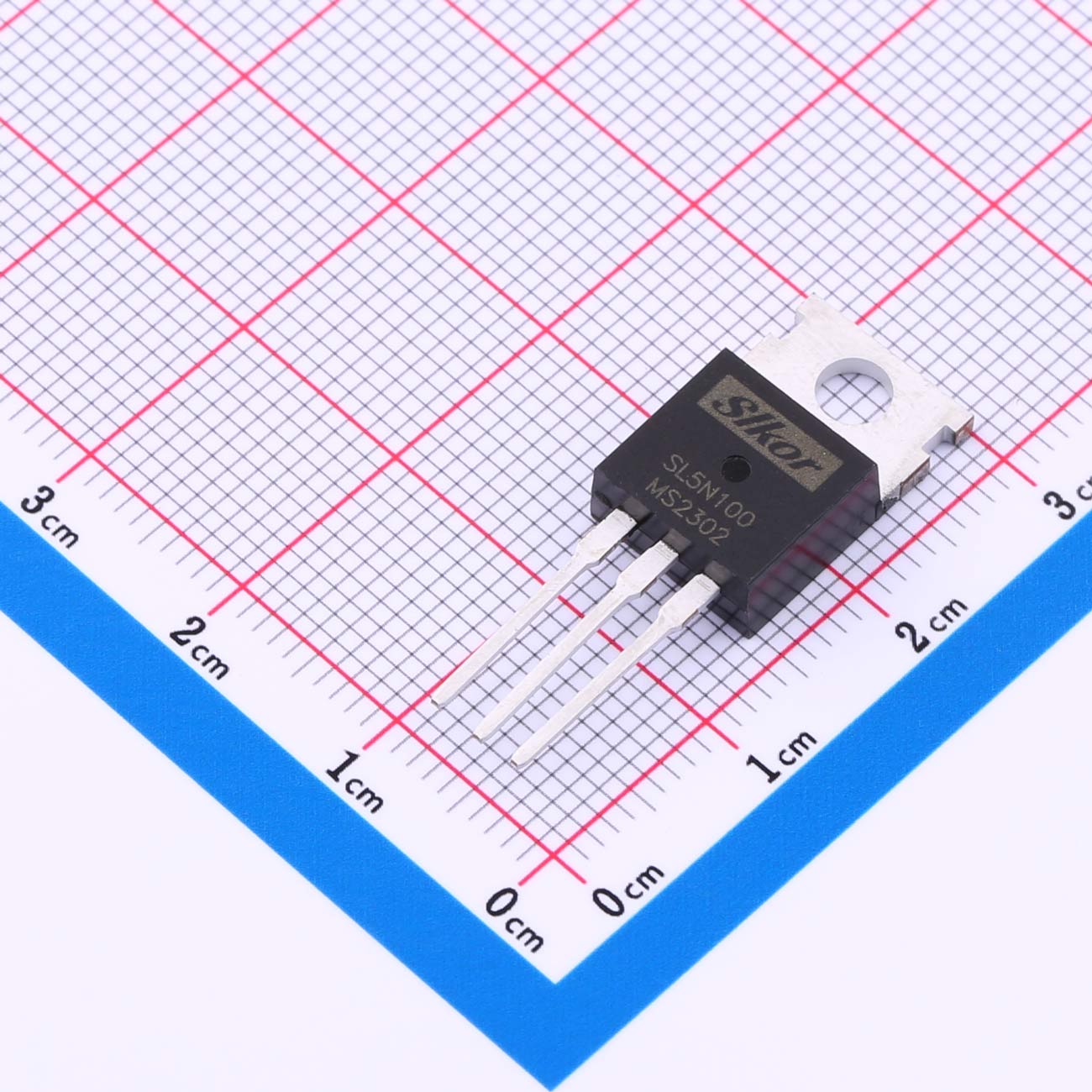

SL5N100 N-channel Power MOSFET TO-220 Package：TO-220 VDSS(V)：1000V Id(A)：5A RDSON(Ω)：4.2Ω VTH：3.5V@100μA P/N：N-Channel

Datasheet 3D Model

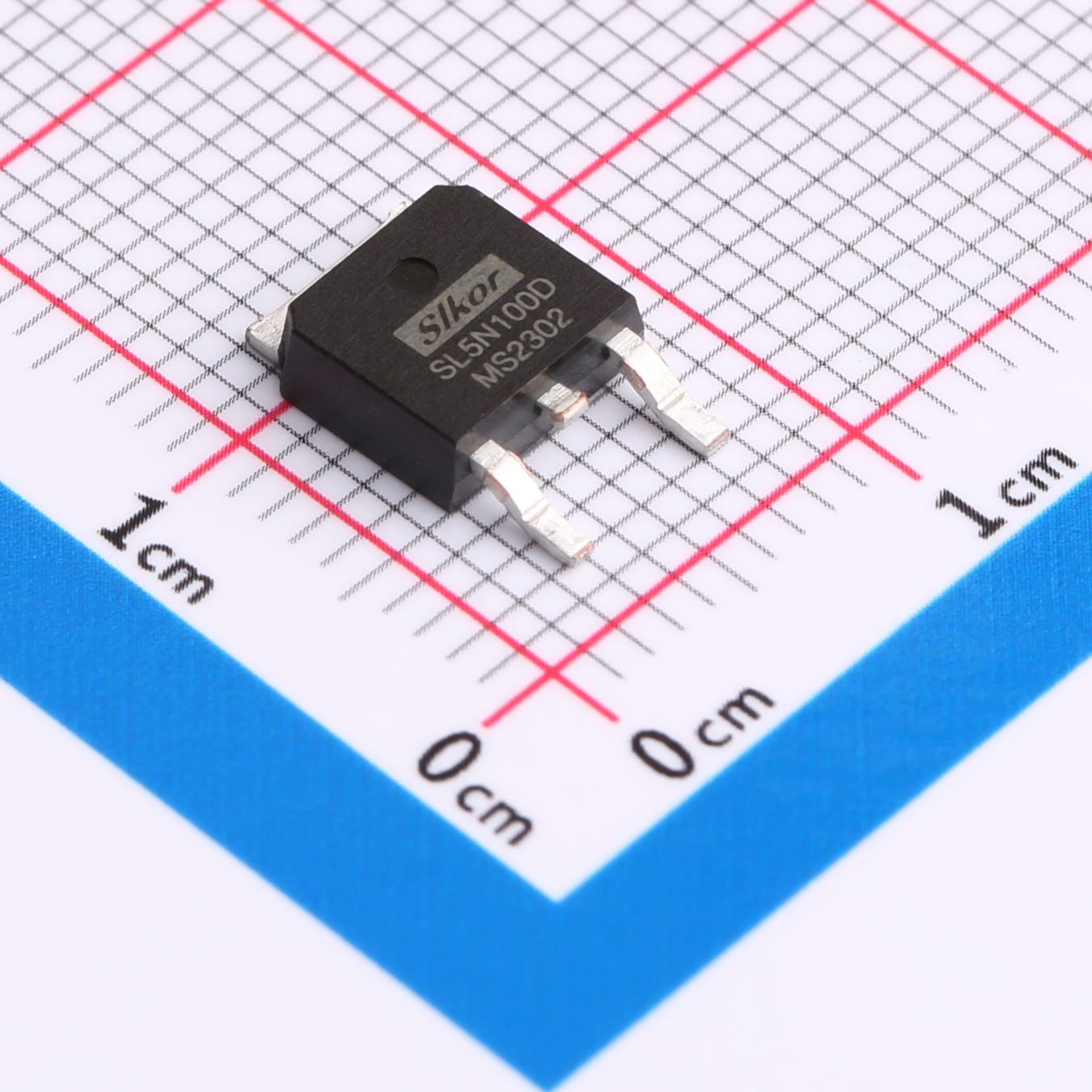

SL5N100D N-channel Power MOSFET TO-252 Package：TO-252 VDSS(V)：1000V Id(A)：5A RDSON(Ω)：4.2Ω VTH：3.5V@100μA P/N：N-Channel

Datasheet 3D Model

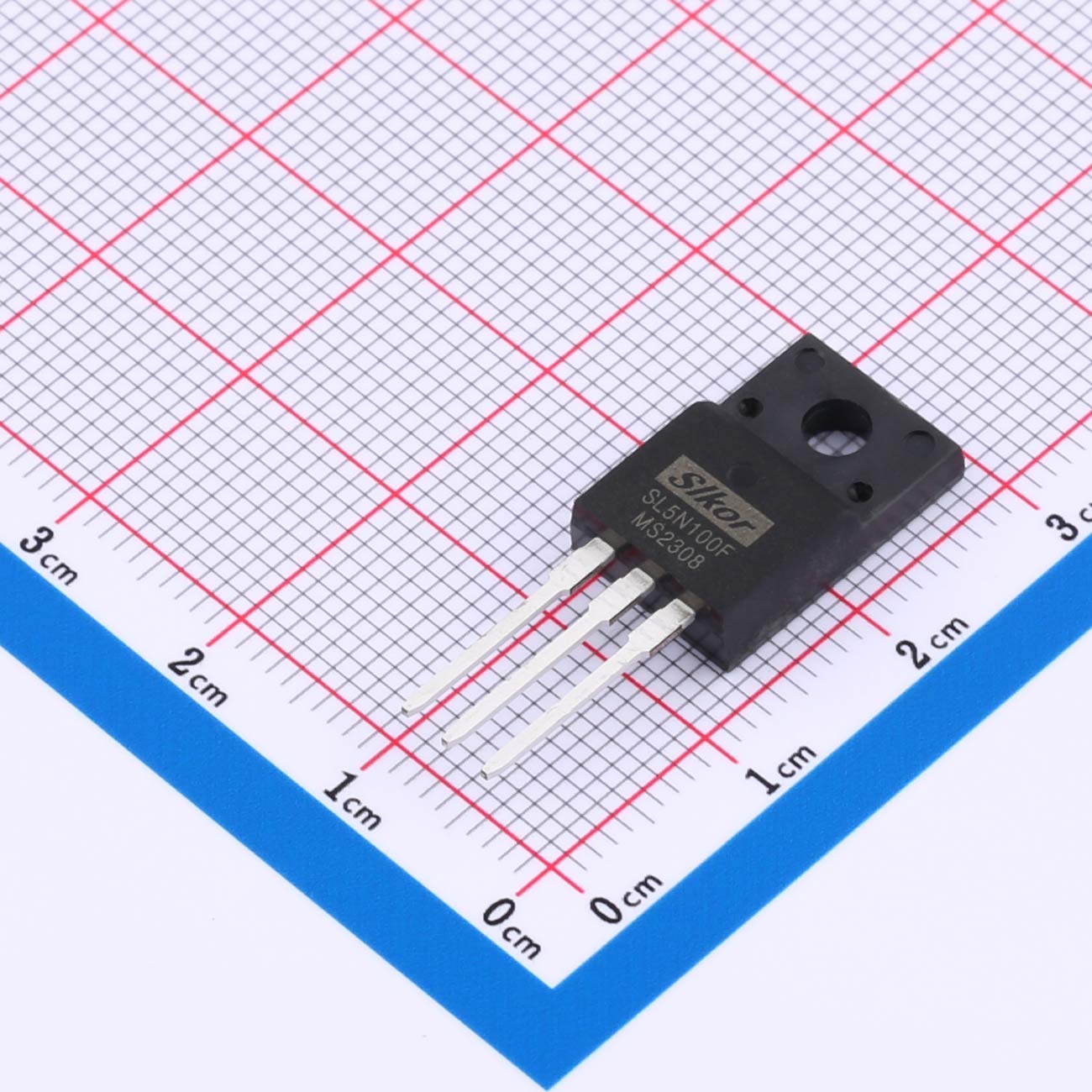

SL5N100F N-channel Power MOSFET TO-220F Package：TO-220F VDSS(V)：1000V Id(A)：5A RDSON(Ω)：4.2Ω VTH：3.5V@100μA P/N：N-Channel

SL10N65F N-Channel Power MOSFET TO-220F	TO-220F	650V	10A	940mΩ@10V,5A	4.5V@250A	N-Channel
SL11N65CD N-channel Power MOSFET TO-252	TO-252	650V	11A	318mΩ@10V,4.0A	[email protected]	N-Channel
SL11N65CF1 N-channel Power MOSFET TO-220F	TO-220F	650V	11A	318mΩ@10V,4.0A	4.5V@250μA	N-Channel
SL12N100 N-channel Power MOSFET TO-220	TO-220	1000V	12A	1.0Ω@10V,6A	5.0V@250μA	N-Channel
SL12N100T N-channel Power MOSFET TO-247	TO-247	1000V	12A	1.0Ω@10V,6A	5.0V@250μA	N-Channel
SL12P03S P-channel Power MOSFET SOP-8	SOP-8	-30V	-12A	24mΩ@-4.5V,-5A	-1.6V@-250μA	P-Channel
SL13N45F N-Channel Enhancement MOSFET TO-220F	TO-220F	450V	13A	470mΩ@10V,5.5A	4V@250uA	N-Channel
SL13N50FS N-Channel Enhancement MOSFET TO-220F	TO-220F	500V	13A	520mΩ@10V,6.5A	4V@250μA	N-Channel
SL15N60CF N-channel Power MOSFET TO-220F	TO-220F	650V	15A	238mΩ@10V,7.5A	4.5V@250μA	N-Channel
SL15N65CD N-channel Power MOSFET TO-252	TO-252	650V	15A	238mΩ@10V,7.5A	4.5V@250μA	N-Channel
SL18N20 N-channel Power MOSFET TO-220-3L	TO-220-3L	200V	18A	120mΩ@10V,9A	3.0V@250μA	N-Channel
SL18N50F N-Channel Power MOSFET TO-220F	TO-220F	500V	18A	0.32Ω@10V,9A	4V@250μA	N-Channel
SL20N65F N-channel Power MOSFET TO-220F	TO-220F	650V	20A	0.38Ω@10V,10A	3.5V@250μA	N-Channel
SL22N65CF N-channel Power MOSFET TO-220F	TO-220F	650V	22A	150mΩ@10V,10A	4.5V@250μA	N-Channel
SL42N120A High Voltage MOSFET TO-247-3	TO-247-3	1.2KV	42A	80mΩ@20V,10A	[email protected]	N-Channel
SL4N150P N-channel Power MOSFET TO-3PF	TO-3PF	1500V	4A	5.8Ω@10V,1.3A	4.5V@250μA	N-Channel
SL4N65F N-Channel Power MOSFET TO-220F	TO-220F	650V	4A	2.6Ω@10V,2A	4.5V@250A	N-Channel
SL5N100 N-channel Power MOSFET TO-220	TO-220	1000V	5A	4.2Ω	3.5V@100μA	N-Channel
SL5N100D N-channel Power MOSFET TO-252	TO-252	1000V	5A	4.2Ω	3.5V@100μA	N-Channel
SL5N100F N-channel Power MOSFET TO-220F	TO-220F	1000V	5A	4.2Ω	3.5V@100μA	N-Channel
