Current Sensor
A current sensor is a device that detects and measures the amount of electric current flowing through a conductor. It typically converts this current into a signal that can be read by electronic systems, such as voltage or digital output. Current sensors are crucial in applications like power monitoring, energy management, and safety systems, helping to ensure accurate measurement and control of electrical currents.

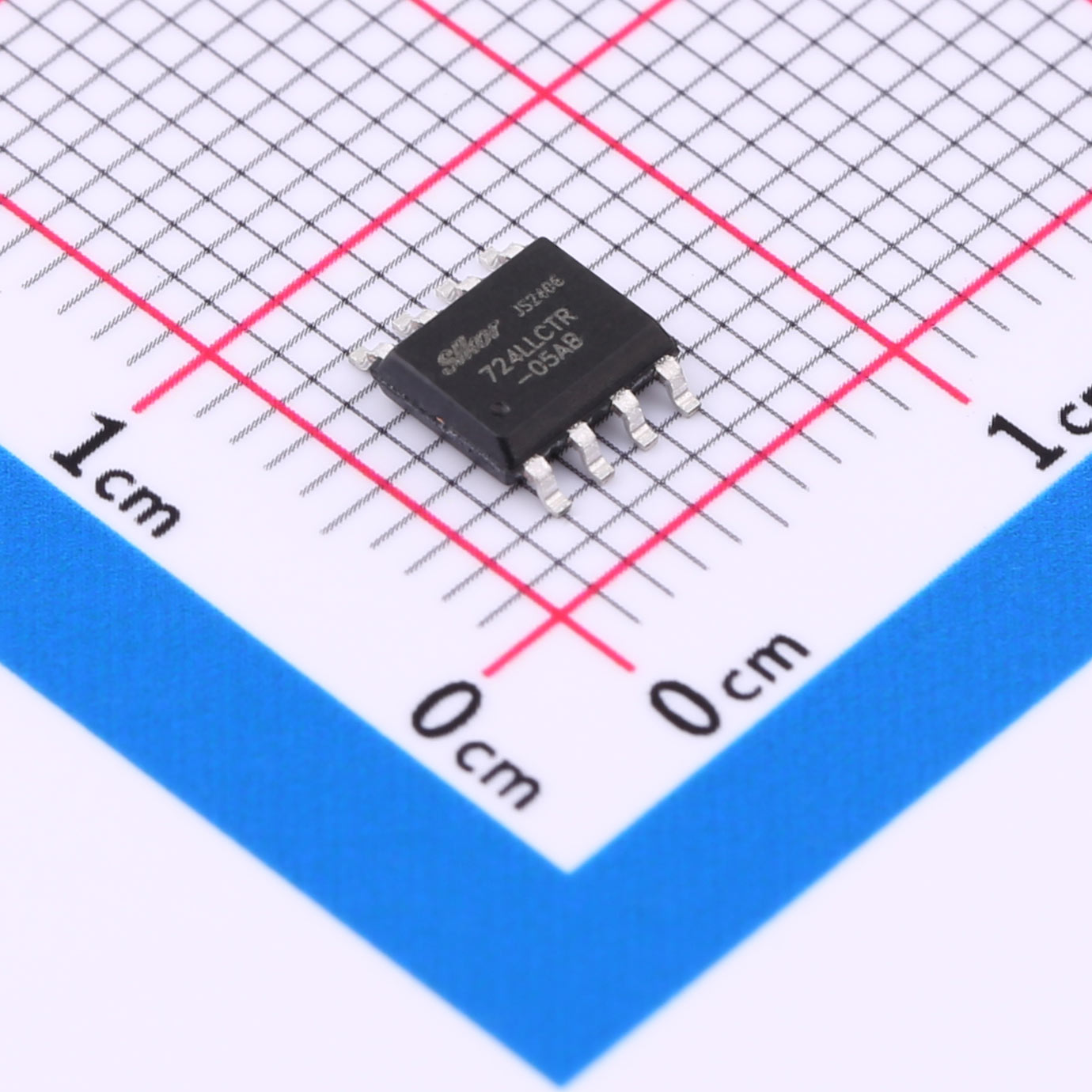

ACS724LLCTR-05AB-T Current Sensor SOP-8
Ip(A)：5A
Vcc(V)：4.5V~5.5V
Icc(mA)：9mA-13mA
Sens(mV/A)：400mV/A
TA(℃)：-40C°~150C°
Package：SOP-8

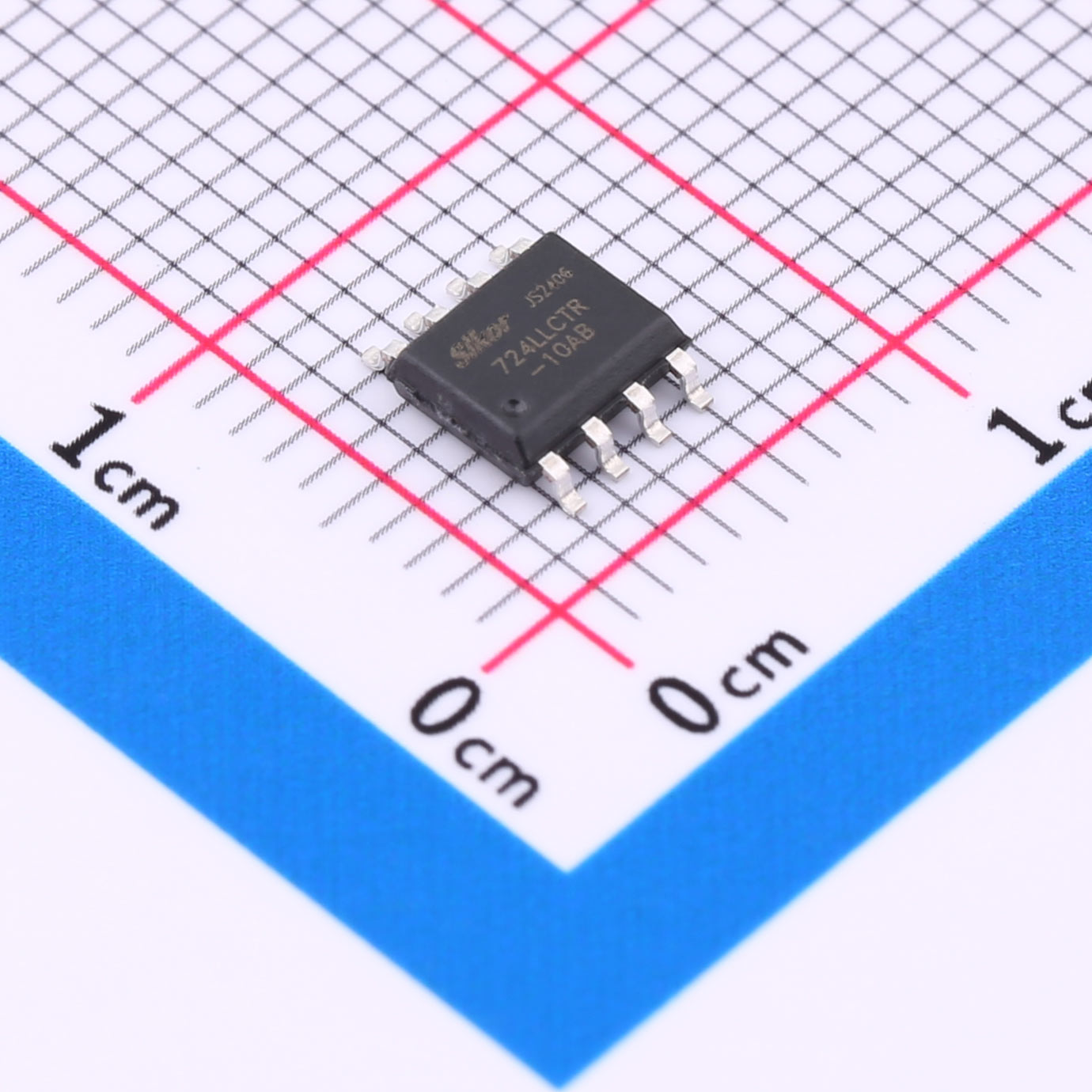

ACS724LLCTR-10AB-T Current Sensor SOP-8
Ip(A)：5A
Vcc(V)：4.5V~5.5V
Icc(mA)：9mA-13mA
Sens(mV/A)：200mV/A
TA(℃)：-40C°~150C°
Package：SOP-8
ACS724LLCTR-20AB-T Current Sensor SOP-8
Ip(A)：5A
Vcc(V)：4.5V~5.5V
Icc(mA)：9mA-13mA
Sens(mV/A)：100mV/A
TA(℃)：-40C°~150C°
Package：SOP-8
ACS724LLCTR-30AB-T Current Sensor SOP-8
Ip(A)：5A
Vcc(V)：4.5V~5.5V
Icc(mA)：9mA-13mA
Sens(mV/A)：66.7mV/A
TA(℃)：-40C°~150C°
Package：SOP-8
ACS724LLCTR-50AB-T Current Sensor SOP-8
Ip(A)：5A
Vcc(V)：4.5V~5.5V
Icc(mA)：9mA-13mA
Sens(mV/A)：40mV/A
TA(℃)：-40C°~150C°
Package：SOP-8
| 5A | 4.5V~5.5V | 9mA-13mA | 400mV/A | -40C°~150C° | SOP-8 | |
| 5A | 4.5V~5.5V | 9mA-13mA | 200mV/A | -40C°~150C° | SOP-8 | |
| 5A | 4.5V~5.5V | 9mA-13mA | 100mV/A | -40C°~150C° | SOP-8 | |
| 5A | 4.5V~5.5V | 9mA-13mA | 66.7mV/A | -40C°~150C° | SOP-8 | |
| 5A | 4.5V~5.5V | 9mA-13mA | 40mV/A | -40C°~150C° | SOP-8 |
ShenzhenSLKORMicroSemiconCo., Ltd.
SLKOR's product lines include discrete devices, etc., diodes, transistors, power devices; and integrated circuit chips, etc., linear regulators, DC/ DC chips, interface chips, Hall sensors, ADCs, and BMS... We have years of accumulated technology on dedicated semiconductor.
