Switching Diode A switching diode is a diode that has a switching function. This diode has the performance of current passage (ON) when voltage is applied in the forward direction and current stop (OFF) when voltage is applied in the reverse direction. The reverse recovery time (trr) is short and the switching characteristics are excellent compared to other diodes. Mainly used in electronic computers, pulse and switching circuits.

Products Documents Data

Datasheet 3D Model

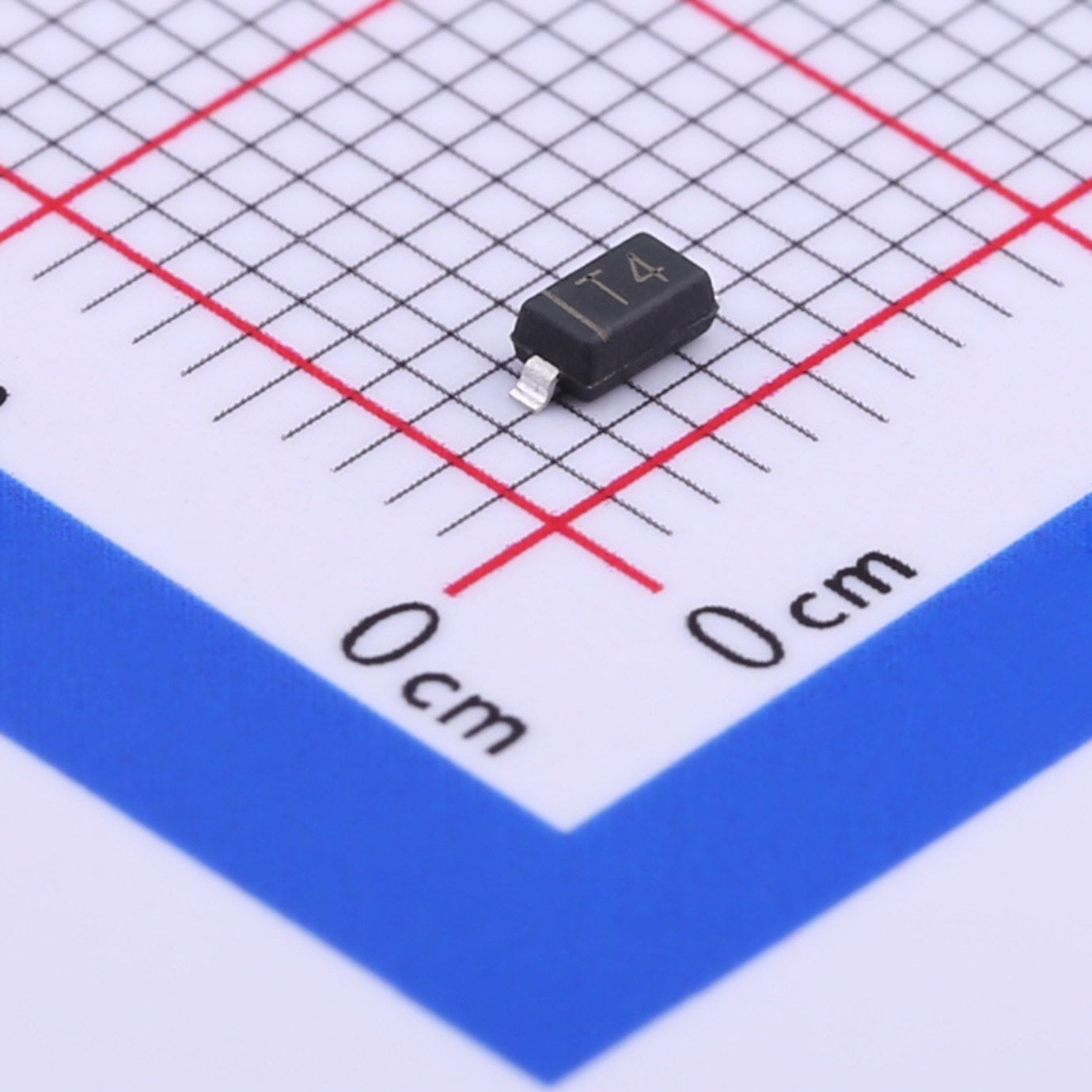

1N4148W Fast Switching Diode SOD-123 VRRM(V)：75V IO(A)：150mA VF(V)：1V IR(uA)：25nA trr(ns)：4ns Package：SOD-123

Datasheet 3D Model

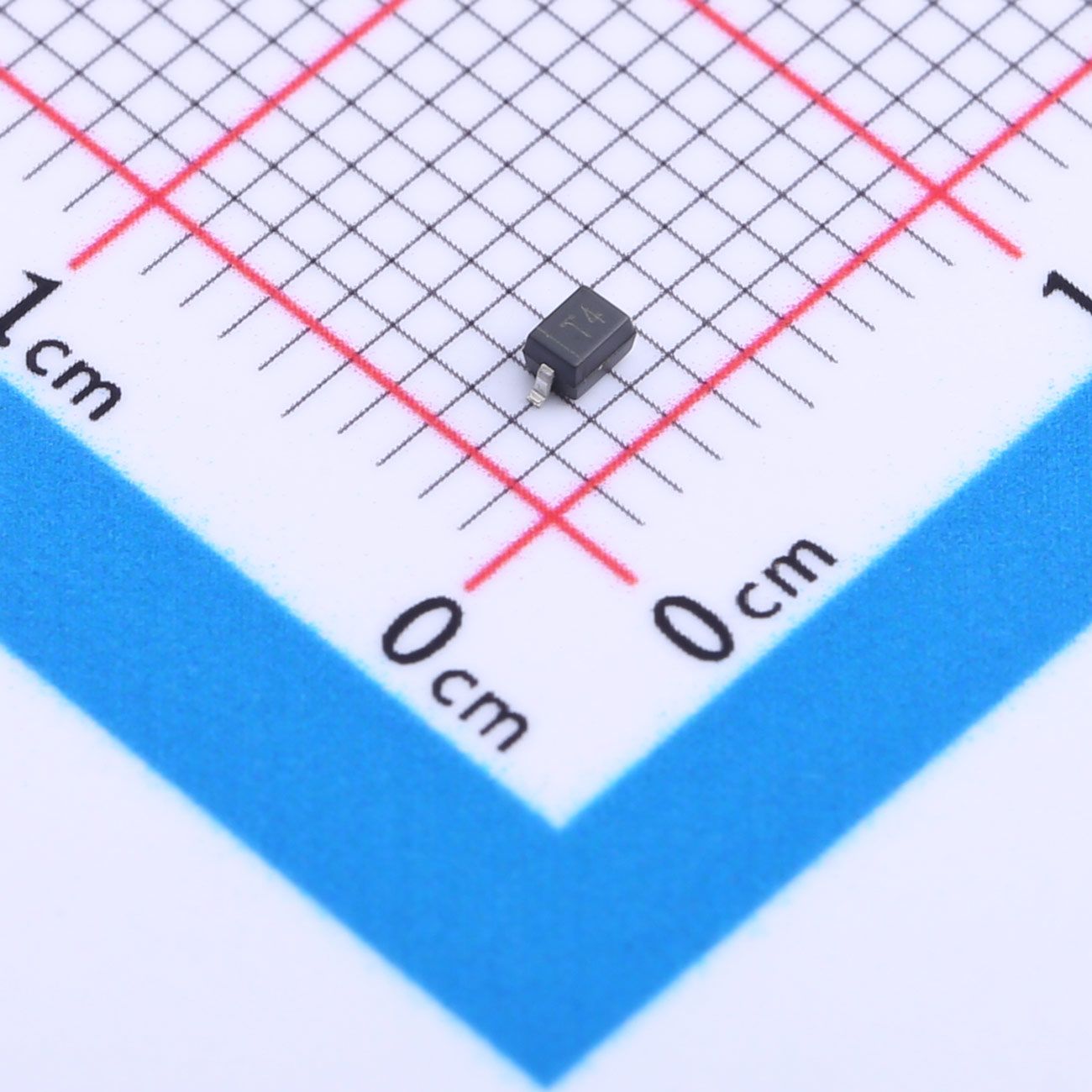

1N4148WS Surface Mount Switching Diode SOD-323 VRRM(V)：75V IO(A)：150mA VF(V)：1V IR(uA)：1μA trr(ns)：4ns Package：SOD-323

Datasheet 3D Model

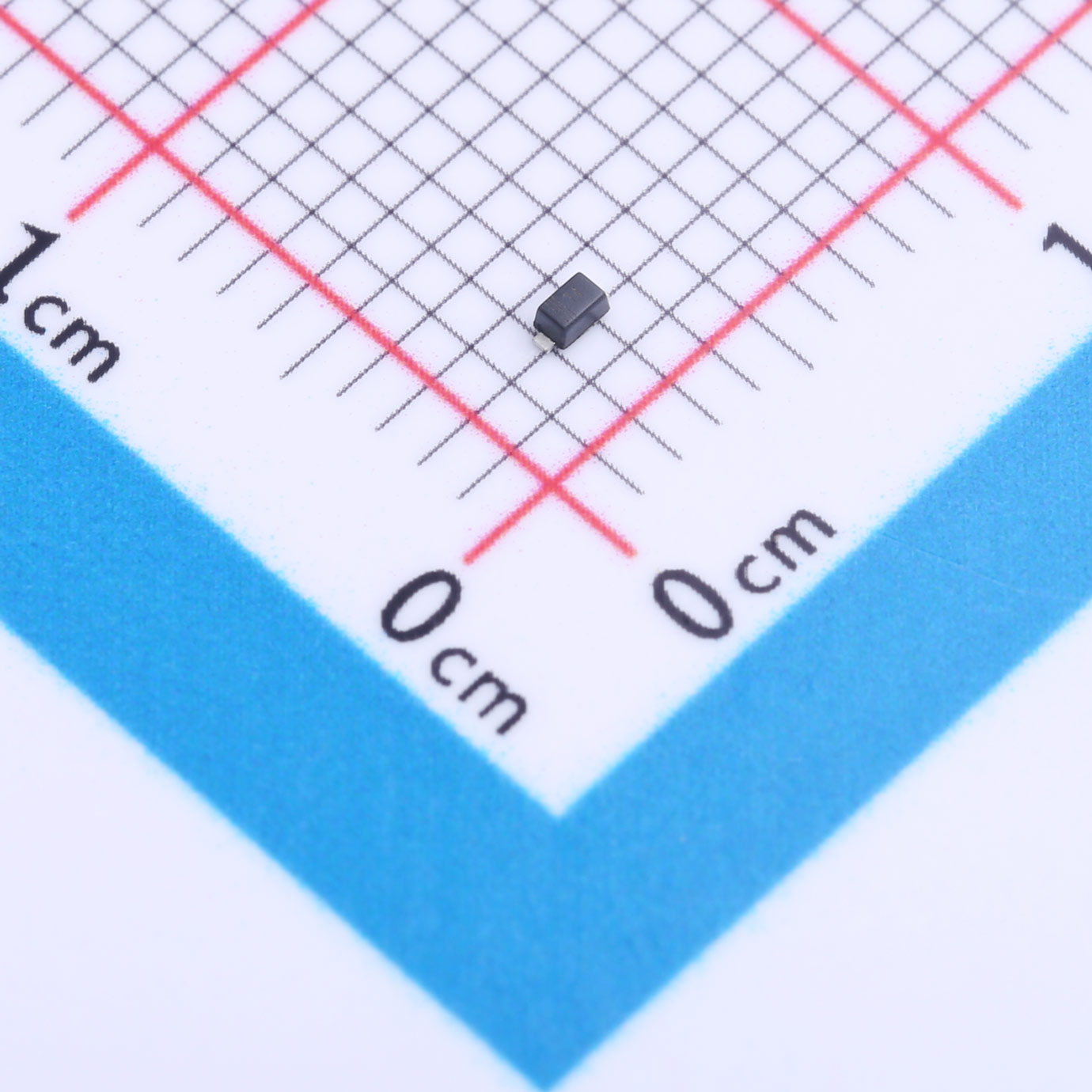

1N4148WT Small Signal Diode SOD-523 VRRM(V)：80V IO(A)：100mA VF(V)：1.25V IR(uA)：100nA trr(ns)：4ns Package：SOD-523

Datasheet 3D Model

1N4448WS Fast Switching Diode VRRM(V)：75V IO(A)：250mA VF(V)：0.62V IR(uA)：2.5μA trr(ns)：4ns Package：SOD-323

Datasheet 3D Model

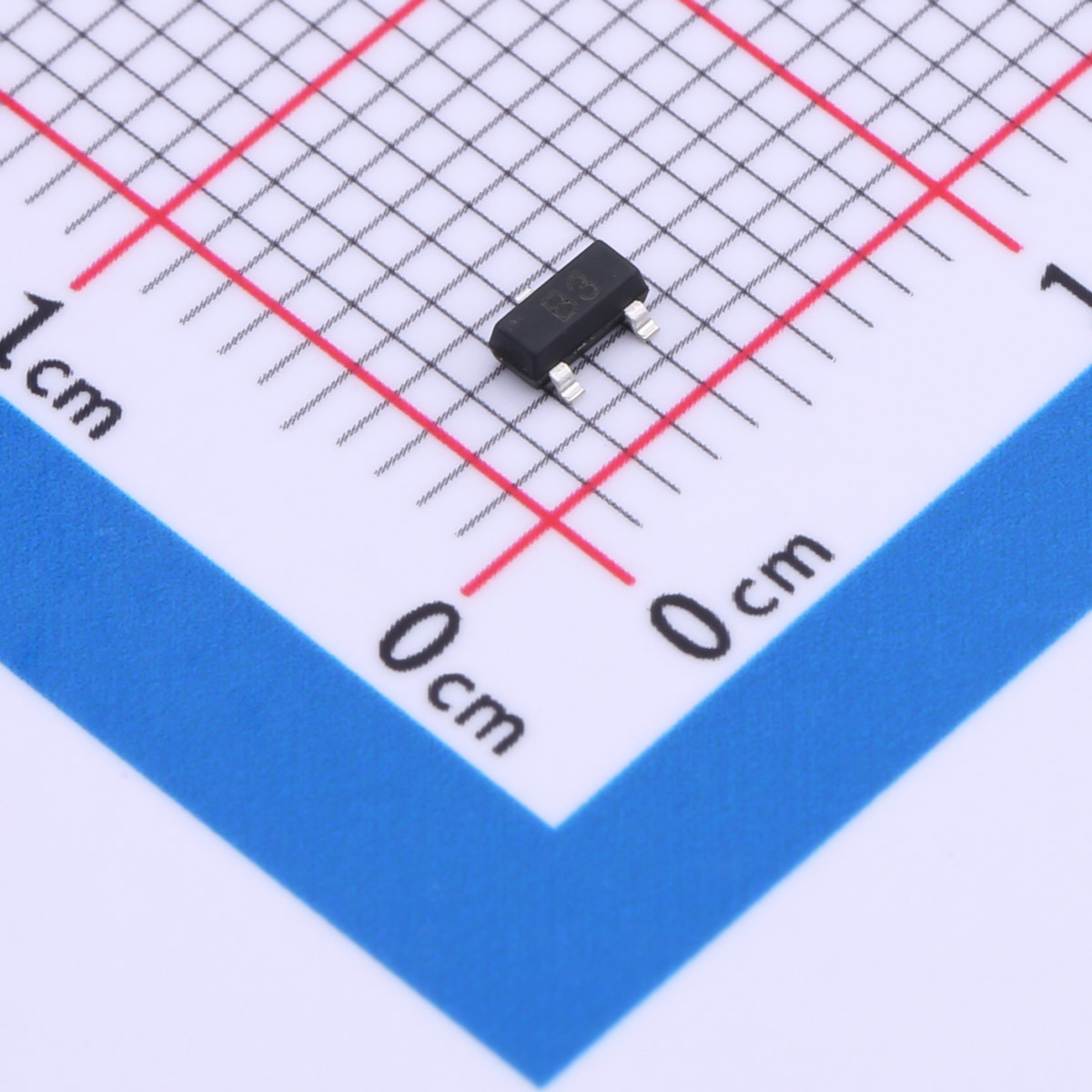

1SS184 Switching Diodes SOT-23 VRRM(V)：85V IO(A)：100mA VF(V)：0.6V IR(uA)：0.1μA trr(ns)：1.6ns Package：SOT-23

Datasheet 3D Model

1SS352 Switching Diodes SOD-323 VRRM(V)：80V IO(A)：100mA VF(V)：1.2V@100mA IR(uA)：100nA@30V trr(ns)：1.6ns Package：SOT-323

Datasheet 3D Model

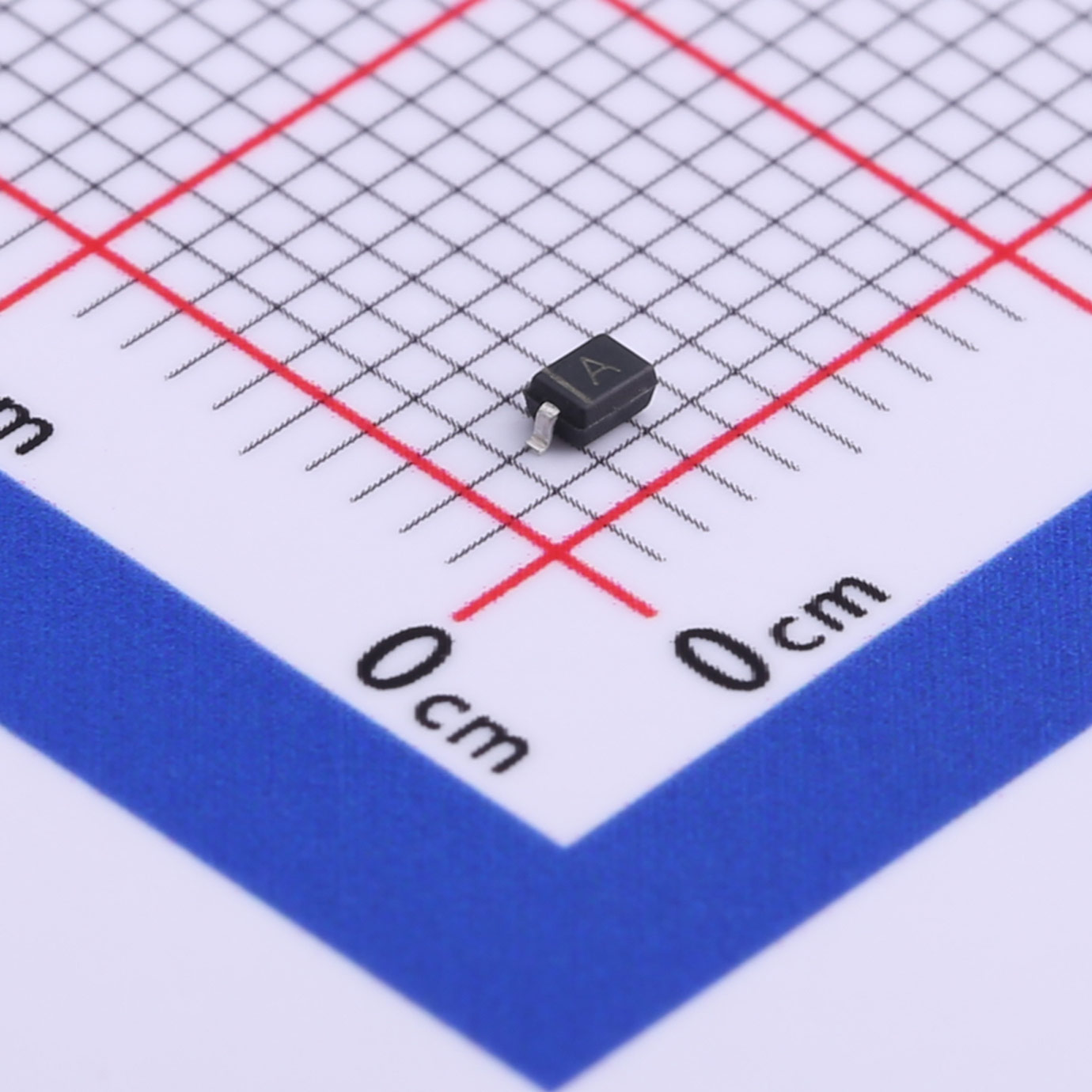

1SS355 Fast Switching Diodes SOD-323 VRRM(V)：90V IO(A)：100mA VF(V)：1.2V IR(uA)：0.1μA trr(ns)：4ns Package：SOD-323

Datasheet 3D Model

1SS400CM Switching Diodes SOD-923 VRRM(V)：80V IO(A)：100mA VF(V)：1.2V@100mA IR(uA)：100nA trr(ns)：4ns Package：SOD-923

Datasheet 3D Model

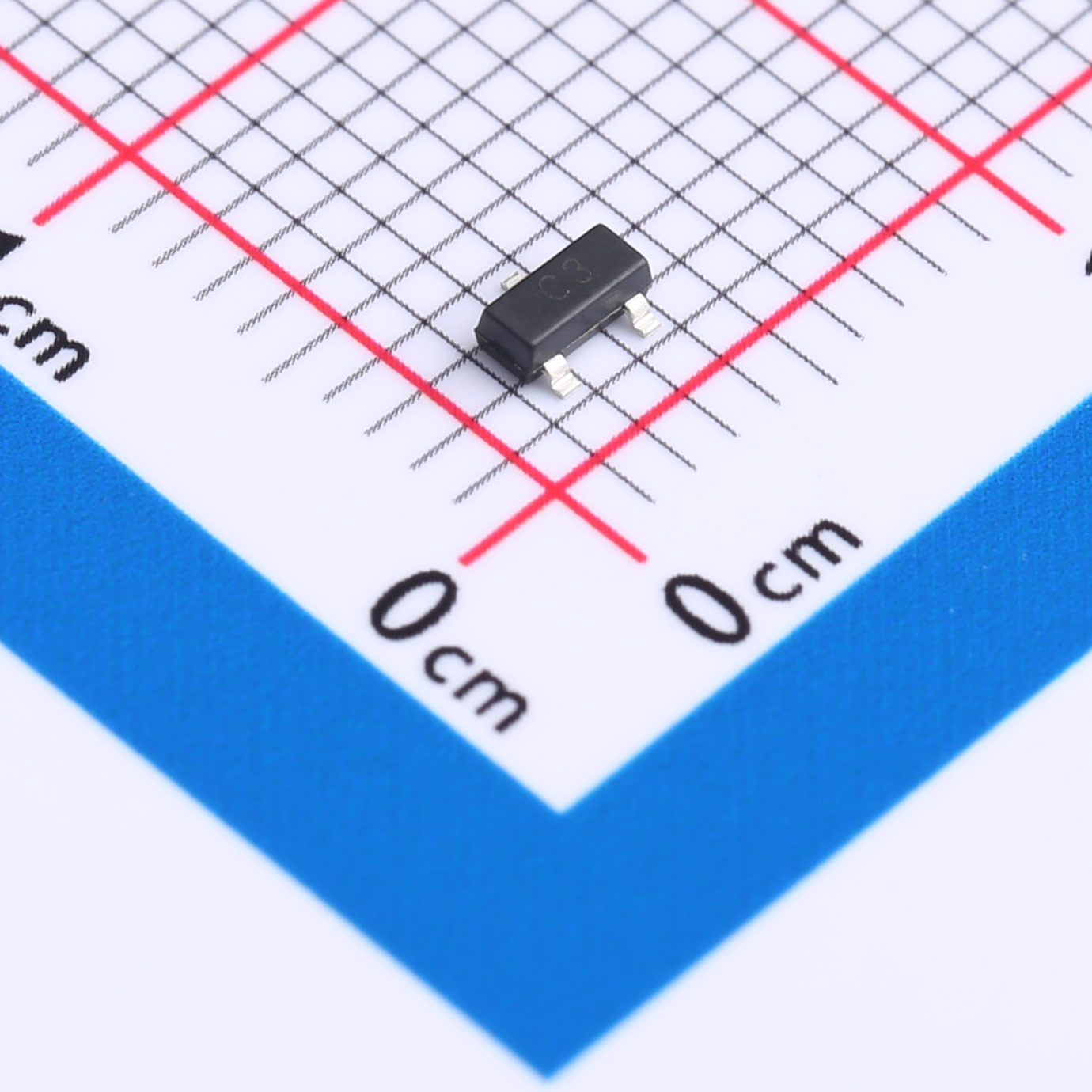

1ss226 Fast Switching Diodes SOT-23 VRRM(V)：85V IO(A)：100mA VF(V)：0.9V IR(uA)：0.5μA@80V trr(ns)：4ns Package：SOT-23

Datasheet 3D Model

2SA2071 Switching Diodes SOT-89 The 2SA2071 is a PNP silicon transistor packaged in SOT-89, featuring high-speed switching performance and low saturation voltage, with strong driving capability for inductive and capacitive load applications.

Datasheet 3D Model

BAS16 Switching Diodes SOT-23 VRRM(V)：100V IO(A)：200mA VF(V)：0.715V IR(uA)：1μA trr(ns)：4ns Package：SOT-23

Datasheet 3D Model

BAS19 Switching Diodes SOT-23 VRRM(V)：120V IO(A)：200mA VF(V)：1.25V@200mA IR(uA)：100nA trr(ns)：50ns Package：SOT-23

Datasheet 3D Model

BAS21 Switching Diodes SOT-23 VRRM(V)：250V IO(A)：200mA VF(V)：1.25V@200mA IR(uA)：100nA@200V trr(ns)：50ns Package：SOT-23

Datasheet 3D Model

BAS21A Switching Diodes SOT-23 VRRM(V)：250V IO(A)：200mA VF(V)：1000mV IR(uA)：0.1μA trr(ns)：50ns Package：SOT-23

Datasheet 3D Model

BAS21C Switching Diodes SOT-23 VRRM(V)：250V IO(A)：200mA VF(V)：1000mV IR(uA)：0.1μA trr(ns)：50ns Package：SOT-23

Datasheet 3D Model

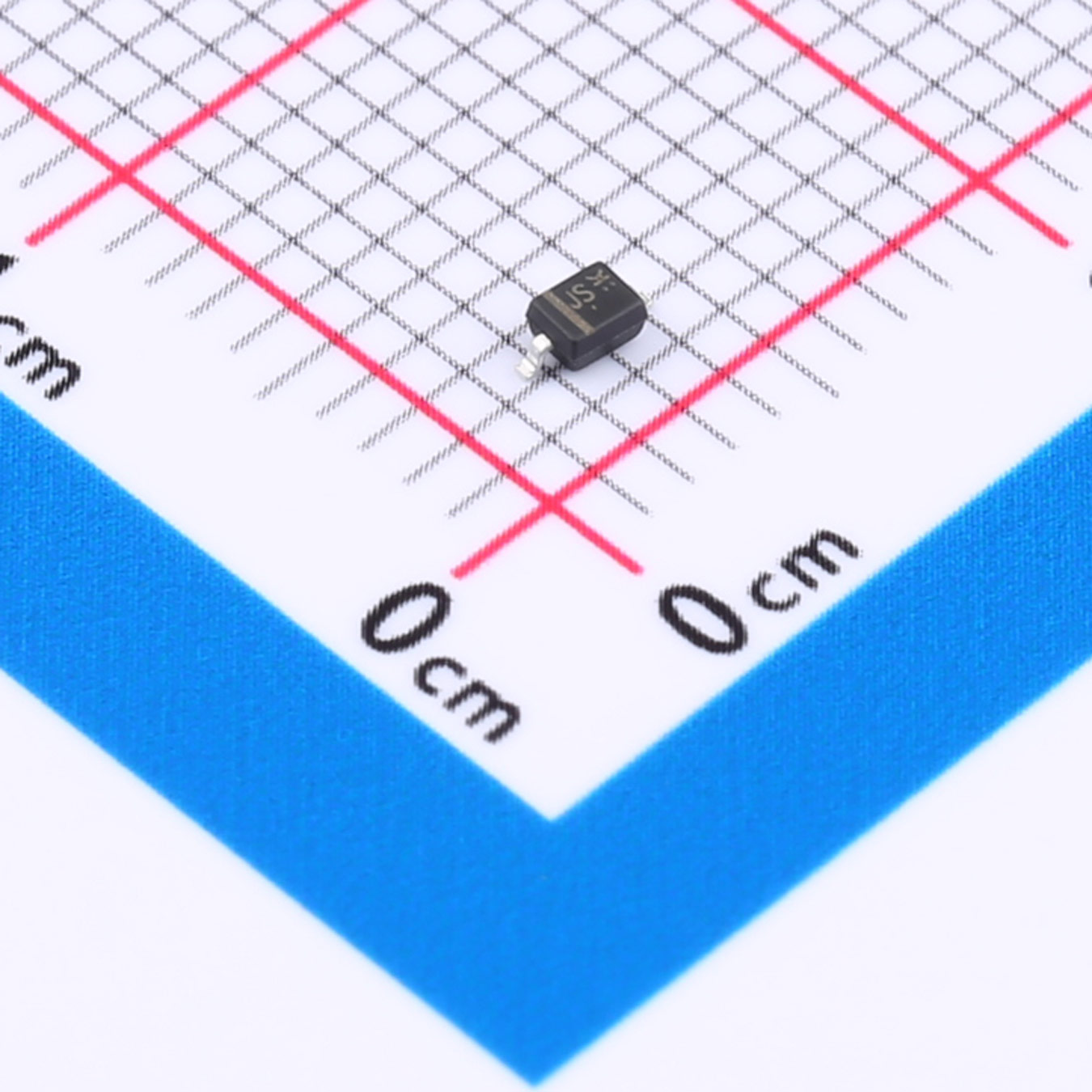

BAS21H Surface Mount Switching Diode SOD-323 VRRM(V)：250V IO(A)：200mA VF(V)：1V IR(uA)：0.1μA trr(ns)：50ns Package：SOD-323

Datasheet 3D Model

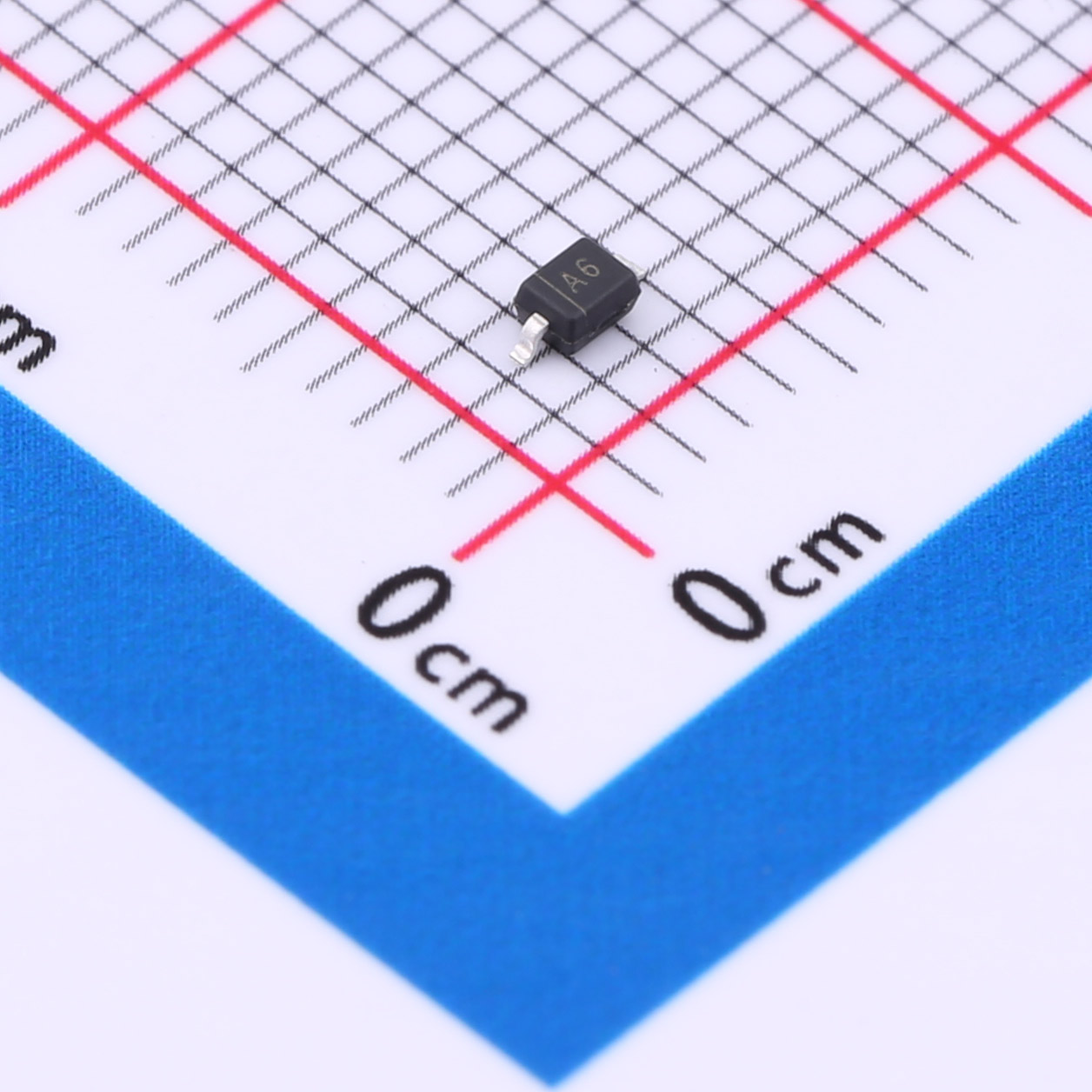

BAS316 Surface Mount Switching Diode SOT-323 VRRM(V)：100V IO(A)：150mA VF(V)：1.25V IR(uA)：25μA@20V trr(ns)：4ns Package：SOT-323

Datasheet 3D Model

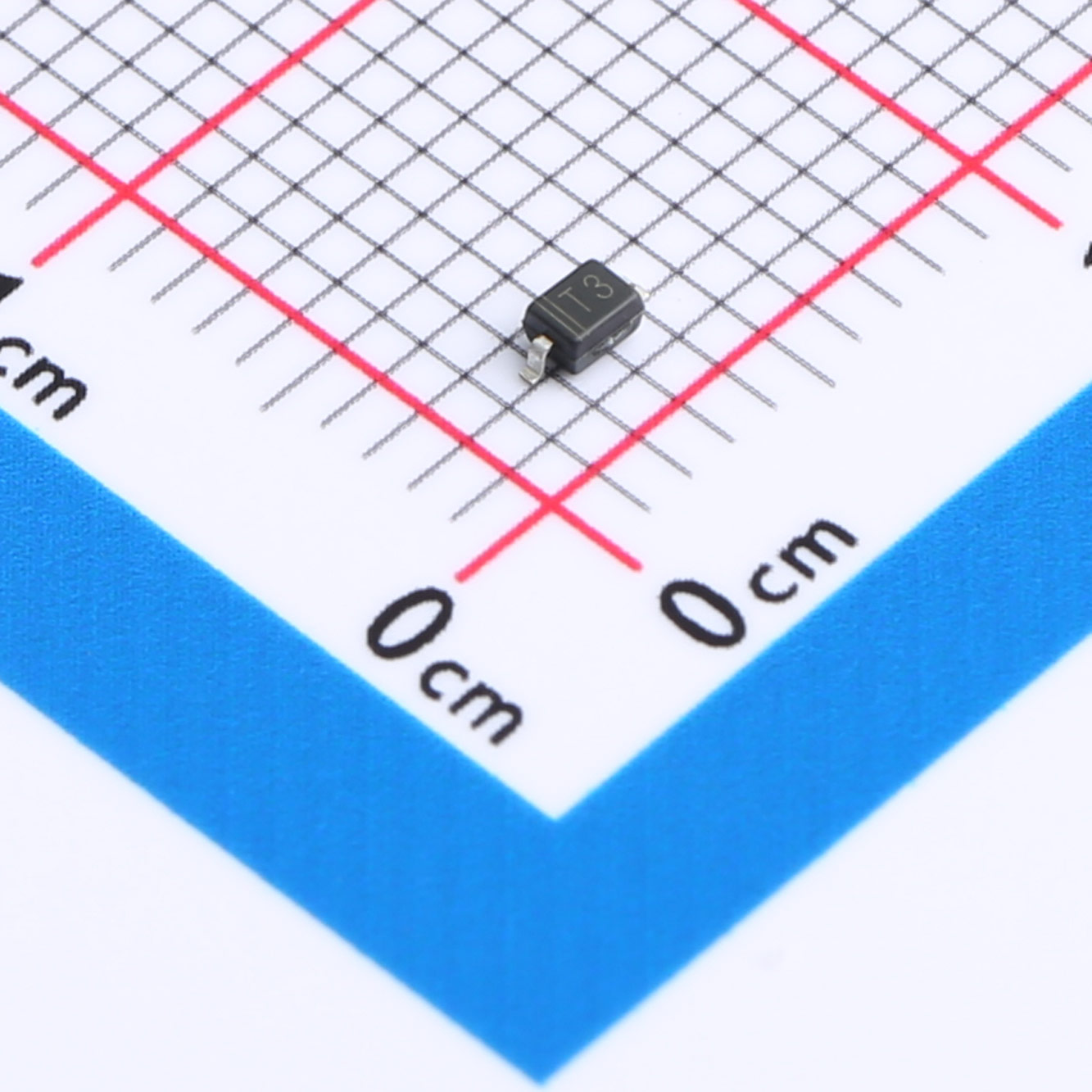

BAS321 Switching Diodes SOD-323 VRRM(V)：250V IO(A)：200mA VF(V)：1V IR(uA)：0.1μA trr(ns)：50ns Package：SOD-323

Datasheet 3D Model

BAT54AW Switching Diodes SOT-323 VRRM(V)：30V IO(A)：200mA VF(V)：0.24V IR(uA)：2μA trr(ns)：5ns Package：SOT-323

Datasheet 3D Model

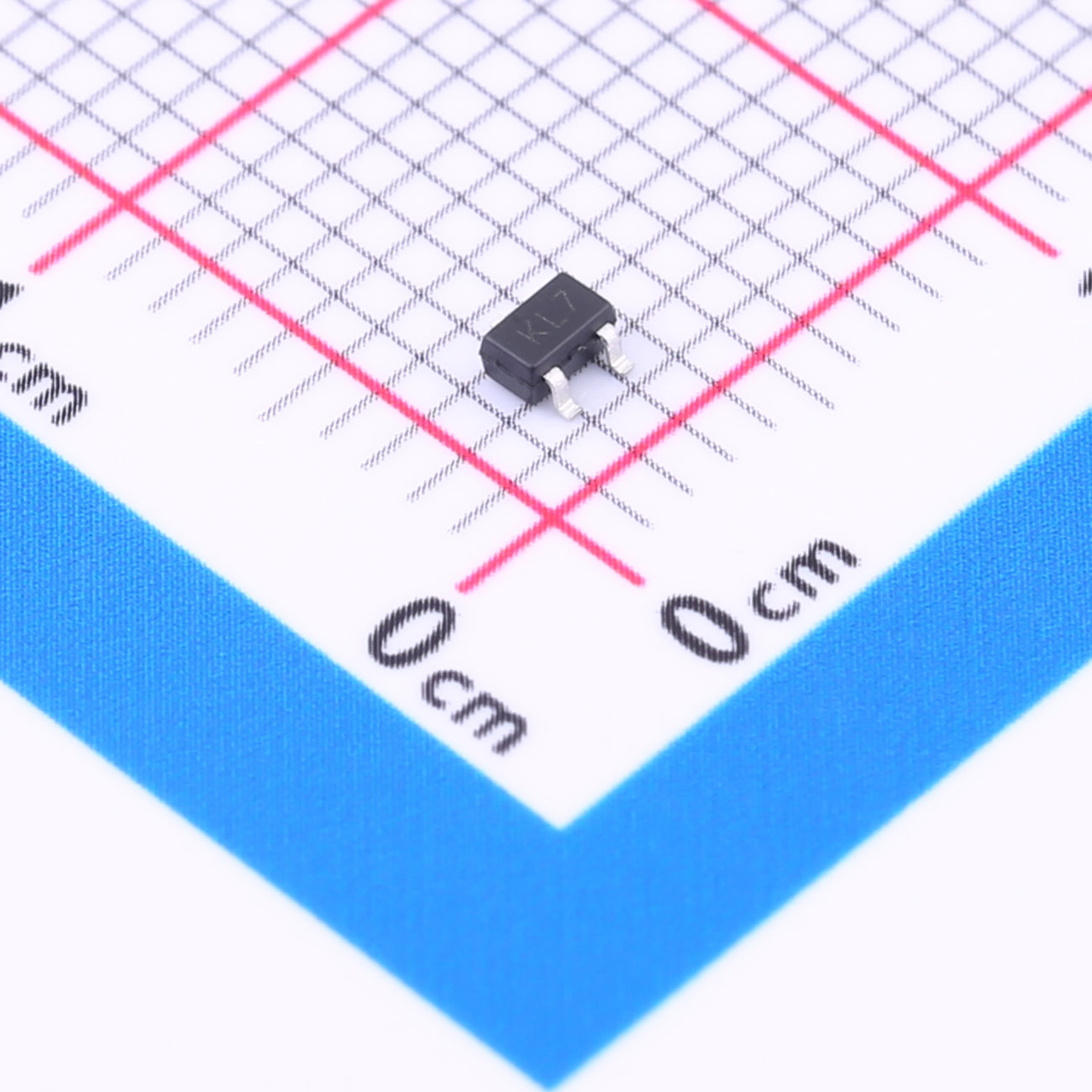

BAT54CW Small Signal Diode SOT-323 VRRM(V)：30V IO(A)：100μA VF(V)：0.24V IR(uA)：2μA trr(ns)：5ns Package：SOT-323

1N4148W Fast Switching Diode SOD-123	75V	150mA	1V	25nA	4ns	SOD-123
1N4148WS Surface Mount Switching Diode SOD-323	75V	150mA	1V	1μA	4ns	SOD-323
1N4148WT Small Signal Diode SOD-523 1N4148WT	80V	100mA	1.25V	100nA	4ns	SOD-523
1N4448WS Fast Switching Diode	75V	250mA	0.62V	2.5μA	4ns	SOD-323
1SS184 Switching Diodes SOT-23	85V	100mA	0.6V	0.1μA	1.6ns	SOT-23
1SS352 Switching Diodes SOD-323 1SS352	80V	100mA	1.2V@100mA	100nA@30V	1.6ns	SOT-323
1SS355 Fast Switching Diodes SOD-323	90V	100mA	1.2V	0.1μA	4ns	SOD-323
1SS400CM Switching Diodes SOD-923 1SS400CM	80V	100mA	1.2V@100mA	100nA	4ns	SOD-923
1ss226 Fast Switching Diodes SOT-23 1SS226	85V	100mA	0.9V	0.5μA@80V	4ns	SOT-23
2SA2071 Switching Diodes SOT-89 2SA2071
BAS16 Switching Diodes SOT-23 BAS16	100V	200mA	0.715V	1μA	4ns	SOT-23
BAS19 Switching Diodes SOT-23 BAS19	120V	200mA	1.25V@200mA	100nA	50ns	SOT-23
BAS21 Switching Diodes SOT-23 BAS21	250V	200mA	1.25V@200mA	100nA@200V	50ns	SOT-23
BAS21A Switching Diodes SOT-23	250V	200mA	1000mV	0.1μA	50ns	SOT-23
BAS21C Switching Diodes SOT-23	250V	200mA	1000mV	0.1μA	50ns	SOT-23
BAS21H Surface Mount Switching Diode SOD-323	250V	200mA	1V	0.1μA	50ns	SOD-323
BAS316 Surface Mount Switching Diode SOT-323 BAS316	100V	150mA	1.25V	25μA@20V	4ns	SOT-323
BAS321 Switching Diodes SOD-323	250V	200mA	1V	0.1μA	50ns	SOD-323
BAT54AW Switching Diodes SOT-323 BAT54CW	30V	200mA	0.24V	2μA	5ns	SOT-323
BAT54CW Small Signal Diode SOT-323	30V	100μA	0.24V	2μA	5ns	SOT-323
