SCR Unidirectional SCR is a controllable rectifier. It can be turn on by external control signals, but once turn on, the external signal can not turn it off. It would be turn off only by removing the load or remove the main voltage on the device.

Products Documents Data

Datasheet 3D Model

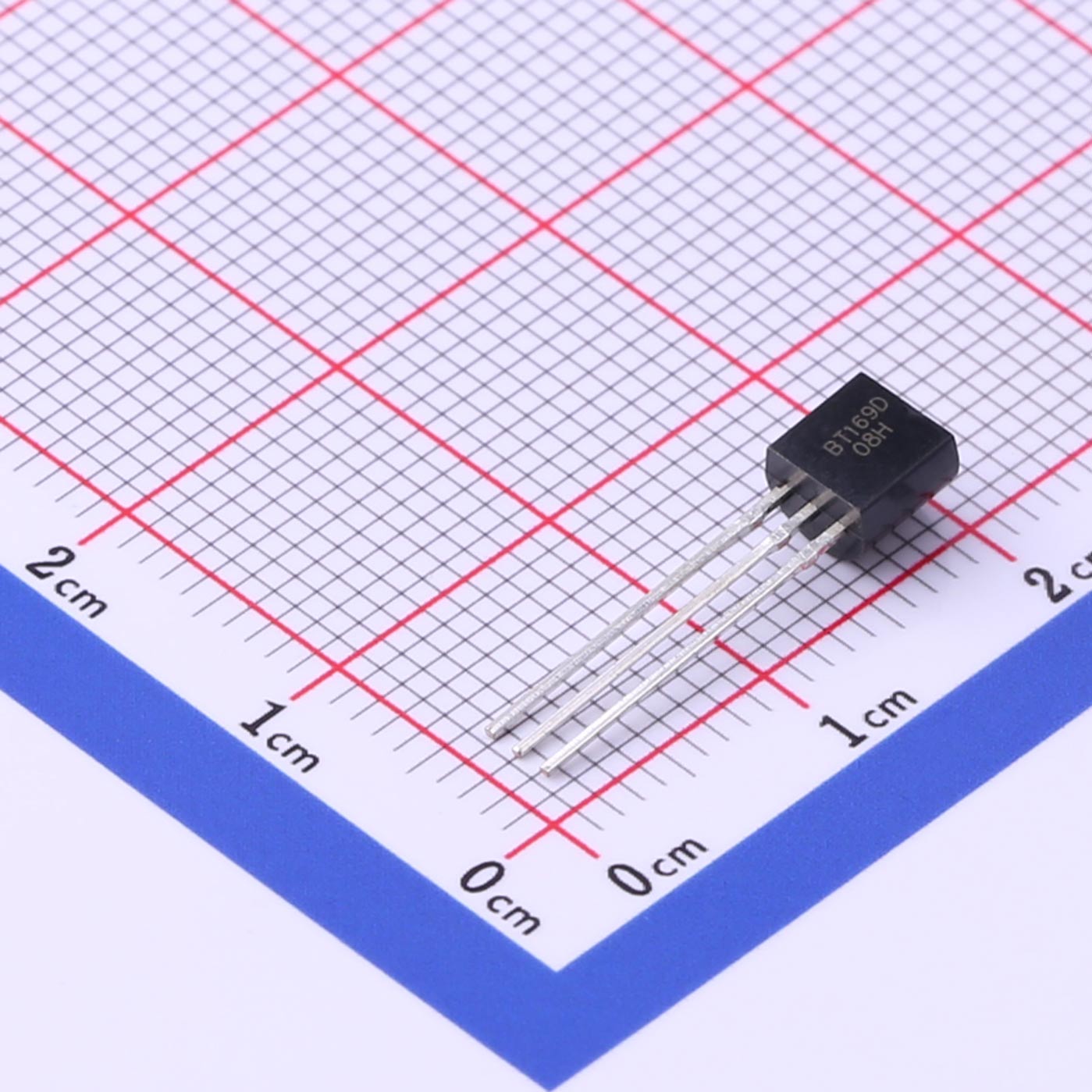

BT169D Thyristors TO-92 VDRM(V)：600V IT(RMS)(A)：0.8A IGT(mA)/Max：200uA VGT(V)：0.8V Package：TO-92

Datasheet 3D Model

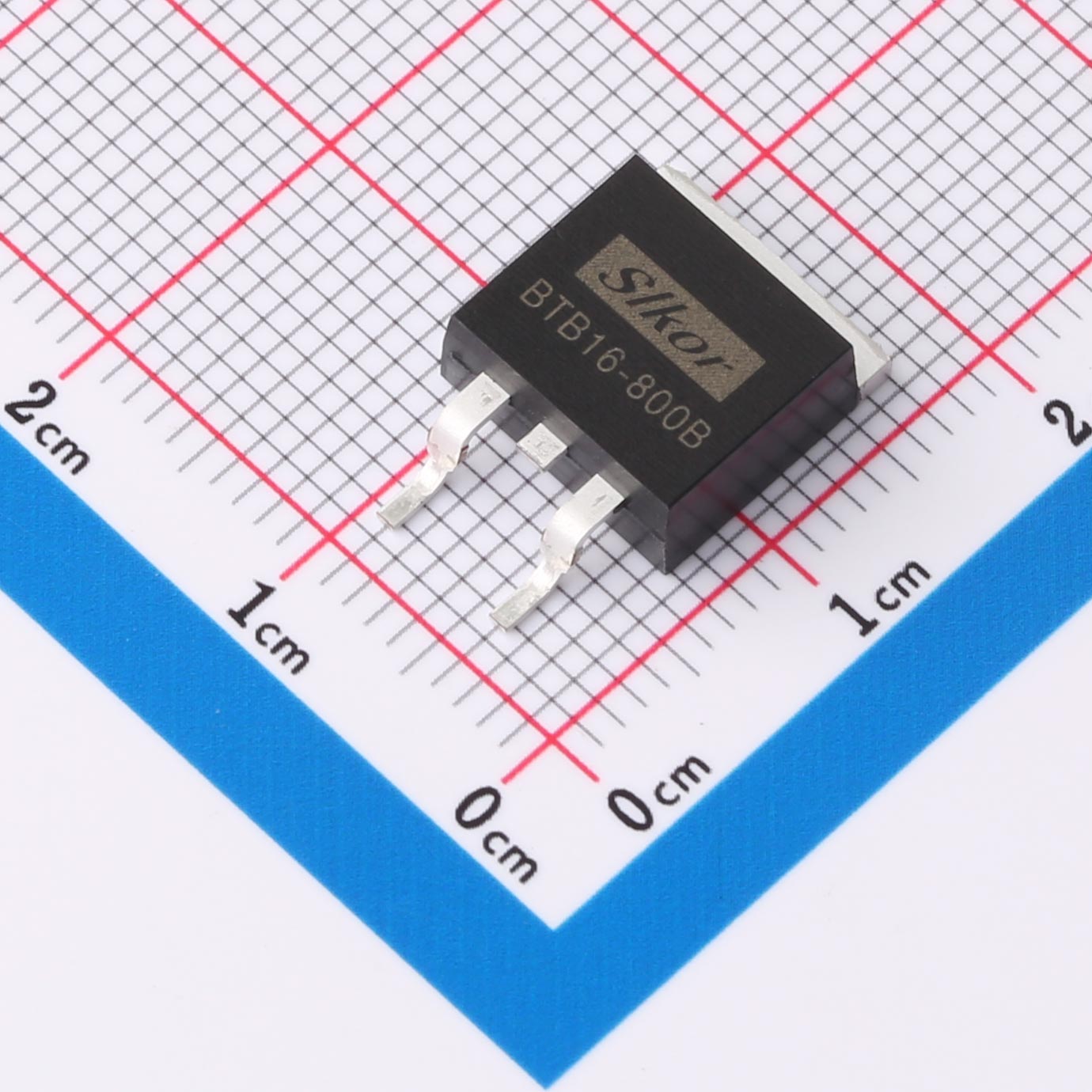

BTB16-800B Unidirectional Silicon Control Rectifier SCR TO-263 VDRM(V)：800V IT(RMS)(A)：16A IGT(mA)/Max：≤10mA VGT(V)：≤1.5V Package：TO-263

Datasheet 3D Model

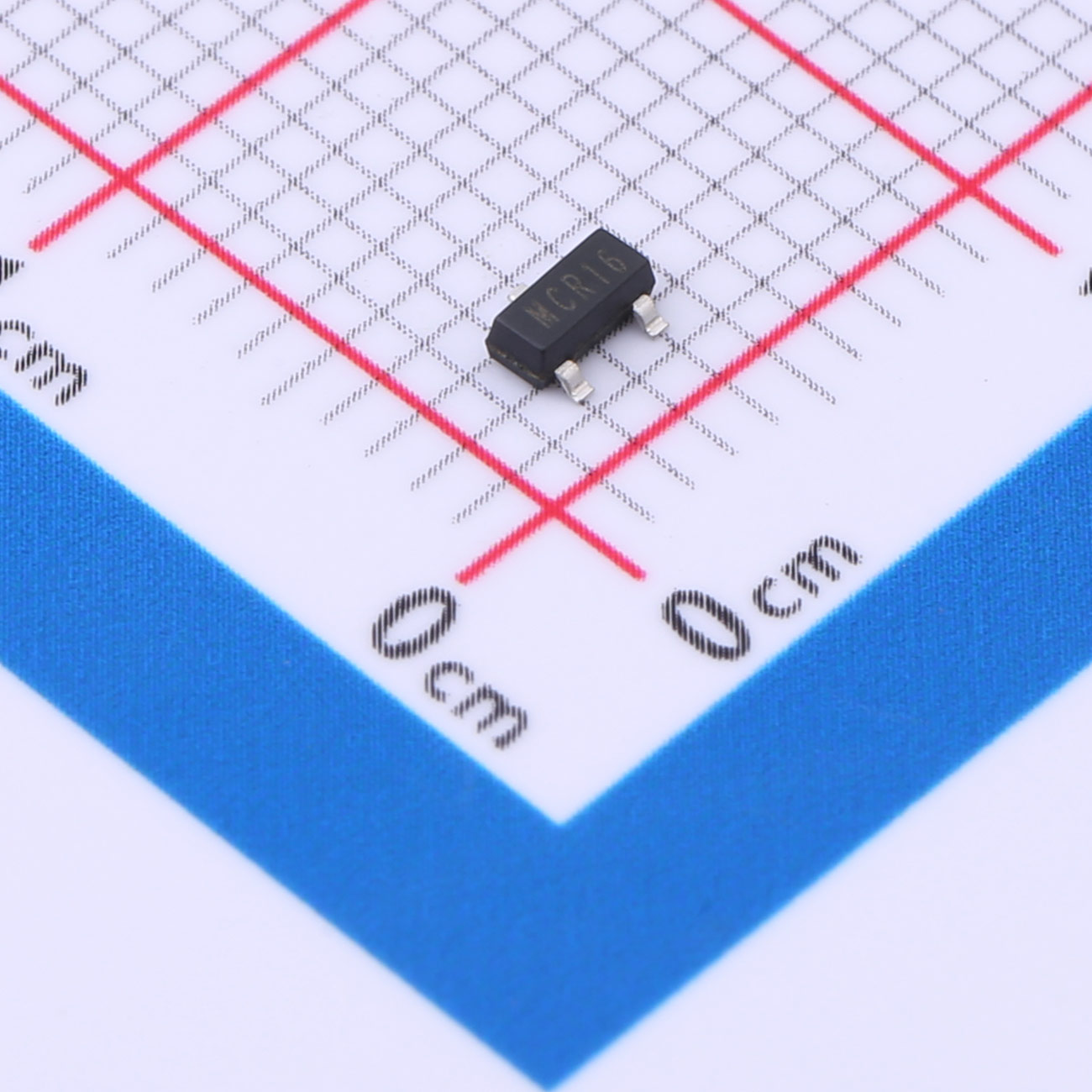

MCR100-6 Unidirectional Silicon Control Rectifier SCR SOT-23 VDRM(V)：600V IT(RMS)(A)：1A IGT(mA)/Max：200uA VGT(V)：0.8V Package：SOT-23

Datasheet 3D Model

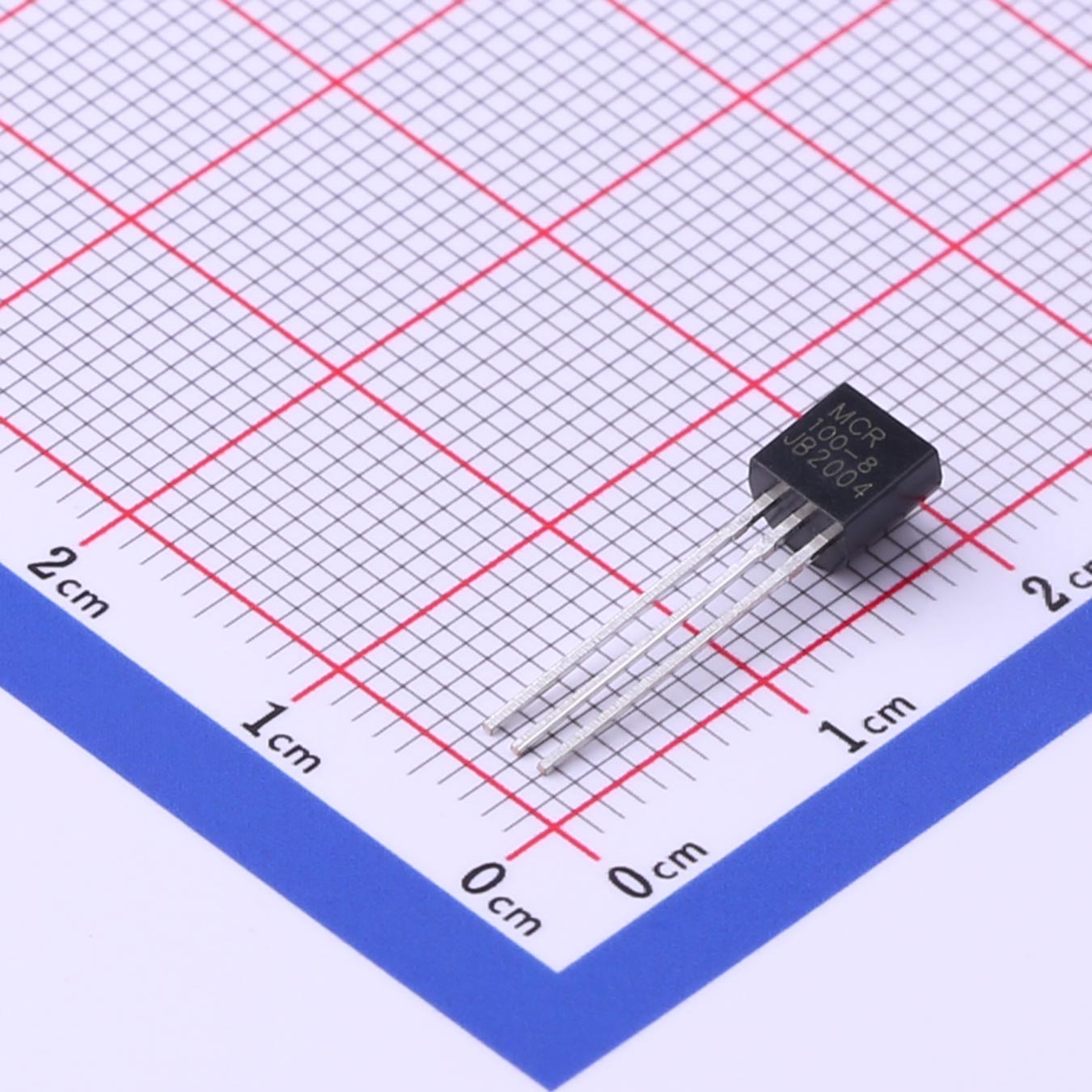

MCR100-8 SCR TO-92 VDRM(V)：800V IT(RMS)(A)：1A IGT(mA)/Max：200uA VGT(V)：0.8V Package：TO-92

BT169D Thyristors TO-92	600V	0.8A	200uA	0.8V	TO-92
BTB16-800B Unidirectional Silicon Control Rectifier SCR TO-263	800V	16A	≤10mA	≤1.5V	TO-263
MCR100-6 Unidirectional Silicon Control Rectifier SCR SOT-23	600V	1A	200uA	0.8V	SOT-23
MCR100-8 SCR TO-92	800V	1A	200uA	0.8V	TO-92
