Medium Voltage MOSFET Mainly used for switching and amplifying circuits in the medium power range, motor traction control and other applications.

Products Documents Data

Datasheet 3D Model

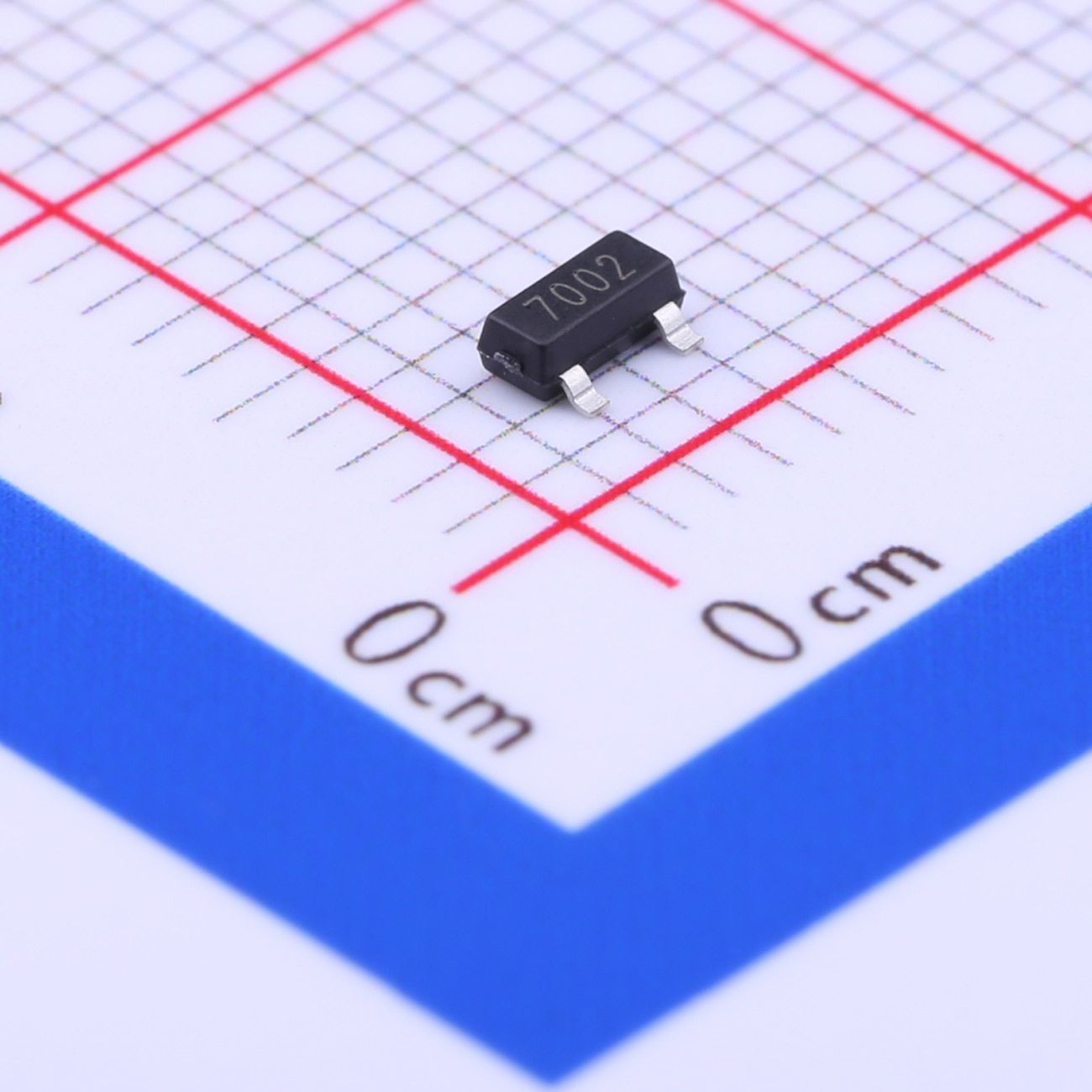

2N7002 N-Channel Enhancement MOSFET SOT-23 Package：SOT-23 VDSS(V)：60V Id(A)：115mA RDSON(Ω)：7.5Ω@10V,500mA VTH：2.5V@250μA P/N：N-Channel

Datasheet 3D Model

2N7002DW N-Channel Enhancement MOSFET SOT-363 Package：SOT-363 VDSS(V)：60V Id(A)：800mA RDSON(Ω)：7.5mΩ@5V, 50mA VTH：1V@250μA P/N：N-Channel

Datasheet 3D Model

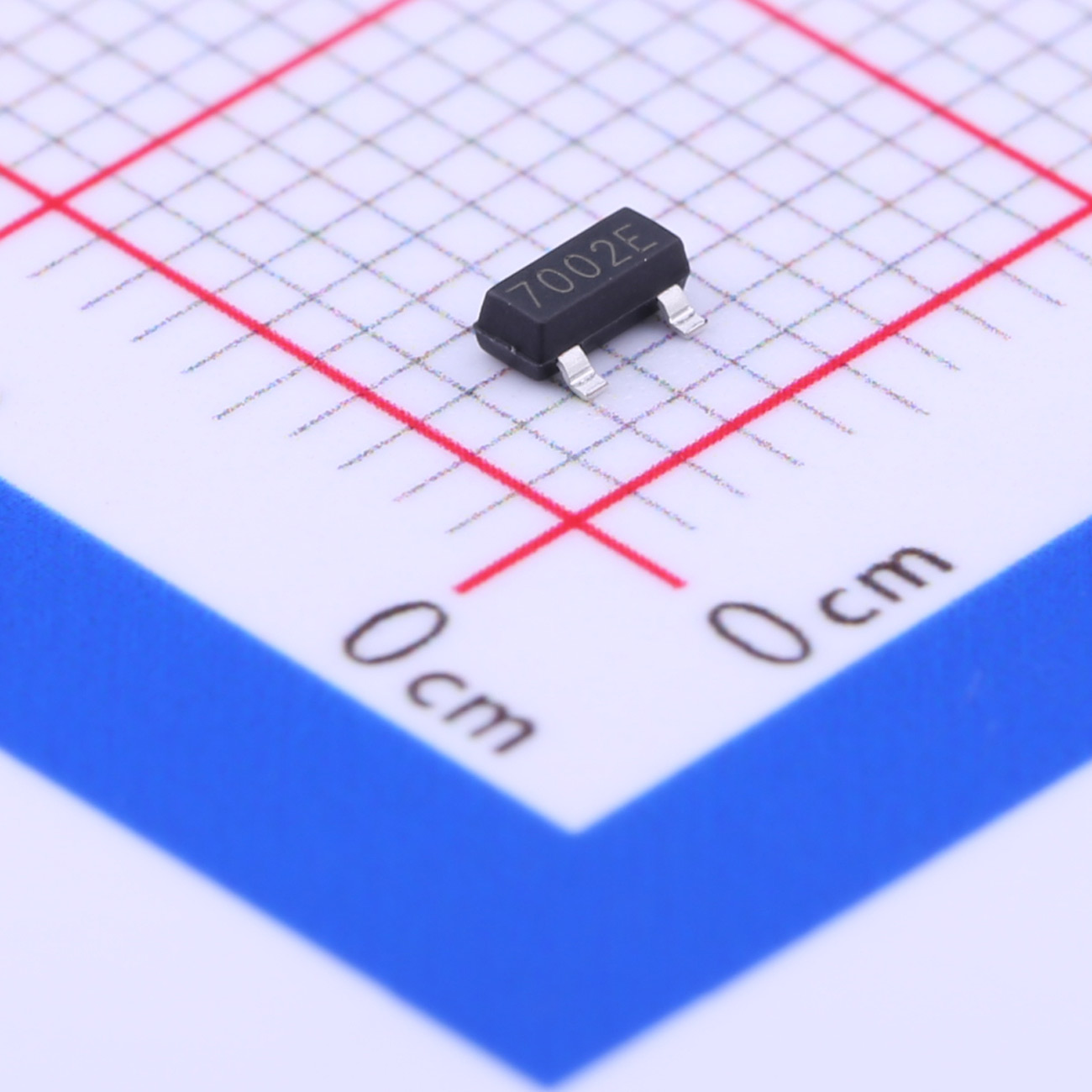

2N7002E N-Channel Enhancement MOSFET SOT-23 Package：SOT-23 VDSS(V)：60V Id(A)：300mA RDSON(Ω)：3Ω@10V,500mA VTH：2.5V@250μA P/N：N-Channel

Datasheet 3D Model

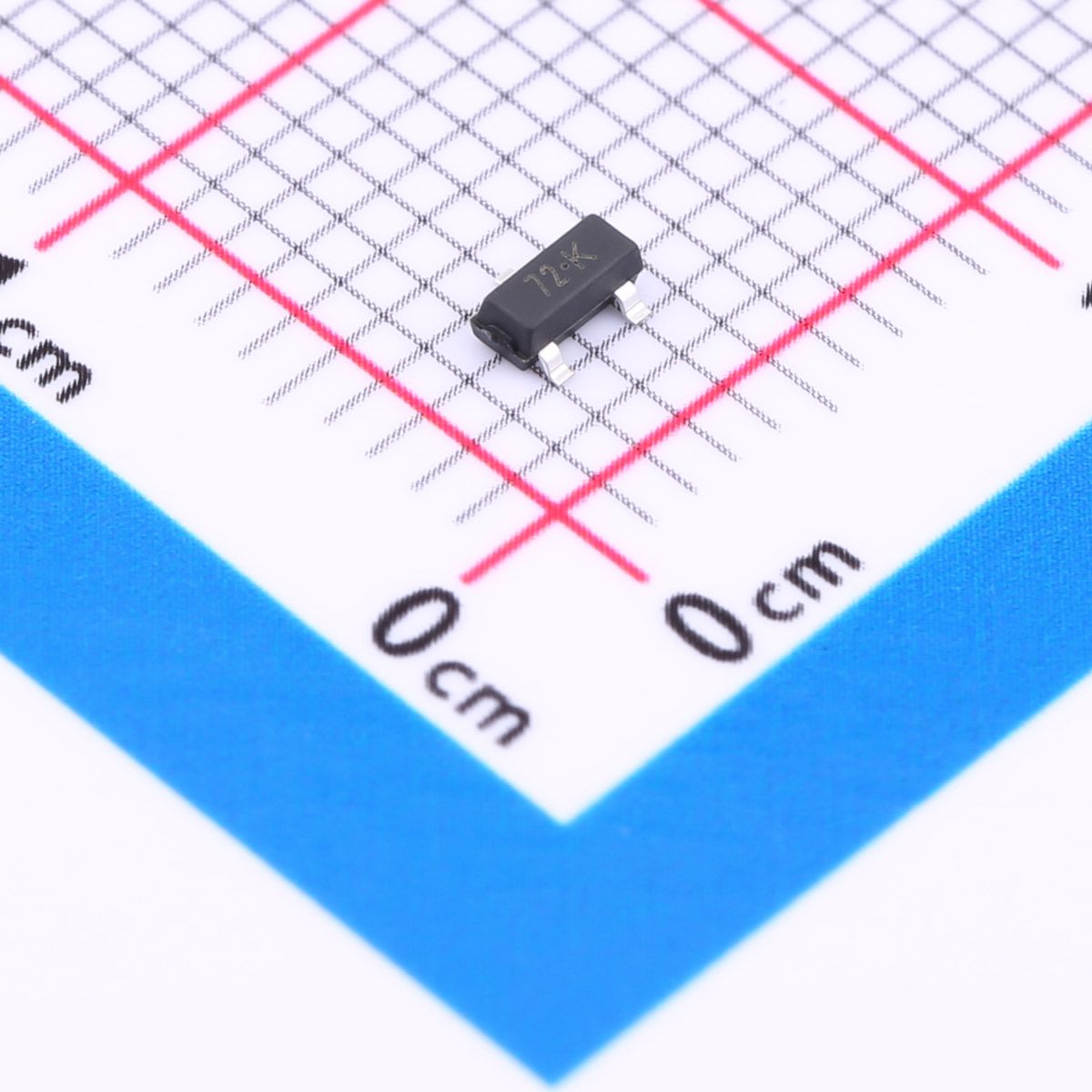

2N7002K N-channel Power MOSFET SOT-23 Package：SOT-23 VDSS(V)：60V Id(A)：0.3A RDSON(Ω)：2Ω@10V,0.3A VTH：1.5V@250uA P/N：N-channel

Datasheet 3D Model

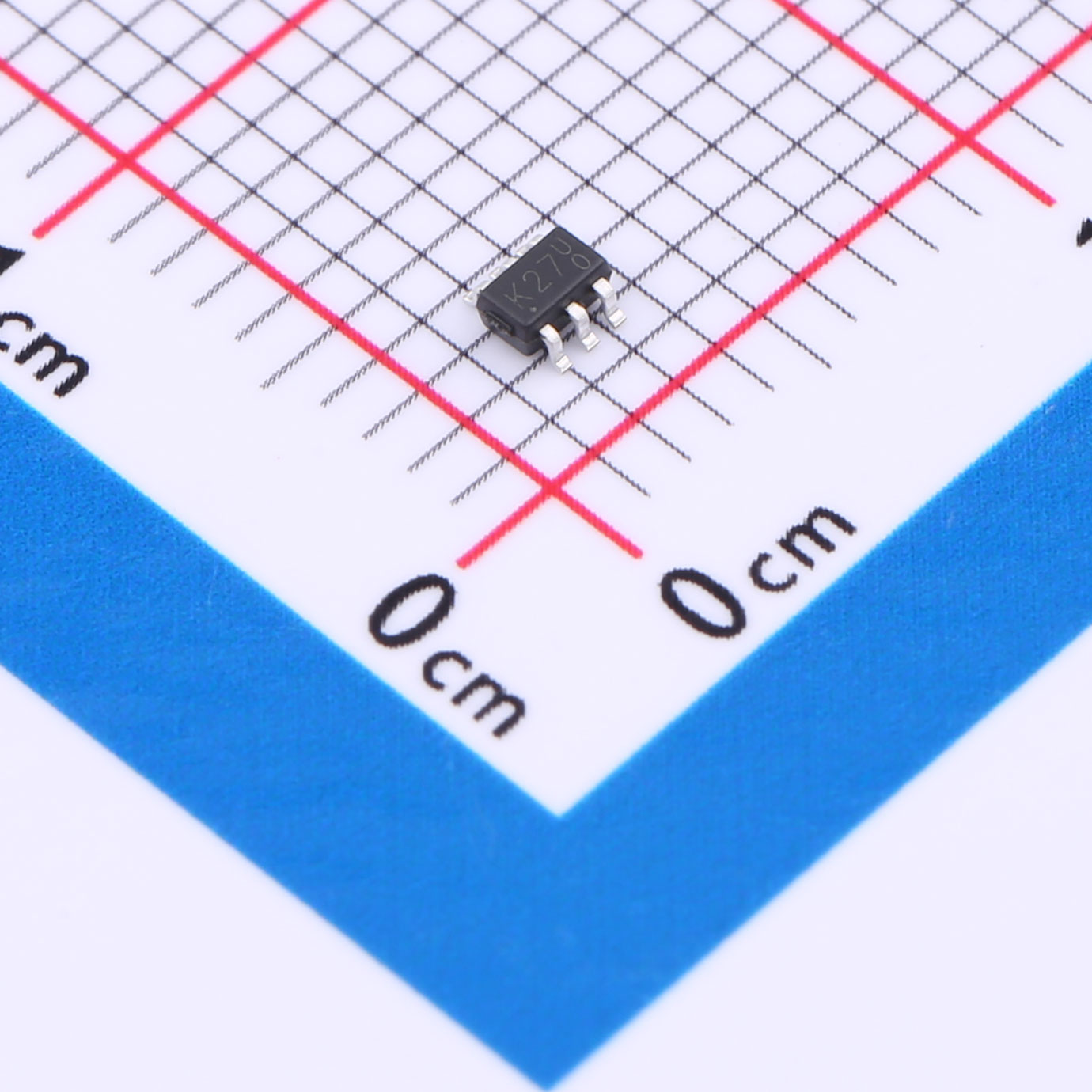

2N7002KDW N-channel Power MOSFET SOT-363 Package：SOT-363 VDSS(V)：60V Id(A)：340mA RDSON(Ω)：5Ω@10V VTH：2.5V@1mA P/N：N-channel

Datasheet 3D Model

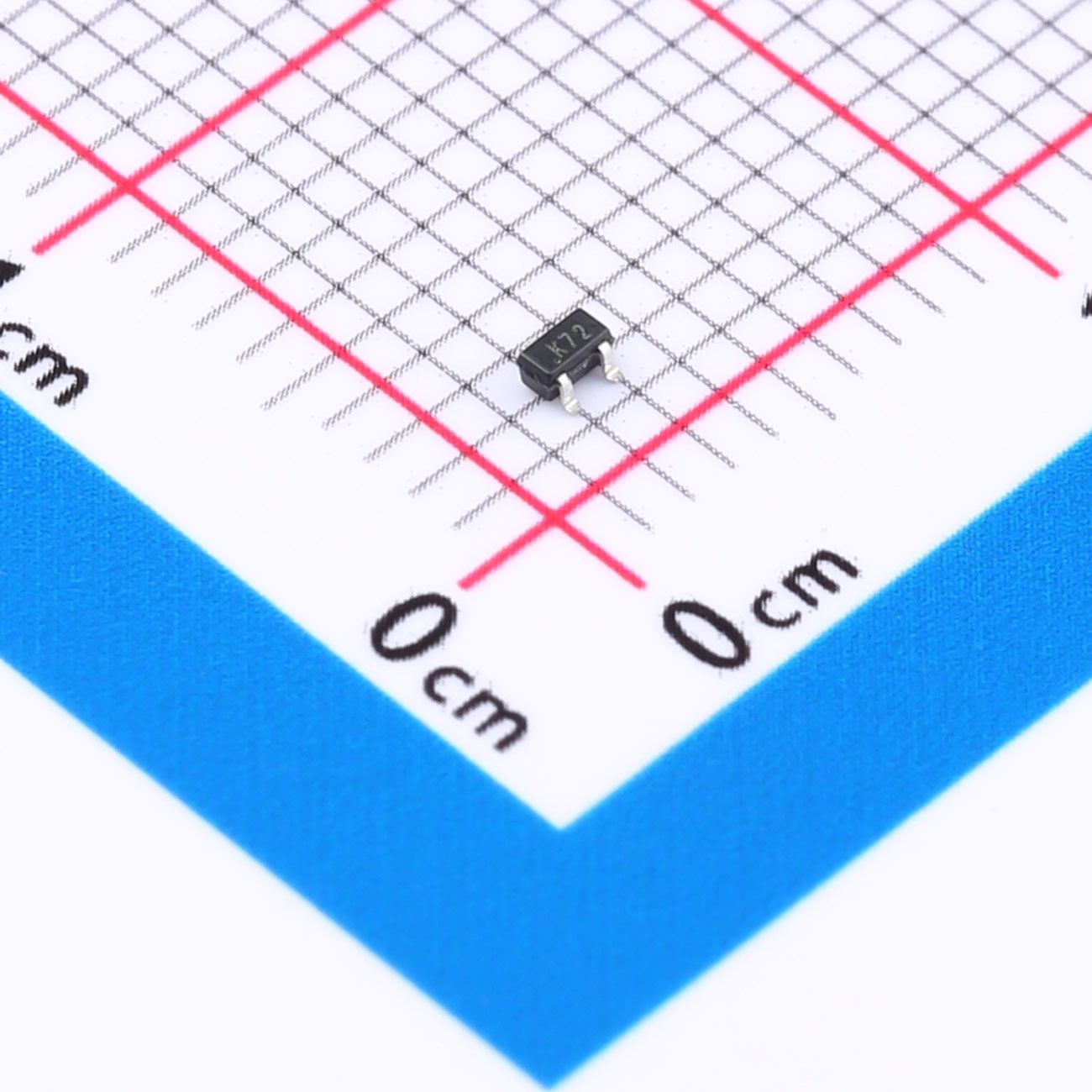

2N7002KT N-channel Power MOSFET TO-523 Package：TO-252 VDSS(V)：60V Id(A)：1A RDSON(Ω)：2.5Ω@10V VTH：1.5V@250μA P/N：N-channel

Datasheet 3D Model

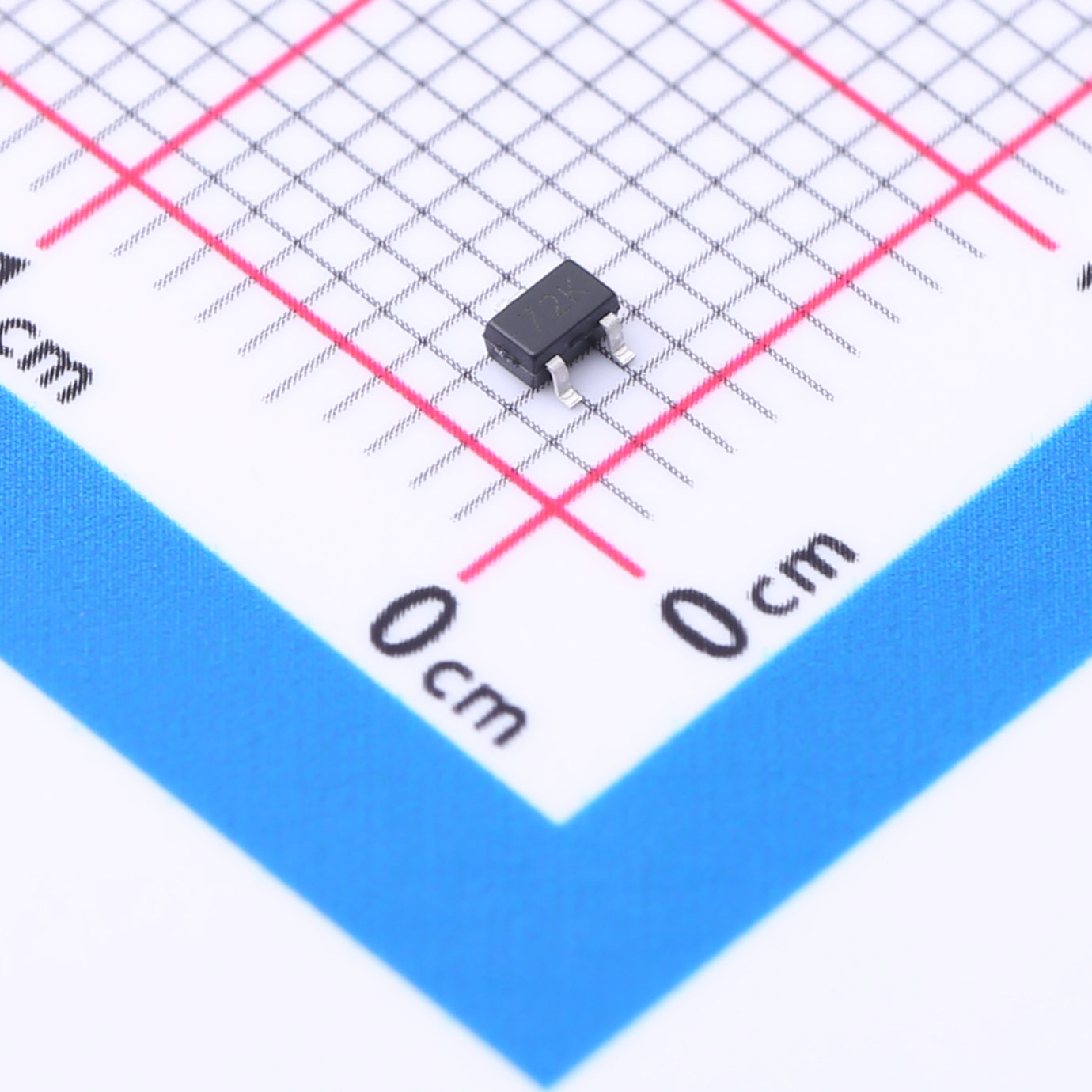

2N7002KW N-channel Power MOSFET SOT-323 Package：SOT-323 VDSS(V)：60V Id(A)：340mA RDSON(Ω)：1.1Ω@4.5V,200mA VTH：1V@1mA P/N：N-Channel

Datasheet 3D Model

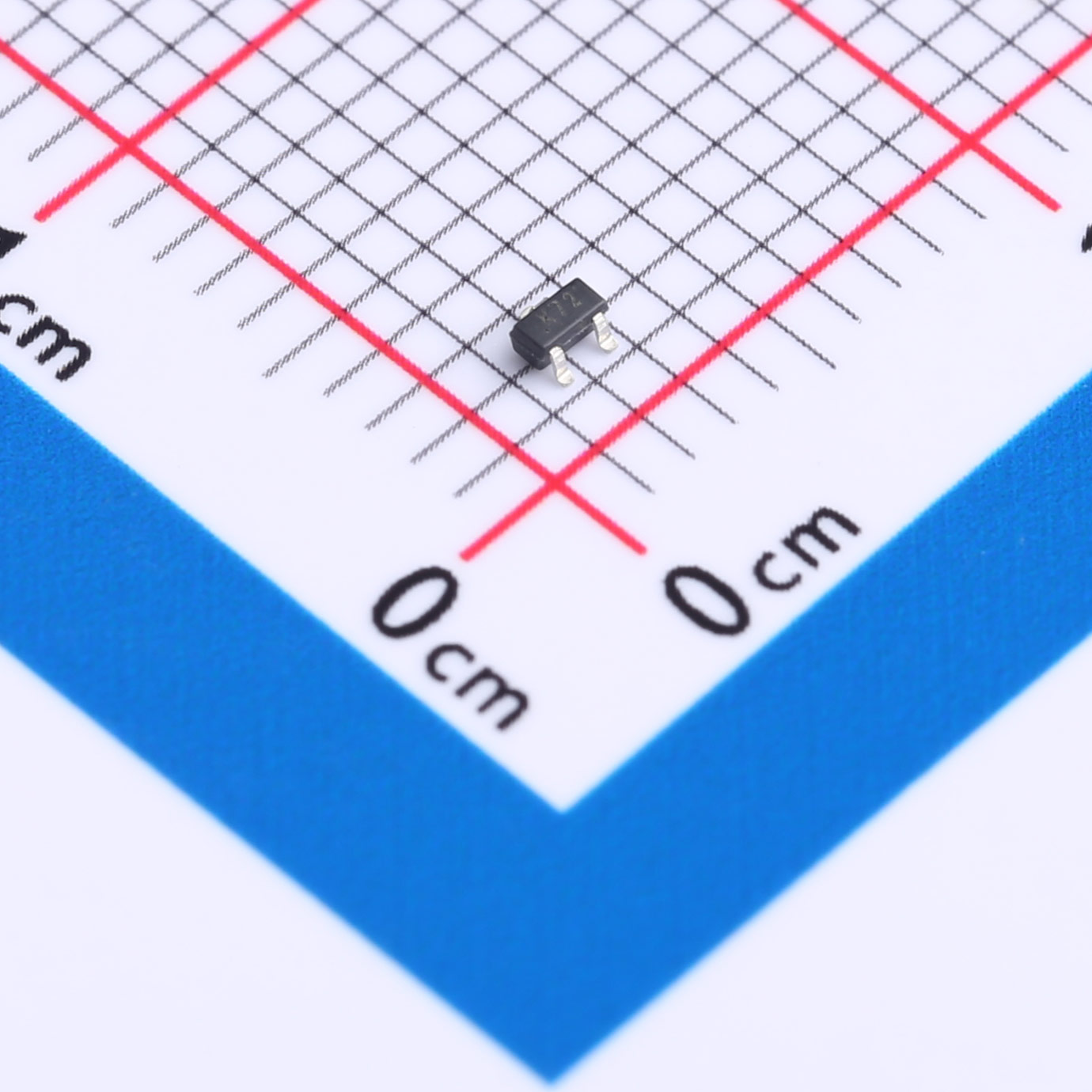

2N7002T N-Channel Power MOSFET SOT-523 Package：SOT-523 VDSS(V)：60V Id(A)：300mA RDSON(Ω)：3Ω@4.5V VTH：3V@250μA P/N：N-Channel

Datasheet 3D Model

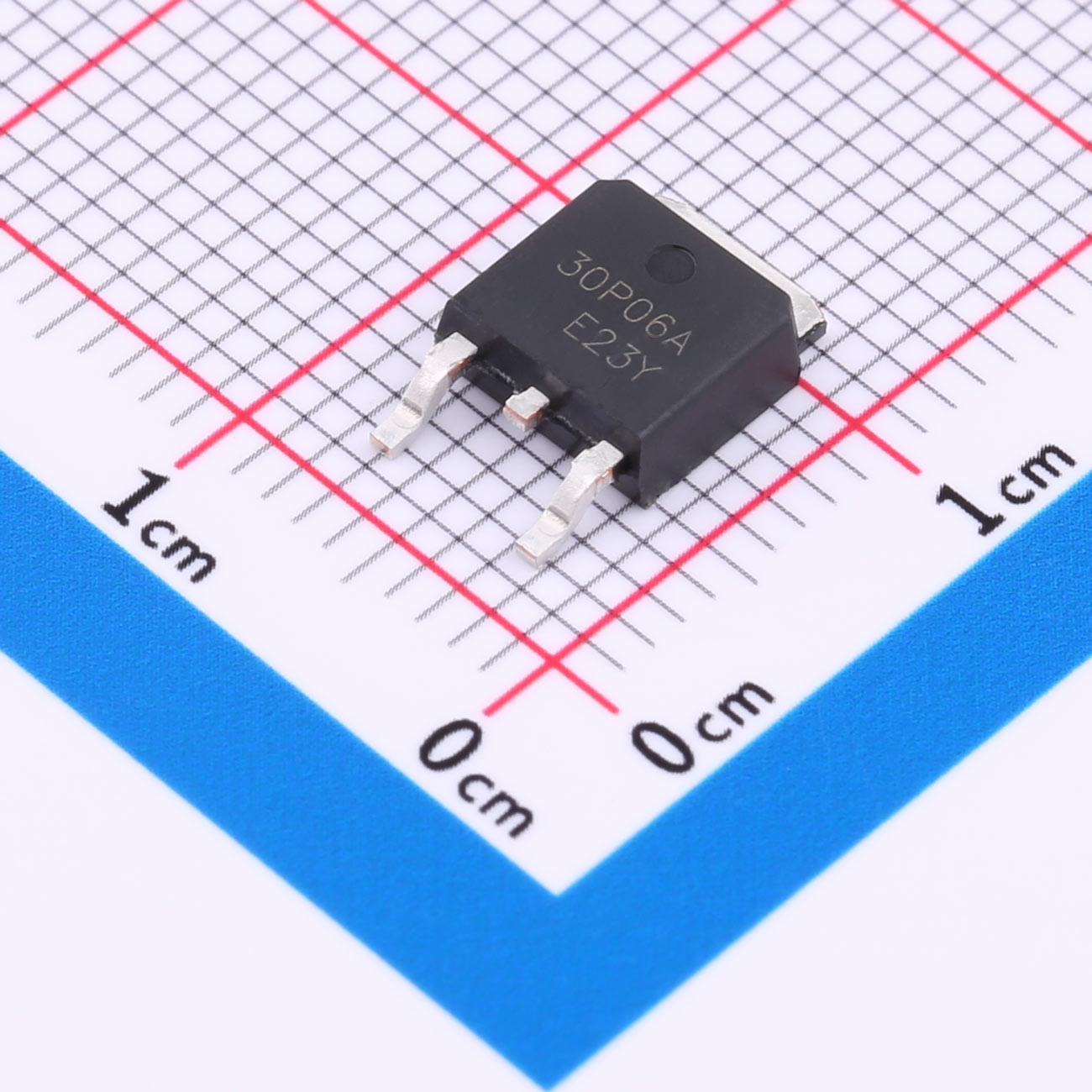

AOD409 P-channel Power MOSFET TO-252 Package：TO-252 VDSS(V)：-60V Id(A)：-30A RDSON(Ω)：30mΩ@-10V,-20A VTH：-1.8V@-250uA P/N：P-channel

Datasheet 3D Model

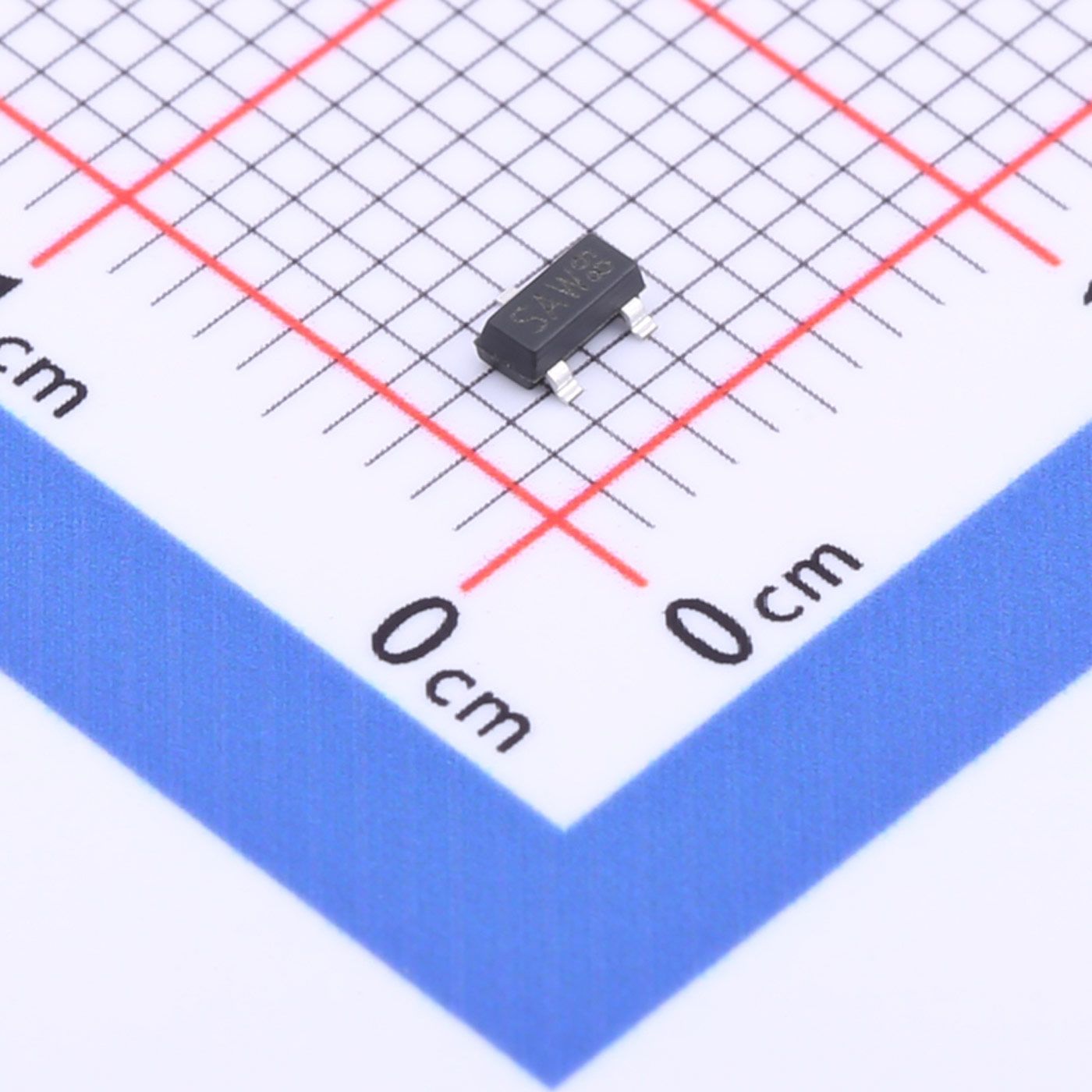

BSS123 N-Channel MOSFET SOT-23 Package：SOT-23 VDSS(V)：100V Id(A)：150mA RDSON(Ω)：3.5Ω@10V,120mA VTH：2.8V@1mA P/N：N-Channel

Datasheet 3D Model

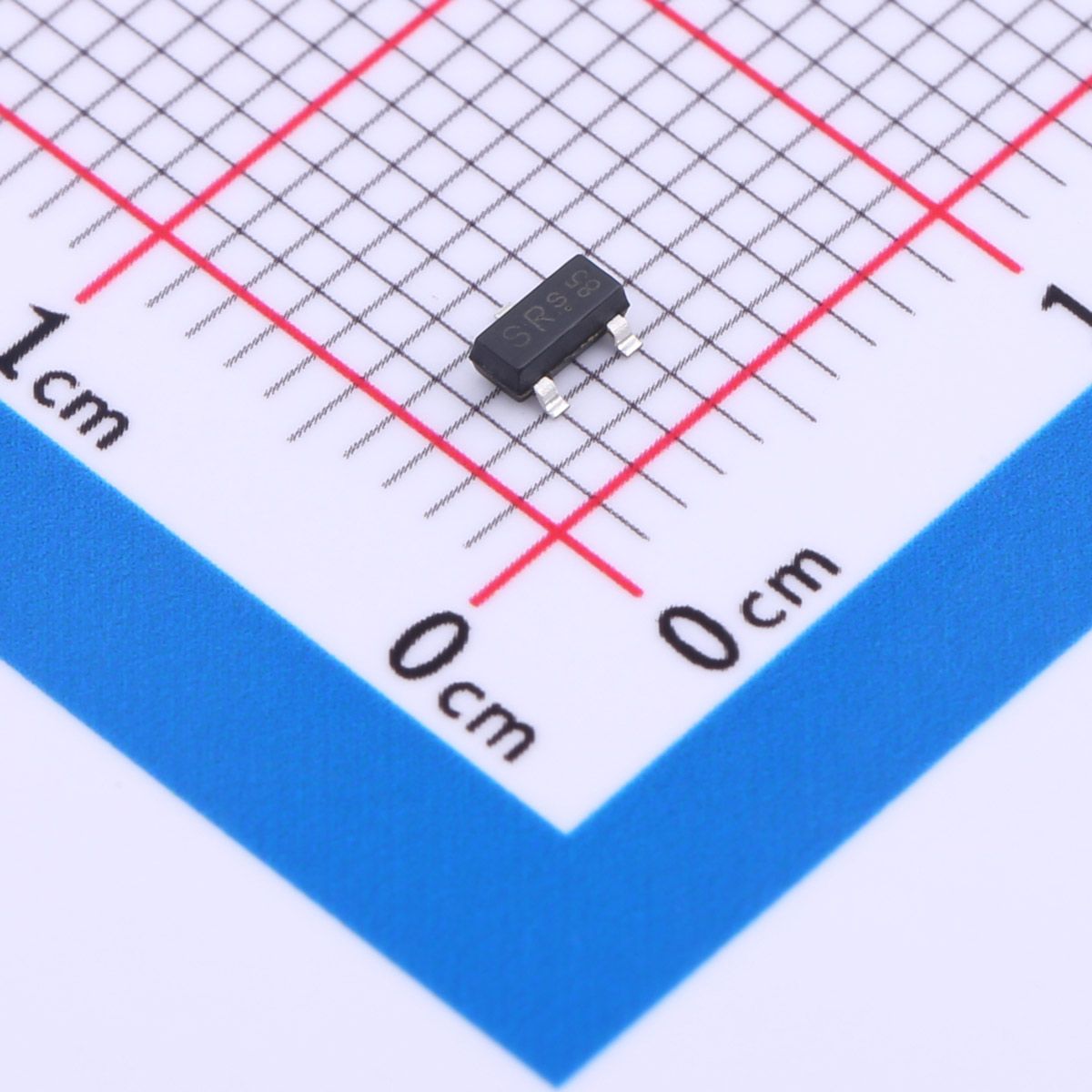

BSS131 N-channel Power MOSFET SOT-23 Package：SOT-23 VDSS(V)：240V Id(A)：0.1A RDSON(Ω)：9.07Ω@4.5V,0.09A VTH：1.4V@56μA P/N：N-channel

Datasheet 3D Model

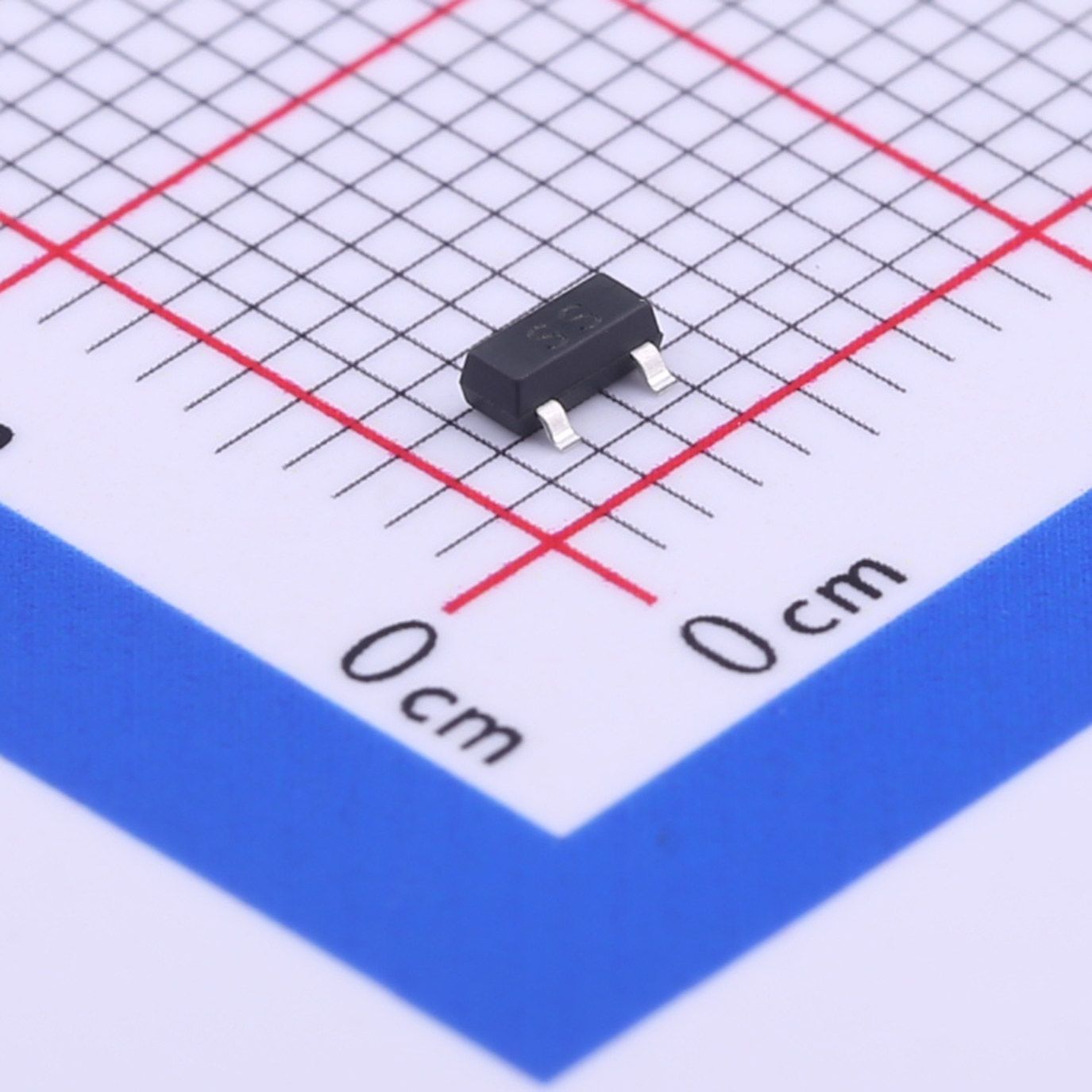

BSS138 N-Channel Power MOSFET SOT-23 Package：SOT-23 VDSS(V)：50V Id(A)：220mA RDSON(Ω)：3.5Ω@10V,220mA VTH：1.6V@1mA P/N：N-Channel

Datasheet 3D Model

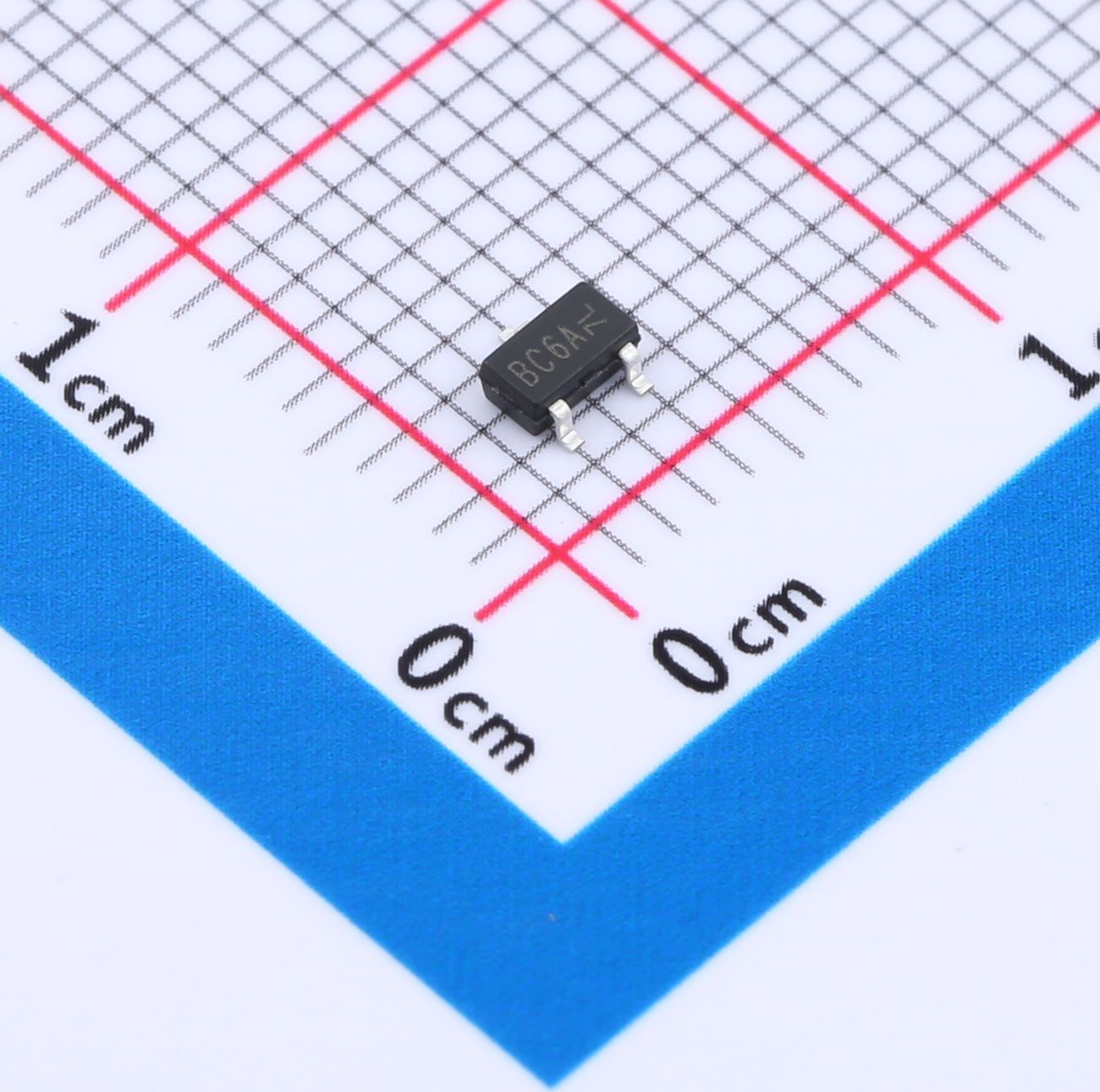

BSS169 N-channel Power MOSFET SOT-23 Package：SOT-23 VDSS(V)：100V Id(A)：2A RDSON(Ω)：234mΩ@10V,1.5A VTH：2.8V@250uA P/N：N-channel

Datasheet 3D Model

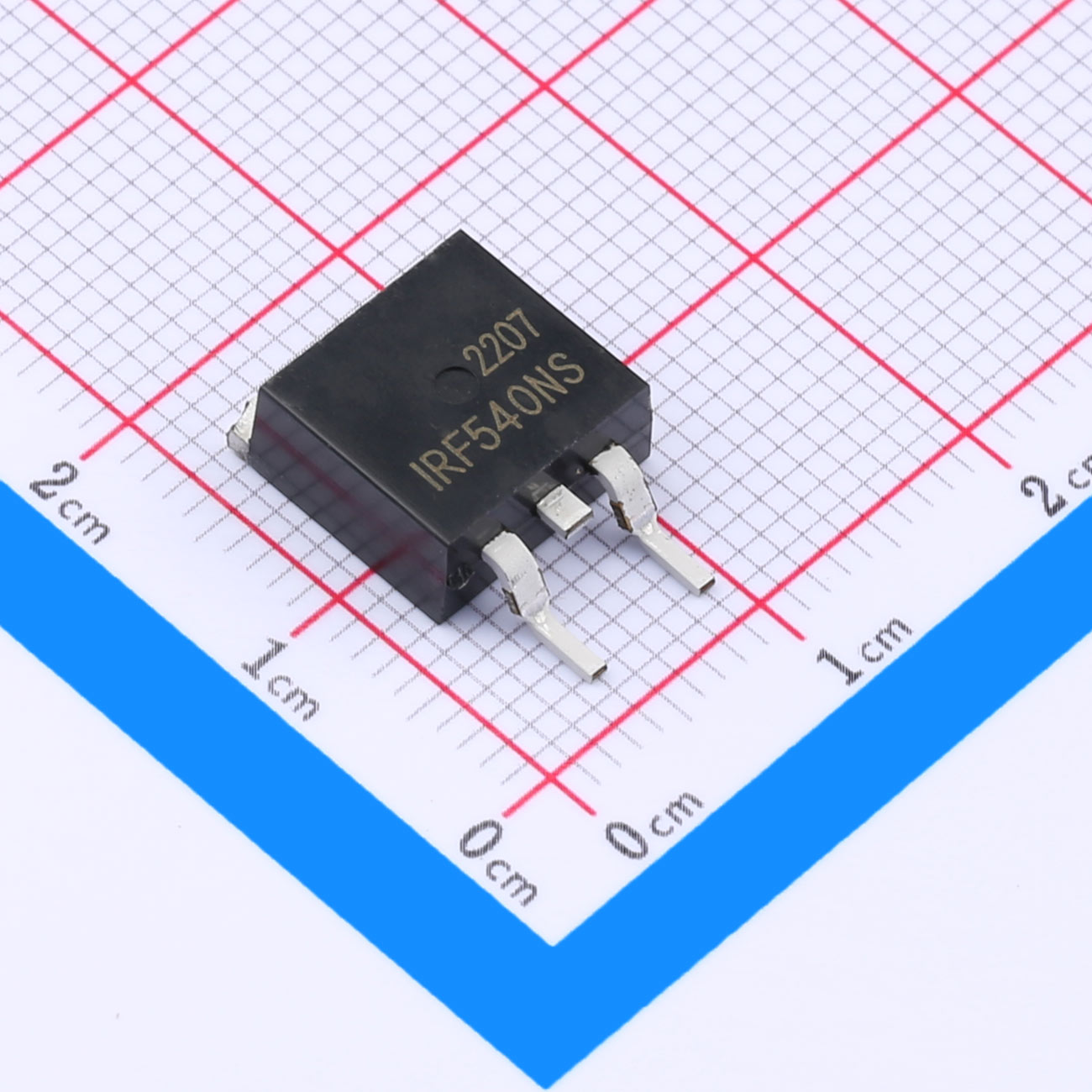

IRF540NS N-channel Power MOSFET TO-263 Package：TO-263 VDSS(V)：100V Id(A)：33A RDSON(Ω)：30Ω@10V,15A VTH：2V@250μA P/N：N-Channel

Datasheet 3D Model

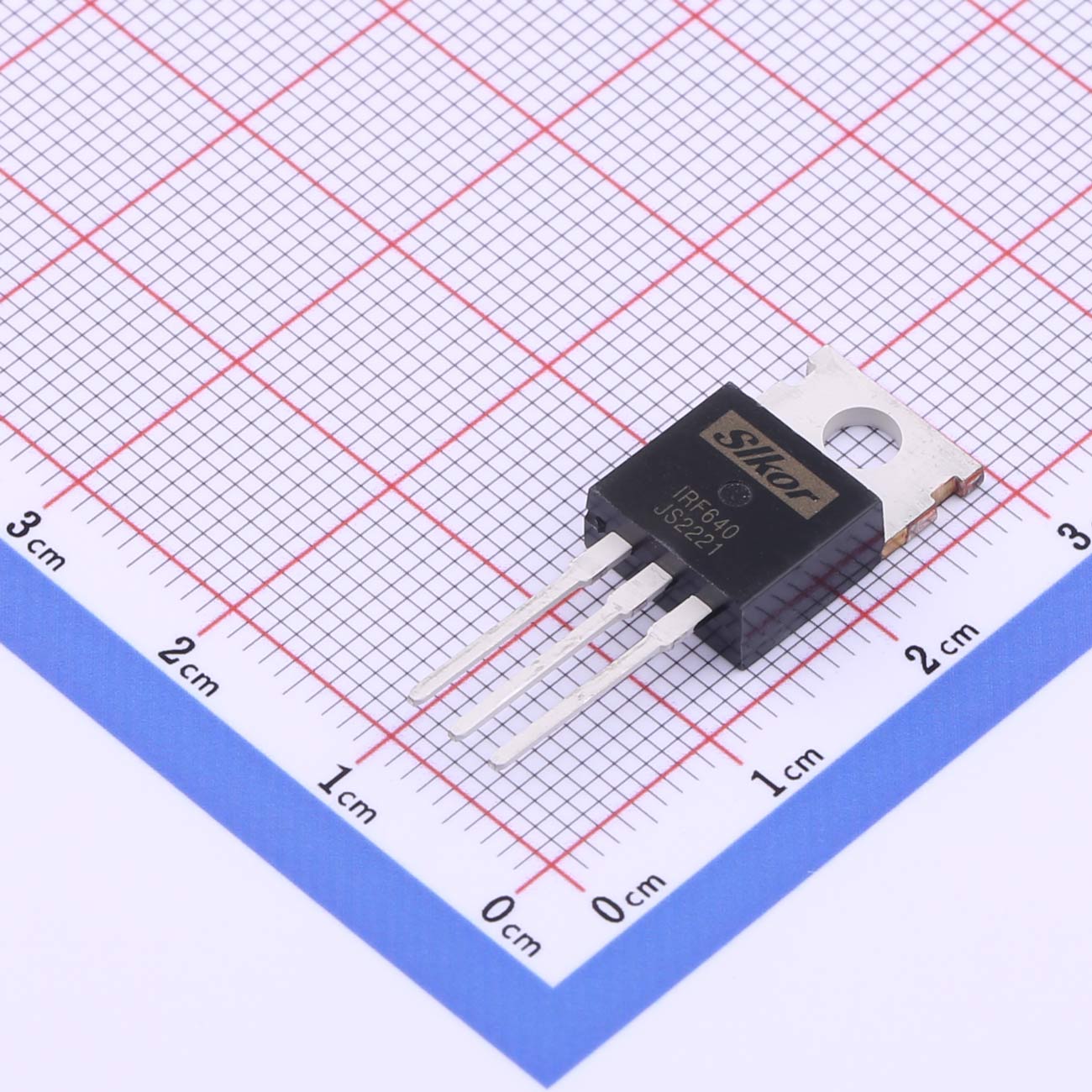

IRF640 N-channel Power TO-220 Package：TO-220 VDSS(V)：200V Id(A)：18A RDSON(Ω)：150mΩ@10V,11A VTH：3V@250uA P/N：N-channel

Datasheet 3D Model

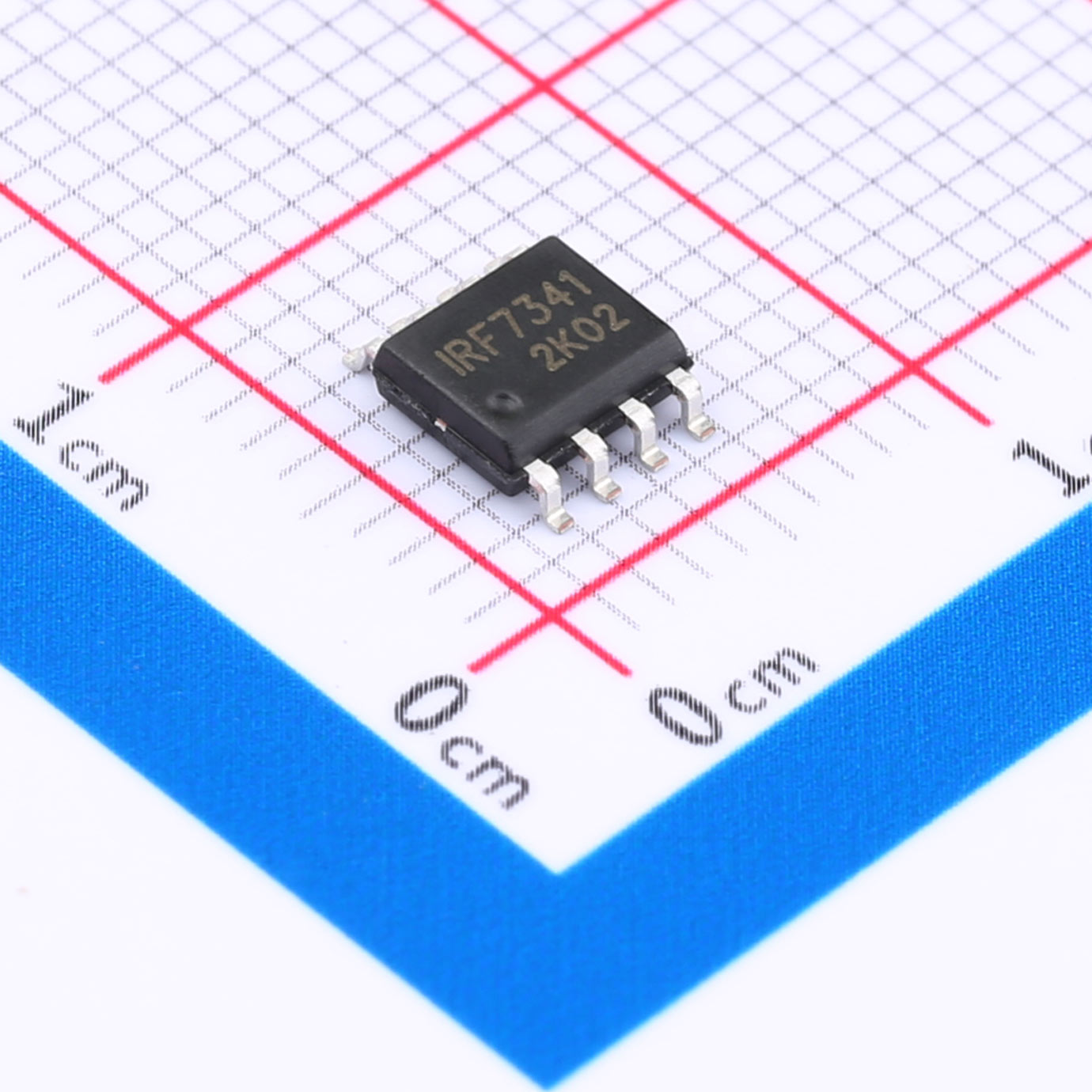

IRF7341 N-channel Power MOSFET SOP-8 Package：SOP-8 VDSS(V)：60V Id(A)：5A RDSON(Ω)：30mΩ@10V,4A VTH：2.5V@250uA P/N：N-channel

Datasheet 3D Model

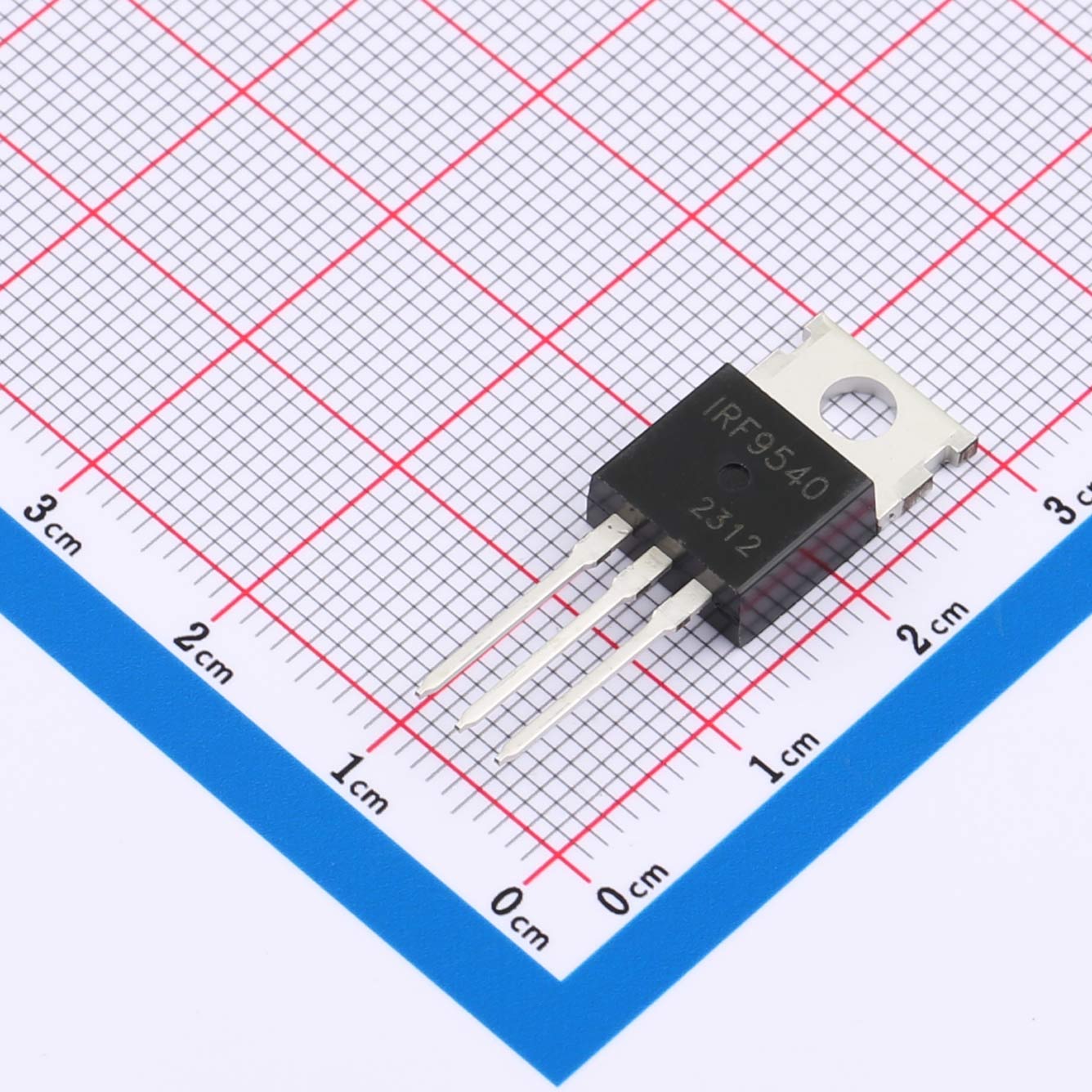

IRF9540 P-channel Power MOSFET TO-220 Package：TO-220 VDSS(V)：-100V Id(A)：-20A RDSON(Ω)：78mΩ@-10V,-10A VTH：-1.7V@-250uA P/N：P-channel

Datasheet 3D Model

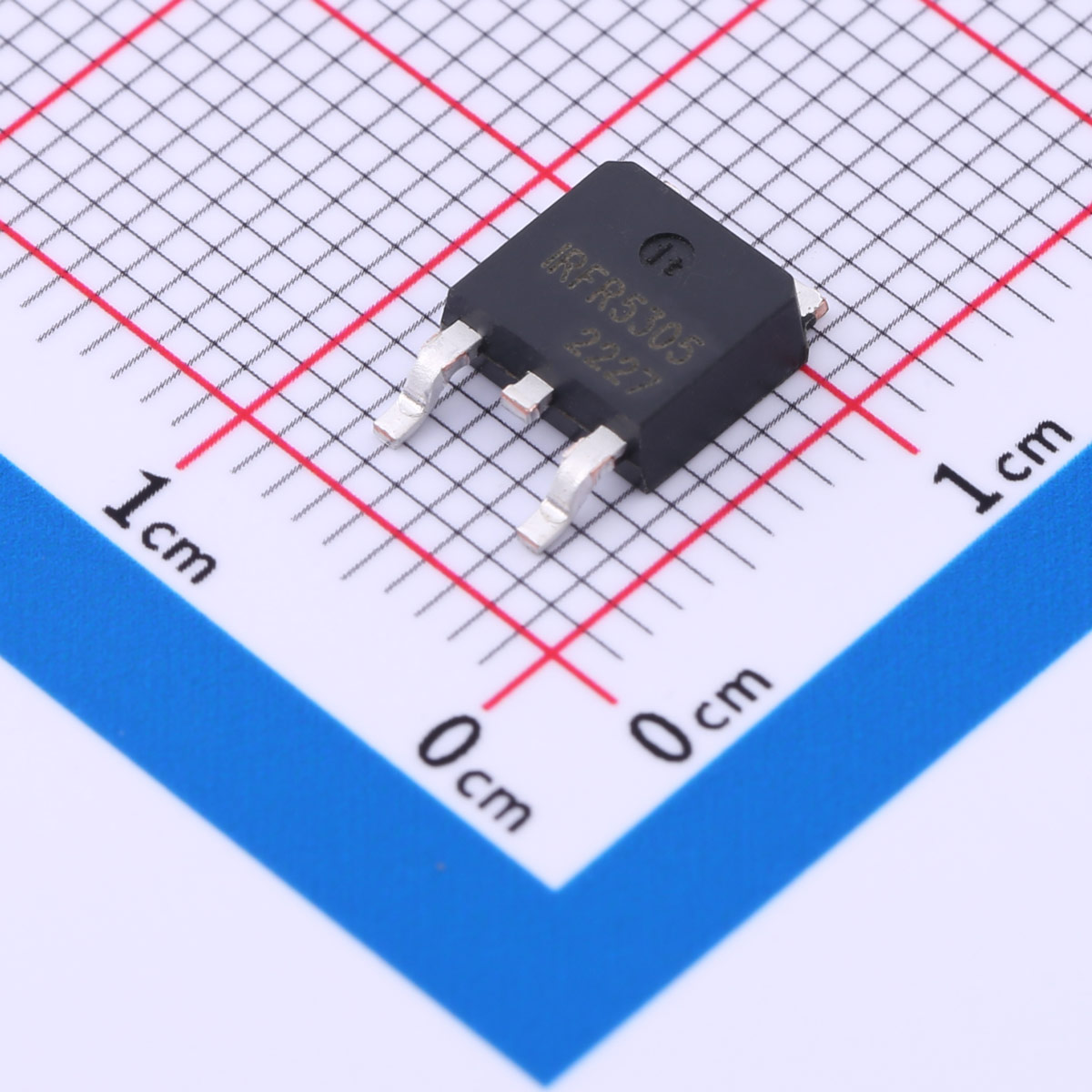

IRFR5305 P-channel Power MOSFET TO-252 Package：TO-252 VDSS(V)：-60V Id(A)：-30A RDSON(Ω)：26mΩ@-10V,-15A VTH：-1.8V@-250μA P/N：P-channel

Datasheet 3D Model

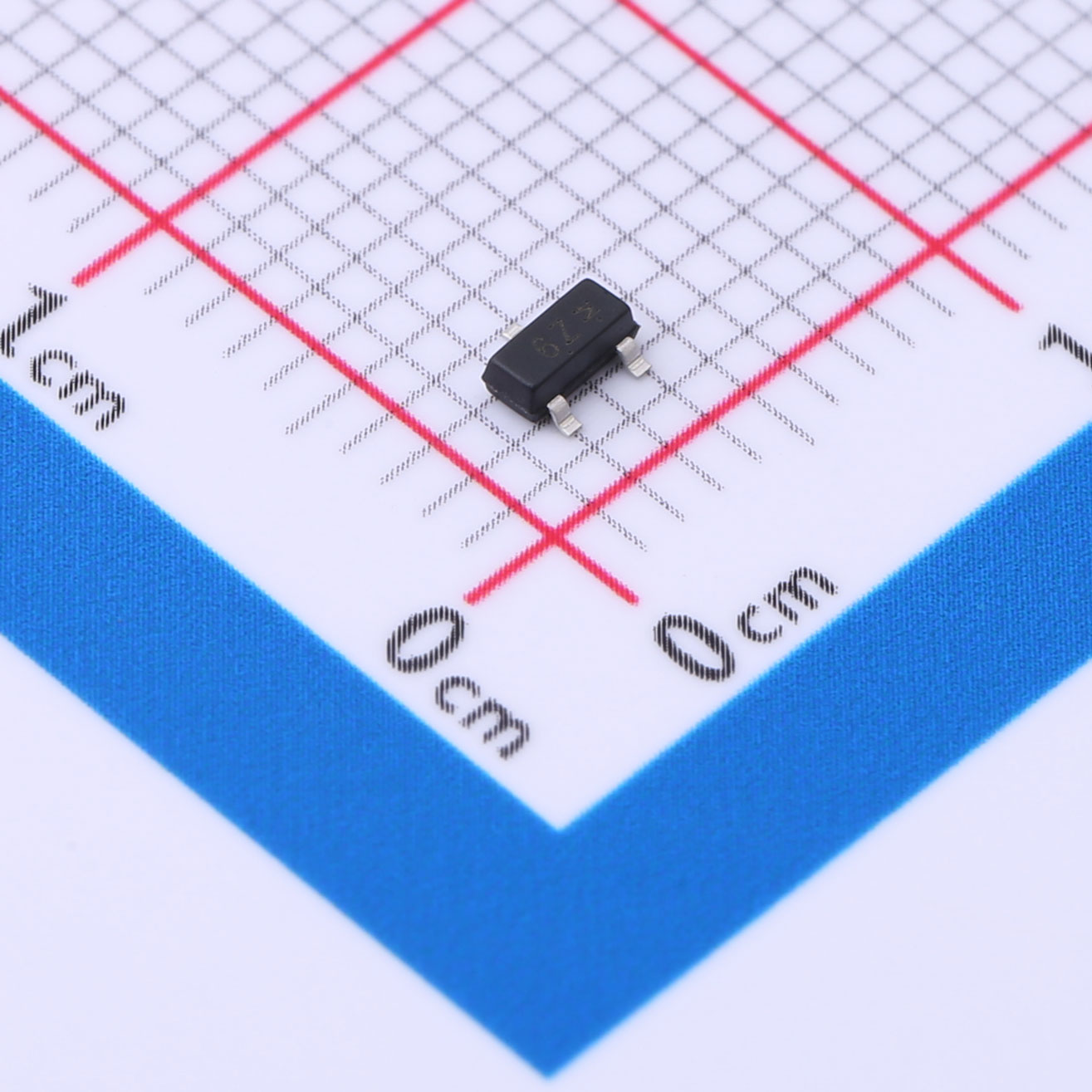

MMBF170L N-channel Power MOSFET SOT-23 Package：SOT-23 VDSS(V)：60V Id(A)：300mA RDSON(Ω)：3Ω@10V,500mA VTH：2.5V@250uA P/N：N-Channel

Datasheet 3D Model

MOSFET SL25N10 Package：TO-252 VDSS(V)：100V Id(A)：25A RDSON(Ω)：45mΩ@10V,15A VTH：3V@250uA P/N：N-Channel

2N7002 N-Channel Enhancement MOSFET SOT-23	SOT-23	60V	115mA	7.5Ω@10V,500mA	2.5V@250μA	N-Channel
2N7002DW N-Channel Enhancement MOSFET SOT-363	SOT-363	60V	800mA	7.5mΩ@5V, 50mA	1V@250μA	N-Channel
2N7002E N-Channel Enhancement MOSFET SOT-23	SOT-23	60V	300mA	3Ω@10V,500mA	2.5V@250μA	N-Channel
2N7002K N-channel Power MOSFET SOT-23	SOT-23	60V	0.3A	2Ω@10V,0.3A	1.5V@250uA	N-channel
2N7002KDW N-channel Power MOSFET SOT-363	SOT-363	60V	340mA	5Ω@10V	2.5V@1mA	N-channel
2N7002KT N-channel Power MOSFET TO-523	TO-252	60V	1A	2.5Ω@10V	1.5V@250μA	N-channel
2N7002KW N-channel Power MOSFET SOT-323	SOT-323	60V	340mA	1.1Ω@4.5V,200mA	1V@1mA	N-Channel
2N7002T N-Channel Power MOSFET SOT-523	SOT-523	60V	300mA	3Ω@4.5V	3V@250μA	N-Channel
AOD409 P-channel Power MOSFET TO-252	TO-252	-60V	-30A	30mΩ@-10V,-20A	-1.8V@-250uA	P-channel
BSS123 N-Channel MOSFET SOT-23	SOT-23	100V	150mA	3.5Ω@10V,120mA	2.8V@1mA	N-Channel
BSS131 N-channel Power MOSFET SOT-23	SOT-23	240V	0.1A	9.07Ω@4.5V,0.09A	1.4V@56μA	N-channel
BSS138 N-Channel Power MOSFET SOT-23	SOT-23	50V	220mA	3.5Ω@10V,220mA	1.6V@1mA	N-Channel
BSS169 N-channel Power MOSFET SOT-23	SOT-23	100V	2A	234mΩ@10V,1.5A	2.8V@250uA	N-channel
IRF540NS N-channel Power MOSFET TO-263	TO-263	100V	33A	30Ω@10V,15A	2V@250μA	N-Channel
IRF640 N-channel Power TO-220 IRF640	TO-220	200V	18A	150mΩ@10V,11A	3V@250uA	N-channel
IRF7341 N-channel Power MOSFET SOP-8	SOP-8	60V	5A	30mΩ@10V,4A	2.5V@250uA	N-channel
IRF9540 P-channel Power MOSFET TO-220	TO-220	-100V	-20A	78mΩ@-10V,-10A	-1.7V@-250uA	P-channel
IRFR5305 P-channel Power MOSFET TO-252 IRFR5305	TO-252	-60V	-30A	26mΩ@-10V,-15A	-1.8V@-250μA	P-channel
MMBF170L N-channel Power MOSFET SOT-23	SOT-23	60V	300mA	3Ω@10V,500mA	2.5V@250uA	N-Channel
MOSFET SL25N10	TO-252	100V	25A	45mΩ@10V,15A	3V@250uA	N-Channel
