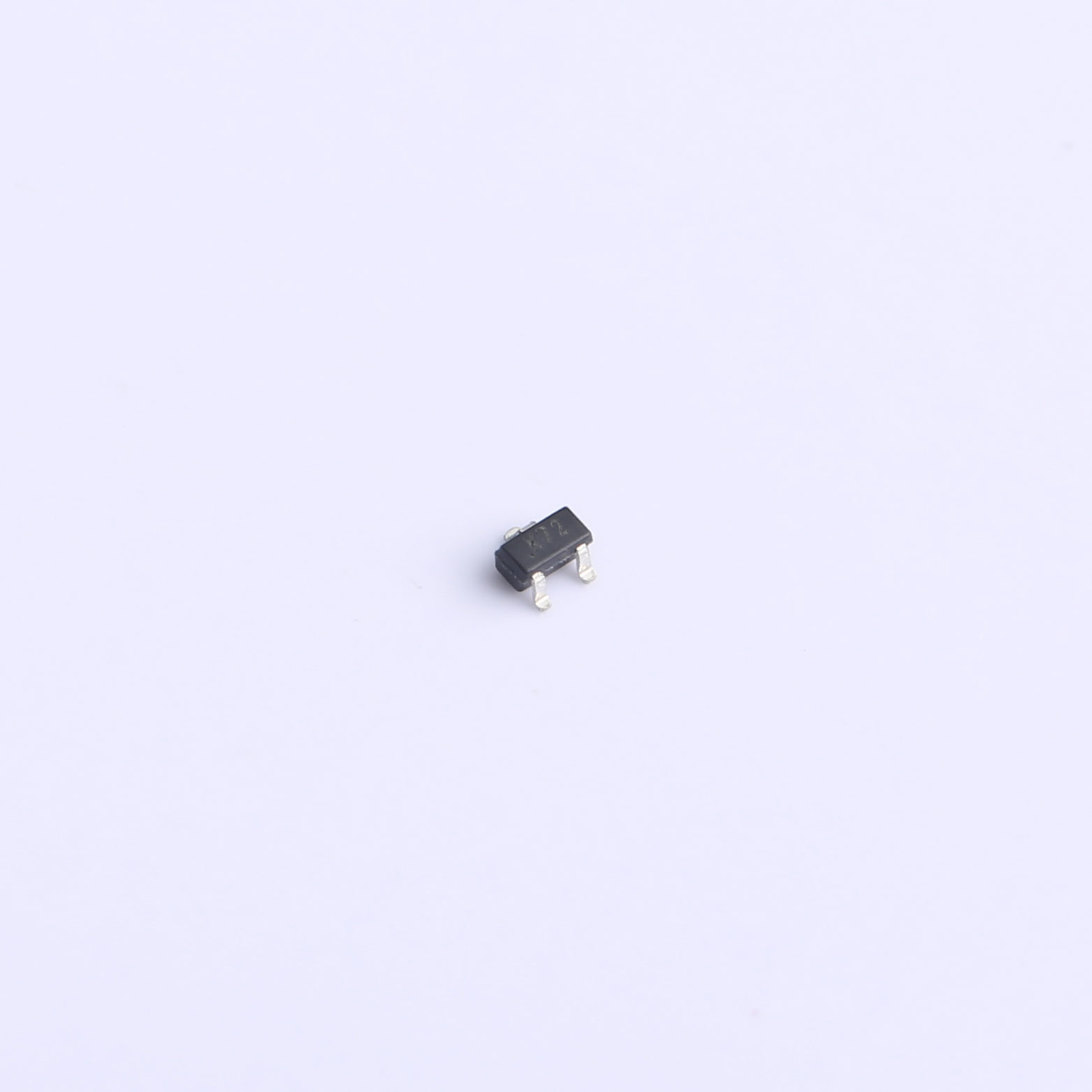

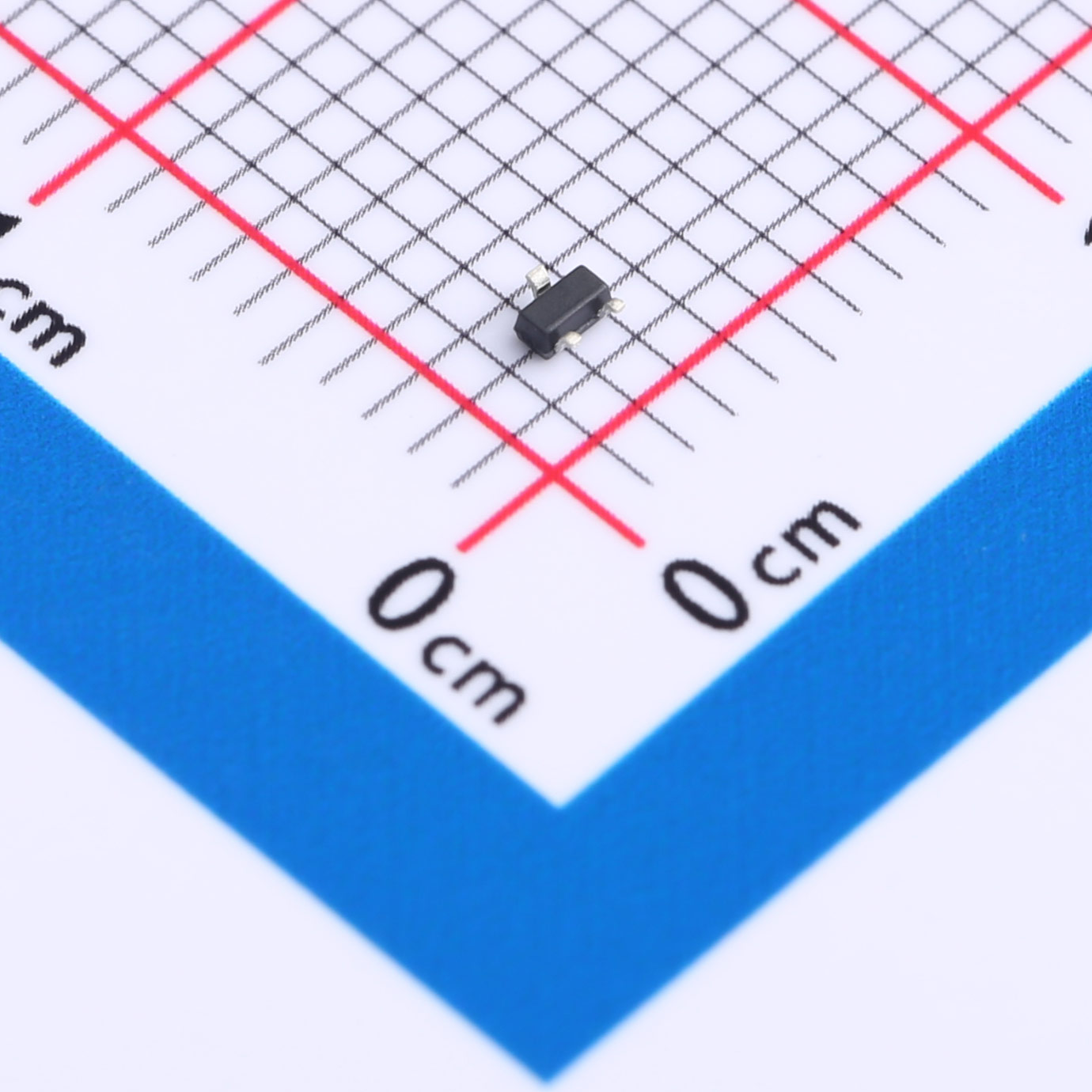

2N7002T N-Channel Power MOSFET SOT-523
● Low input Capacitance
● Fast Switching Speed
● Low Input / Output Leakage
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Product Introduction
The 2N7002T is an N-Channel Enhancement-Mode MOSFET housed in SOT-523 package. Featuring a drain-source voltage of 60 V and continuous drain current of 0.115 A, this device delivers efficient power conversion within a compact surface-mount package. Its maximum on-state resistance is less than 3 Ω @ VGS=10 V, and it achieves ESD rating of HBM ≥2000 V for enhanced anti-static performance.
Product Features
- N-Channel Enhancement-Mode MOSFET, suitable for compact surface-mount switching applications - Drain-Source Voltage (Vdss): 60 V, supports stable operation for medium-voltage switching circuits - Continuous Drain Current (Id): 0.115 A, ideal for small-signal switching applications - On-state Resistance (RDS(on) @ Vgs): ＜3 Ω @ 10 V. Low on-resistance helps reduce conduction loss - ESD Rating: HBM ≥2000 V, provides good electrostatic discharge protection - Package: SOT-523, facilitating high-density PCB design and assembly
Applications
The 2N7002T is widely adopted in small-signal switching scenarios. Benefiting from its compact SOT-523 package and ESD-protected performance, it realizes reliable signal switching for space-constrained circuit designs.
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
2N7002 N-Channel Enhancement MOSFET SOT-23
Brand: slkor， Package： SOT-23 VDSS(V)： 60V Id(A)： 115mA RDSON(Ω)： 7.5Ω@10V,500mA VTH： 2.5V@250μA P/N： N-Channel
2N7002E N-Channel Enhancement MOSFET SOT-23
Brand: slkor， Package： SOT-23 VDSS(V)： 60V Id(A)： 300mA RDSON(Ω)： 3Ω@10V,500mA VTH： 2.5V@250μA P/N： N-Channel
2N7002K N-channel Power MOSFET SOT-23
Brand: slkor， Package： SOT-23 VDSS(V)： 60V Id(A)： 0.3A RDSON(Ω)： 2Ω@10V,0.3A VTH： 1.5V@250uA P/N： N-channel
2N7002KDW N-channel Power MOSFET SOT-363
Brand: slkor， Package： SOT-363 VDSS(V)： 60V Id(A)： 340mA RDSON(Ω)： 5Ω@10V VTH： 2.5V@1mA P/N： N-channel
2N7002KT N-channel Power MOSFET TO-523
Brand: slkor， Package： TO-252 VDSS(V)： 60V Id(A)： 1A RDSON(Ω)： 2.5Ω@10V VTH： 1.5V@250μA P/N： N-channel
2N7002KW N-channel Power MOSFET SOT-323
Brand: slkor， Package： SOT-323 VDSS(V)： 60V Id(A)： 340mA RDSON(Ω)： 1.1Ω@4.5V,200mA VTH： 1V@1mA P/N： N-Channel
AOD409 P-channel Power MOSFET TO-252
Brand: slkor， Package： TO-252 VDSS(V)： -60V Id(A)： -30A RDSON(Ω)： 30mΩ@-10V,-20A VTH： -1.8V@-250uA P/N： P-channel
BSS123 N-Channel MOSFET SOT-23
Brand: slkor， Package： SOT-23 VDSS(V)： 100V Id(A)： 150mA RDSON(Ω)： 3.5Ω@10V,120mA VTH： 2.8V@1mA P/N： N-Channel
BSS131 N-channel Power MOSFET SOT-23
Brand: slkor， Package： SOT-23 VDSS(V)： 240V Id(A)： 0.1A RDSON(Ω)： 9.07Ω@4.5V,0.09A VTH： 1.4V@56μA P/N： N-channel
BSS138 N-Channel Power MOSFET SOT-23
Brand: slkor， Package： SOT-23 VDSS(V)： 50V Id(A)： 220mA RDSON(Ω)： 3.5Ω@10V,220mA VTH： 1.6V@1mA P/N： N-Channel
