TRIAC Bidirectional SCRs are also called TRIACs for short. Bidirectional SCRs are structurally equivalent to two unidirectional SCRs connected in reverse, and these SCRs have a bi-directional conduction function.

Products Documents Data

Datasheet 3D Model

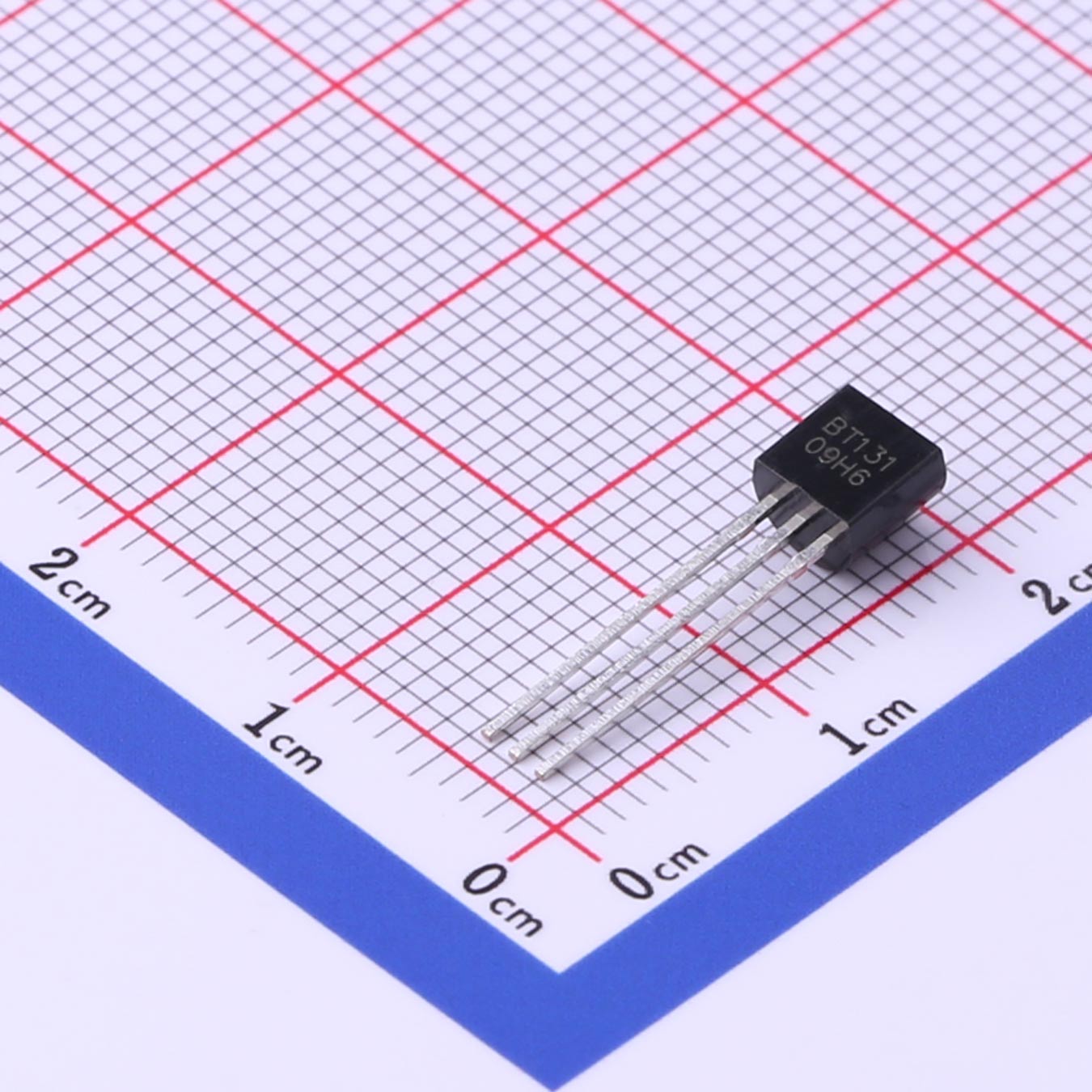

BT131-800 Silicon-Controlled Rectifier SCR TO-92 VDRM(V)：800V IT(RMS)(A)：1A IGT(mA)/Max：7mA VGT(V)：1.2V Package：TO-92

Datasheet 3D Model

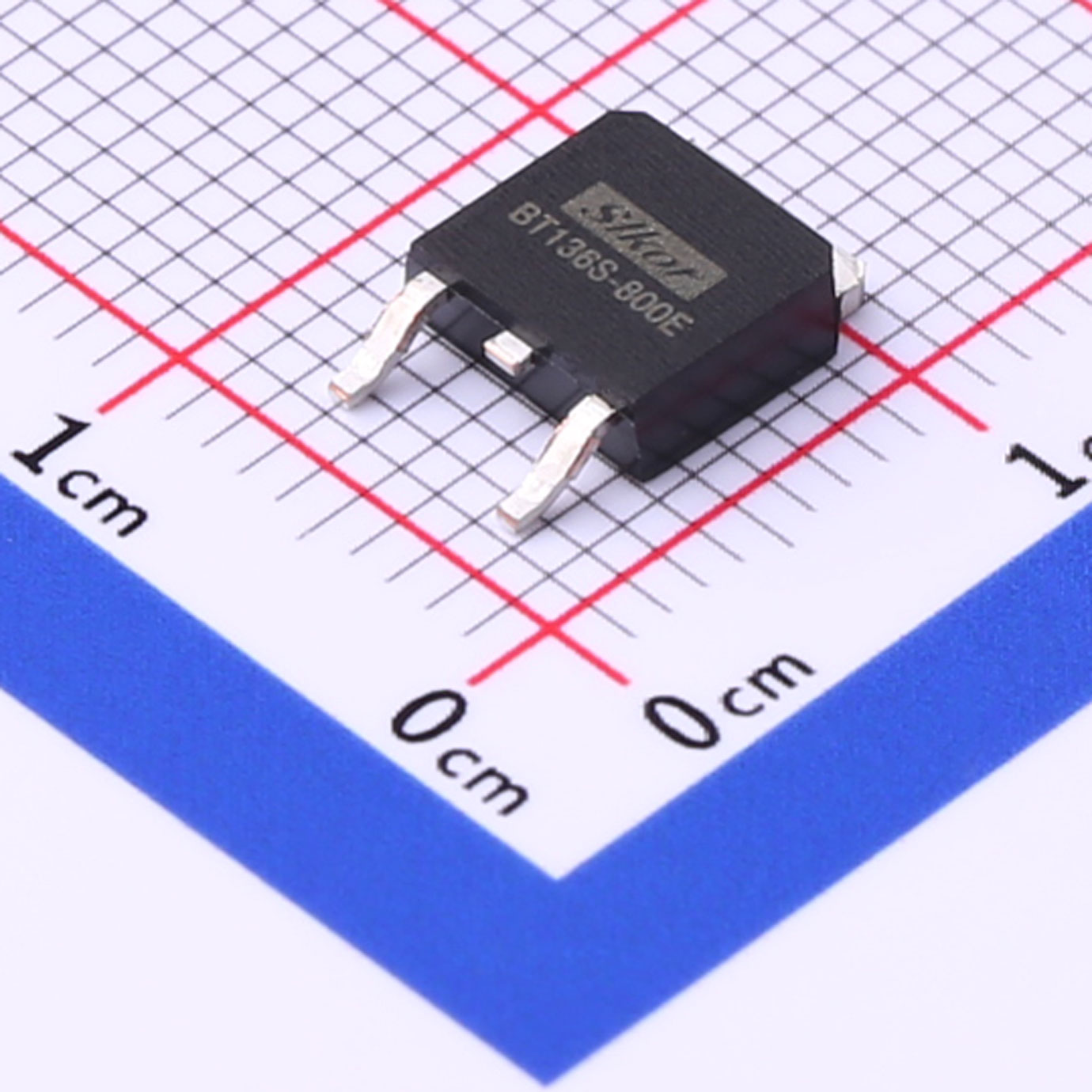

BT136S-800E Silicon-Controlled Rectifier SCR TO-252 VDRM(V)：800V IT(RMS)(A)：4A IGT(mA)/Max：25mA VGT(V)：1.5V Package：TO-252

Datasheet 3D Model

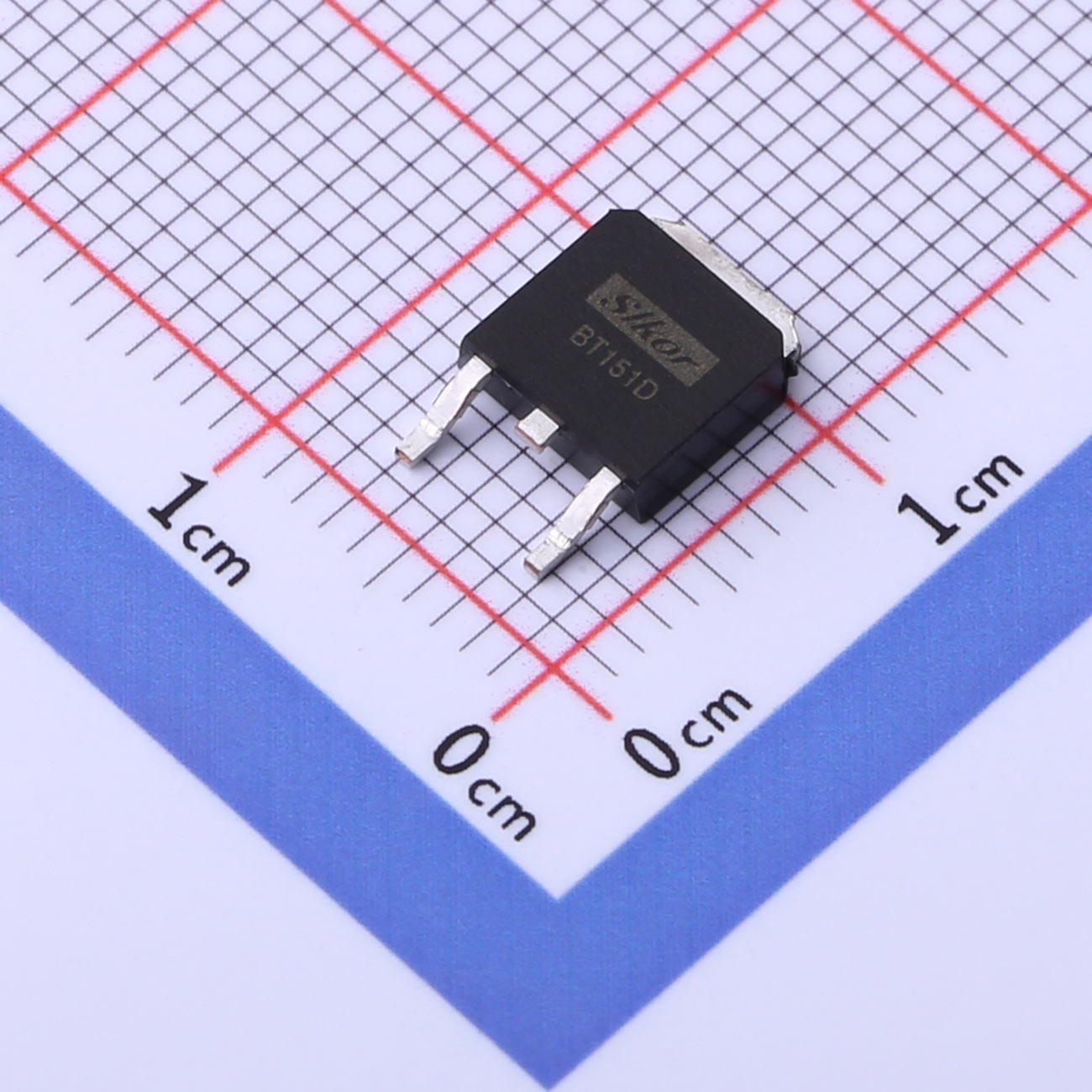

BT151D-600R Silicon-Controlled Rectifier SCR TO-252 VDRM(V)：600V IT(RMS)(A)：12A IGT(mA)/Max：20mA VGT(V)：1V Package：TO-252

Datasheet 3D Model

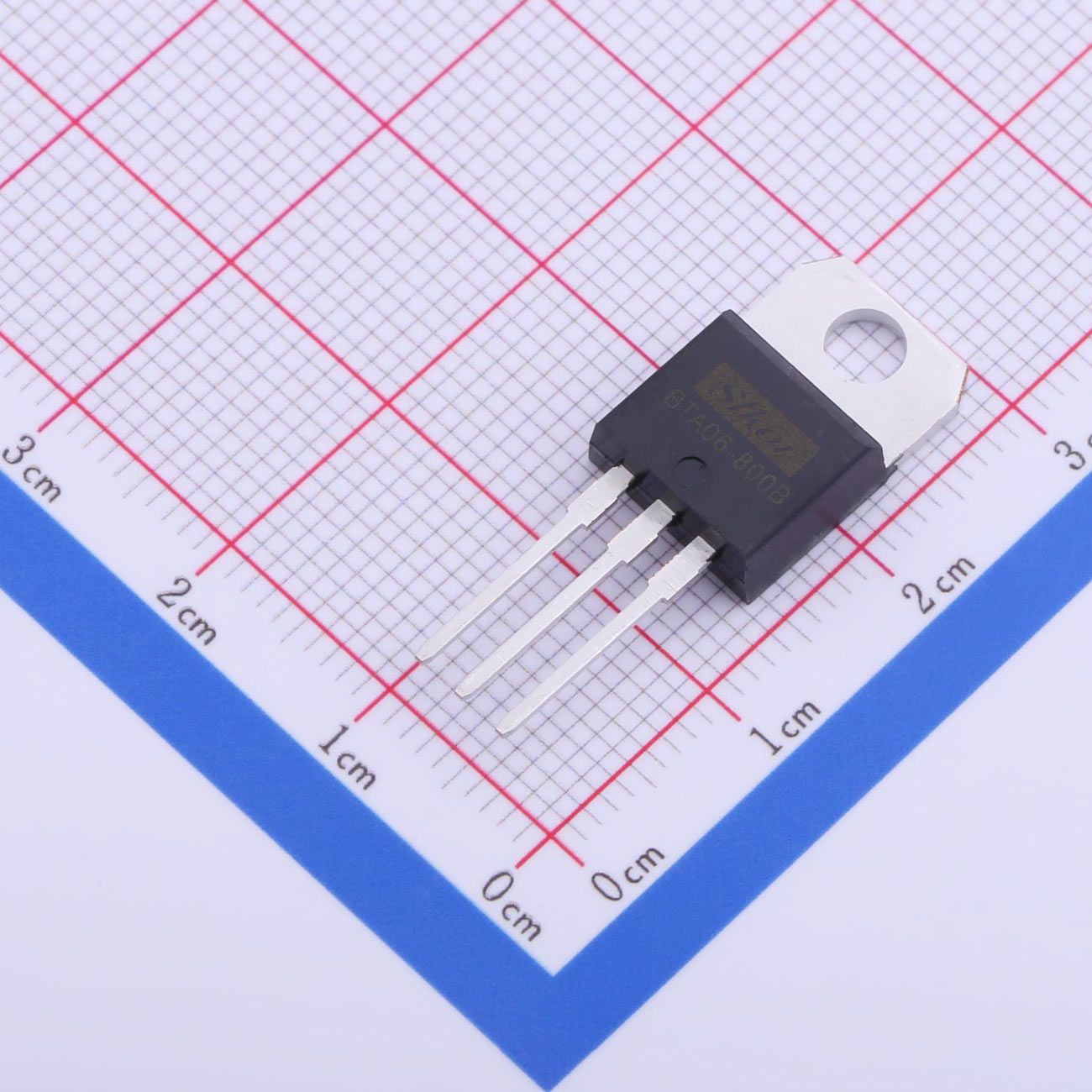

BTA06-800B Silicon-Controlled Rectifier SCR TO-220 VDRM(V)：800V IT(RMS)(A)：6A IGT(mA)/Max：100mA VGT(V)：1.3V Package：TO-220

Datasheet 3D Model

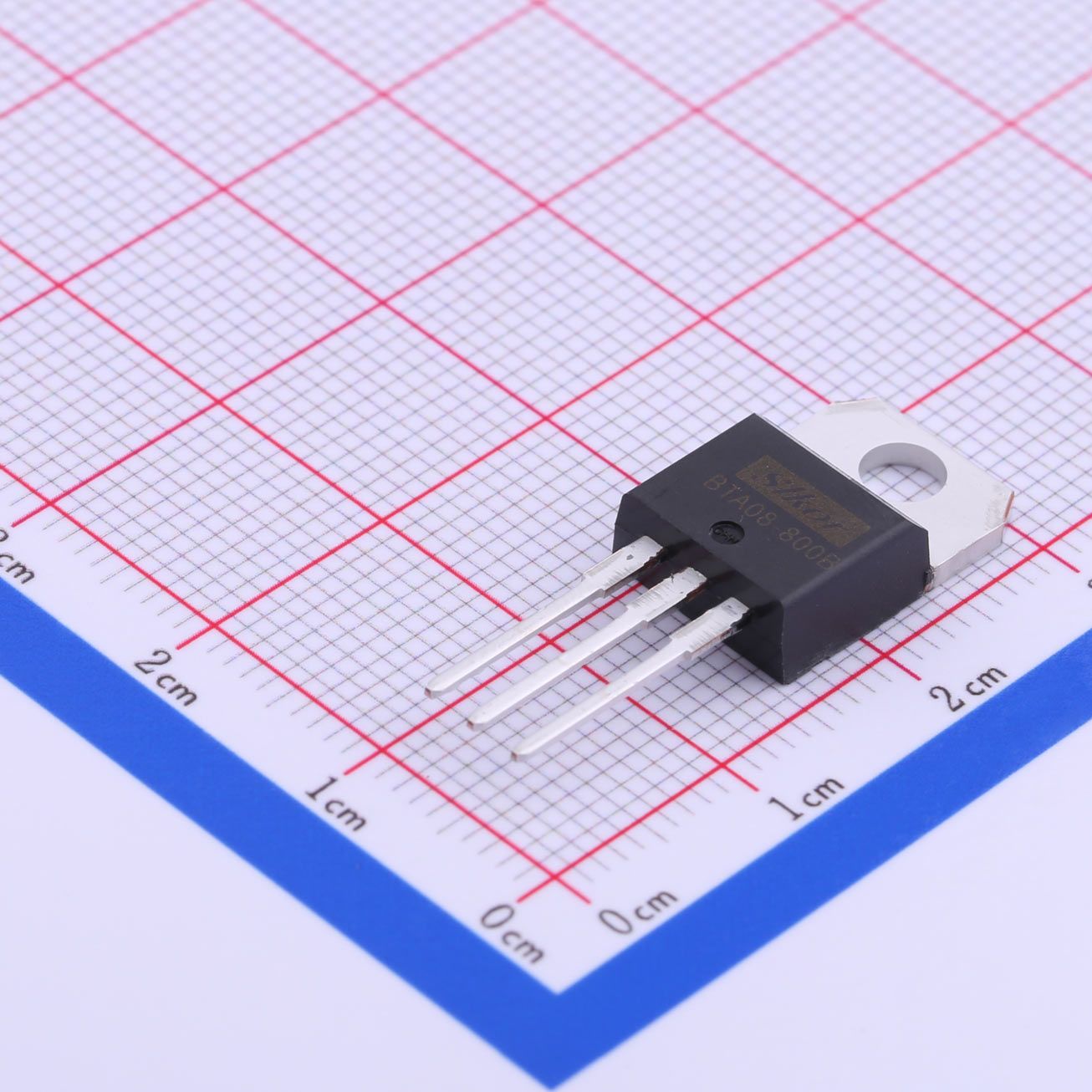

BTA08-800B Silicon-Controlled Rectifier SCR TO-220 VDRM(V)：800V IT(RMS)(A)：8A IGT(mA)/Max：100mA VGT(V)：1.3V Package：TO-220

Datasheet 3D Model

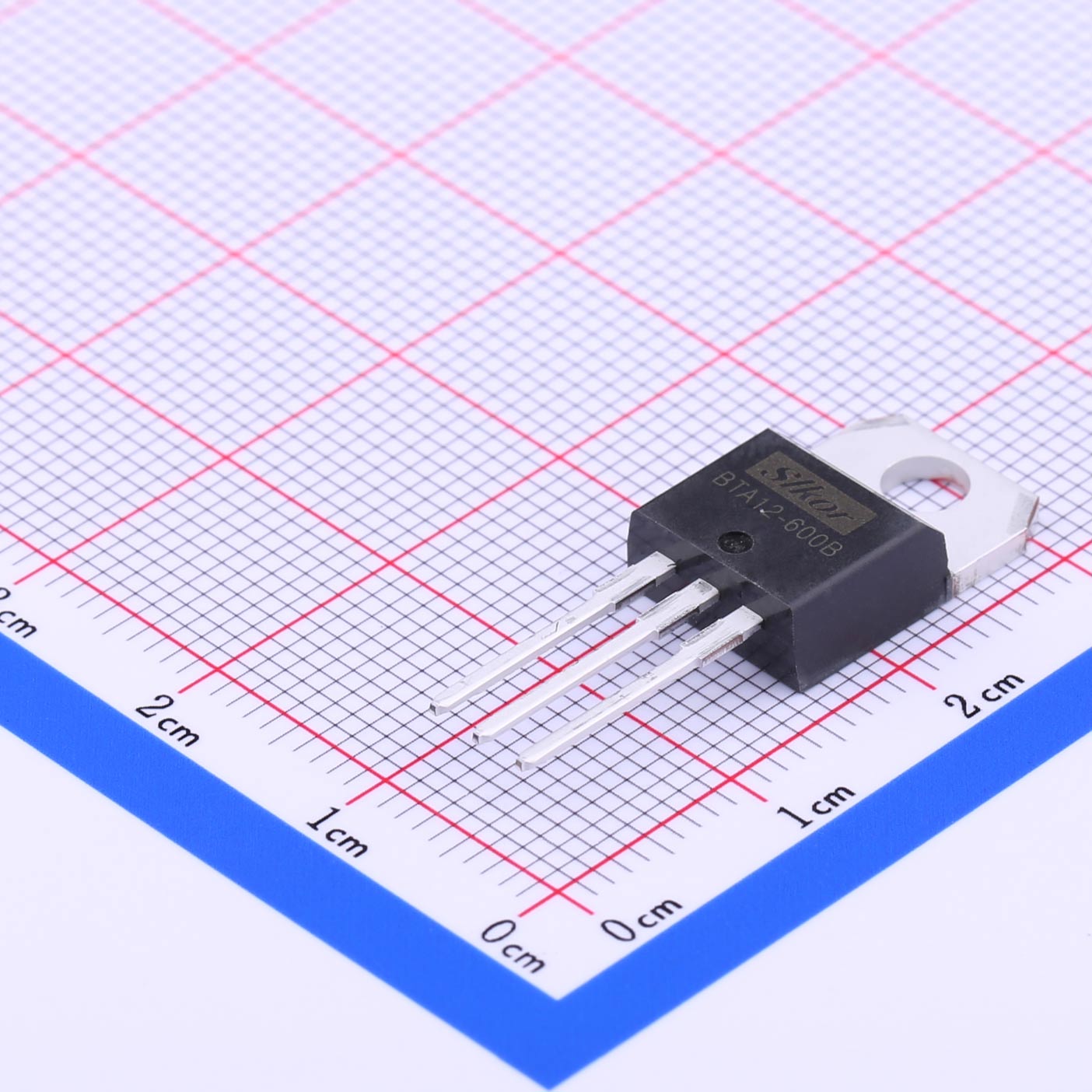

BTA12-600B TRIACS TO-220F VDRM(V)：600V IT(RMS)(A)：12A IGT(mA)/Max：30mA VGT(V)：1.5V Package：TO-220F

Datasheet 3D Model

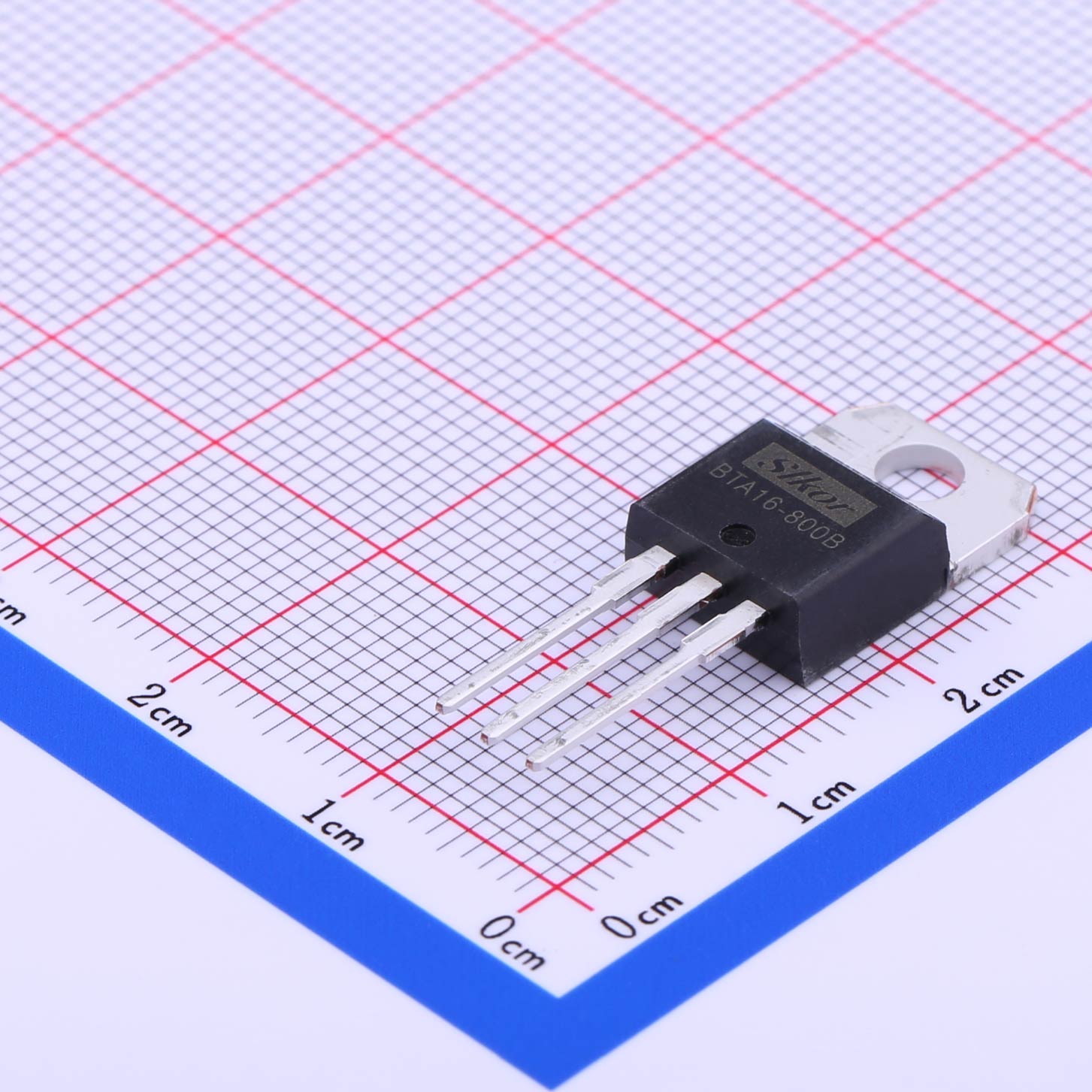

BTA16-800B TRIACs TO-220 VDRM(V)：800V IT(RMS)(A)：16A IGT(mA)/Max：100mA VGT(V)：1.5V Package：TO-220

Datasheet 3D Model

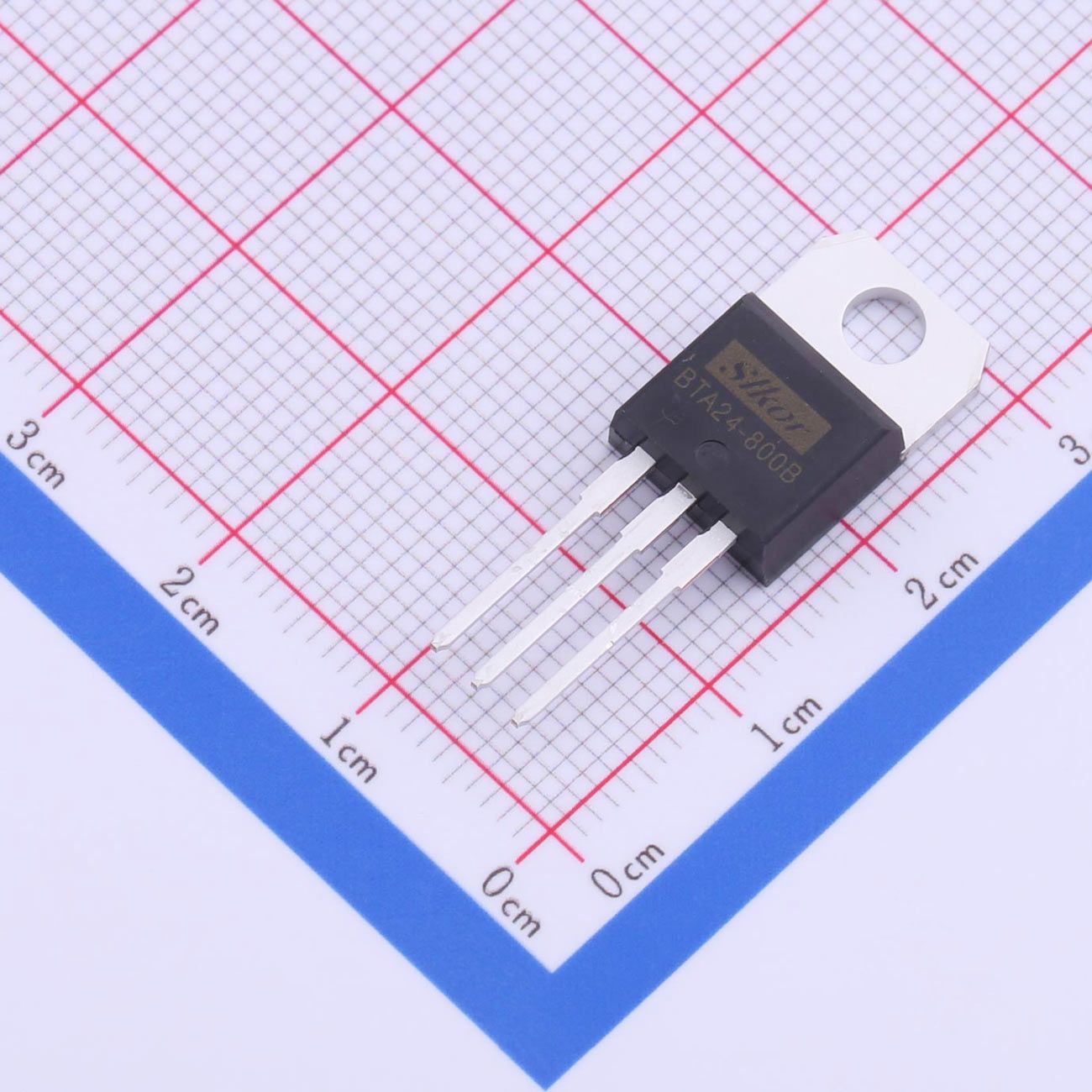

BTA24-800B TRIAC TO-220 VDRM(V)：800V IT(RMS)(A)：25A IGT(mA)/Max：100mA VGT(V)：1.5V Package：TO-220

Datasheet 3D Model

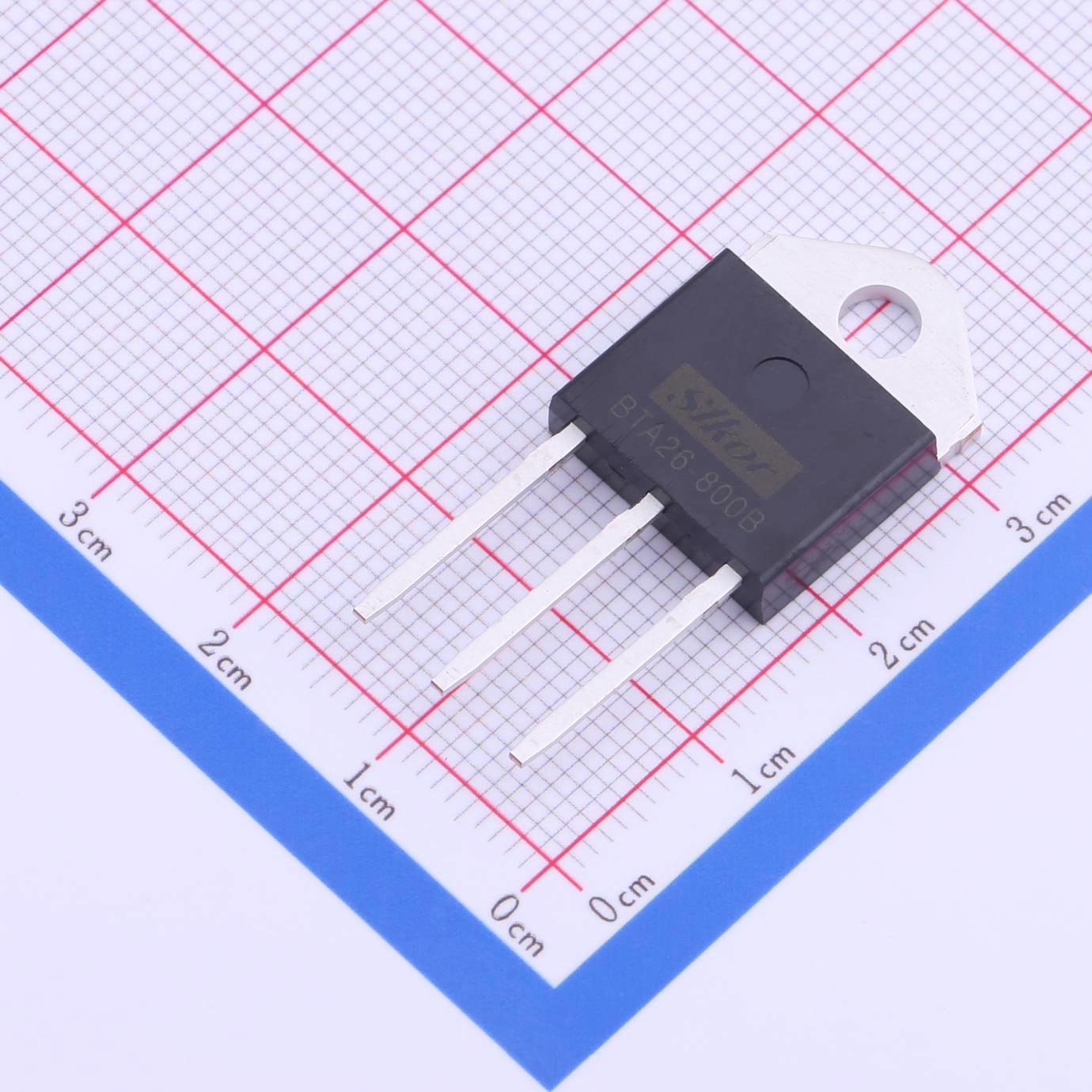

BTA26-800B Silicon-Controlled Rectifier SCR TO-3P VDRM(V)：800V IT(RMS)(A)：25A IGT(mA)/Max：50mA VGT(V)：1.5V Package：TO-3P

Datasheet 3D Model

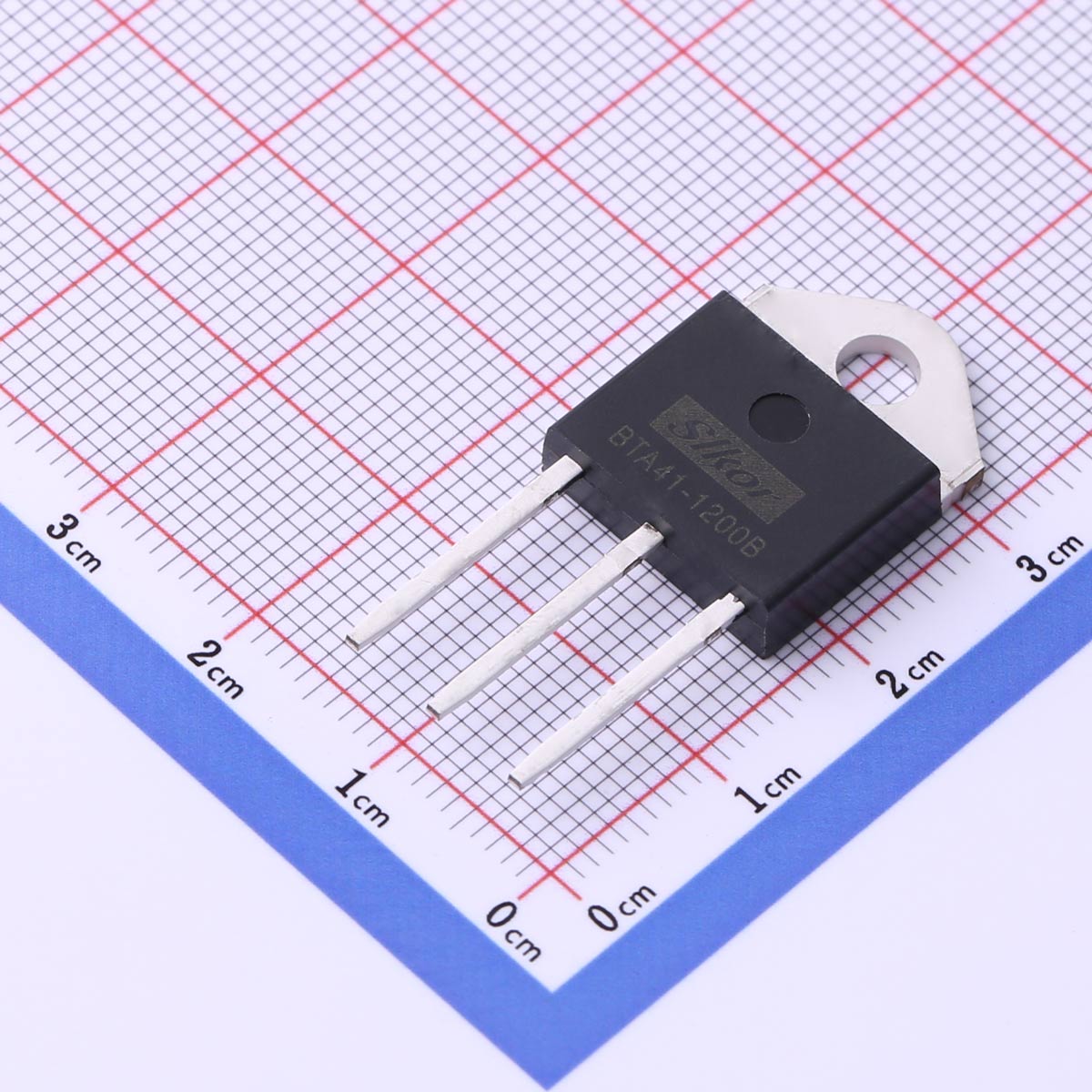

BTA41-1200B 4 Quadrants TRIAC TO-3P VDRM(V)：1200V IT(RMS)(A)：40A IGT(mA)/Max：50mA VGT(V)：1.5V Package：TO-3P

Datasheet 3D Model

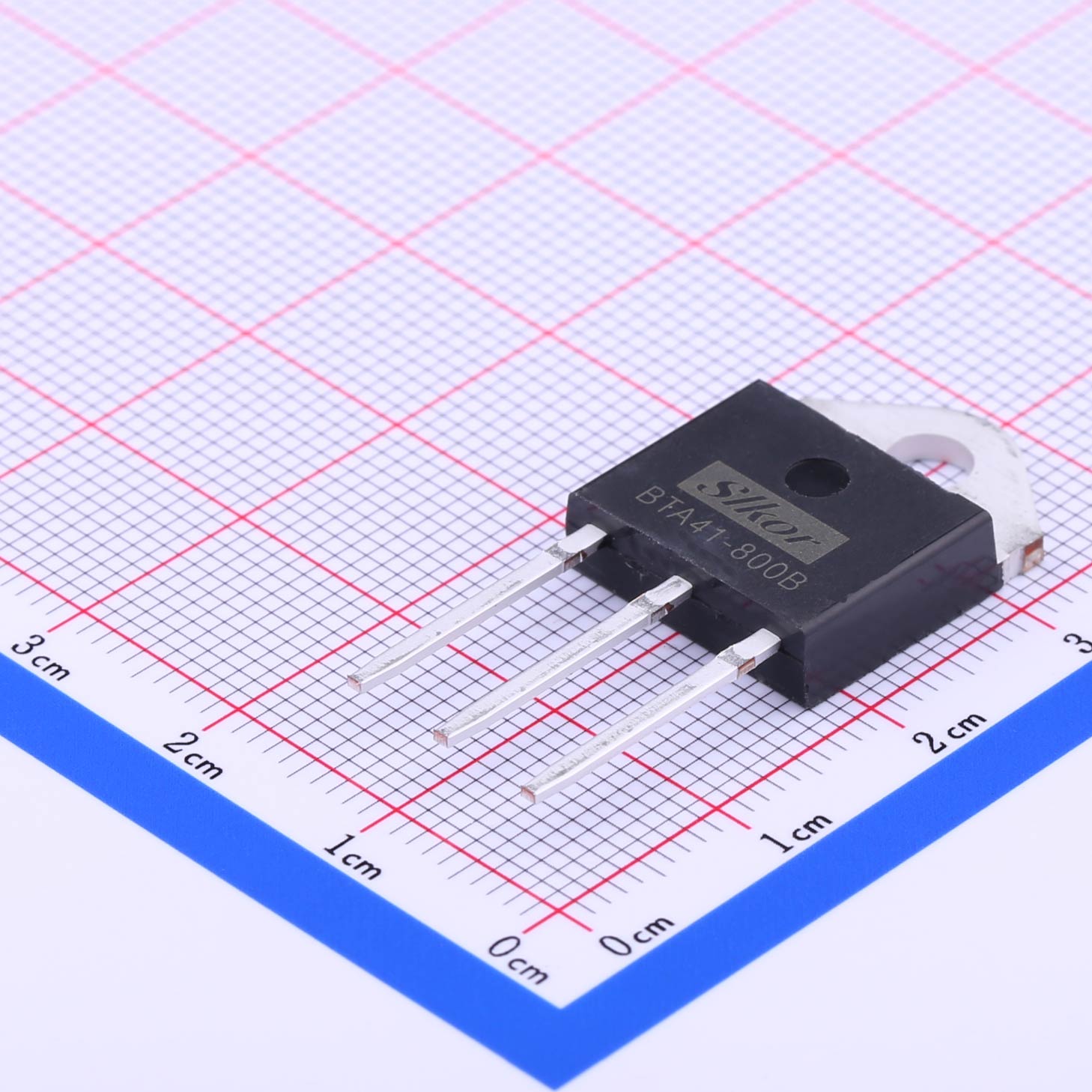

BTA41-800B Silicon-Controlled Rectifier SCR TO-3P VDRM(V)：800V IT(RMS)(A)：40A IGT(mA)/Max：50mA VGT(V)：1.5V Package：TO-3P

Datasheet 3D Model

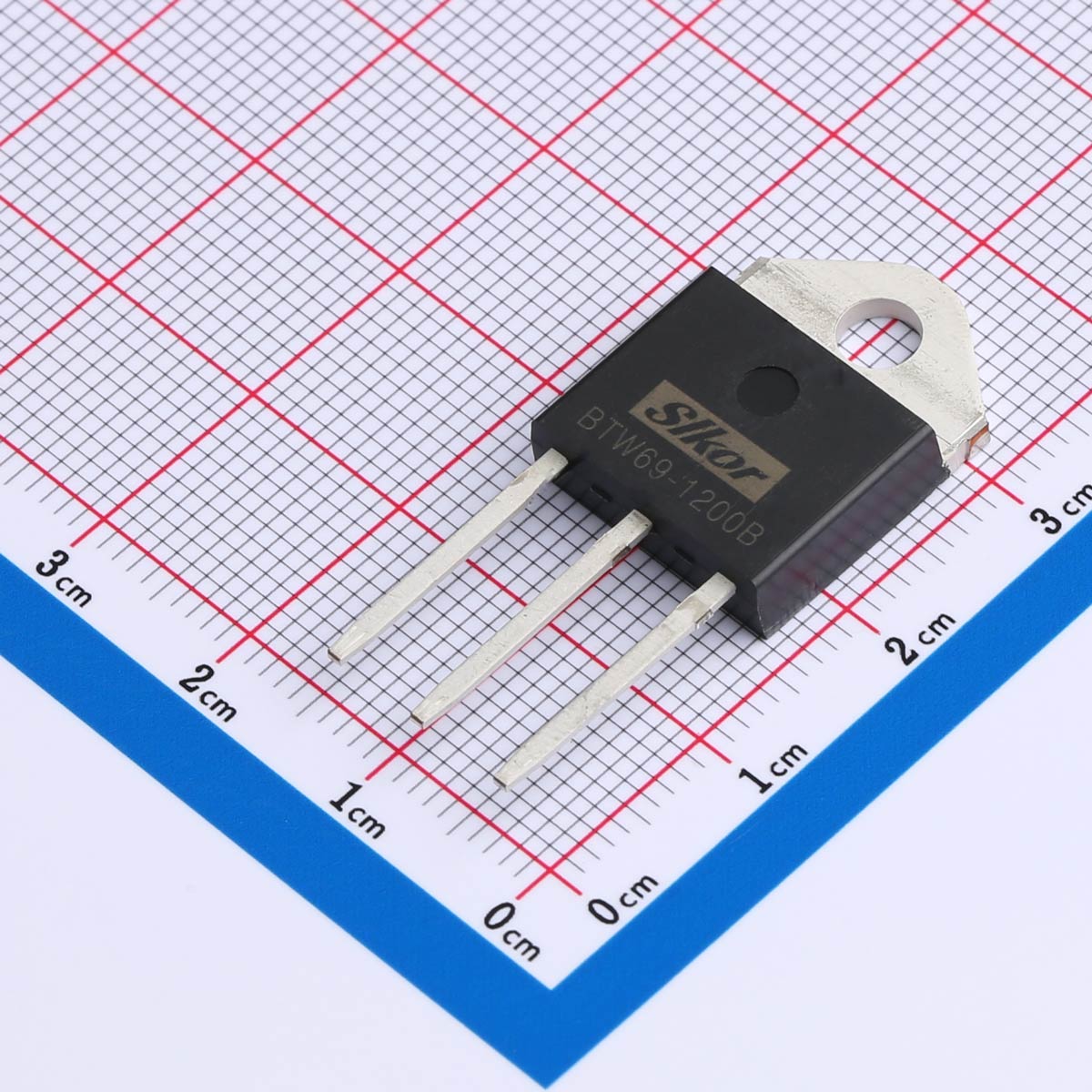

BTW69-1200B Silicon-Controlled Rectifier SCR TO-3P VDRM(V)：1200V IT(RMS)(A)：55A IGT(mA)/Max：70mA VGT(V)：1.5V Package：TO-3P

Datasheet 3D Model

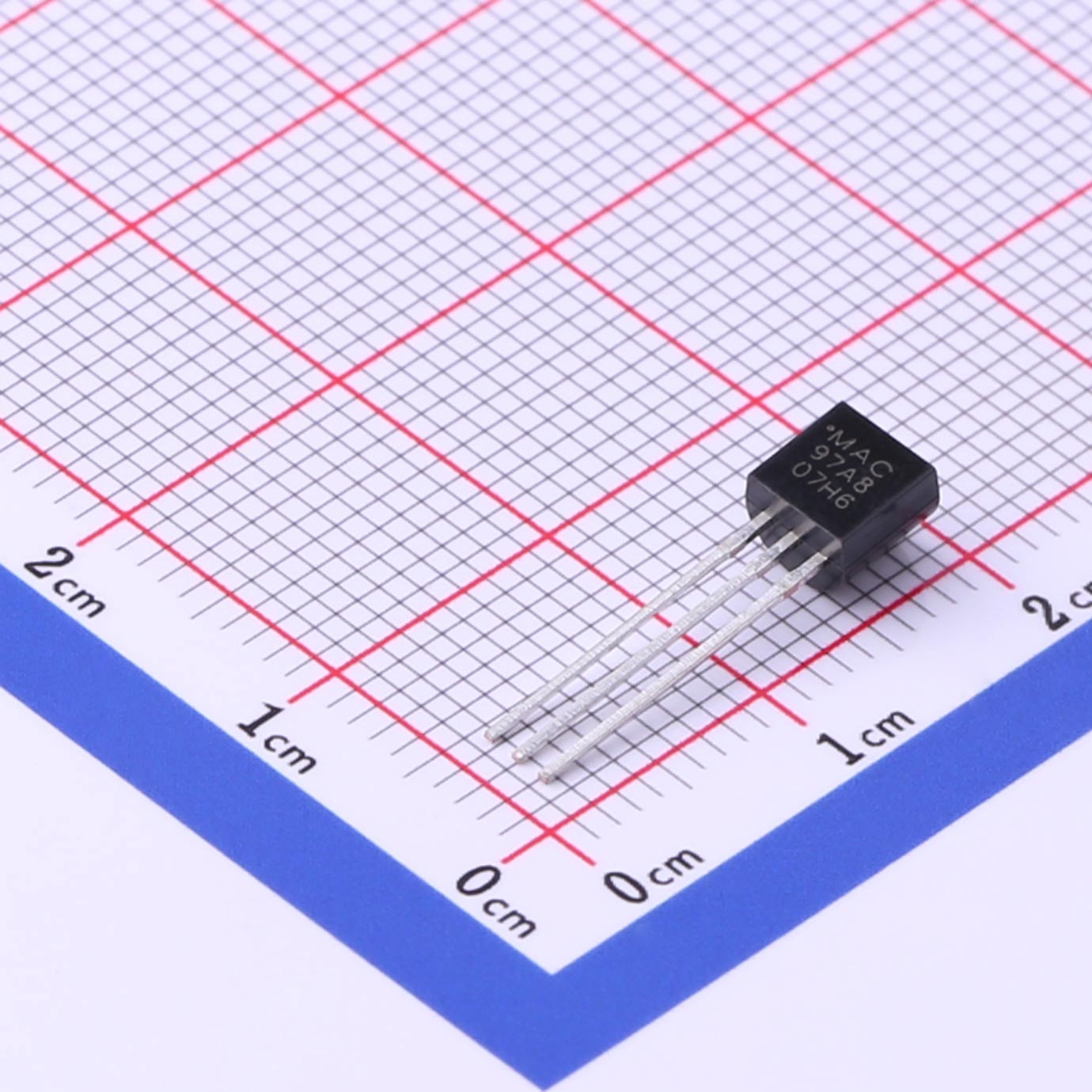

MAC97A8 Triac TO-92 VDRM(V)：800V IT(RMS)(A)：0.8A IGT(mA)/Max：7mA VGT(V)：1.5V Package：TO-92

Datasheet 3D Model

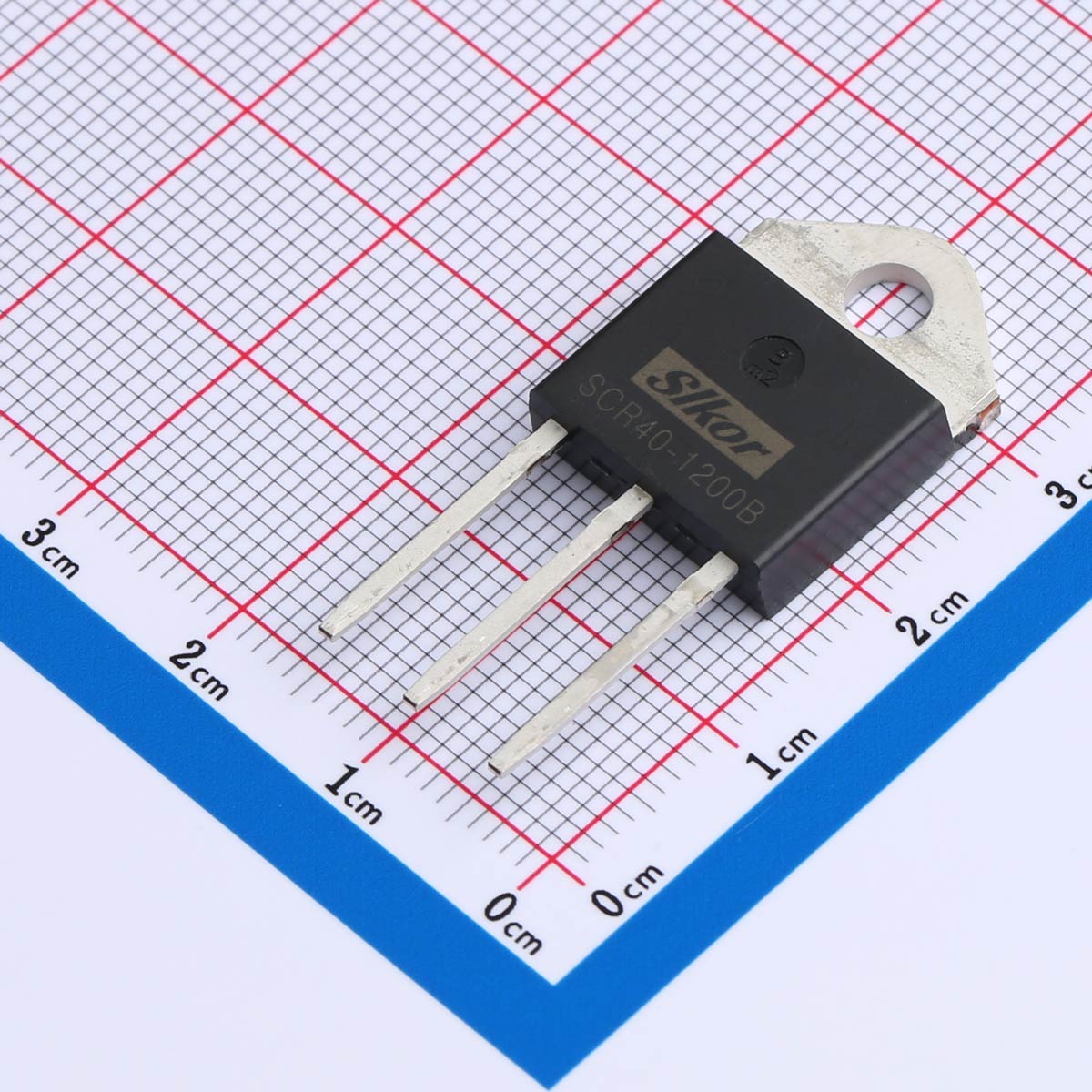

SCR40-1200B Silicon-Controlled Rectifier SCR TO-3P VDRM(V)：1200V IT(RMS)(A)：40A IGT(mA)/Max：35mA VGT(V)：1.5V Package：TO-3P

BT131-800 Silicon-Controlled Rectifier SCR TO-92	800V	1A	7mA	1.2V	TO-92
BT136S-800E Silicon-Controlled Rectifier SCR TO-252	800V	4A	25mA	1.5V	TO-252
BT151D-600R Silicon-Controlled Rectifier SCR TO-252	600V	12A	20mA	1V	TO-252
BTA06-800B Silicon-Controlled Rectifier SCR TO-220 BTA06-800B	800V	6A	100mA	1.3V	TO-220
BTA08-800B Silicon-Controlled Rectifier SCR TO-220	800V	8A	100mA	1.3V	TO-220
BTA12-600B TRIACS TO-220F BTA12-600B	600V	12A	30mA	1.5V	TO-220F
BTA16-800B TRIACs TO-220 BTA16-800B	800V	16A	100mA	1.5V	TO-220
BTA24-800B TRIAC TO-220 BTA24-800B	800V	25A	100mA	1.5V	TO-220
BTA26-800B Silicon-Controlled Rectifier SCR TO-3P BTA26-800B	800V	25A	50mA	1.5V	TO-3P
BTA41-1200B 4 Quadrants TRIAC TO-3P BTA41-1200B 4	1200V	40A	50mA	1.5V	TO-3P
BTA41-800B Silicon-Controlled Rectifier SCR TO-3P	800V	40A	50mA	1.5V	TO-3P
BTW69-1200B Silicon-Controlled Rectifier SCR TO-3P	1200V	55A	70mA	1.5V	TO-3P
MAC97A8 Triac TO-92	800V	0.8A	7mA	1.5V	TO-92
SCR40-1200B Silicon-Controlled Rectifier SCR TO-3P	1200V	40A	35mA	1.5V	TO-3P
