Linear Regulator (LDO)
Linear regulators provide a stable output voltage. Because they operate in a linear state, they are characterized by low noise, and the application circuit is very simple compared to DC/DC converters, but the energy conversion efficiency is much lower. Typically, general-purpose linear regulators use a mature process and have a much higher maximum input voltage and higher output current than those of low-dropout linear regulators. Low dropout linear regulator LDO (LDO is the abbreviation of Low dropout), can also work properly under lower input and output voltage difference, also known as low-loss linear regulator or low saturation linear regulator. LDO is generally used in a special circuit structure or CMOS structure, the voltage difference between its input and output is generally less than 0.8V or even less than 0.1V, the static current is generally lower, but the output current is also higher. The quiescent current is generally lower, but the withstand voltage is relatively low. The potential difference between the input and output of a general-purpose linear regulator is generally required to be at least 1.5 V. The use of LDOs with low-potential-difference results in less energy loss and simplifies the heat dissipation design.
1117-3.3 Low dropout Voltage Regulator SOT-89
VIN(V)：18V
VOUT(V)：3.3V
IOUT(mA)：10mA
Vdrop(V)：1.3V
Package：SOT-89

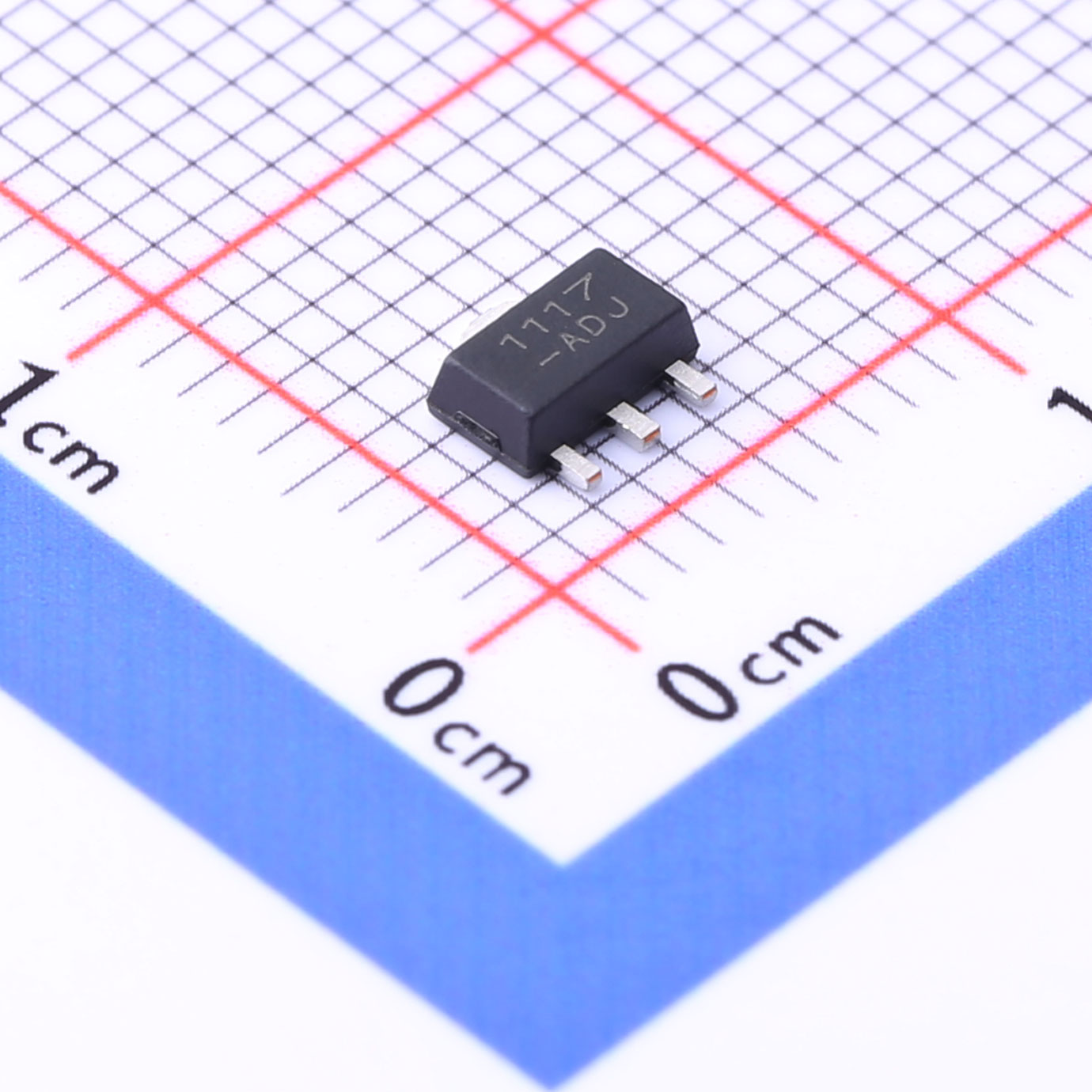

1117-ADJ Voltage Regulator SOT-89
VIN(V)：18V
VOUT(V)：1.25V
IOUT(mA)：10mA
Vdrop(V)：1.3V
Package：SOT-89

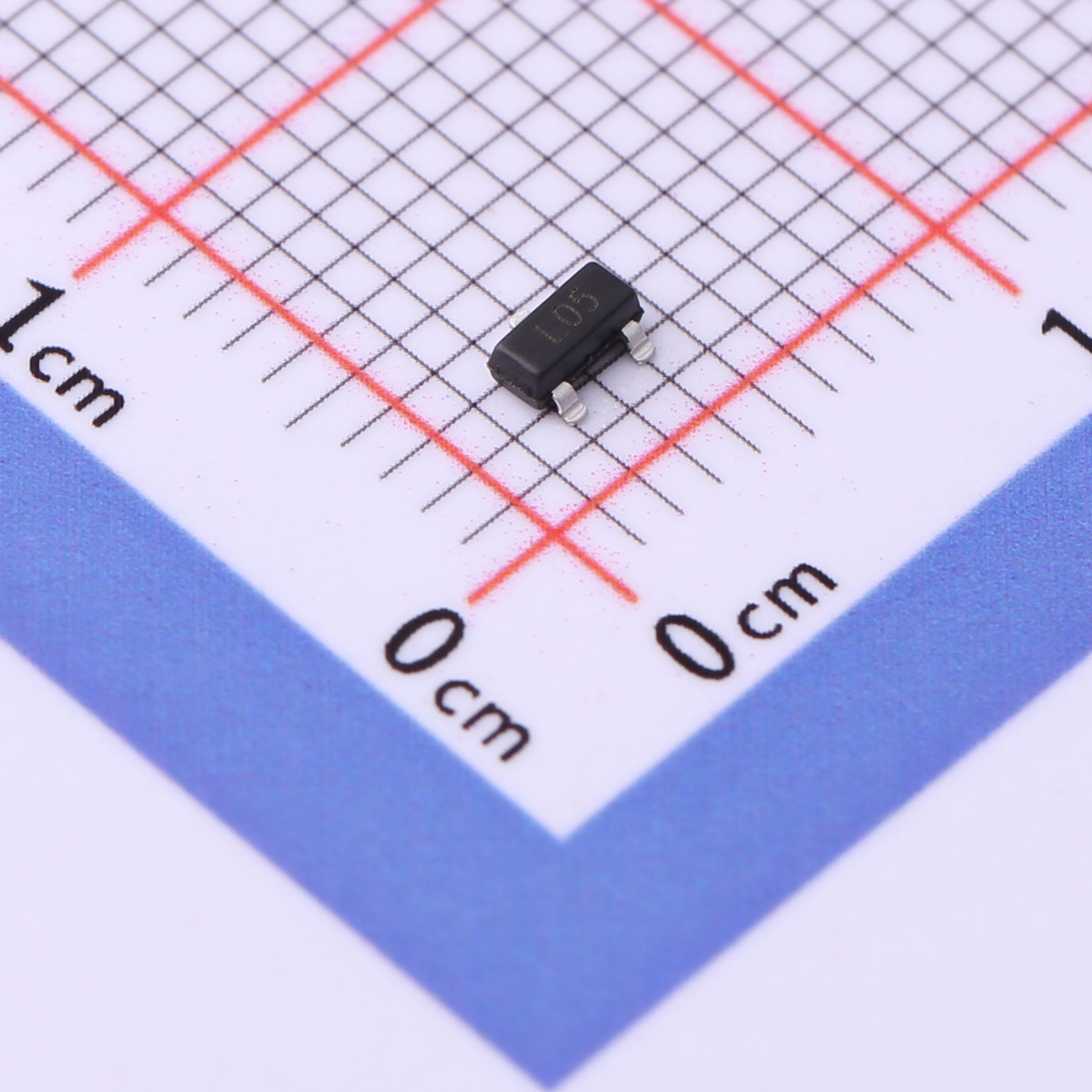

78L05S Low dropout Voltage Regulator (LDO) SOT-23
VIN(V)：30V
VOUT(V)：5.0V
IOUT(mA)：0.1A
Vdrop(V)：1.7V
Package：SOT-23

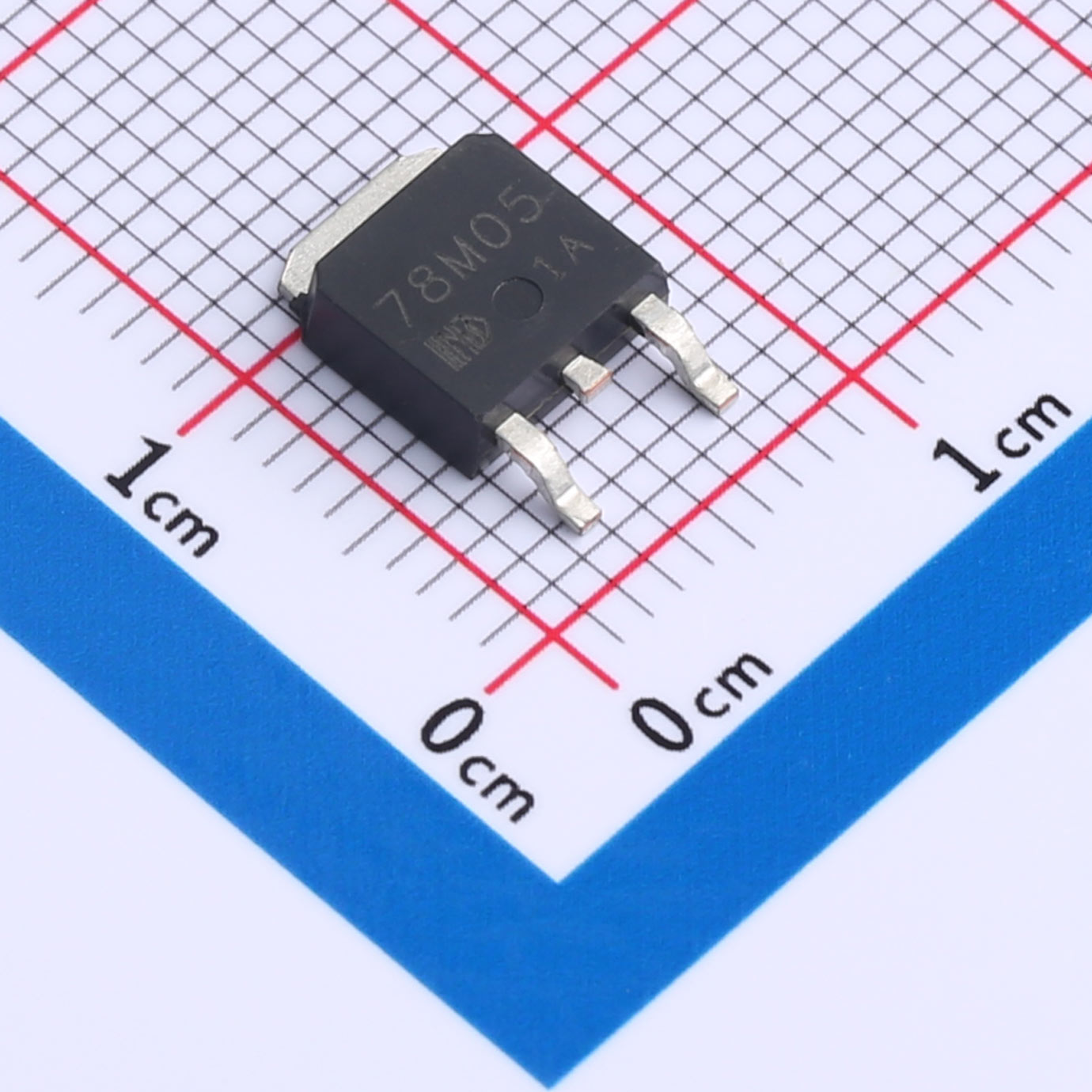

78M05 Linear Voltage Regulators TO-252
VIN(V)：30V
VOUT(V)：5V
IOUT(mA)：6mA
Vdrop(V)：2V
Package：TO-252

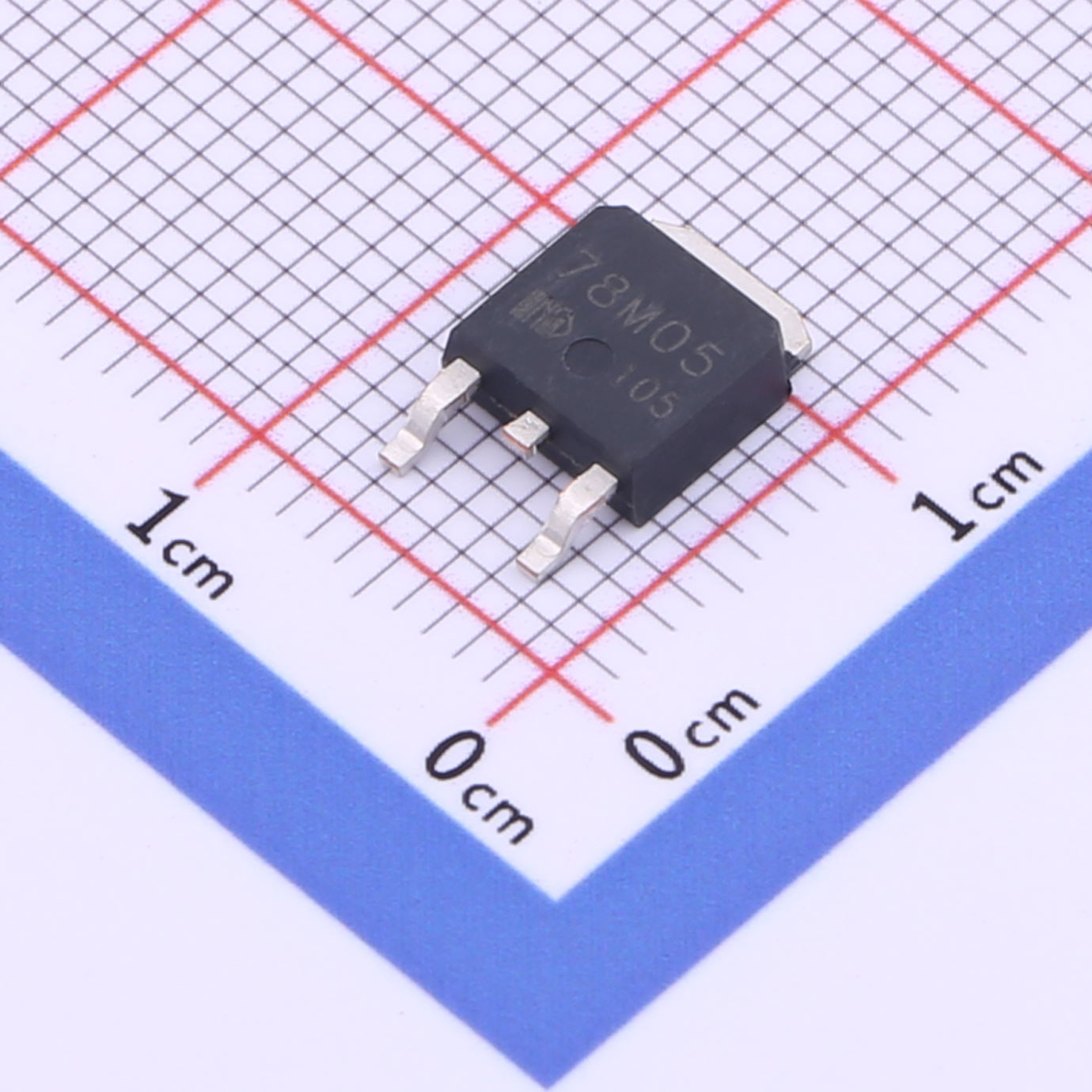

78M05A Linear Voltage Regulators (LDO) TO-252
VIN(V)：35V
VOUT(V)：5V
IOUT(mA)：350mA
Vdrop(V)：2V
Package：TO-252

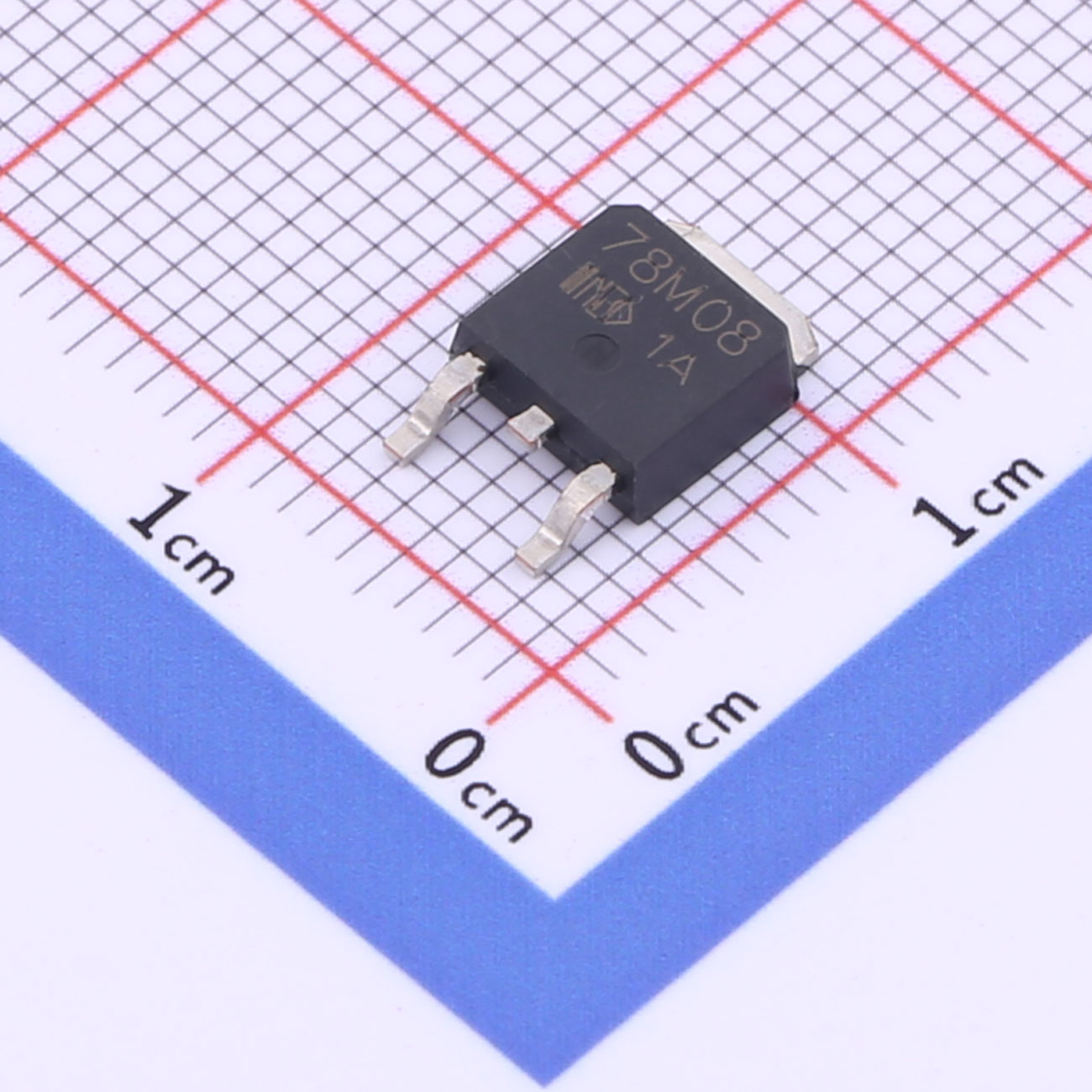

78M08 Linear Voltage Regulators (LDO) TO-252
VIN(V)：35V
VOUT(V)：8V
IOUT(mA)：350mA
Vdrop(V)：2V
Package：TO-252

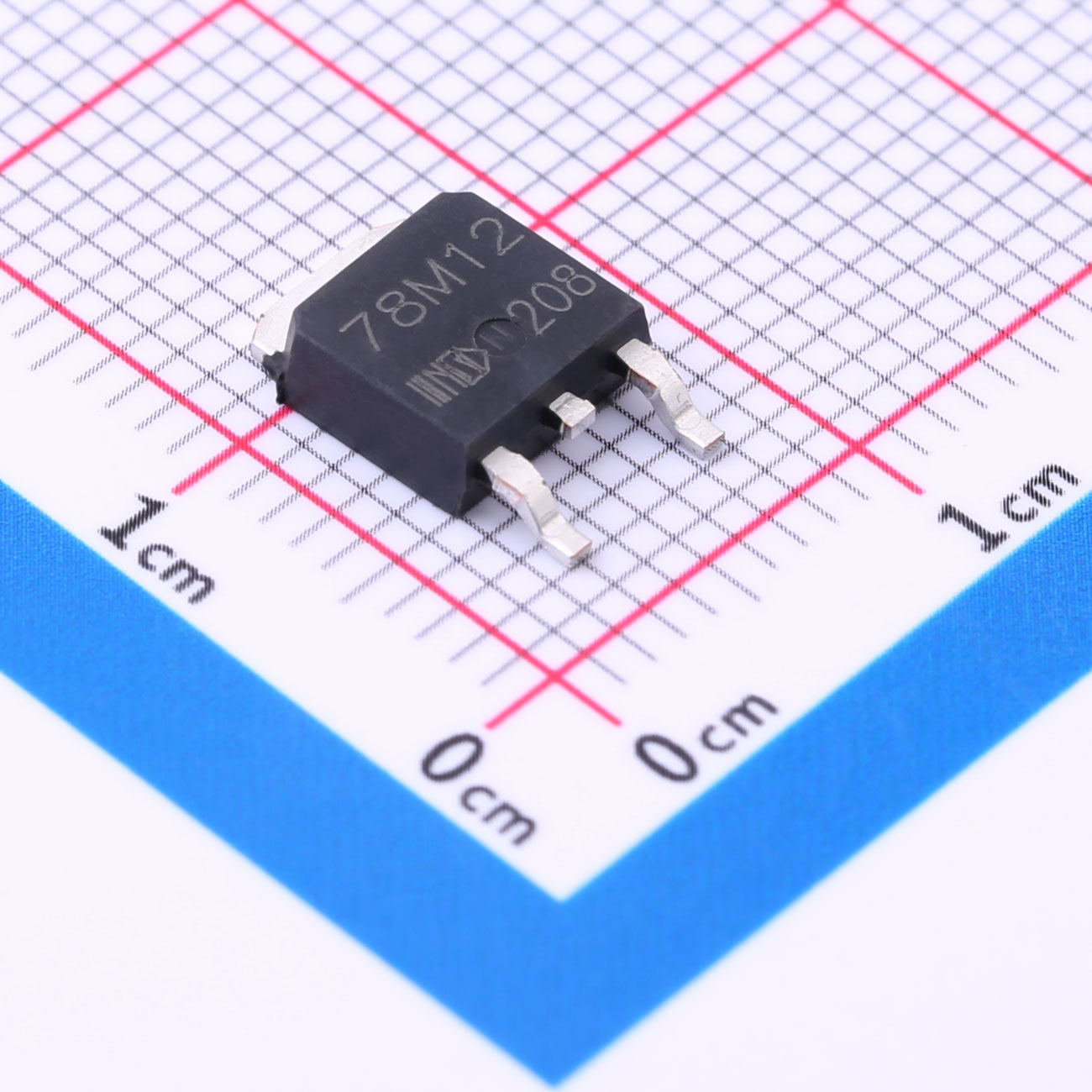

78M12A Linear Voltage Regulators (LDO) TO-252
VIN(V)：35V
VOUT(V)：12V
IOUT(mA)：350mA
Vdrop(V)：2V
Package：TO-252

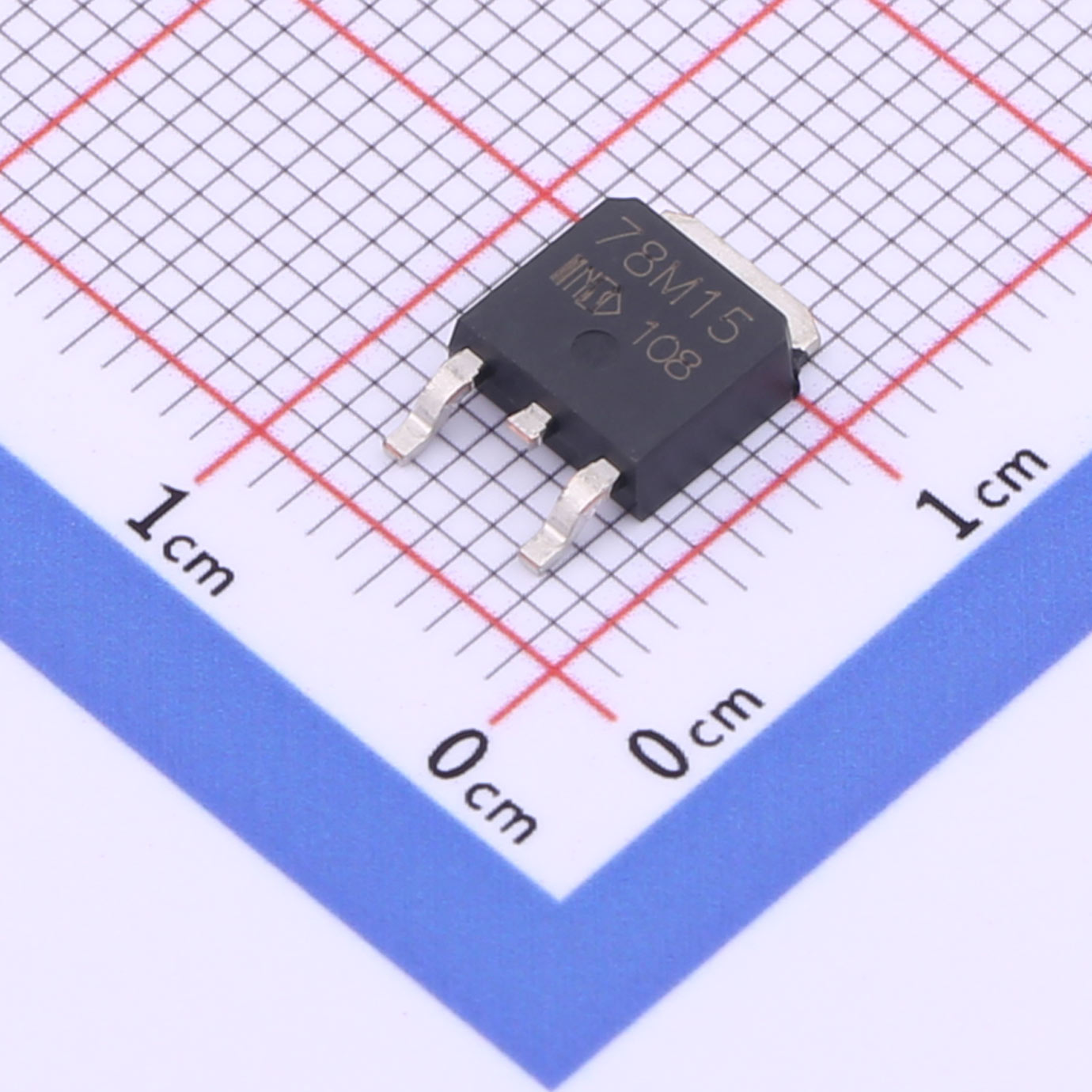

78M15A Linear Voltage Regulators (LDO) TO-252
VIN(V)：35V
VOUT(V)：15V
IOUT(mA)：350mA
Vdrop(V)：2V
Package：TO-252

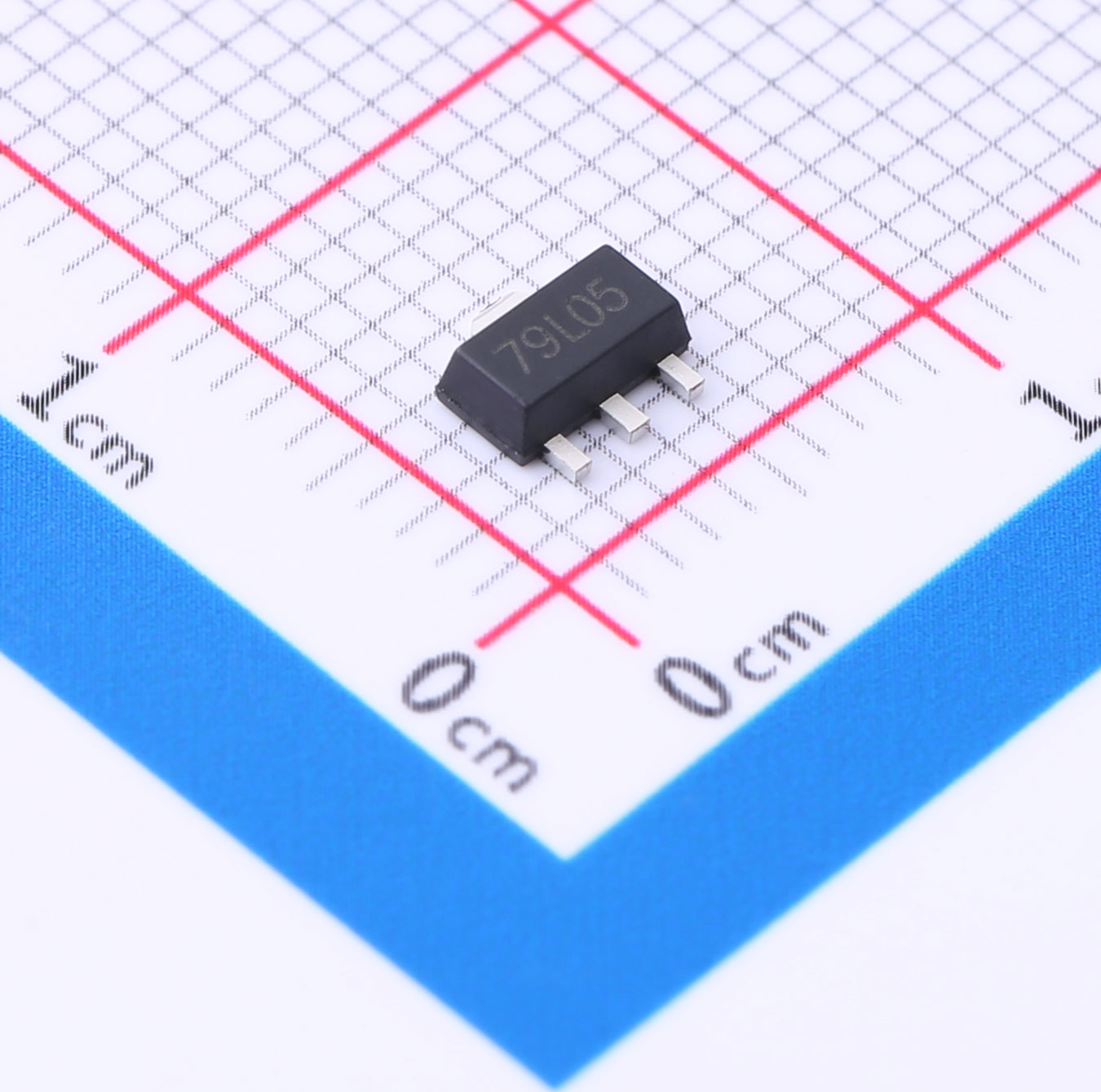

79L05 Low dropout Voltage Regulator (LDO) SOT-89
VIN(V)：-30V
VOUT(V)：-5.0V
IOUT(mA)：0.1A
Vdrop(V)：1.7V
Package：SOT-89

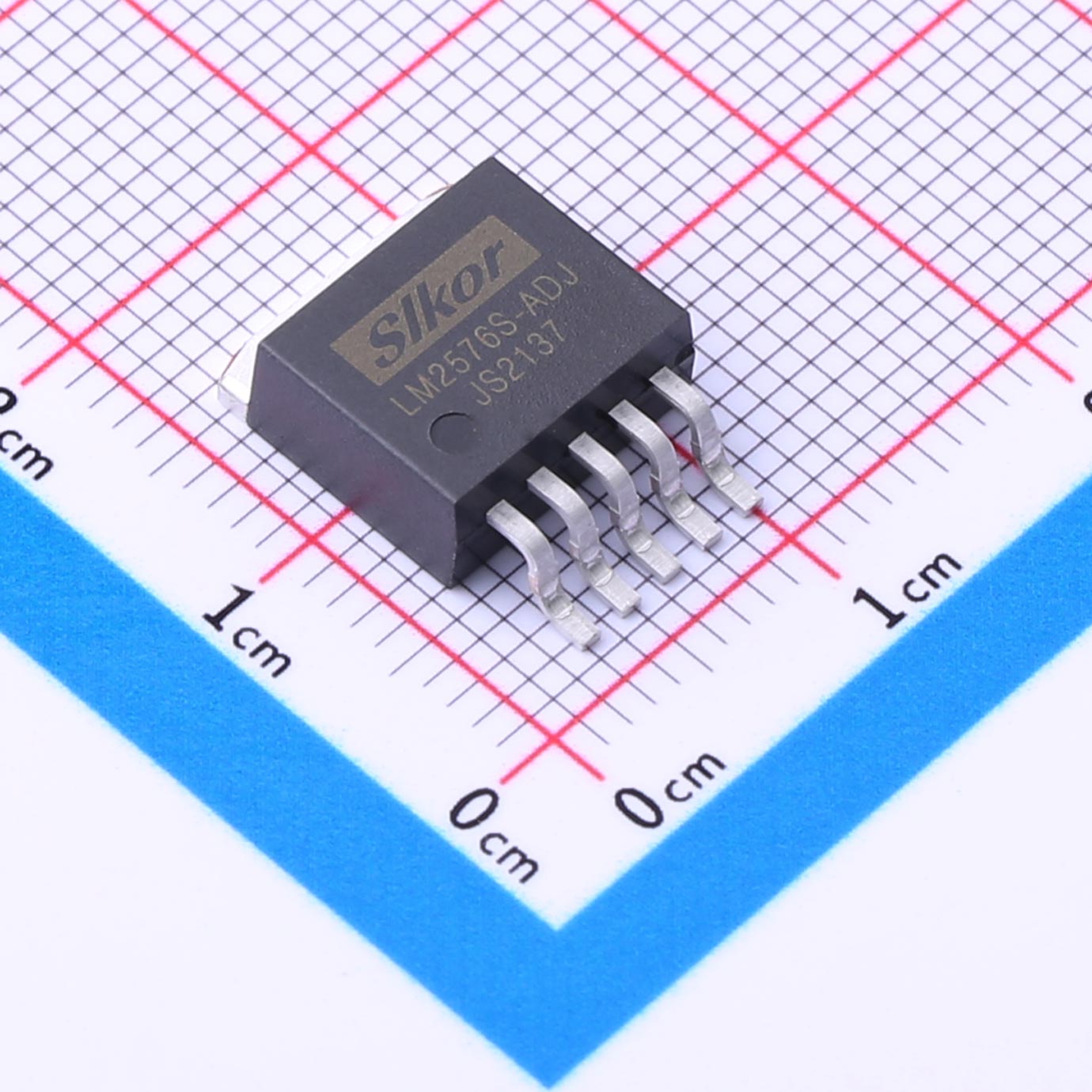

LM2576S-ADJ DC DC-DC Regulator TO-263-5
VIN(V)：45V
VOUT(V)：12V
IOUT(mA)：0.5A
Vdrop(V)：1.4V
Package：TO-263-5
LM317 Linear Voltage Regulators TO-220
VIN(V)：40V
VOUT(V)：1.2V
IOUT(mA)：1.5A
Vdrop(V)：1.25V
Package：TO-220

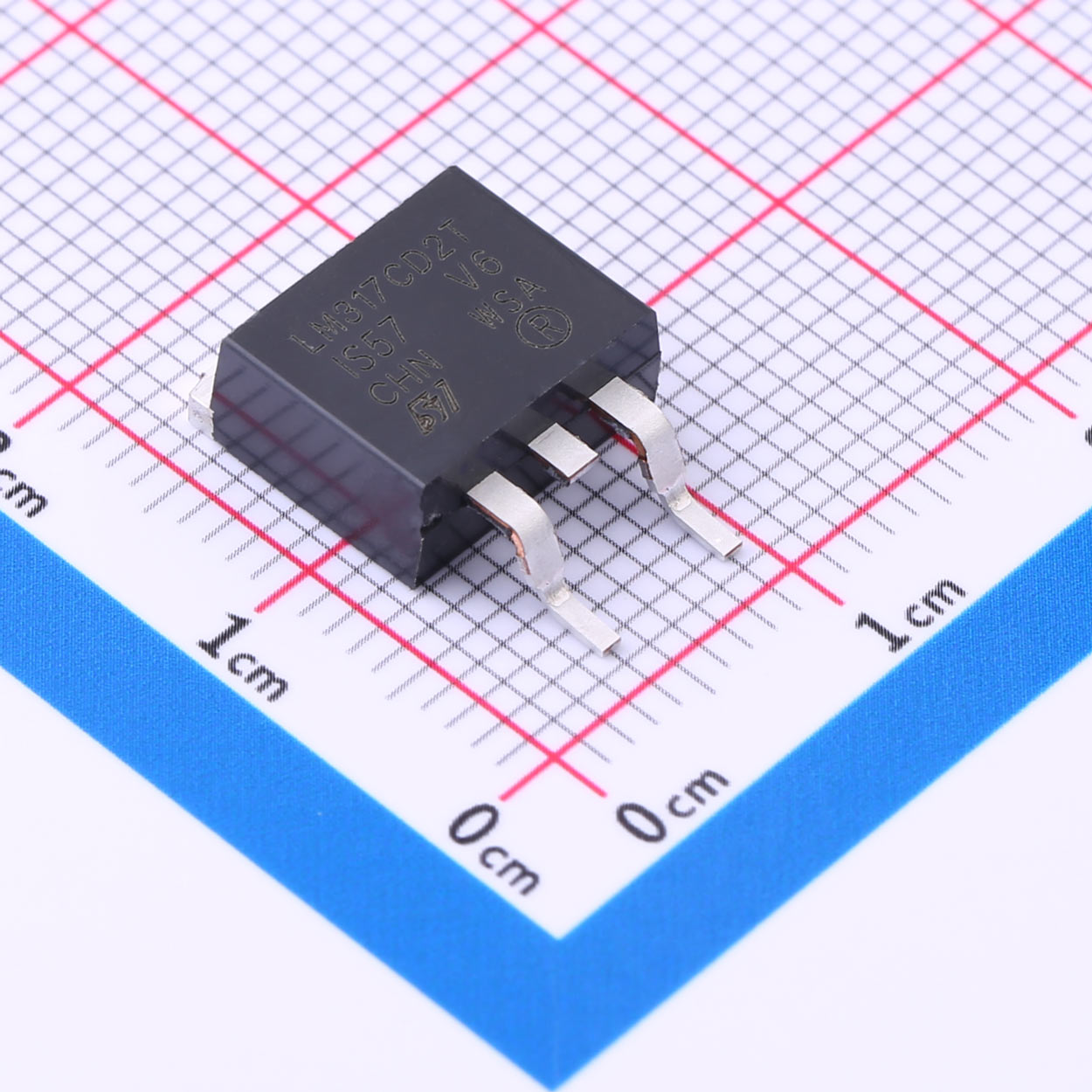

LM317C Low dropout Voltage Regulator (LDO) TO-263
VIN(V)：40V
VOUT(V)：1.2V
IOUT(mA)：1.4A
Vdrop(V)：
Package：TO-263

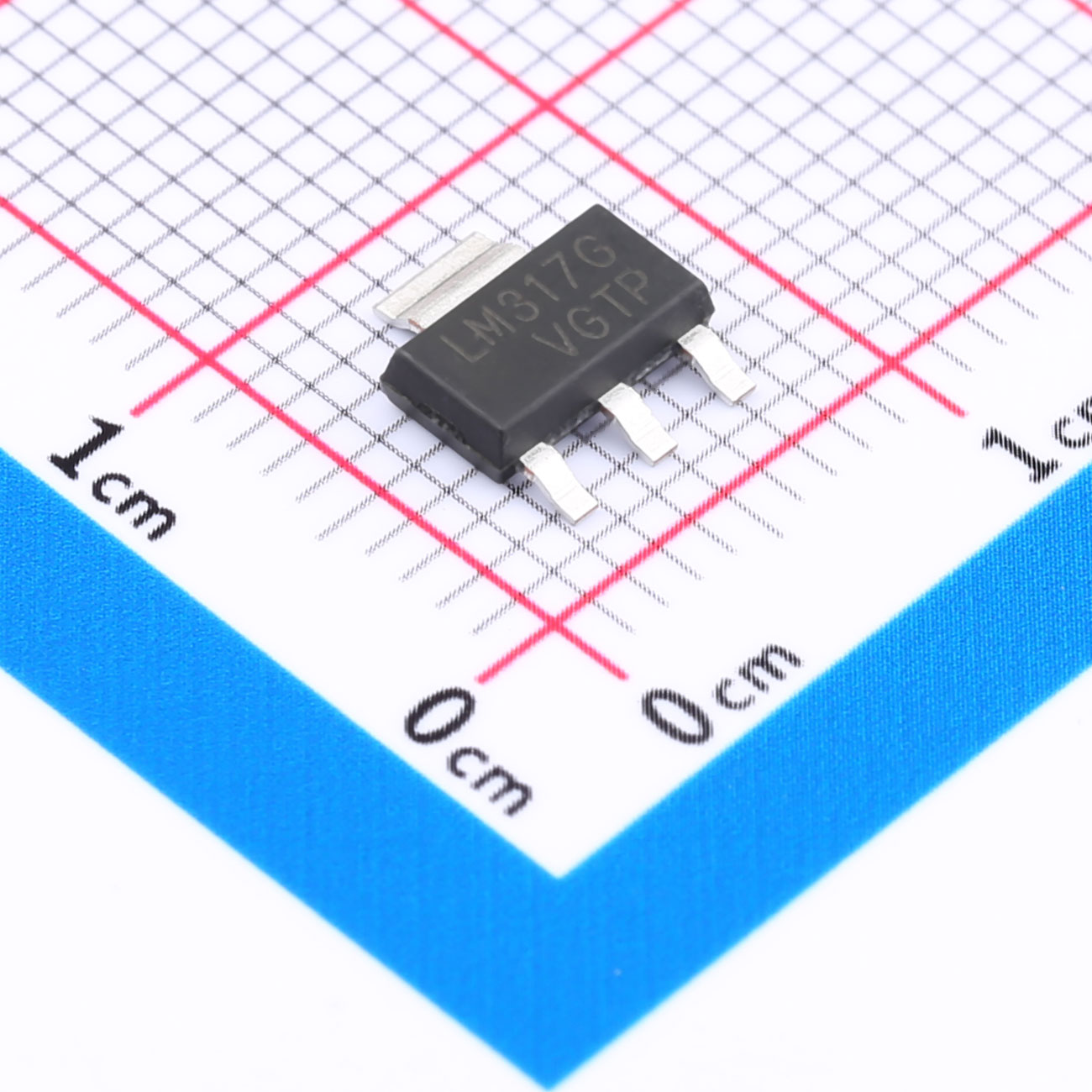

LM317G Low dropout Voltage Regulator (LDO) SOT-223
VIN(V)：40V
VOUT(V)：1.2V
IOUT(mA)：1.4A
Vdrop(V)：
Package：SOT-223

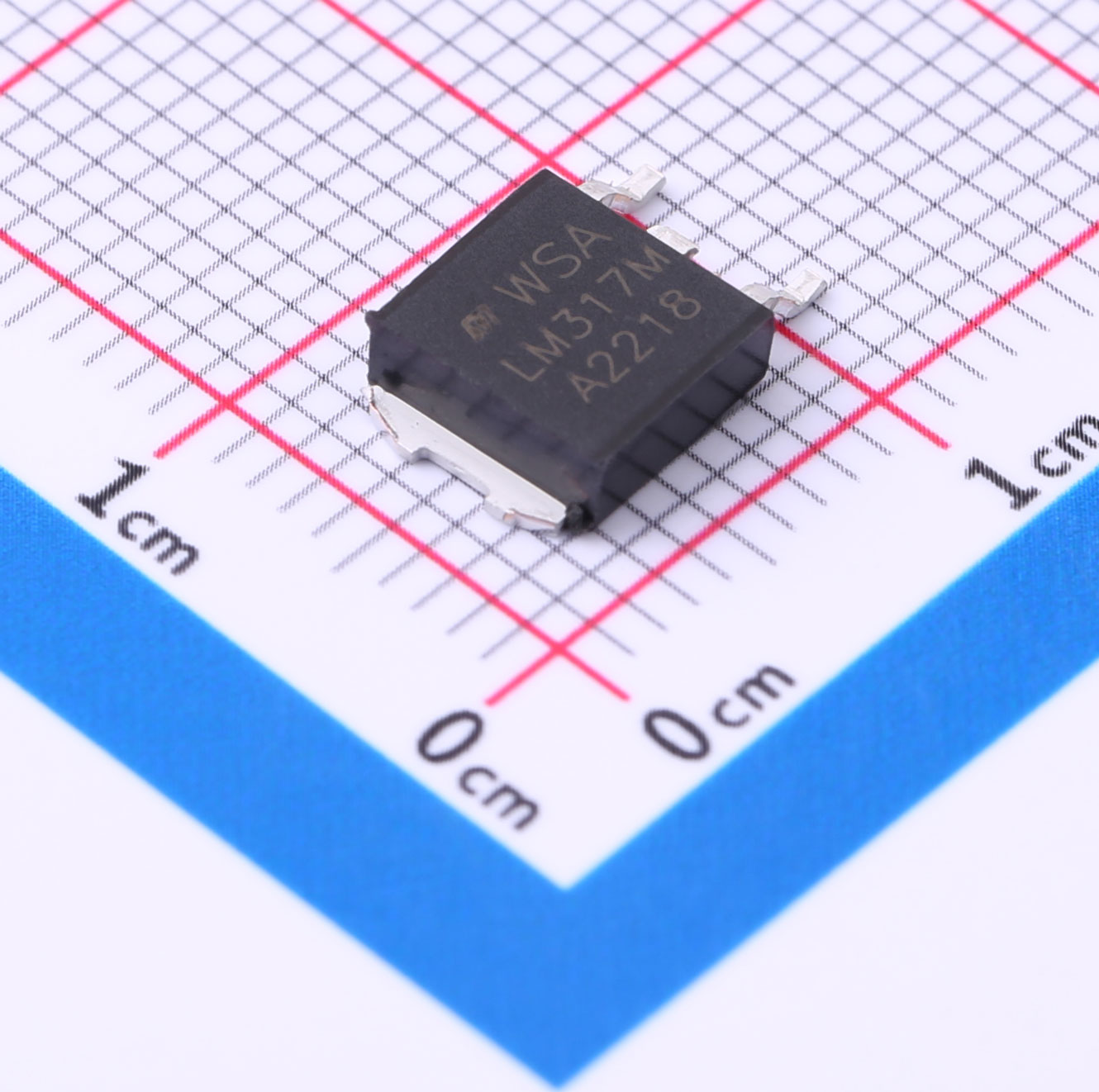

LM317M Low dropout Voltage Regulator (LDO) TO-252
VIN(V)：40V
VOUT(V)：1.2V
IOUT(mA)：1.4A
Vdrop(V)：
Package：TO-252

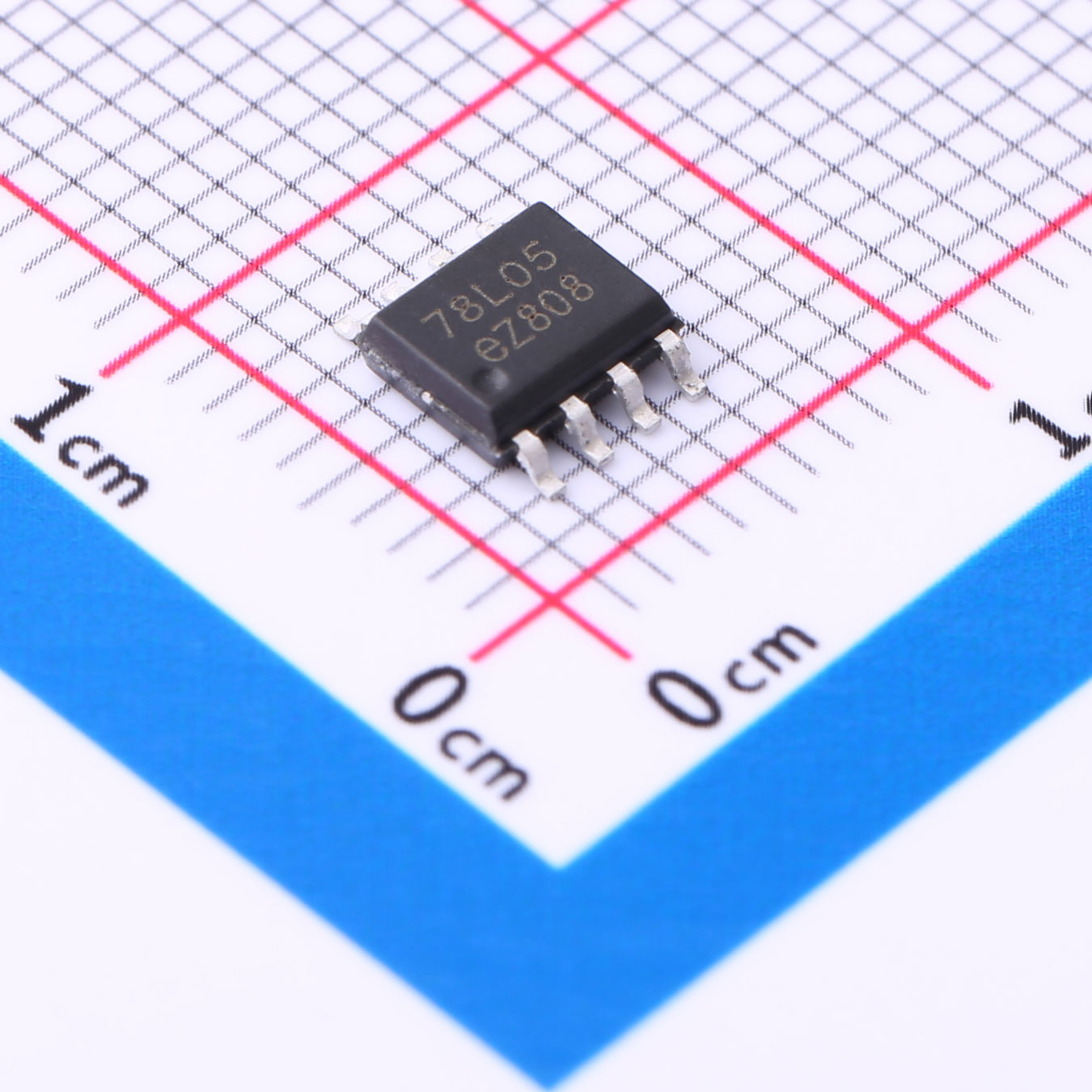

LM78L05D Low dropout Voltage Regulator (LDO) SOP-8
VIN(V)：25V
VOUT(V)：5.0V
IOUT(mA)：100mA
Vdrop(V)：1.7V
Package：SOP-8

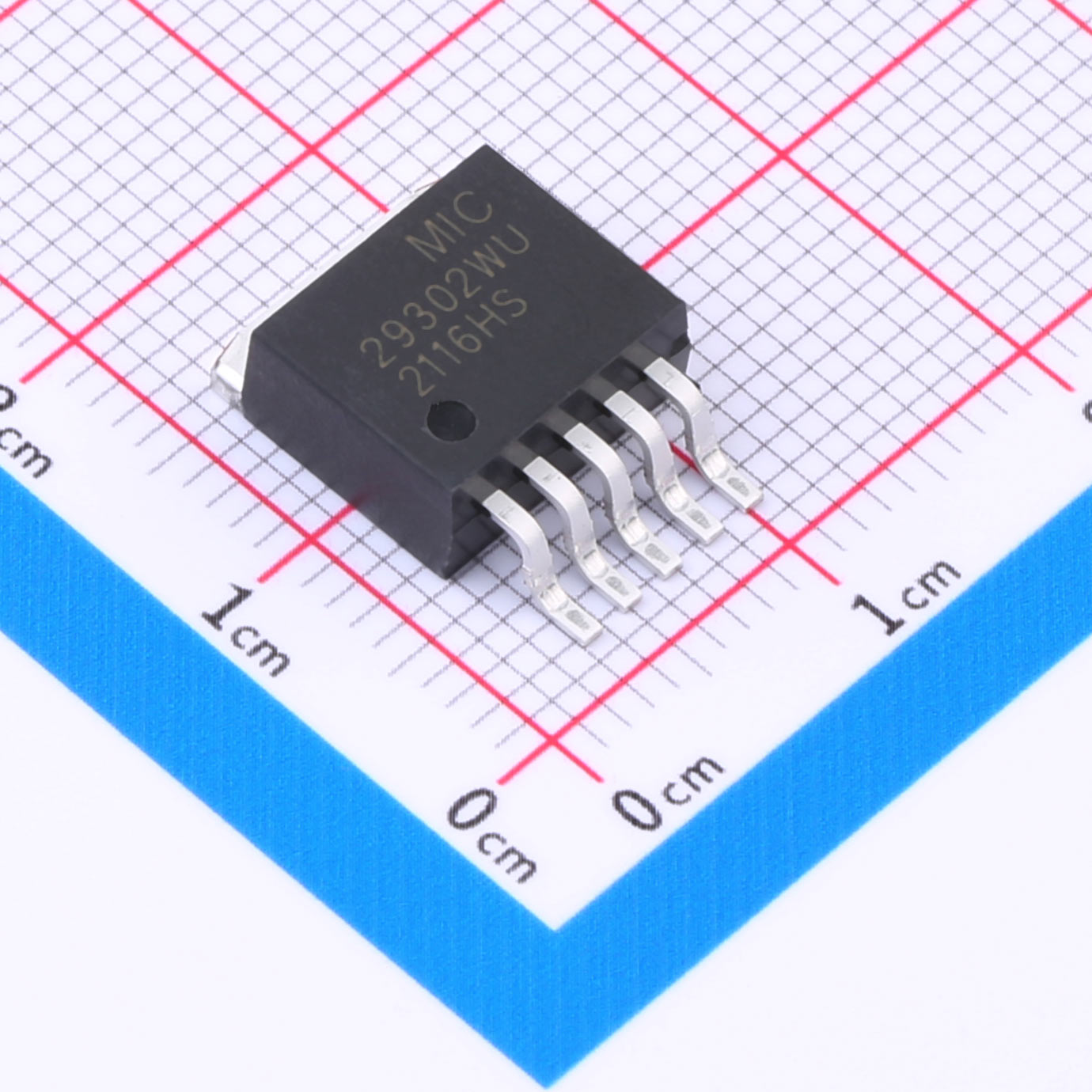

MIC29302WU Low dropout Voltage Regulator (LDO) TO-263-5L
VIN(V)：26V
VOUT(V)：
IOUT(mA)：3A
Vdrop(V)：350mV
Package：TO-263-5L
SL2013-3.3 Low dropout Voltage Regulator SOT-89-5L
VIN(V)：42V
VOUT(V)：3.3V
IOUT(mA)：150mA
Vdrop(V)：0.3V
Package：SOT-89-5L
SL2013-5.0 Low dropout Voltage Regulator SOT89-5L
VIN(V)：
VOUT(V)：3.3V
IOUT(mA)：1mA
Vdrop(V)：
Package：SOT-89-5L

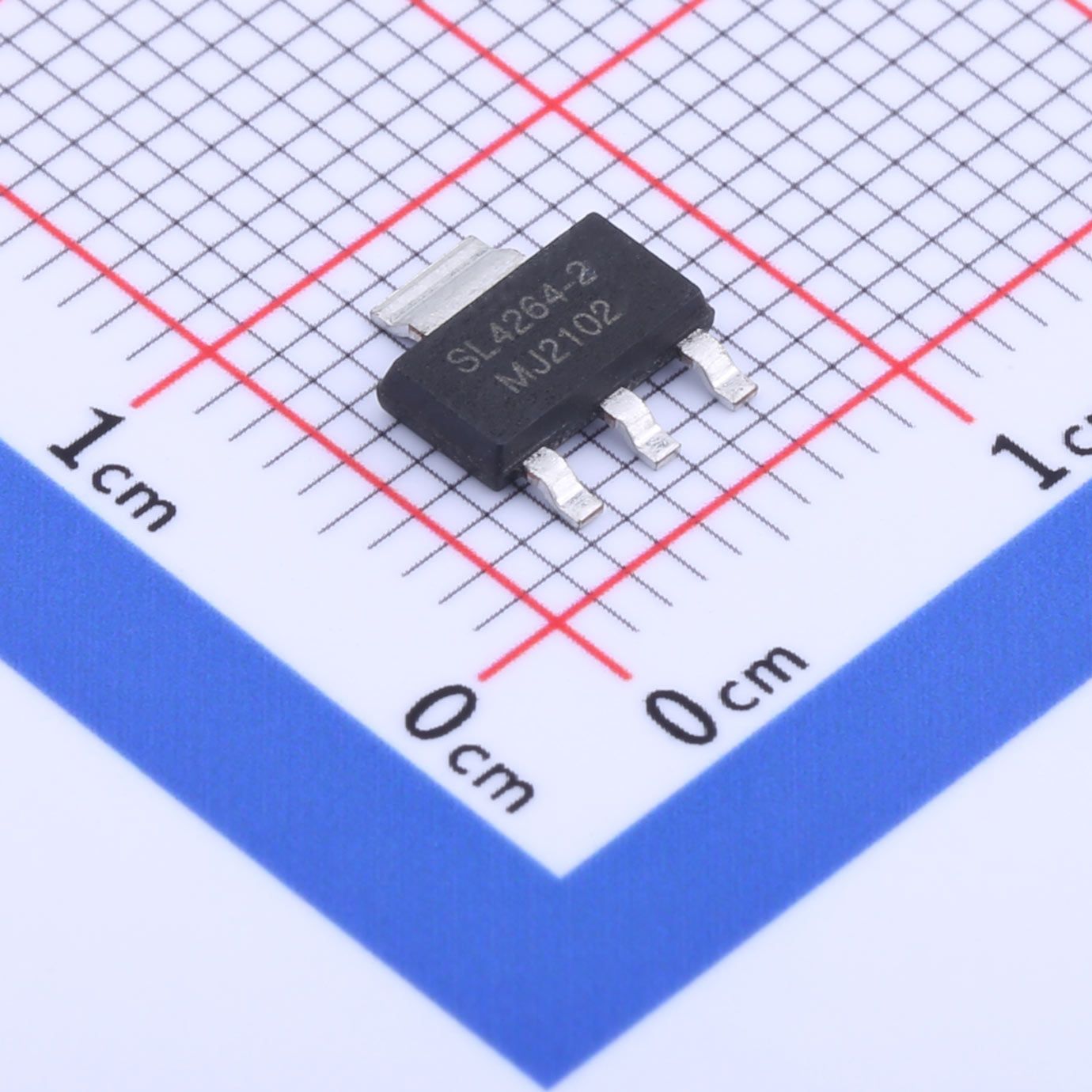

SL4264-2 Low dropout Voltage Regulator SOT-223-3
VIN(V)：13.5V
VOUT(V)：5V
IOUT(mA)：180mA
Vdrop(V)：0.3V
Package：SOT-223-3
| 18V | 3.3V | 10mA | 1.3V | SOT-89 | |
| 18V | 1.25V | 10mA | 1.3V | SOT-89 | |
| 30V | 5.0V | 0.1A | 1.7V | SOT-23 | |
| 30V | 5V | 6mA | 2V | TO-252 | |
| 35V | 5V | 350mA | 2V | TO-252 | |
| 35V | 8V | 350mA | 2V | TO-252 | |
| 35V | 12V | 350mA | 2V | TO-252 | |
| 35V | 15V | 350mA | 2V | TO-252 | |
| -30V | -5.0V | 0.1A | 1.7V | SOT-89 | |
| 45V | 12V | 0.5A | 1.4V | TO-263-5 | |
| 24V | 20mV | 20mA | SOP-8 | ||
| 40V | 1.2V | 1.5A | 1.25V | TO-220 | |
| 40V | 1.2V | 1.4A | TO-263 | ||
| 40V | 1.2V | 1.4A | SOT-223 | ||
| 40V | 1.2V | 1.4A | TO-252 | ||
| 25V | 5.0V | 100mA | 1.7V | SOP-8 | |
| 26V | 3A | 350mV | TO-263-5L | ||
| 42V | 3.3V | 150mA | 0.3V | SOT-89-5L | |
| 3.3V | 1mA | SOT-89-5L | |||
| 13.5V | 5V | 180mA | 0.3V | SOT-223-3 |
