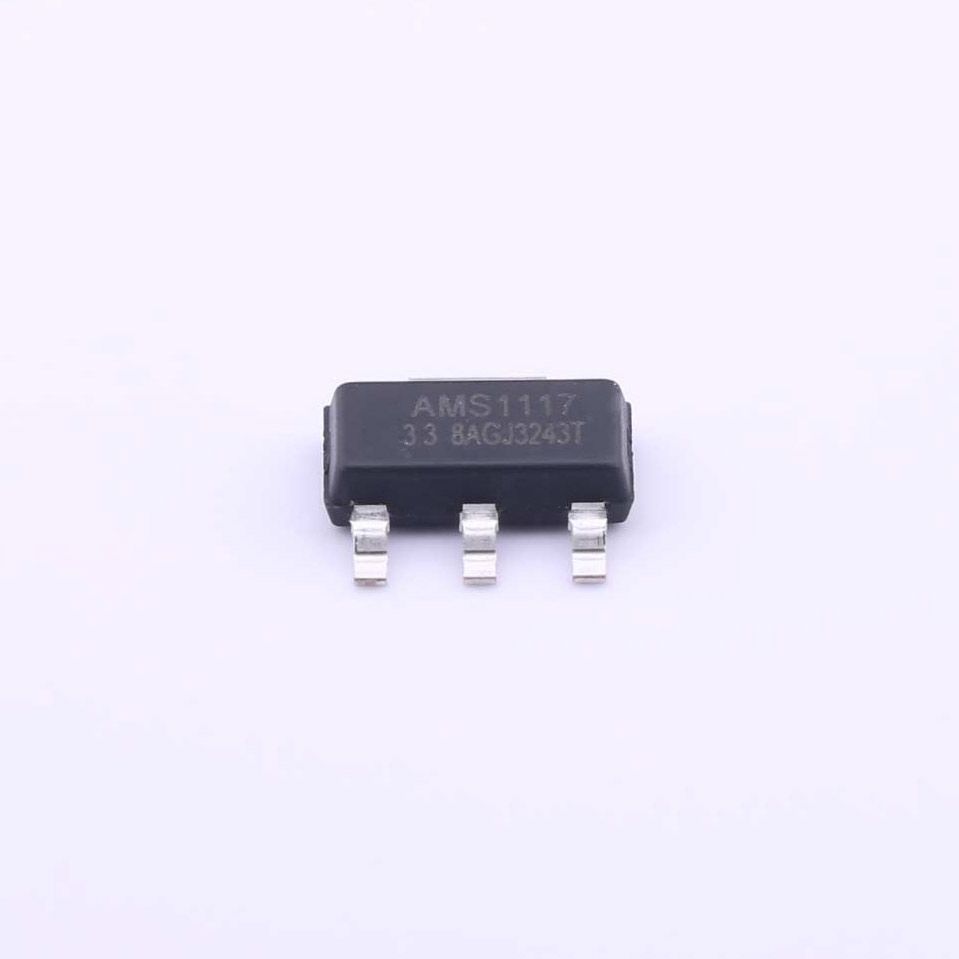

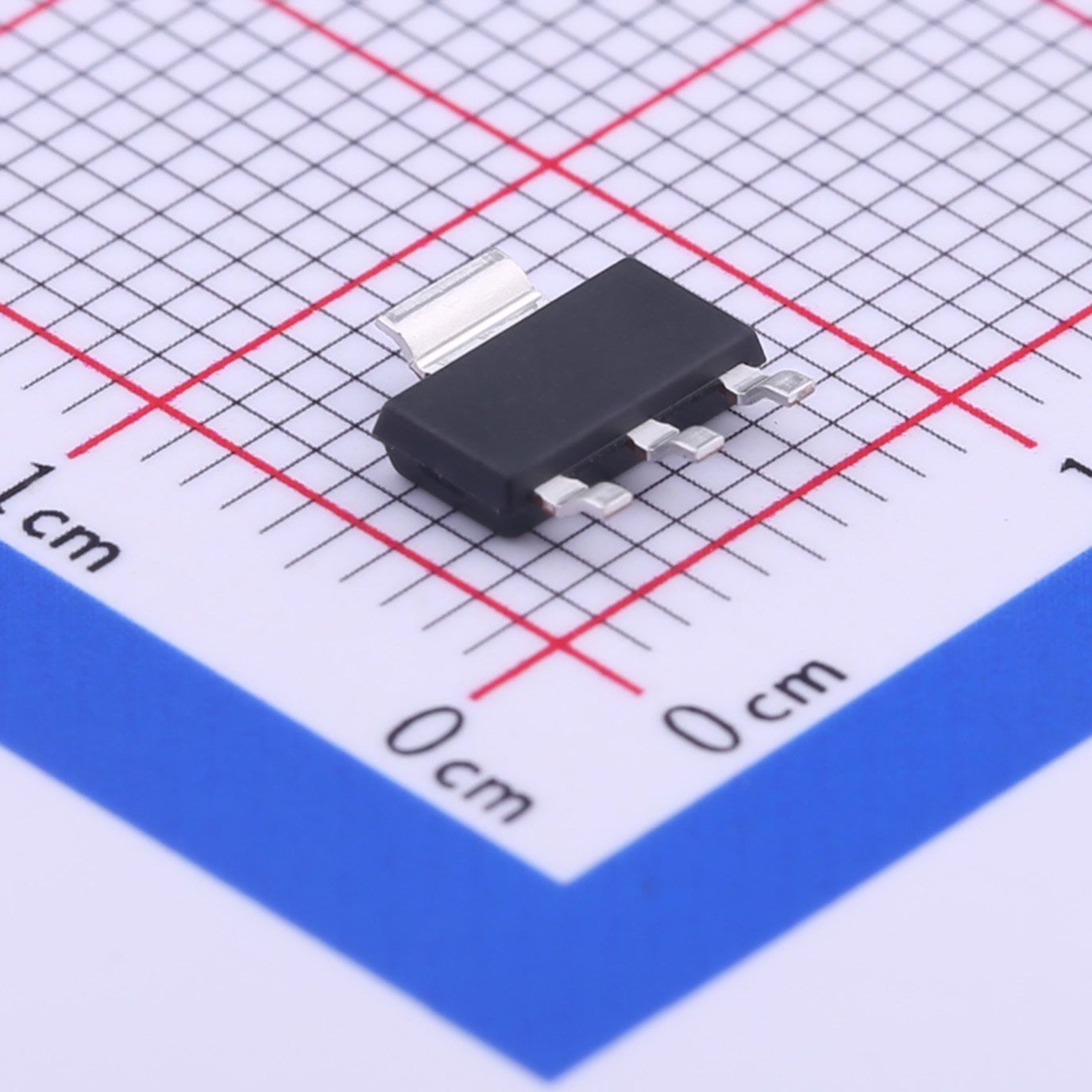

AMS1117-3.3 Linear Voltage Regulators SOT-223
The AMS1117-3.3 is a series low-dropout linear regulator with fixed 3.3V output, capable of delivering up to 1A output current. It integrates on-chip precision trimming for ±2% output accuracy and built-in thermal limiting protection, available in SOT-223, TO-252 and SOT-89 packages for diverse circuit design scenarios.
Description
The AMS1117-3.3 is a series low-dropout linear regulator with fixed 3.3V output, capable of delivering up to 1A output current. It integrates on-chip precision trimming for ±2% output accuracy and built-in thermal limiting protection, available in SOT-223, TO-252 and SOT-89 packages for diverse circuit design scenarios.
Features
● Output Current up to 1A ● Fixed Output Voltage: 3.3V (±2% accuracy) ● Maximum Input Voltage: 18V ● Typical Dropout Voltage: 1.3V @1A ● Maximum Load Regulation: 0.5% ● Ripple Rejection Typical 70dB @120Hz ● Over-current Protection ● Thermal Shutdown Protection with 10℃ Hysteresis ● Operating Junction Temperature: -40℃ ~ 125℃
Applications
● Post-regulator for switching DC/DC converter ● High-efficiency linear regulator ● Battery Chargers ● PC Add-on Cards ● Motherboard Clock Supplies ● LCD Monitors ● Set-top Boxes
Name
Title
Description
Datasheet
Support
1117-3.3 Low dropout Voltage Regulator SOT-89
Brand: slkor， VIN(V)： 18V VOUT(V)： 3.3V IOUT(mA)： 10mA Vdrop(V)： 1.3V Package： SOT-89
1117-ADJ Voltage Regulator SOT-89
Brand: slkor， VIN(V)： 18V VOUT(V)： 1.25V IOUT(mA)： 10mA Vdrop(V)： 1.3V Package： SOT-89
78L05S Low dropout Voltage Regulator (LDO) SOT-23
Brand: slkor， VIN(V)： 30V VOUT(V)： 5.0V IOUT(mA)： 0.1A Vdrop(V)： 1.7V Package： SOT-23
78M05 Linear Voltage Regulators TO-252
Brand: slkor， VIN(V)： 30V VOUT(V)： 5V IOUT(mA)： 6mA Vdrop(V)： 2V Package： TO-252
78M05A Linear Voltage Regulators (LDO) TO-252
Brand: slkor， VIN(V)： 35V VOUT(V)： 5V IOUT(mA)： 350mA Vdrop(V)： 2V Package： TO-252
78M08 Linear Voltage Regulators (LDO) TO-252
Brand: slkor， VIN(V)： 35V VOUT(V)： 8V IOUT(mA)： 350mA Vdrop(V)： 2V Package： TO-252
78M12A Linear Voltage Regulators (LDO) TO-252
Brand: slkor， VIN(V)： 35V VOUT(V)： 12V IOUT(mA)： 350mA Vdrop(V)： 2V Package： TO-252
78M15A Linear Voltage Regulators (LDO) TO-252
Brand: slkor， VIN(V)： 35V VOUT(V)： 15V IOUT(mA)： 350mA Vdrop(V)： 2V Package： TO-252
79L05 Low dropout Voltage Regulator (LDO) SOT-89
Brand: slkor， VIN(V)： -30V VOUT(V)： -5.0V IOUT(mA)： 0.1A Vdrop(V)： 1.7V Package： SOT-89
AMS1117-1.2
Brand: slkor， VIN(V)： 18V VOUT(V)： 1.2V IOUT(mA)： 800mA Vdrop(V)： 1.3V Package： SOT-223
