Against the backdrop of the pursuit of ultimate efficiency, Schottky diodes with ultra-low power loss have garnered widespread attention. Nevertheless, for industrial and automotive electronics operating under higher voltage levels and harsher environments with stringent reliability requirements, silicon-based diodes combining high reverse withstand voltage and fast switching capability remain irreplaceable cornerstone components. Classic products developed by Slkor provide robust support for critical applications such as switching power supplies and motor drives.

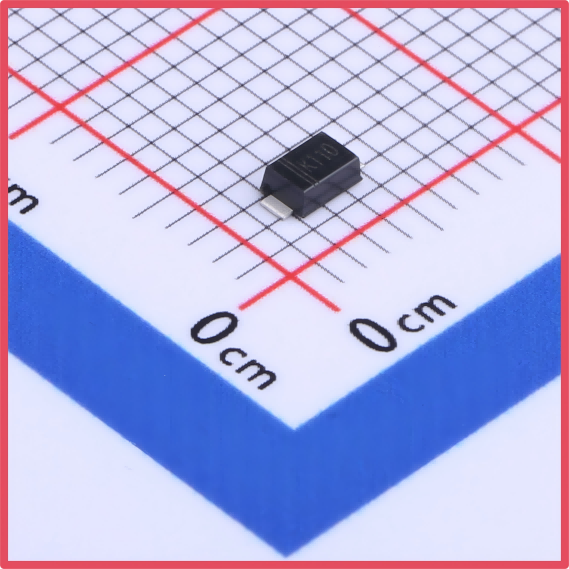

DSK110 Physical Diagram

High Withstand Voltage: A Reliable Safeguard Against Harsh Operating Conditions

Voltage fluctuations and surge impulses in industrial environments pose the primary challenge to circuit design. Featuring a DC reverse withstand voltage (Vr) of up to 100V, the DSK110 delivers ample safety margin. This enables it to smoothly handle voltage spikes in 48V, 60V and even higher-voltage systems, effectively preventing breakdown failures triggered by transient voltage surges.

Compared with low-voltage Schottky diodes, its high withstand voltage characteristic allows direct deployment on high-voltage DC bus sides after AC rectification and industrial bus power supply interfaces. Acting as a dependable "voltage gatekeeper" at the front end of systems, it forms the first line of defense for precision post-stage circuits.

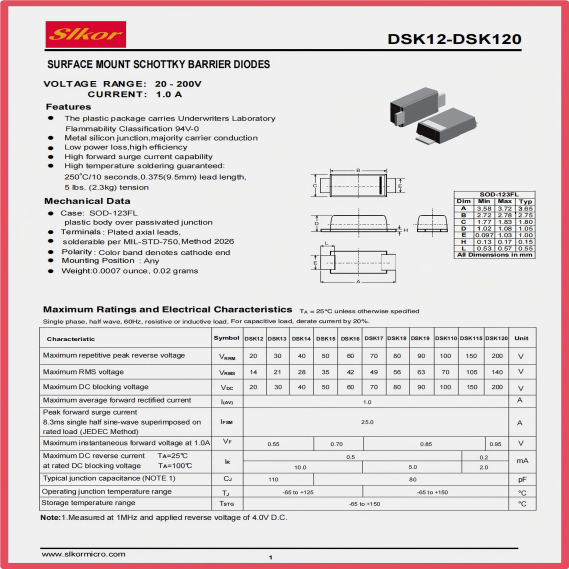

DSK12-DSK120 Datasheet Page 1

Fast Recovery: The Hidden Powerhouse Boosting Switching Power Supply Efficiency

In modern high-frequency Switch Mode Power Supplies (SMPS), the switching speed of rectifier diodes directly determines conversion efficiency and EMI performance. While the DSK110 features a forward voltage drop (Vf) of 850mV at 1A — higher than standard Schottky diodes — its core advantage lies in an extremely short reverse recovery time (trr).

During high-frequency circuit switching, conventional rectifier diodes generate severe tail current due to charge storage effects, resulting in massive switching loss and electromagnetic noise. Optimized semiconductor processes and structural design equip the DSK110 with rapid reverse recovery performance. At switching frequencies ranging from tens of kHz to hundreds of kHz, it drastically cuts switching loss, improves overall power supply efficiency, and enhances electromagnetic compatibility. Its outstanding fast recovery capability offsets the dynamic performance drawbacks of silicon diodes.

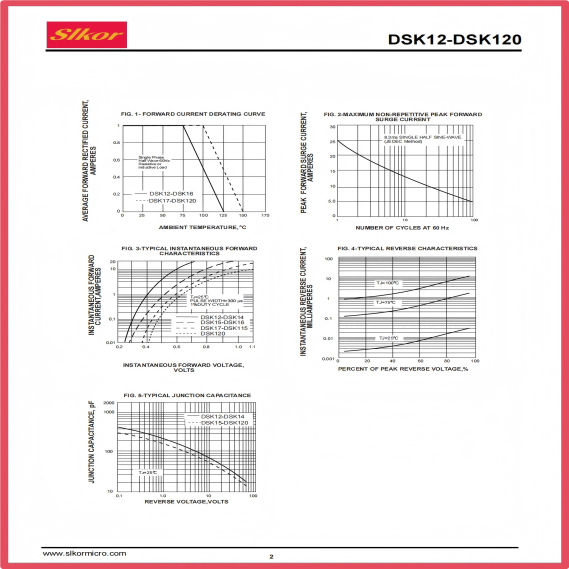

DSK12-DSK120 Datasheet Page 2

High Reliability: A Durable Workhorse Resisting Severe Operating Conditions

Reliability is the lifeline of industrial electronic components, and this principle is embedded throughout the design of the DSK110.

Current & Thermal Stability: Rated for an average rectified forward current (Io) of 1A, paired with robust chip design and packaging processes, it guarantees long-term stable operation under rated conditions and withstands high temperatures in industrial environments.
Strict Leakage Current Control: At the full 100V reverse voltage rating, its typical reverse current (Ir) is merely 500μA. This metric delivers exceptional performance at elevated ambient temperatures, reflecting premium PN junction quality and packaging insulation. It effectively reduces static power consumption and stabilizes operation under high heat.
Sturdy Physical Construction: Housed in a widely adopted industry package with strong mechanical integrity and reliable solderability, it accommodates automated surface mount and wave soldering processes to meet mass production demands with consistent performance.

Application Scenarios: A Versatile Component for Industrial & Automotive Electronics

The DSK110 boasts extensive and mission-critical use cases:

Secondary rectification for switching power supplies: Ideal for flyback, forward and other topologies requiring high output voltage or ample withstand voltage margin.
Freewheeling for motor drives and relays: Forms a fast, reliable freewheeling loop for inductive loads to protect power switching transistors, an indispensable component in motor control and solenoid valve drive circuits.
DC-DC converters: Serves as a rectifier or isolation element in high-input-voltage buck-boost circuits.
Automotive electronics: Compatible with 12V/24V vehicle power systems, including ECUs, lighting modules and other assemblies demanding high withstand voltage and reliability.
Industrial control boards: Functions as front-end power input protection or signal isolation hardware.

Slkor: Empowering Industrial Core Hardware with Trustworthy Technology

Slkor fully recognizes the extreme requirements of industrial sectors for component reliability, consistency and durability. The DSK110 silicon fast recovery diode represents far more than a set of electrical parameters — it embodies Slkor’s product philosophy of "Stable, Reliable and Perpetual Improvement".

Rigorous wafer fabrication, multi-stage testing screening and strict quality control workflows ensure every delivered component operates consistently within customer systems for years on end. As electronic technology advances rapidly, the industry requires not only cutting-edge experimental components pushing performance limits, but also foundational devices like the DSK110 that deliver uncompromising protection at critical circuit nodes. Slkor will continue to develop high-performance, high-reliability semiconductor solutions, partnering with electronics engineers to build more stable, efficient electronic systems worldwide.
