SL3402 N-Channel MOSFET: Preferred Low-Voltage Power Switch with High Speed, Low Power Consumption & Long-Term Stability
2026-07-23
89
With the widespread popularity of intelligent portable devices, mini power modules and micro drive circuits, power MOSFETs act as electronic switches inside circuits. Their conduction loss, switching speed and long-term reliability directly determine the energy efficiency, size and service life of complete equipment. Developed by Slkor, the SL3402 trench-type N-channel MOSFET is manufactured with mature trench wafer technology. Featuring three core highlights – ultra-fast switching, low conduction loss and stable long-term operation – it delivers a cost-effective power switching solution for low-voltage circuits below 30V.

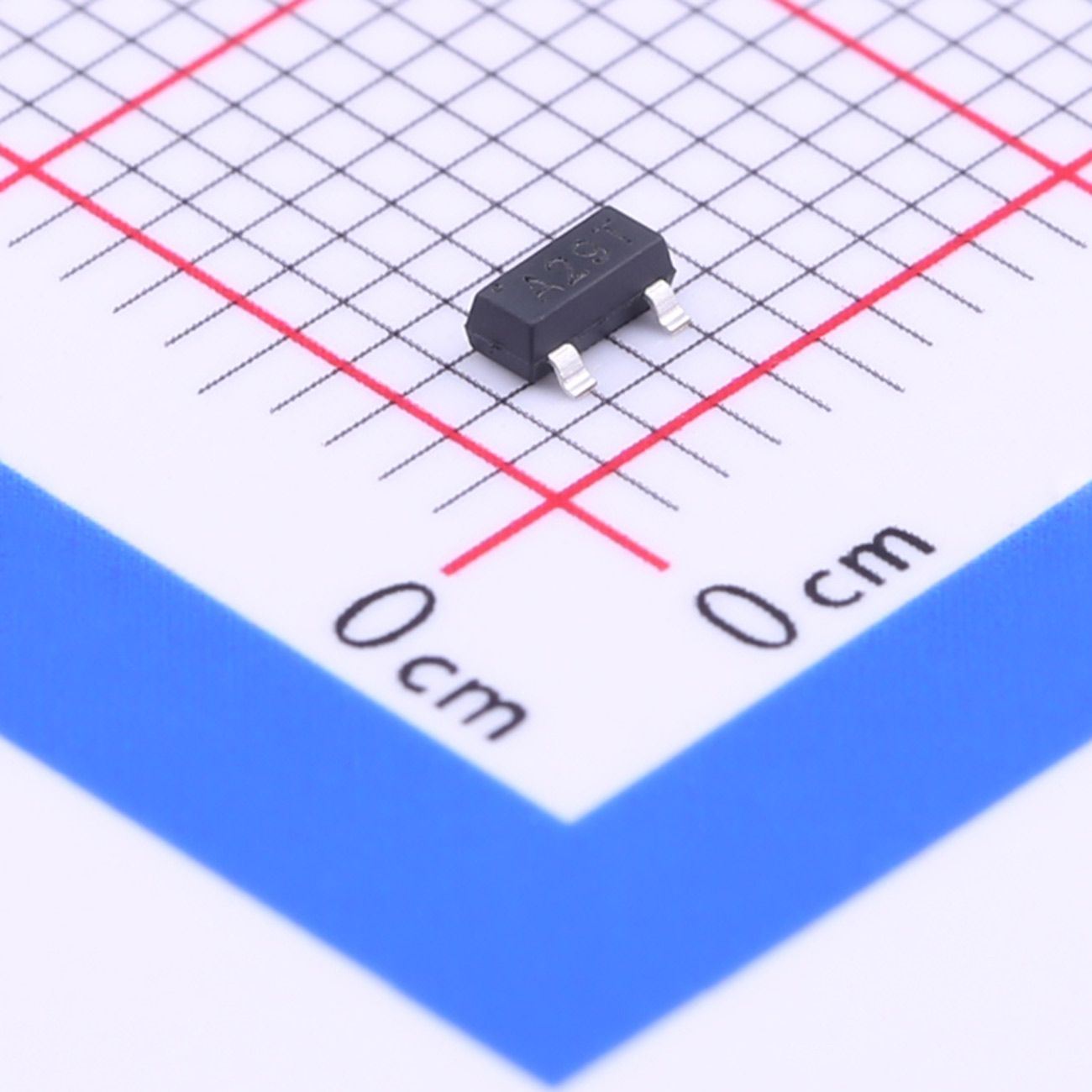

SL3402 SOT-23 Physical Photo
Ultra-Fast Switching for High-Frequency Circuit Applications
In high-frequency operating scenarios such as DC-DC power supplies, high-frequency LED dimming and small motor drivers, gate charge is a decisive factor for device switching loss. The SL3402 features a gate charge of only 3.5nC at 24V, enabling fast gate charge/discharge and minimal switching delay.
Conventional ordinary low-voltage MOSFETs carry higher gate charge values. Repeated frequent on/off cycles at high frequencies generate substantial driving loss, cause obvious circuit temperature rise and easily trigger electromagnetic interference. Optimized gate structure design drastically cuts the gate charge of the SL3402, enabling instantaneous state transition to effectively suppress switching spikes and signal noise. Whether applied in fast charging circuits of portable digital products or supporting power supplies for small RF equipment, it delivers clean and accurate current switching to guarantee stable operation of high-frequency circuits, perfectly matching the high-frequency power supply demands of 5G peripherals and handheld testing devices.

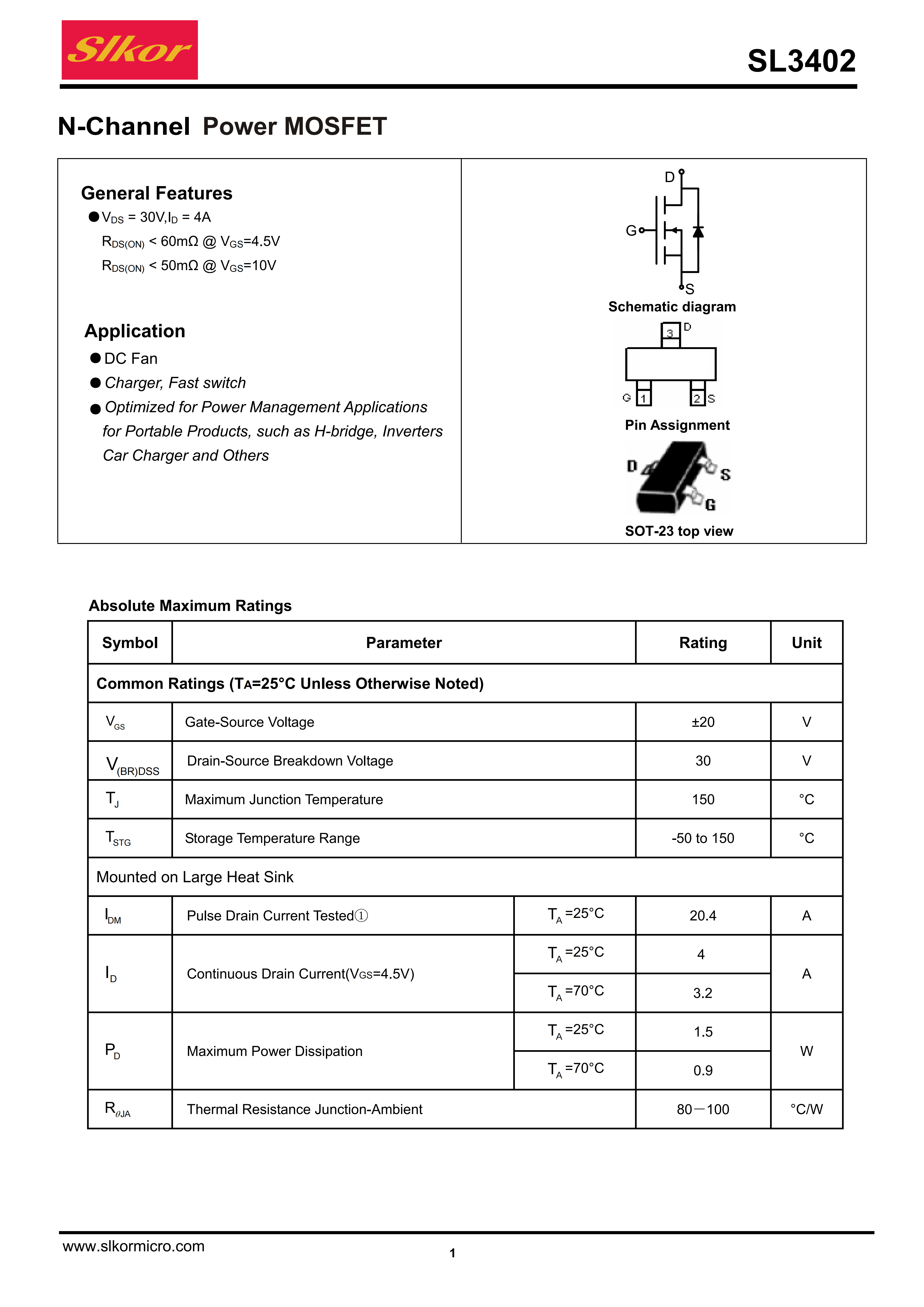

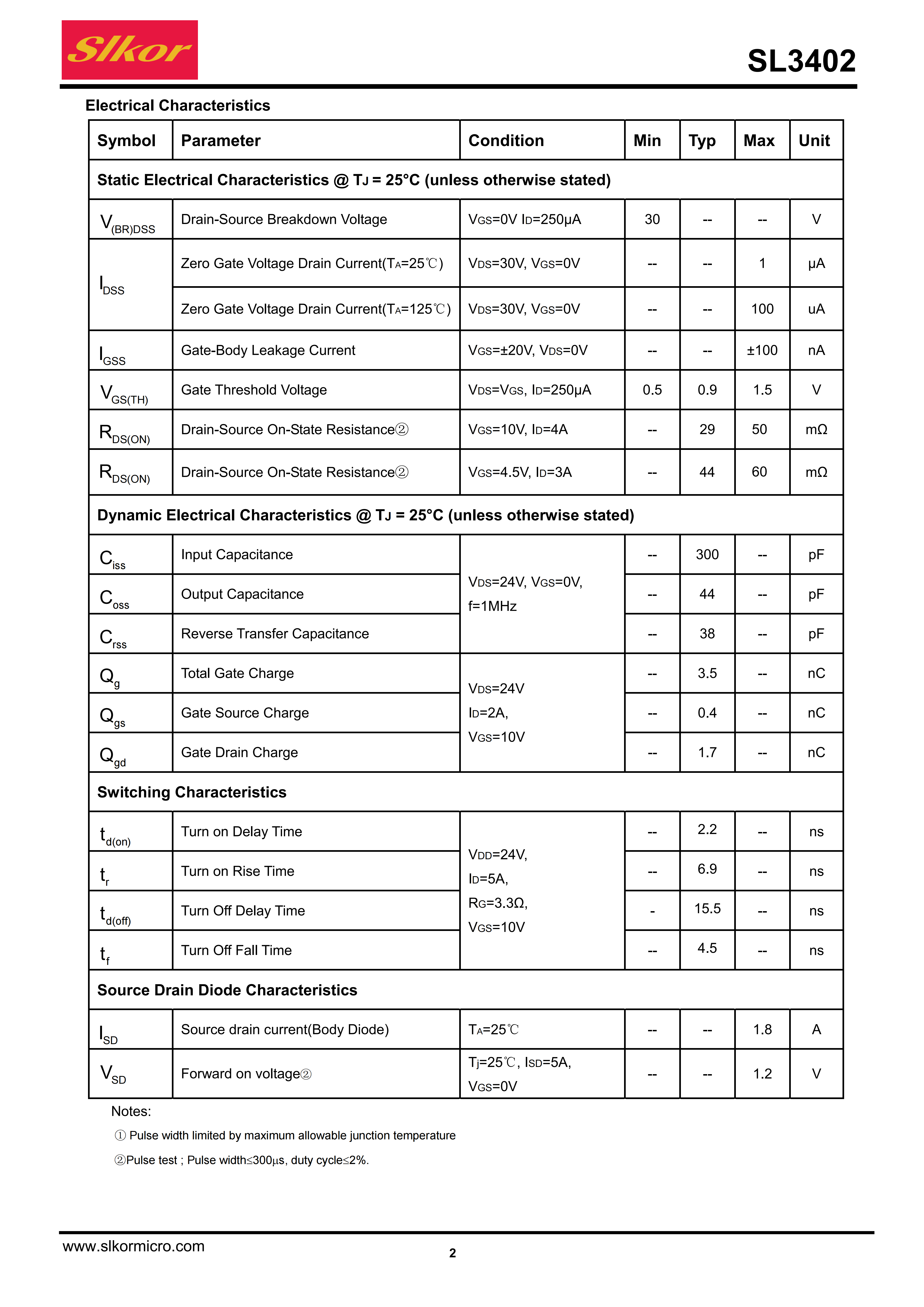

SL3402 Datasheet Electrical Rating Table
Low Conduction Resistance to Cut Overall Power Loss at Source
Battery-powered products and small power equipment impose strict requirements on power consumption control, and on-resistance stands as the core indicator to evaluate the energy-saving performance of power devices. Key electrical parameters of the SL3402 are as follows: Drain-source voltage VDSS=30V, continuous drain current ID=4A, maximum power dissipation PD=1.5W, gate threshold voltage VGS=1.5V, and on-resistance RDS(on) of merely 60mΩ at a standard driving voltage of 4.5V.
When a MOSFET is turned on, its on-resistance generates continuous thermal loss. Higher loss leads to severe equipment heat generation and shorter battery life. The ultra-low internal conduction resistance of the SL3402 greatly suppresses heat generation under full 4A current load. When deployed in lithium battery protection boards, small fan drivers and LED strip dimming circuits, it eliminates the need for extra heat dissipation structures, simplifying PCB layout, shrinking product dimensions, boosting power conversion efficiency and extending the single-charge runtime of portable devices – fully aligning with the design trend of green, low-power electronic products.
Full-Range Stability for Reliable Long-Term Operation Under Diverse Working Conditions
Device stability lays the foundation for long-term steady operation of consumer electronics and small industrial equipment. Slkor implements rigorous multi-stage tests including wafer screening, package aging and high-low temperature cycling to fully guarantee consistent performance of the SL3402.
- Sufficient voltage margin: 30V drain-source breakdown voltage fits low-voltage circuits under 24V, capable of resisting instantaneous circuit voltage surges to avoid device breakdown failure.
- Robust current capacity: Rated continuous drain current of 4A with ample margin for instantaneous peak current, easily handling large current surges during motor startup and capacitor power-on.
- Low-voltage drive compatibility: 1.5V low gate threshold voltage allows direct driving by ordinary microcontrollers and low-voltage I/O ports, eliminating external drive chips to simplify peripheral circuits and reduce BOM costs.
- Wide operating temperature range: Consistent high-low temperature characteristics with minimal drift of on-resistance and switching performance from -55℃ to +150℃.
- Standard SMD package: Adopts universal SOT-23 plastic package with moisture and heat resistance, RoHS lead-free compliance, compatibility with automatic high-speed SMT assembly and stable supply.
When the SL3402 is applied to micro DC motors, mini photovoltaic charging modules and vehicle low-voltage load switches, its performance remains free of degradation and rising leakage current under complex working conditions including frequent start-stop cycles and minor voltage fluctuations, continuously safeguarding safe equipment operation.
SOT-23 MOSFET Package 3D Diagram
Wide Application Scenarios Covering Low-Voltage Switching Demands Across Multiple Fields
Balanced parameters and compact package make the SL3402 suitable for most low-voltage power switching applications, covering four major sectors: consumer electronics, miniature industry, micro new energy and automotive low-voltage systems.
- Power management circuits: DC-DC buck-boost modules, USB fast charging load switches, lithium battery charge-discharge protection boards
- Portable digital products: Bluetooth headset power circuits, handheld detectors, electric toys, portable cooling fans
- Small drive control: Pan-tilt micro motors, brushless DC micromotors, high-frequency dimming drivers for LED light strips
- Micro new energy equipment: Mini photovoltaic energy storage charging panels, portable energy storage battery protection circuits
- Automotive low-voltage accessories: Car ambient lights, car mini fans, car USB chargers
Practical Engineering Design Tips to Maximize Device Performance
- Reserve safety margin for rated parameters: Limit peak circuit voltage within 24V during regular use, and keep long-term continuous operating current below 3A to reduce permanent device load and extend service life.
- PCB heat dissipation optimization: Widen MOSFET pads and increase underlying copper coverage under high-current working conditions to enhance heat dissipation and curb rising on-resistance caused by temperature elevation.
- High-frequency wiring optimization: Keep gate traces short and thin, while thickening and shortening main current traces for drain and source terminals to reduce parasitic inductance and suppress switching spikes and oscillation.
- Drive circuit matching suggestions: MCU I/O ports can directly drive the device for low-frequency scenarios; a small-value gate resistor can be connected in series to suppress circuit self-oscillation when switching frequency exceeds 500kHz.
- Reference official datasheets: Review the official SL3402 datasheet released by Slkor before formal circuit design, and match circuit parameters against characteristic curves according to actual operating voltage and current.
Slkor: Deeply Cultivating Power Devices to Empower Miniaturized Circuit Innovation
As a domestic semiconductor discrete device manufacturer focused on R&D and production, Slkor adheres to the R&D philosophy of "Quality First, Technology-Driven". Relying on self-developed trench MOS wafer production lines, we continuously improve the full-series MOSFET portfolio covering low and medium-high voltage ranges. The SL3402 N-channel MOSFET is a benchmark product developed for the portable low-voltage market, balancing high-speed switching, low power loss and superior stability. Equipped with a universal standardized SMD package, stable supply and complete technical support, it helps equipment manufacturers simplify overall design and cut production costs.
Electronic devices keep advancing toward miniaturization, low power consumption and high frequency. Boasting integrated advantages of high speed, energy efficiency and outstanding stability, the SL3402 has become a mainstream choice for low-voltage power switching circuits. From daily consumer digital products to micro industrial control equipment, Slkor continuously provides reliable switching support for various electronic systems with high-performance discrete power devices, driving the global electronics industry toward higher efficiency, smaller size and greener low-carbon development.
