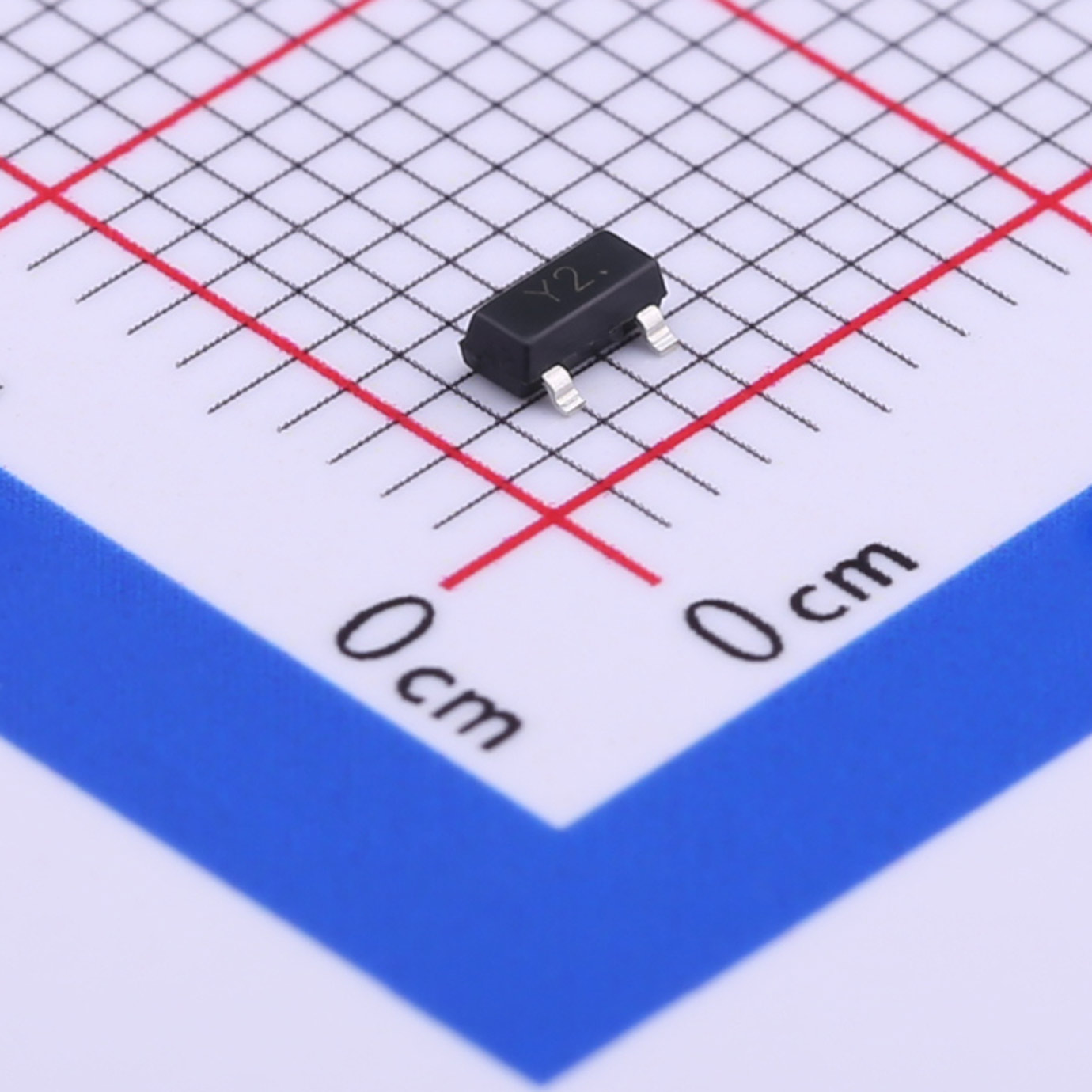

In circuit designs for consumer electronics, smart home systems, industrial control drivers, audio amplification, and power management, universal transistors with high-current driving capability, high gain, low saturation voltage, and fast high-frequency response serve as fundamental components for stable circuit switching and signal amplification. The Slkor SS8550 is a classic PNP silicon epitaxial planar transistor. Featuring a 1.5A high current rating, high hFE gain, 100MHz frequency response, and excellent switching performance, it acts as a cost-effective domestic solution for small and medium-power switching, signal amplification, and load driving applications. Paired with the NPN SS8050 transistor, it forms a complementary pair ideal for push-pull amplification and symmetrical driving circuits.

1. Core Key Parameters

Device Type: PNP Silicon Epitaxial Transistor Maximum Collector Current (Ic): 1.5A Collector-Emitter Breakdown Voltage (Vceo): 25V Maximum Power Dissipation (Pd): 300mW DC Current Gain (hFE): 400 Transition Frequency (fT): 100MHz Collector Cutoff Current (Icbo): 100nA Collector-Emitter Saturation Voltage (VCE(sat)): 500mV Emitter-Base Breakdown Voltage (Vebo): 5V

2. Core Product Advantages

2.1 High-Current Driving Capacity for Versatile Load Compatibility

Capable of a continuous collector current up to 1.5A, the SS8550 far exceeds the driving capacity of conventional small-signal transistors. It can directly drive medium and low-power loads such as LED arrays, relays, miniature motors, and buzzers without additional current expansion circuits. This simplifies peripheral design and suits various terminal equipment switching control scenarios.

2.2 Ultra-High Current Gain for Superior Amplification Performance

With a DC current gain (hFE) as high as 400, the device delivers outstanding signal amplification sensitivity. It achieves excellent amplification for weak sensor signals and low-level audio signals with minimal signal loss and good linear output, effectively improving signal processing accuracy for low-power precision amplification circuits.

2.3 Excellent High-Frequency Response for High-Speed Switching

Boasting a 100MHz transition frequency, the SS8550 features reliable high-frequency characteristics that support high-frequency signal amplification and high-speed switching operations. It breaks the frequency limitations of ordinary low-frequency transistors and adapts to complex circuit designs including high-frequency oscillation, high-speed pulse control, and high-frequency audio amplification.

2.4 Low Saturation Voltage and Low Leakage for Stable, Low-Loss Operation

A low collector-emitter saturation voltage of only 500mV reduces conduction loss and heat generation, ensuring stable long-term continuous operation. The ultra-low 100nA collector cutoff leakage current minimizes standby power consumption and avoids interference with circuit static operating points, making it ideal for battery-powered and low-power smart devices. Its 5V emitter-base withstand voltage further prevents overvoltage breakdown and enhances overall device reliability.

2.5 Classic Complementary Pair with Wide Circuit Adaptability

The PNP SS8550 perfectly matches the NPN SS8050 to form a complementary transistor pair widely used in push-pull power amplification, symmetrical switching, and bidirectional driving circuits. It serves as a standard combination for audio power amplifiers, power inverters, and dual control systems, offering strong universality and low replacement costs.

3. Main Application Fields

Benefiting from its well-balanced comprehensive performance, the Slkor SS8550 is extensively adopted in civil and industrial small-to-medium power circuits, including smart home control modules, portable consumer electronics, audio preamplifier and power amplifier circuits, LED lighting drivers, relay and solenoid drivers, industrial signal switches, sensor signal amplification, battery management systems, small household appliance main circuits, and high-speed pulse signal processing.

4. Engineering Design Guidelines

1. Voltage Matching: The operating voltage must be kept within the 25V Vceo rating to avoid breakdown. The emitter input voltage should not exceed 5V to ensure safe device operation.

2. Current Derating: 1.5A is the absolute maximum current rating. Derating is recommended for long-term continuous operation to prevent overheating and overload failure.

3. Amplifier Circuit Design: Its high hFE is suitable for small-signal amplification. Proper biasing resistance configuration is required to avoid self-oscillation and ensure stable signal output.

4. High-Frequency Application: The 100MHz frequency response meets standard high-speed switching requirements. For ultra-high-frequency scenarios, optimize PCB layout and impedance matching to minimize parasitic interference.

5. Product Summary

The Slkor SS8550 is a versatile PNP silicon transistor featuring high gain, large current capacity, and fast high-frequency response. It integrates 1.5A driving capability, 400-fold amplification, low saturation loss, low leakage current, and high-speed switching performance. With stable operation, wide compatibility, and excellent cost performance, it supports both precise small-signal amplification and medium-low power load switching. It is a reliable, high-quality domestic alternative for consumer electronics, smart homes, industrial controls, and audio circuit designs.
