S9014 NPN Epitaxial Silicon Transistor
2023-07-03 917

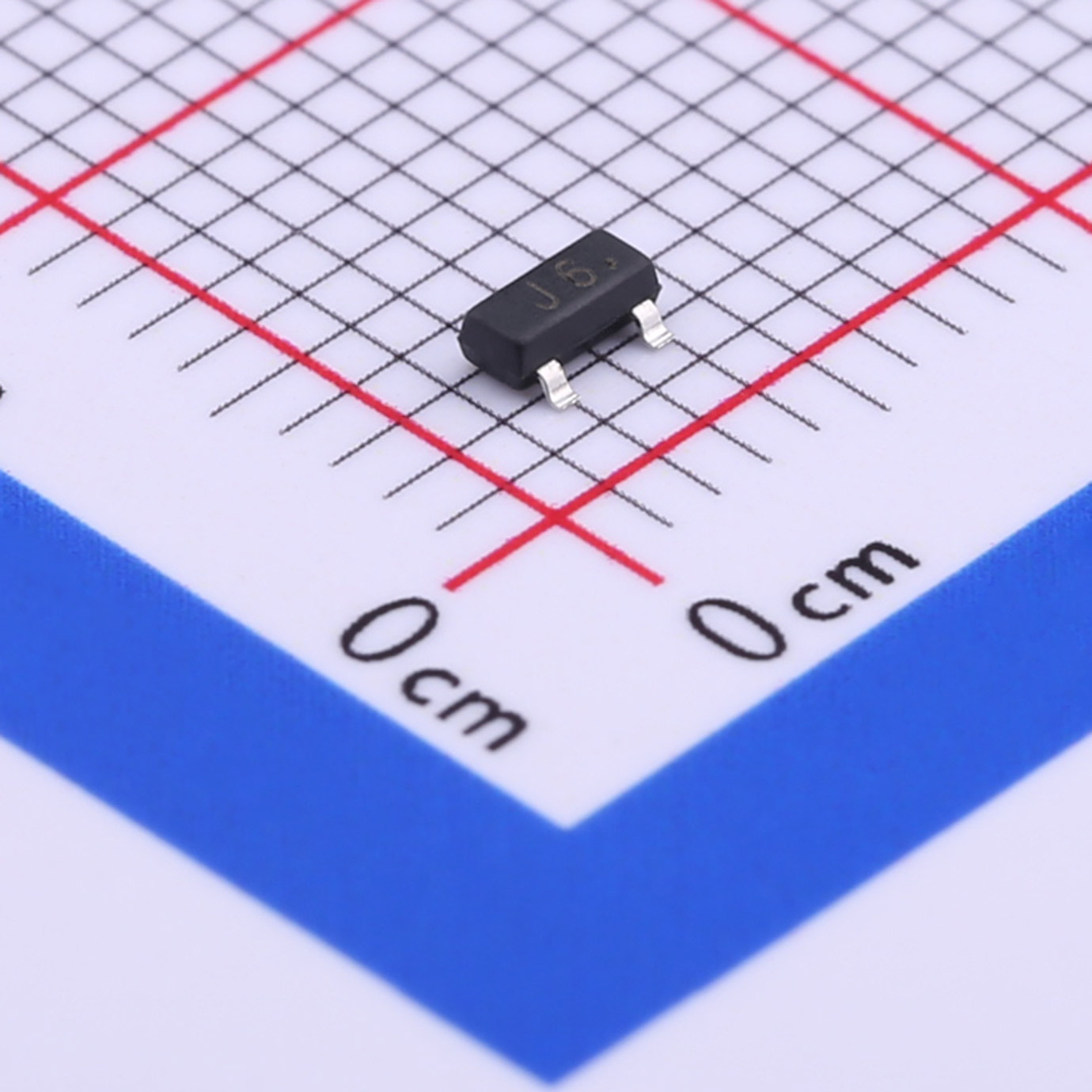

Today, we will introduce the S9014, Low VCE(sat) Transistors from Slkor, which is supplied in the SOT-23 subminiature surface mounting package.


Description

The S9014 is an NPN epitaxial silicon planar transistor designed for use in the audio output stage and converter/inverter circuits.

Features

  • Complementary to S9015

  • Excellent HFE Linearity

  • Power dissipation.(PC=0.2W)

Applications

Per-Amplifier low level & low noise.

Quick reference data

Symbol

Parameter

Conditions

Max

Unit

VCEO

collector-emitter voltage

open base

45

V

IC

collector current

0.1

A

VCEsat

collector-emitter

saturation voltage

IC = 100mA; IB = 5mA

0.3

V
