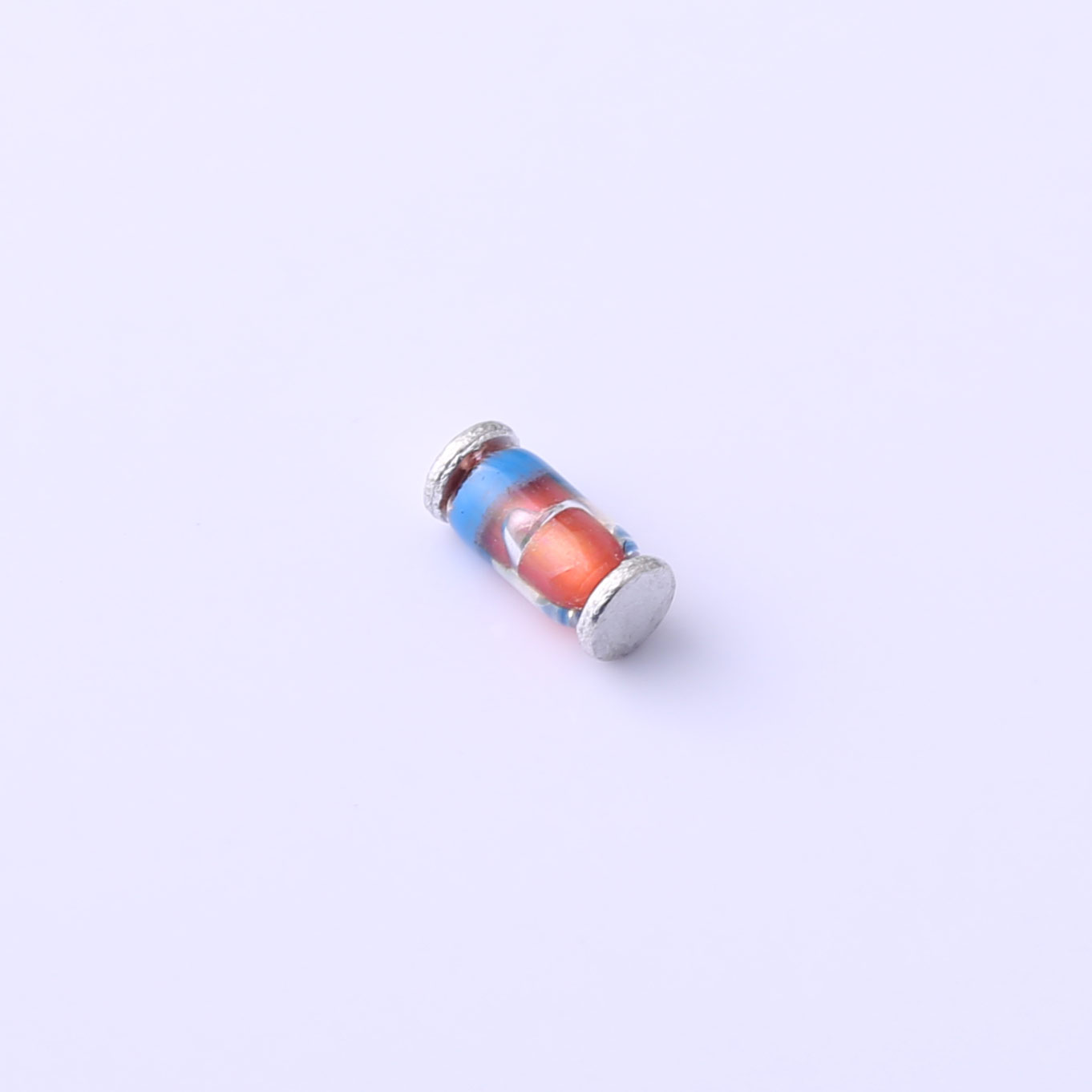

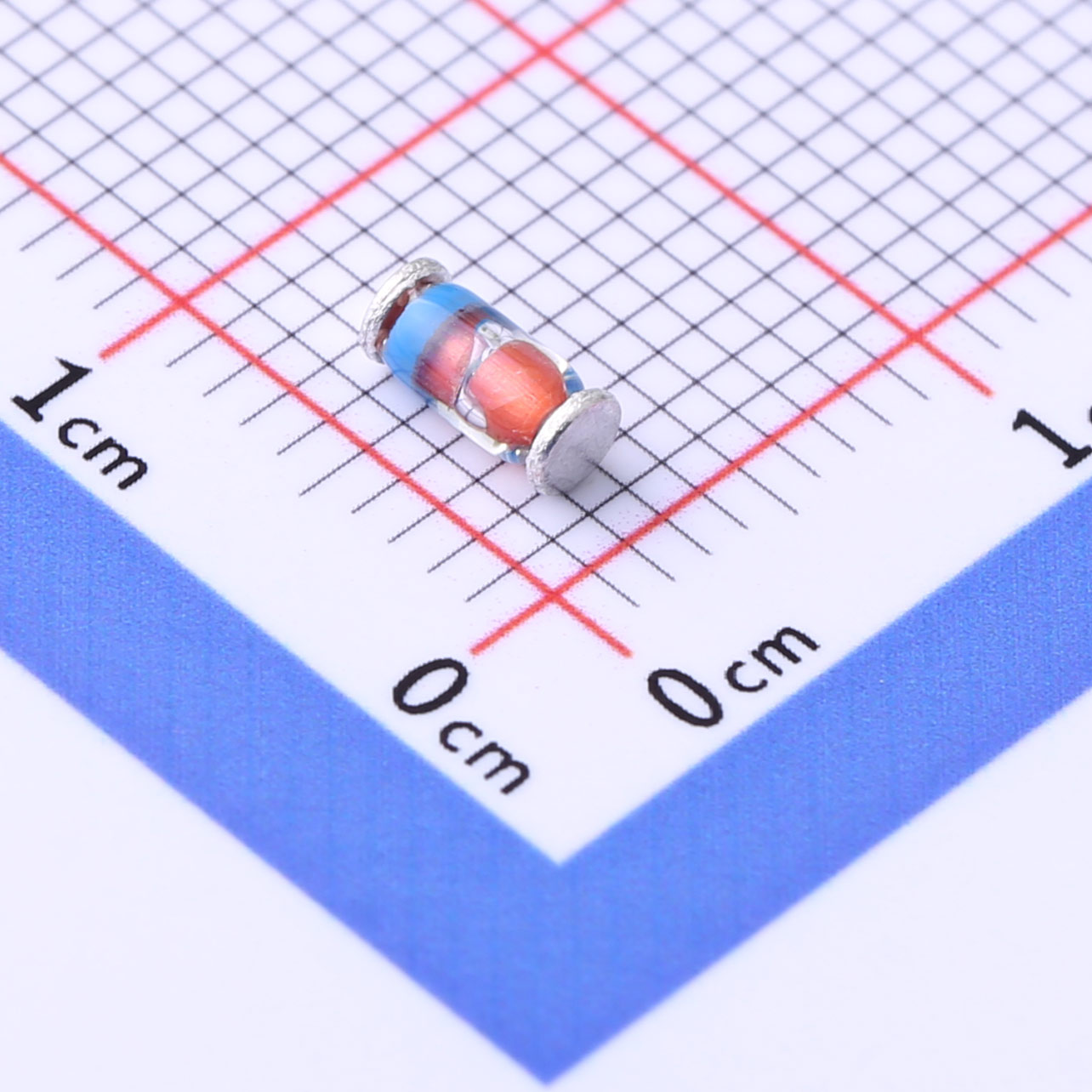

SILICON PLANAR ZENER DIODES

Our advantages

Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China.  As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.

Description
For use in stabilizing and dipping circuits with high power rating.Standard Zener voltage tolerance is ±10%.Add suffix "A" for ±5% tolerance and suffix "B" for ±2% tolerance. Other tolerances available are upon request.These diodes are also available in DO-41 case with the type designation 1N4727...1N4761.

Features

● Zener Voltage (VZTyp): 4.3V - Offers precise voltage regulation at 4.3 volts, ideal for various electronic applications.

● Precision: ±5% - Guarantees reliable voltage control with a tolerance of ±5%, ensuring consistent performance.

● Power Dissipation (PD): 1W - Supports up to 1 watt of power dissipation, facilitating effective thermal management in designs.

● Reverse Leakage Current (Ir): 50μA @ 1V - Features a low reverse leakage current of 50 microamperes at 1 volt, enhancing circuit reliability.

● Zener Impedance (Zzt): 9Ω - Provides stable voltage regulation with a Zener impedance of 9 ohms, minimizing signal distortion.

Applications

● Voltage Regulation: Delivering accurate voltage control in surface-mount electronic designs.

● Over-voltage Protection: Protecting sensitive components from voltage surges and spikes.

● Signal Clamping: Ensuring stable signal performance by regulating voltage fluctuations.
