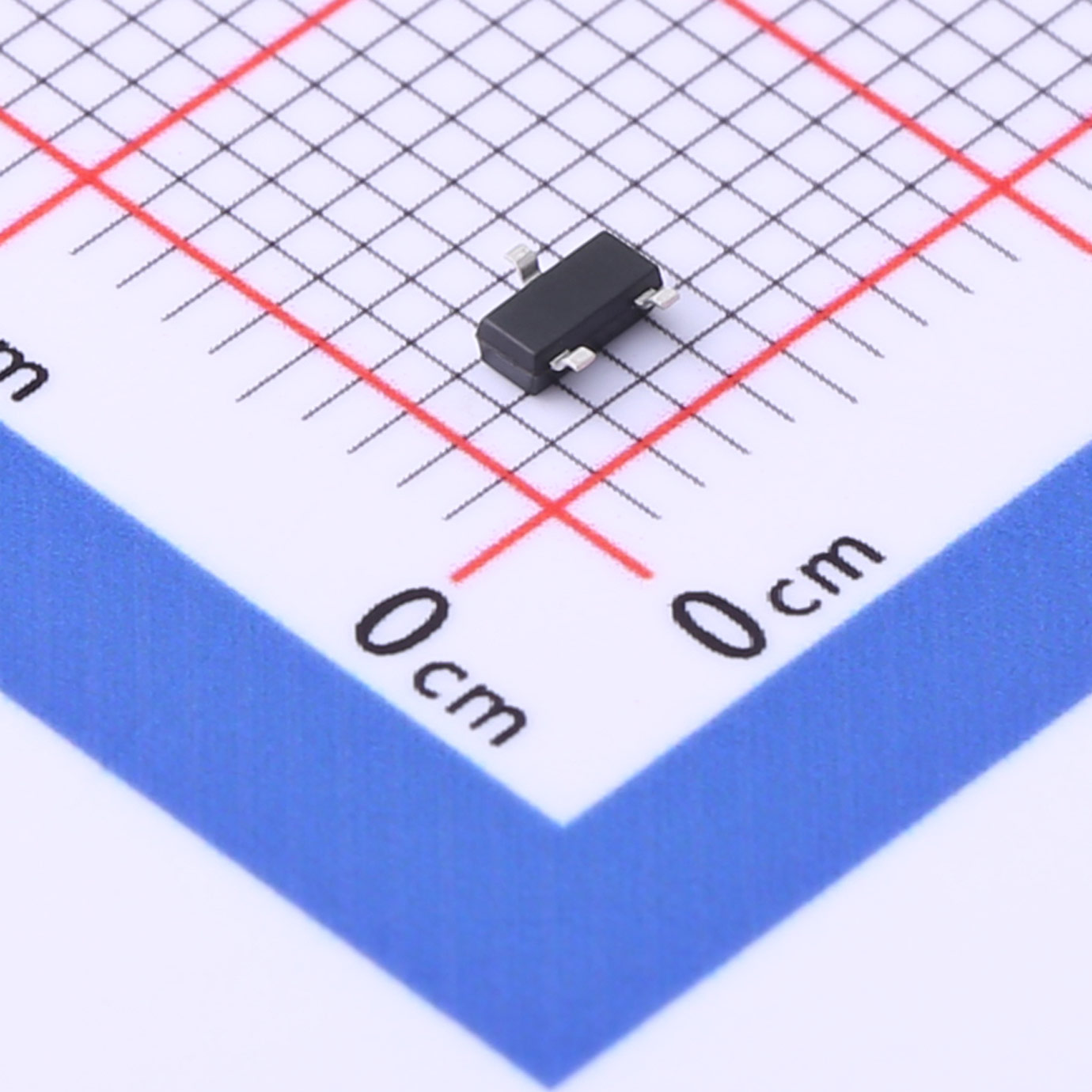

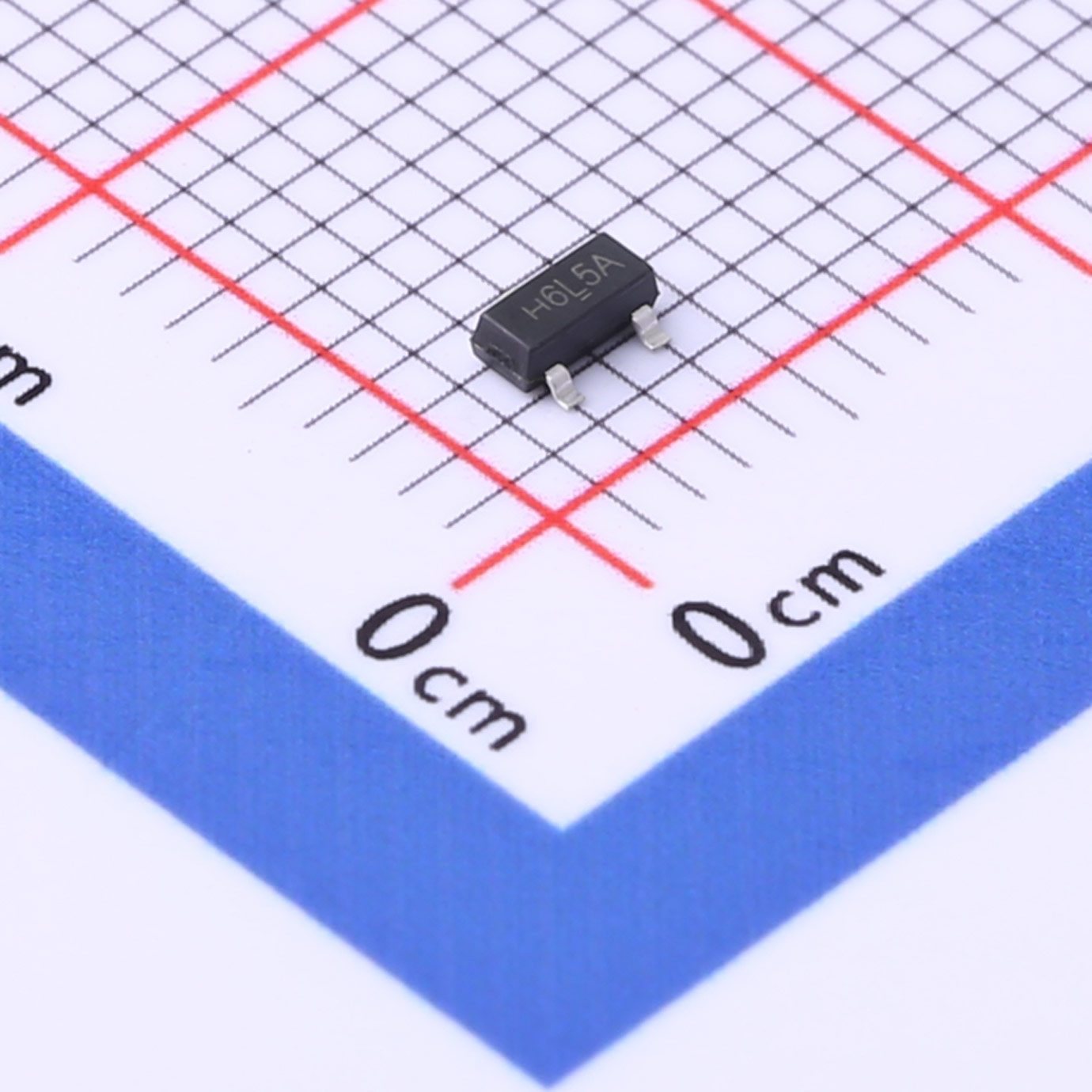

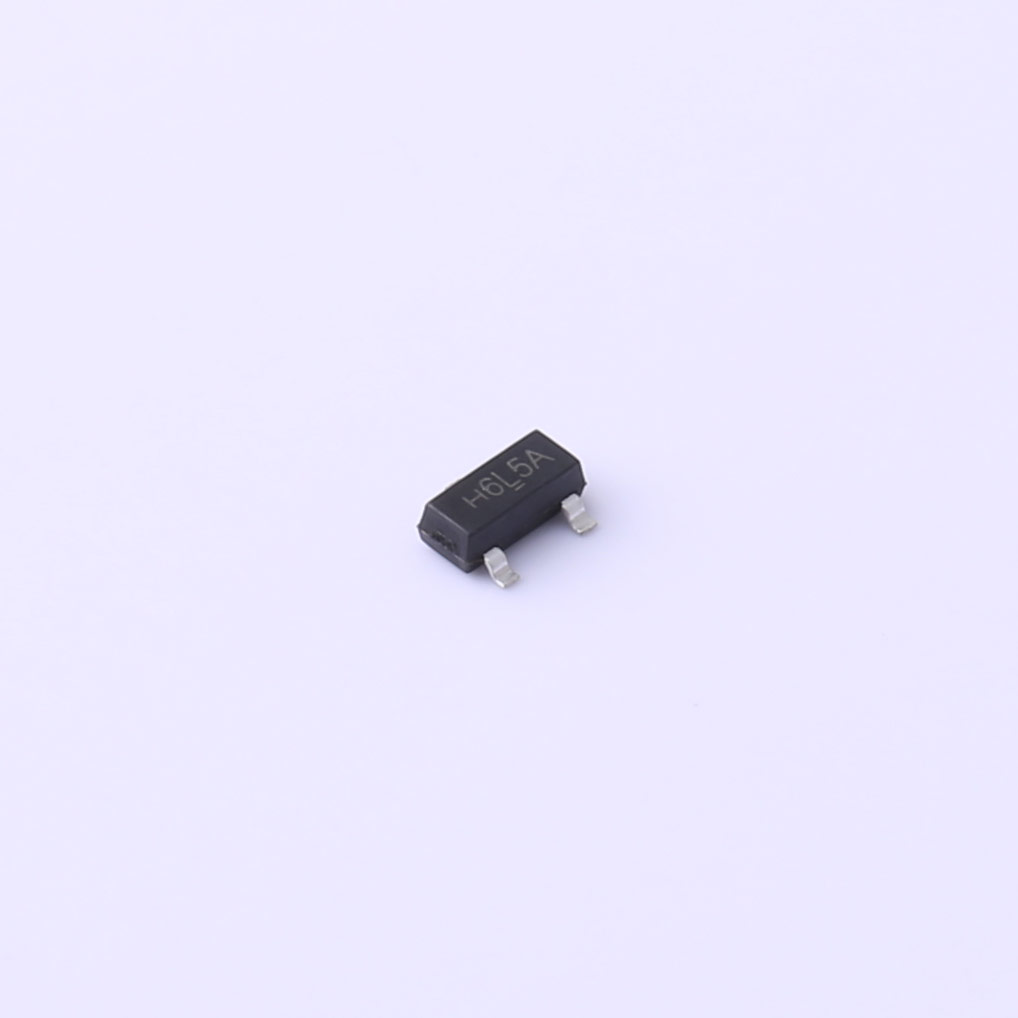

SL3406 N-Channel Power MOSFET SOT-23-3
Type:N-Channel
Vdss:30V
Id:5.6A
Pd:1.2W
RDS(on)@Vgs,Id:21mΩ@10V,29A
Vgs(th)@Id:1.5V@250uA
Qg@Vgs:5.2nC@10V
Ciss@Vds:490pF@15V
Crss@Vds:68pF@15V
Working Temperature:-55℃~+150℃@(Tj)
Product Summary
● VDS 30V
● ID 5.6A
● RDS(ON)( at VGS=10V) ＜29 mohm
● RDS(ON)( at VGS=4.5V) ＜40 mohm
General Description
● Trench Power LV MOSFET technology
● High density cell design for low RDS(ON)
● High Speed switching
Applications
● Battery protection
● Load switch
● Power management
