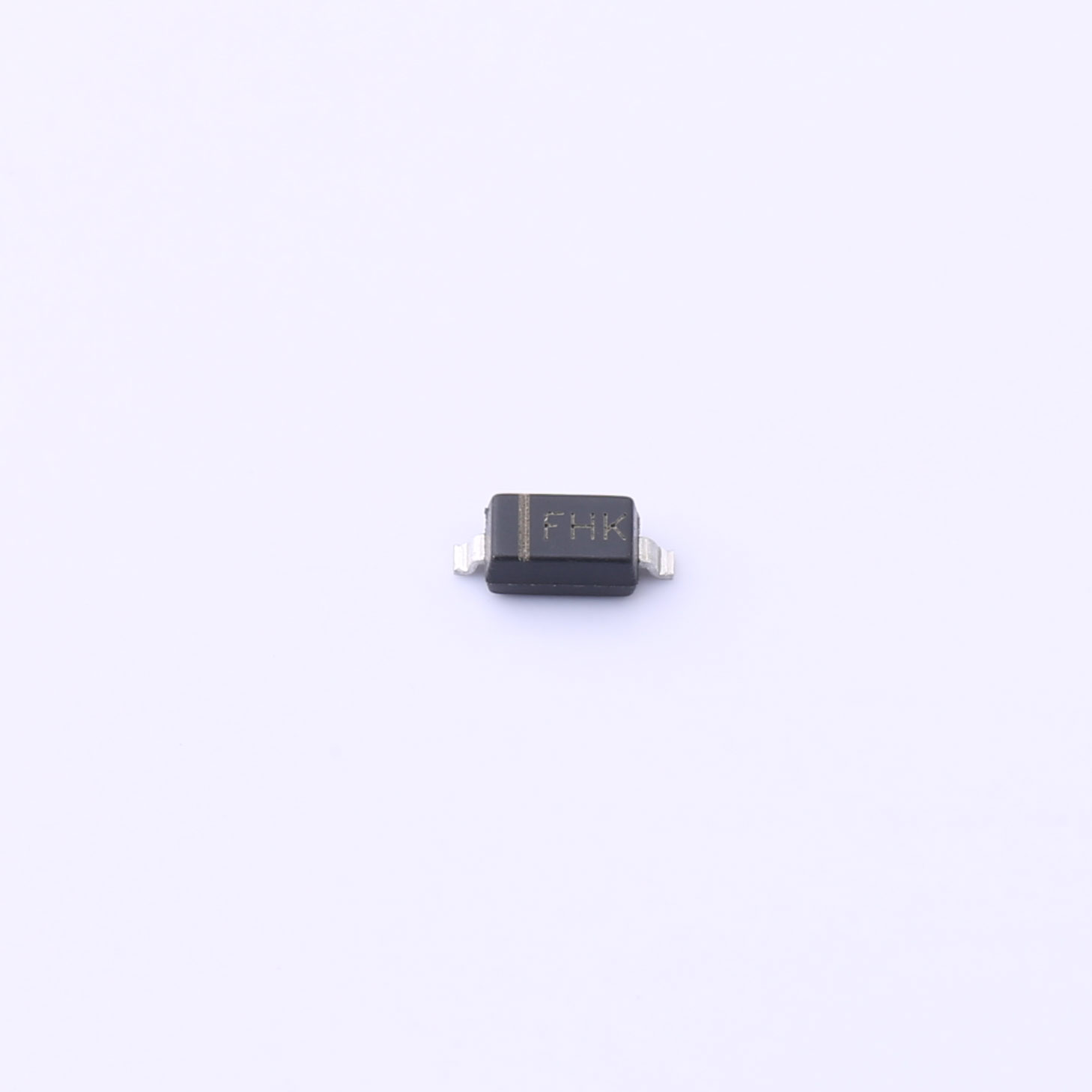

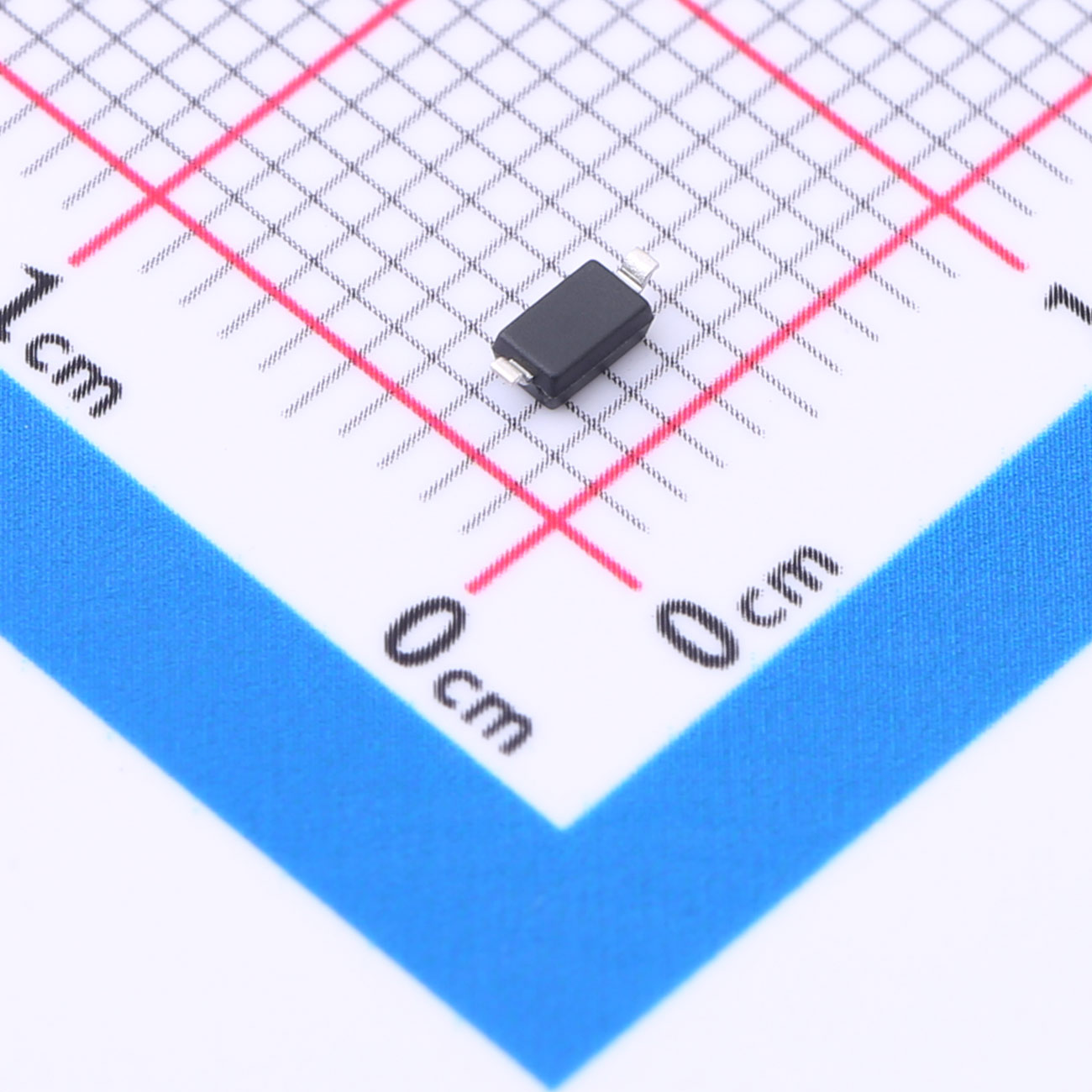

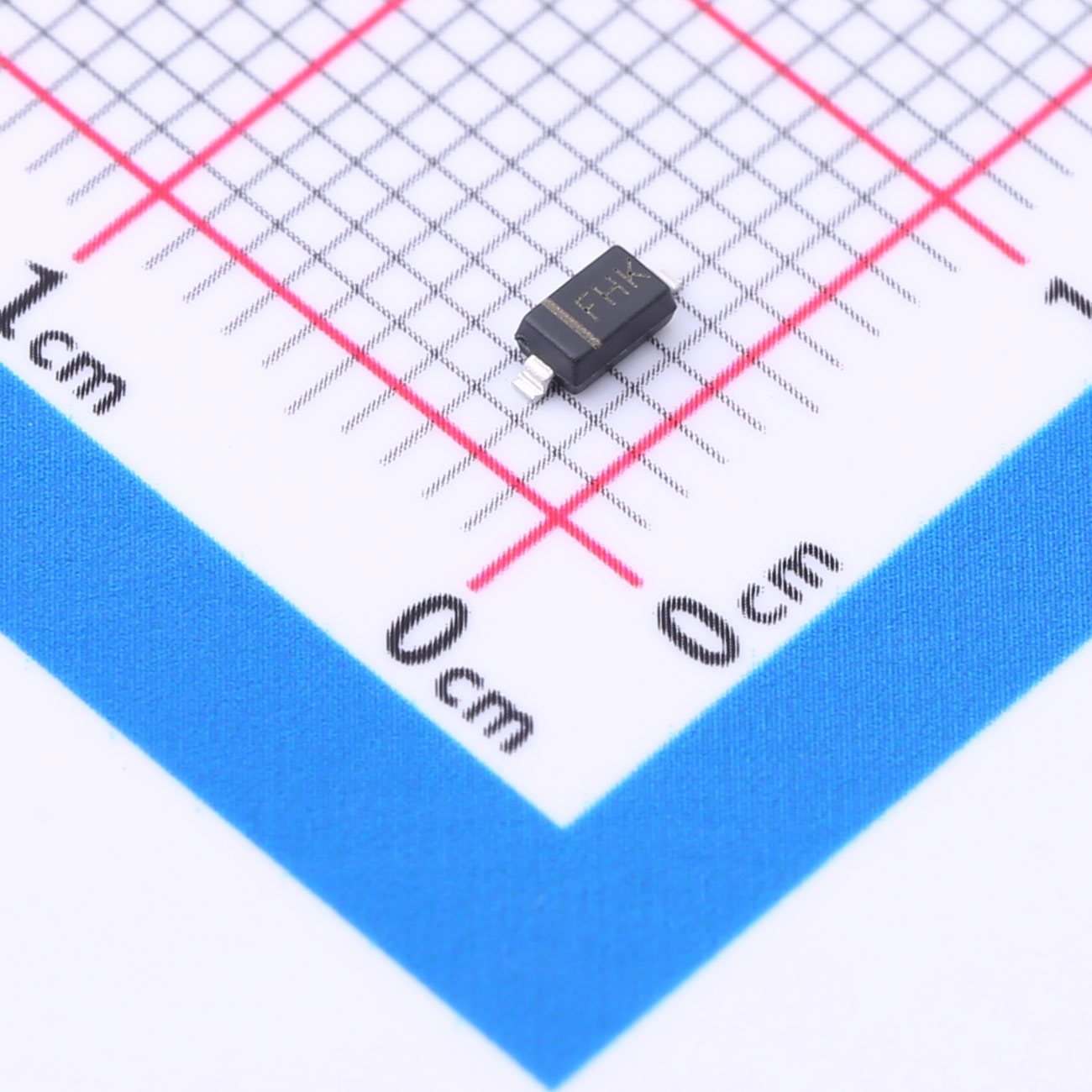

SOD-123 Zener Diode MM1W5V1
PD: 1000mW
VZ(Nom) @ IZT: 5.1V @ 49mA
VZ(Min) @ IZT: 4.84V @ 49mA
VZ(Max.) @ IZT: 5.36V @ 49mA
ZZT @ IZT: 7Ω @ 49mA
IR @VR: 10µA @ 1V
Package: SOD-123
Silicon Planar Zener Diodes
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The MM1W5V1 Zener diode, housed in the SOD-123 package, delivers precise voltage regulation with a nominal Zener voltage of 5.1V at a test current of 49mA. It provides a breakdown voltage range between 4.84V and 5.36V, ensuring stable performance across various conditions. The diode features a maximum dynamic impedance of 7? at 49mA and a low reverse leakage current of 10μA at 1V. With a power dissipation capability of 1000mW, it supports reliable operation in compact and high-performance applications.
Features
● Total power dissipation: Max. 1 W.
● Wide zener reverse voltage range 3.3V to 330V.
● Small plastic package suitable for surface mounted design.
Applications
● Consumer electronics, automotive systems, and industrial circuits
