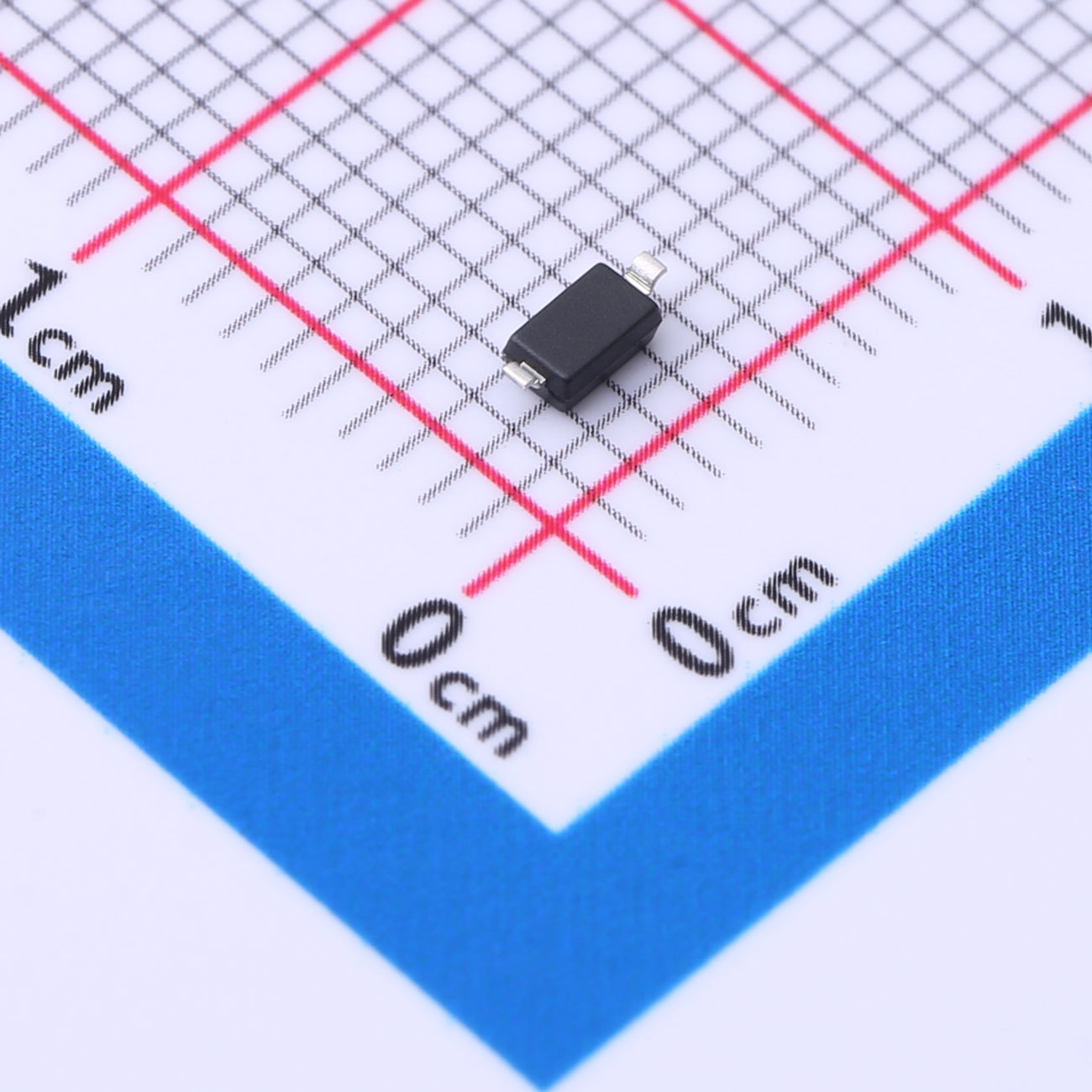

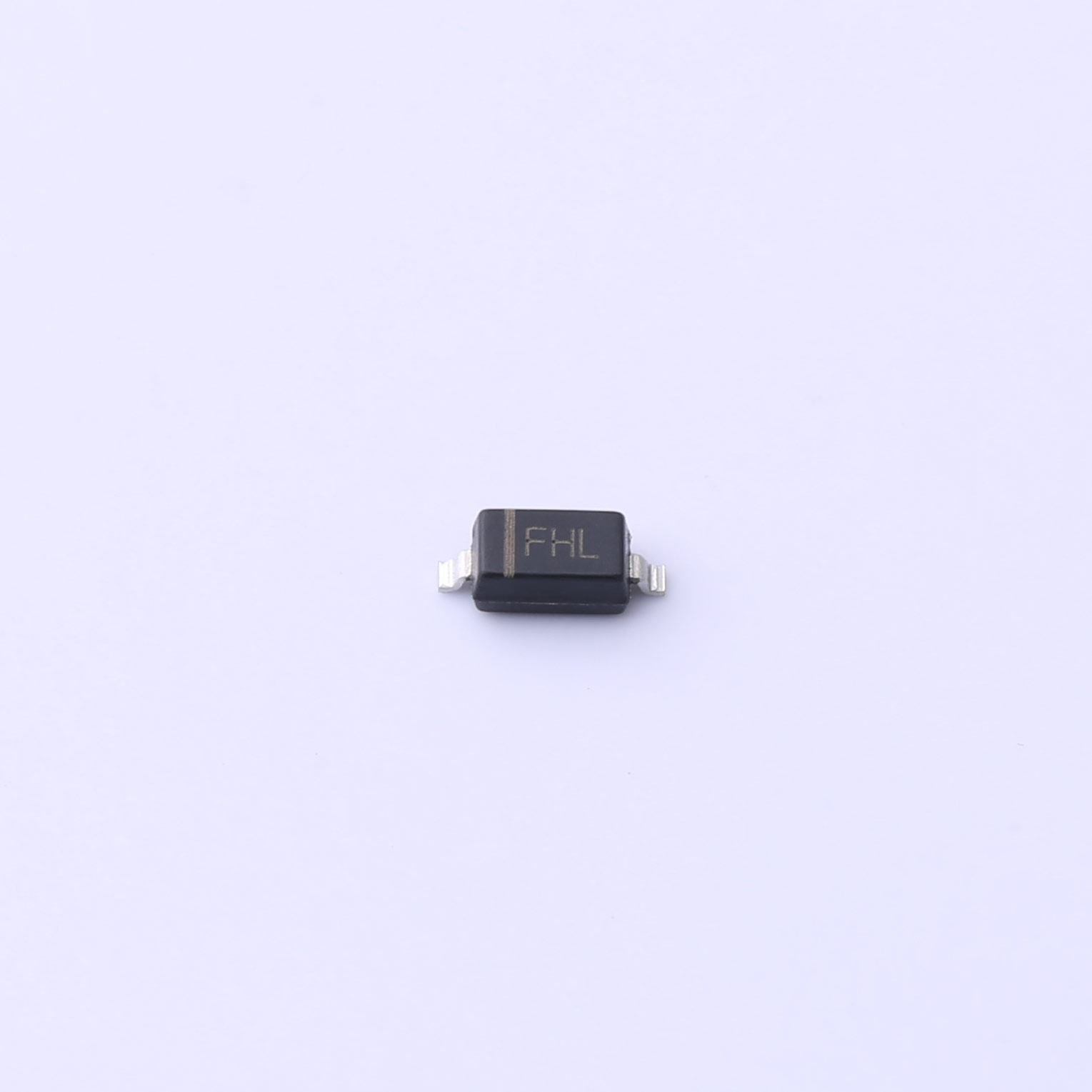

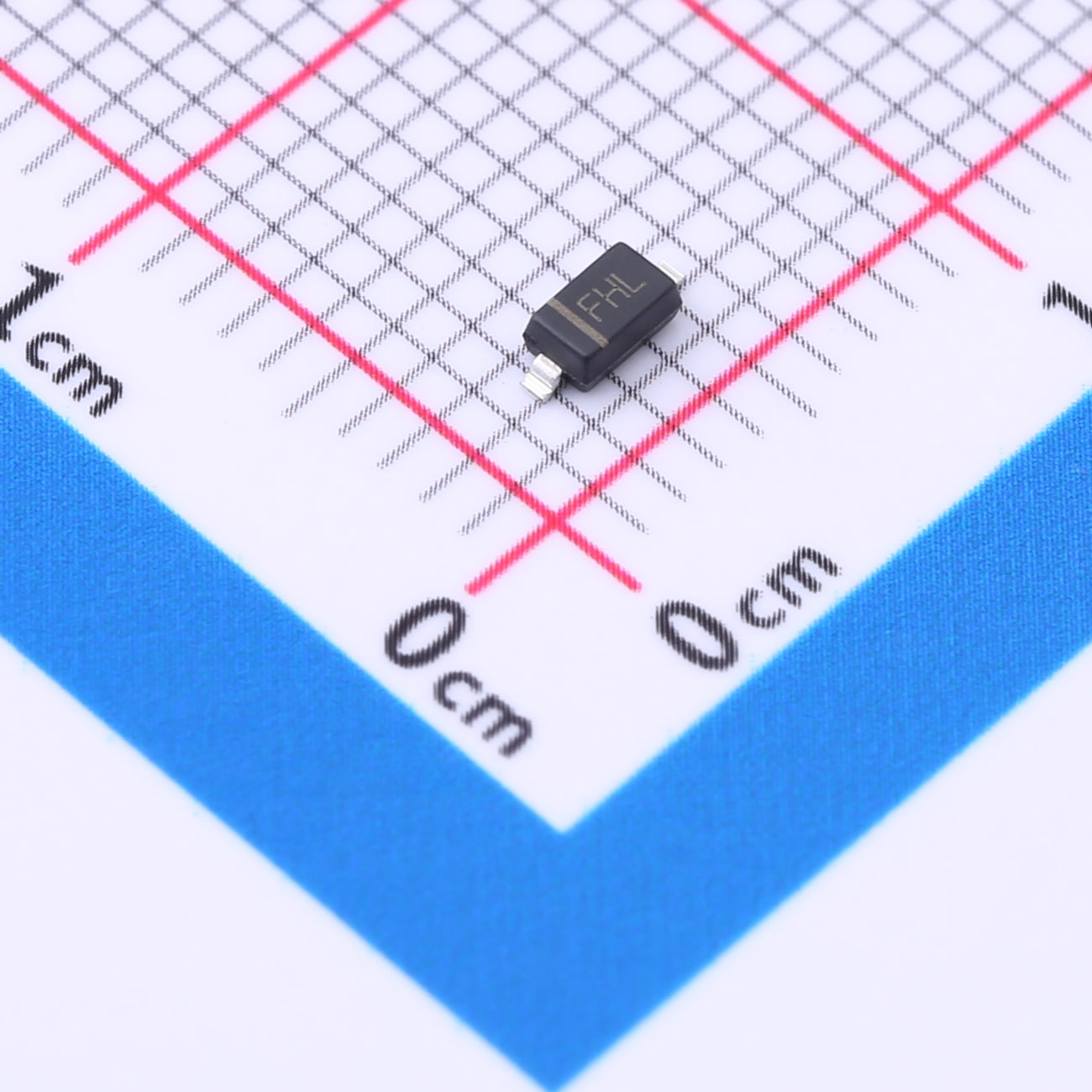

SOD-123 Zener Diode MM1W5V6
PD: 1000mW
VZ(Nom) @ IZT: 5.6V @ 45mA
VZ(Min) @ IZT: 5.32V @ 45mA
VZ(Max.) @ IZT: 5.92V @ 45mA
ZZT @ IZT: 5Ω @ 45mA
IR @VR: 10µA @ 2V
Package: SOD-123
Silicon Planar Zener Diodes
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The MM1W5V6 Zener diode, presented in a compact SOD-123 package, is designed for reliable voltage regulation with a nominal Zener voltage of 5.6V at a test current of 45mA. It ensures precise voltage control with a breakdown voltage range of 5.32V to 5.92V. The diode offers a maximum dynamic impedance of 5? at 45mA and a low reverse leakage current of 10μA at 2V. With a power dissipation capability of 1000mW, it is suitable for demanding and space-constrained applications.
Features
● Total power dissipation: Max. 1 W.
● Wide zener reverse voltage range 3.3V to 330V.
● Small plastic package suitable for surface mounted design.
Applications
● Accurate and stable voltage regulation
● Consumer electronics
● Telecommunications
● Automotive circuits
● Industrial applications
