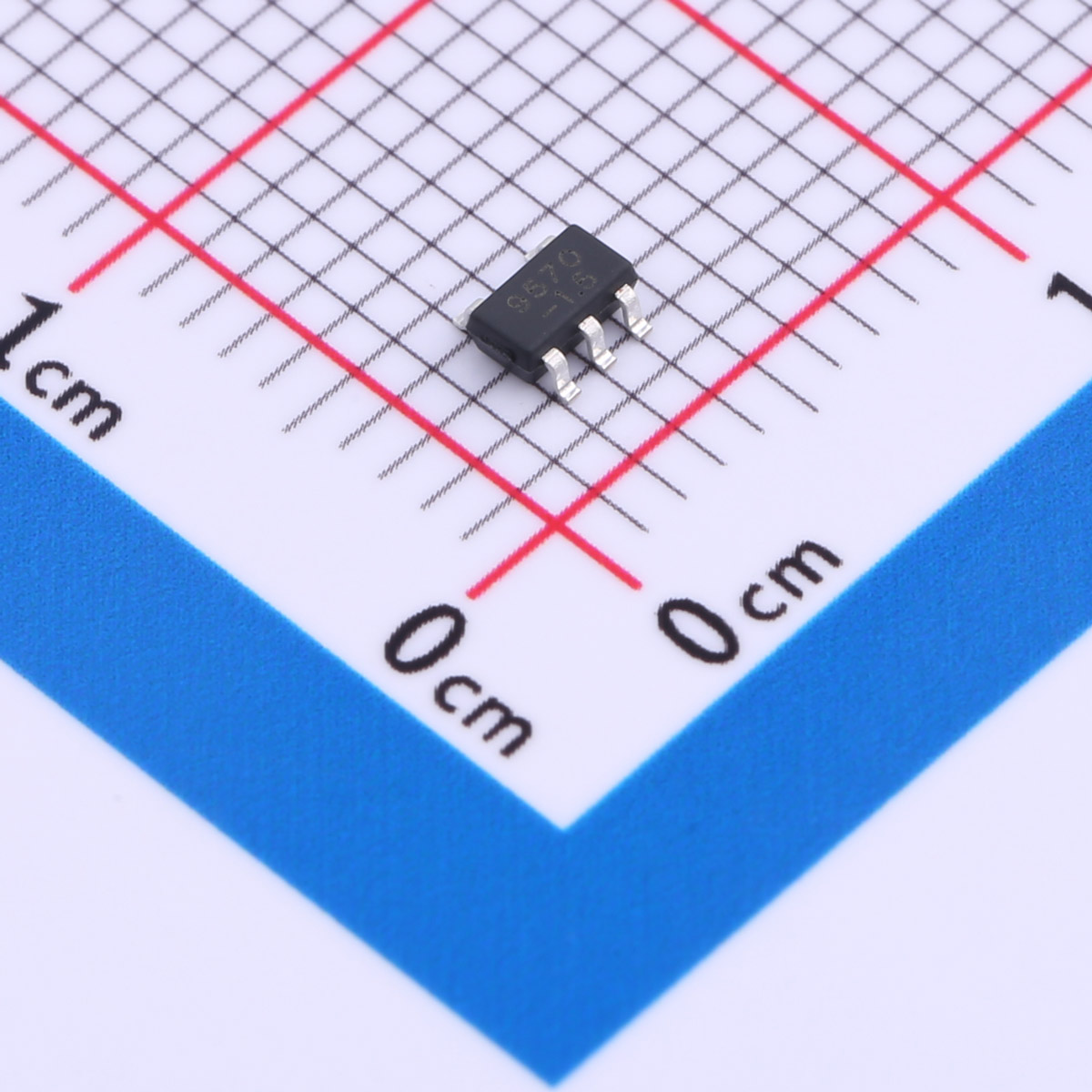

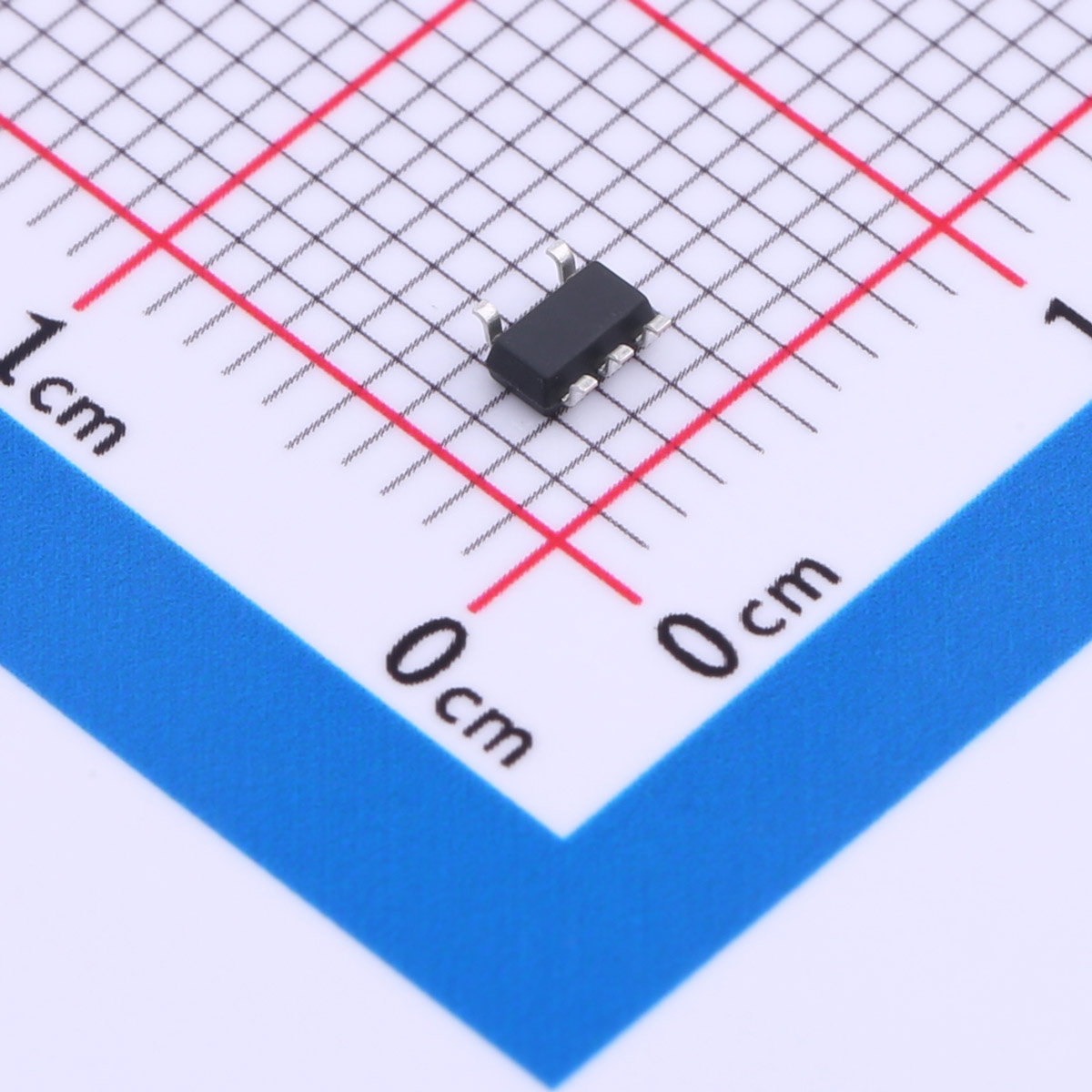

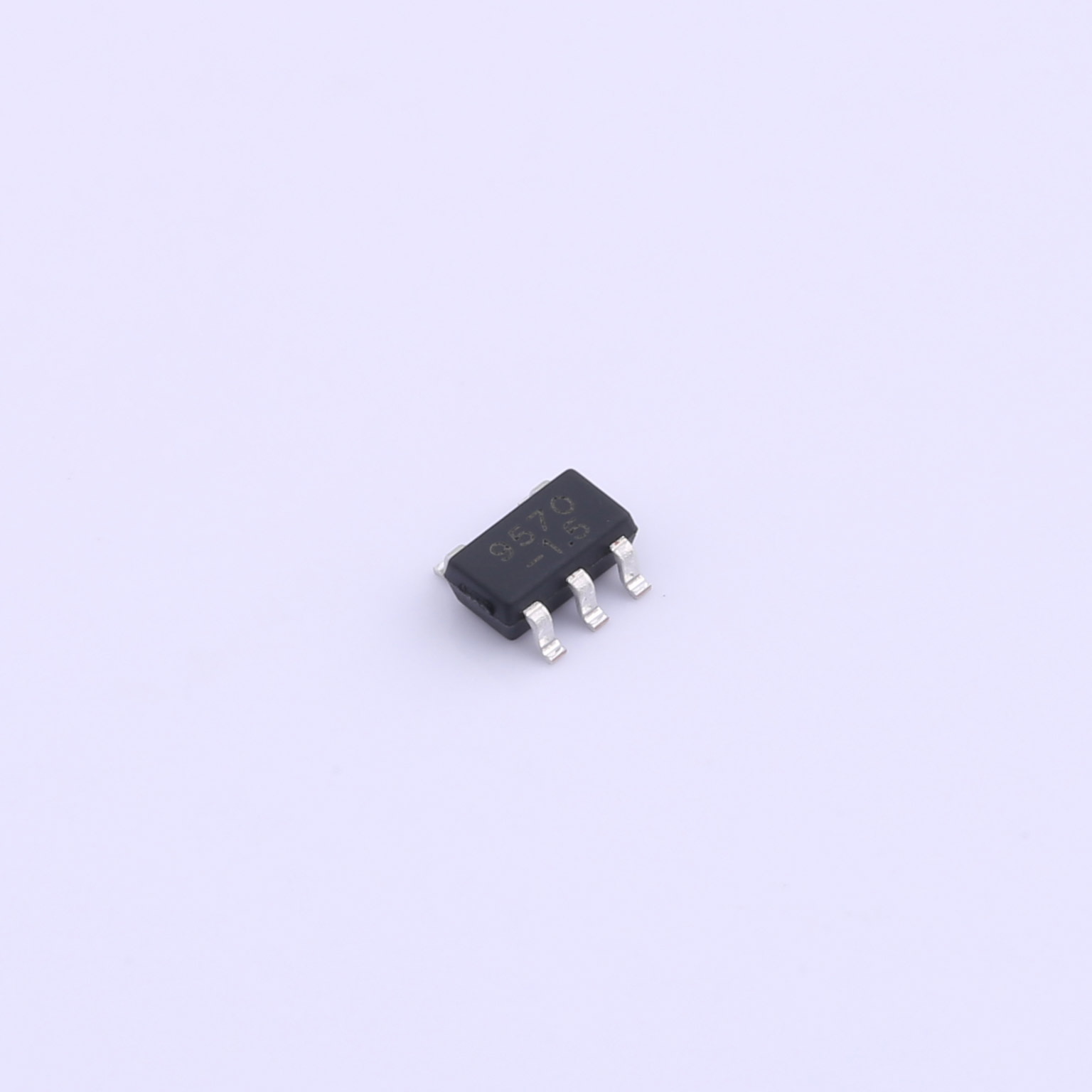

SL9013M15SE Linear Voltage Regulators (LDO) SOT-23-5
The SL9013 Series are highly precise,low noise,positive voltage LDO regulatorsmanufactured using CMOS processes.The SL9013 performance is optimized forbattery-powered systems to deliver ultra low noise and low quiescent current.Regulator ground current increases only slightly in dropout,further prolonging the battery life.The SL9013 Series also works with low-ESR ceramic capacitors,reducing the amount of board space necessary for power applications,critical inhand-held wireless devices.The SL9013 Series consumes less than 1μA in shutdown mode and has fast tum-on time less than 50s.The other features include ultra low dropout voltage,high output accuracy,current limiting protection,and highripple rejection ratio.
Description
lThe SL9013 Series are highly precise,low noise,positive voltage LDO regulatorsmanufactured using CMOS processes.The SL9013 performance is optimized forbattery-powered systems to deliver ultra low noise and low quiescent current.Regulator ground current increases only slightly in dropout,further prolonging the battery life.The SL9013 Series also works with low-ESR ceramic capacitors,reducing the amount of board space necessary for power applications,critical inhand-held wireless devices.The SL9013 Series consumes less than 1μA in shutdown mode and has fast tum-on time less than 50s.The other features include ultra low dropout voltage,high output accuracy,current limiting protection,and highripple rejection ratio.
Features
lUlra Low Noise for RF Application
lUltra Fast Response in Line/Load Transient
lLow Power Consumption:70uA(Typ.)
lPSRR=75dB@1KHz
lMaximum Output Current:500mA
lLow dropout:100mV @100mA at Vout=3.3V
lOperating Voltage Ranges:2V to 6.5V
lOver Temperature and Current Limiting Protection
lThermal Shutdown Protection
Applications
lBaltery-Powered Equipment
lCDMA/GSM Cellular Handsets
lAudio/Video Equipment
