Description

SLESD0501OC is a low-capacitance Transient Voltage Suppressor (TVS) designed to proxide electrostatic discharge (ESD) protection for data , control or power lines. With typical capacitance of 10 pF only, SLESD0501OC is designed to protect parasitic-sensitive systems against over-voltage and over-current transient events, It complies with IEC 61000-4-2 (ESD),Level 4 (±15 kV air,±8kV contact discharge), IEC 61000-4-4 (electrical fast transient-EFT ) (40,5/50 ns), very fast charged device model (CDM) ESD and cable discharge event (CDE),etc. SLESD0501OC uses ultra-small DFN1006 package.Each SLESD0501OC device can protect one data line. It offers system designers flexibilitu to protect single data line where space is a premium concern.

Features

● Transient protection for high-speed data lines

  IEC 61000-4-2 (ESD) ±15kV (Air)

                                 ±8kV (Contact)

● IEC 61000-4-4 (EFT) 40A (5/50 ns)

● Cable Discharge Event (CDE)

● Package optimized for high-speed lines

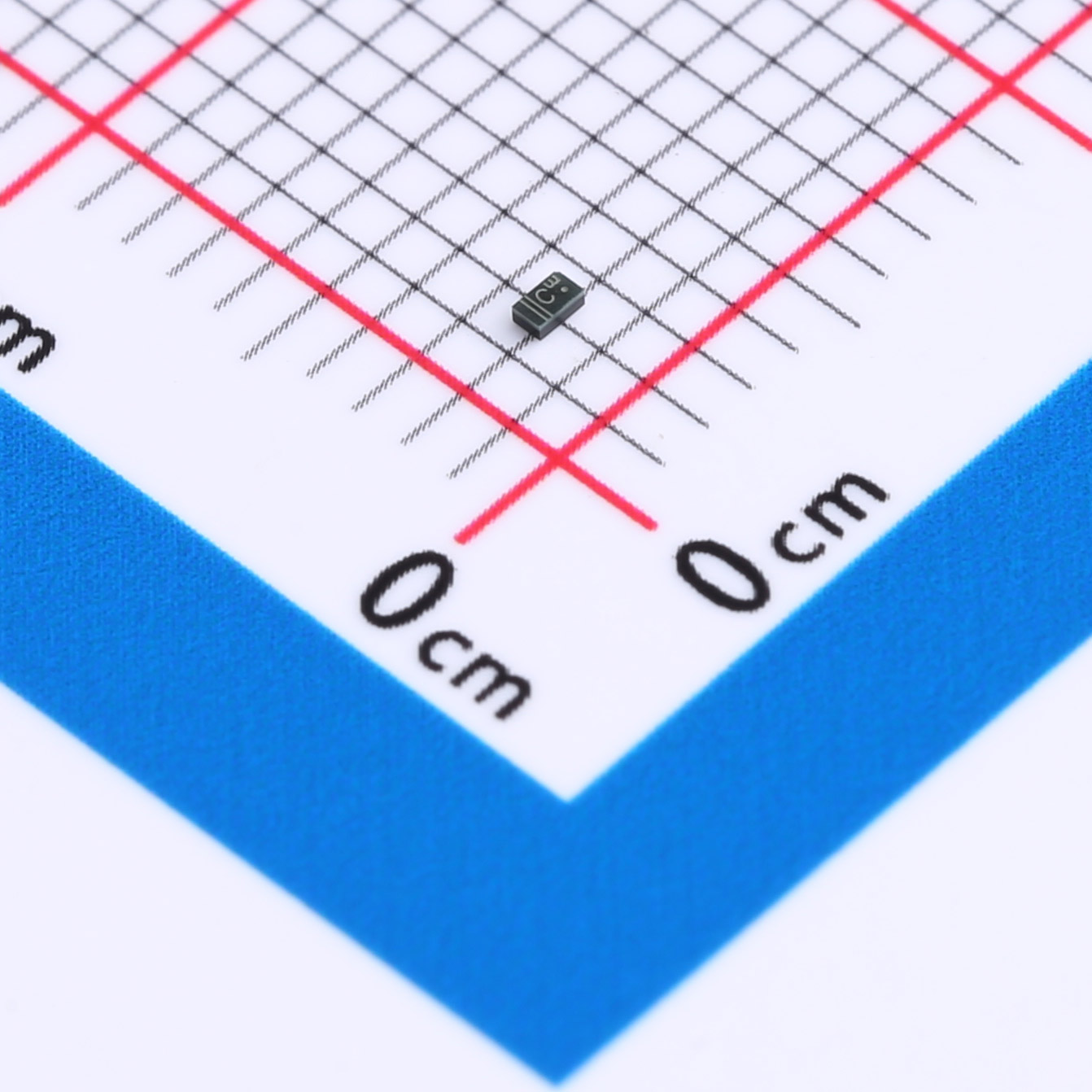

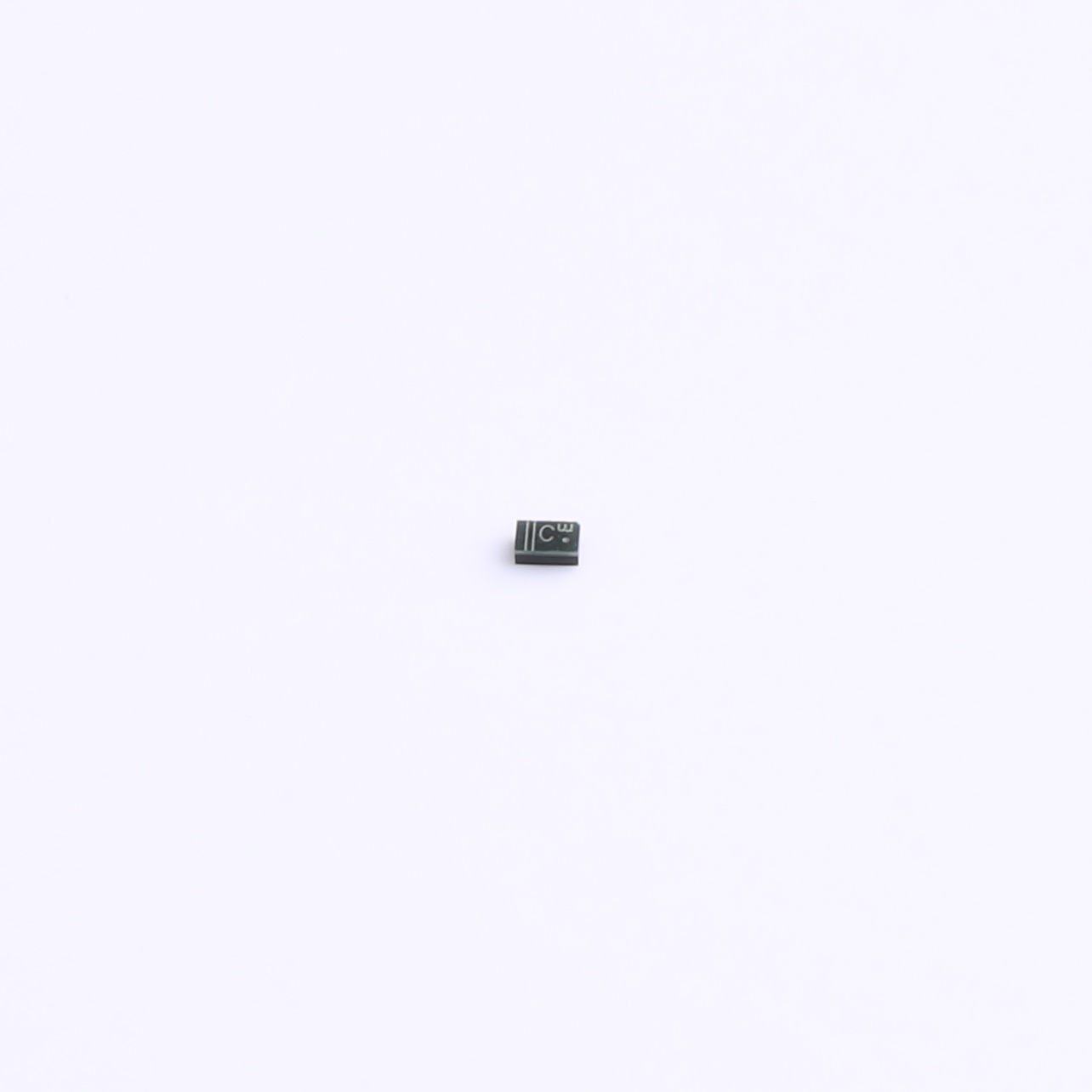

● Ultra-small package (1.0mm×0.6mm×0.4mm)

● Protects one data, control or power line

● Low capacitance: 15pF (Maximum)

● Low leakage current

● Low clamping voltage

● Each I/O pin can withstand over 1000 ESD strikes for ±8kV contact discharge

Application

● Portable Electronics

● Desktops, Servers and Notebooks

● Cellular Phones

● MP3 Ports

● Digital Ports

● Subscriber Identity Module (SIM) card
