In the world of high-speed data communication and electronics, protecting sensitive components from transient voltage events is crucial for maintaining system reliability. The SLESD0514TL is an advanced Transient Voltage Suppressor (TVS) designed specifically to safeguard high-speed data interfaces from electrostatic discharge (ESD) and electrical fast transients (EFT). With its ultra-low capacitance and compact form factor, the SLESD0514TL ensures robust protection without compromising the performance of high-frequency systems like HDMI and DVI interfaces.

Key Features of the SLESD0514TL

Ultra-Low Capacitance (0.2pF)

One of the standout features of the SLESD0514TL is its ultra-low capacitance, which measures just 0.2pF (I/O to I/O). This low capacitance minimizes the impact on high-speed data transmission, making it ideal for high-frequency lines that demand minimal signal interference.

Broad Protection Compliance

The device is designed to meet IEC 61000-4-2 standards for electrostatic discharge (ESD), offering protection up to ±25kV (air discharge) and ±20kV (contact discharge). In addition, it complies with IEC 61000-4-4 for electrical fast transients (EFT) with a 40A (5/50ns) rating, ensuring it can handle the high-intensity transients common in industrial and consumer electronics.

Compact SOT-23-6L Package

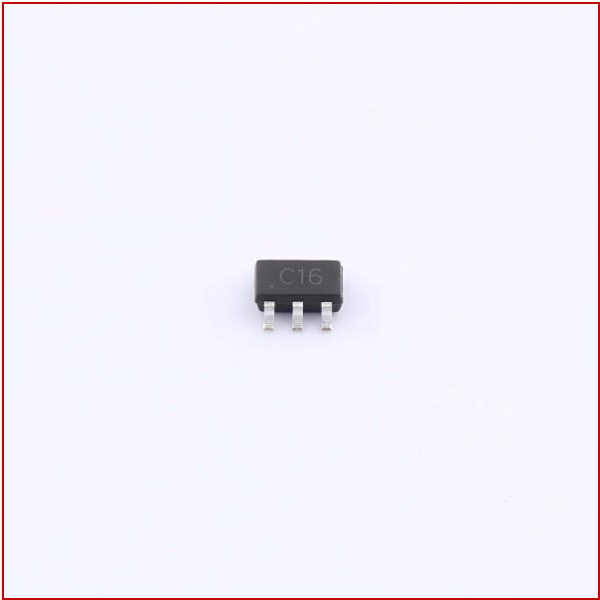

The SLESD0514TL comes in a small SOT-23-6L package measuring just 2.9mm x 2.8mm x 1.1mm, making it a space-efficient solution for compact and high-density PCB designs. Its small size is perfect for protecting high-speed data lines, while its package is optimized for integration into designs where space is at a premium.

Protection for Four Data Lines and One Vcc Line

The SLESD0514TL offers comprehensive protection, capable of safeguarding four data lines and one Vcc line. This makes it an excellent choice for systems that require multi-line protection, such as HDMI, DVI, and other high-frequency data ports.

Low Clamping Voltage

Another significant advantage of the SLESD0514TL is its low clamping voltage, which minimizes the stress on the protected components during transient events. This ensures that sensitive ICs and circuits are not exposed to damaging voltages, increasing the overall lifespan and reliability of the device.

Low Leakage Current

With its low leakage current, the SLESD0514TL ensures minimal power consumption and does not affect the normal operation of the circuit when no transient events occur, making it an energy-efficient choice for high-speed data applications.

High Temperature Soldering Compatibility

The SLESD0514TL can withstand high-temperature soldering (up to 260°C for 10 seconds), which ensures compatibility with modern automated assembly processes that use reflow soldering techniques.

Applications of the SLESD0514TL

The SLESD0514TL is tailored for high-speed data interfaces and high-frequency lines, providing essential protection in a range of applications, such as:

HDMI and DVI Ports

Ideal for high-definition multimedia interfaces, the SLESD0514TL effectively protects HDMI and DVI connections from voltage spikes and ESD, ensuring the integrity of digital signals during transmission.

Mobile Devices and Wearables

  Given its small size and high protection levels, the SLESD0514TL is perfect for smartphones, tablets, and wearable devices, where space is limited and reliable protection from voltage transients is crucial.

Consumer Electronics

The device can be used in a wide range of consumer electronics, including TVs, set-top boxes, and gaming consoles, where protecting sensitive data lines and power lines from ESD and EFT is vital for maintaining performance and reliability.

Automotive Electronics

As modern vehicles become more advanced with integrated electronics, the SLESD0514TL provides critical protection for high-speed data communication systems in automotive environments, such as infotainment systems, navigation systems, and electronic control units (ECUs).

Industrial Equipment

The SLESD0514TL is well-suited for industrial electronics where electrical fast transients and cable discharge events are common, ensuring that machinery and control systems remain operational even in harsh environments.

Mechanical and Electrical Specifications

SOT-23-6L Package

The small form factor allows for easy integration into designs with limited board space.

Flammability Rating: UL 94V-0, ensuring that the device meets safety standards for fire resistance.

Terminal Plating: Matte tin plated, ensuring reliable connections and protection against corrosion.

Operating Temperature: The SLESD0514TL can operate across a wide temperature range, ensuring stability and performance in various environmental conditions.

Reel Packaging: Packaged in a 7-inch reel for easy handling and integration into automated assembly lines, supporting high-volume production.

Why Choose the SLESD0514TL?

With its combination of ultra-low capacitance, small size, and high ESD robustness, the SLESD0514TL is an excellent choice for protecting high-speed data lines in sensitive electronic systems. Whether you’re designing for consumer electronics, automotive applications, or industrial equipment, this Transient Voltage Suppressor guarantees the protection you need, with minimal impact on signal integrity and system performance.

By integrating the SLESD0514TL into your design, you’re ensuring that your high-speed data interfaces remain safe, reliable, and durable—offering peace of mind in environments where voltage transients can pose significant risks.
