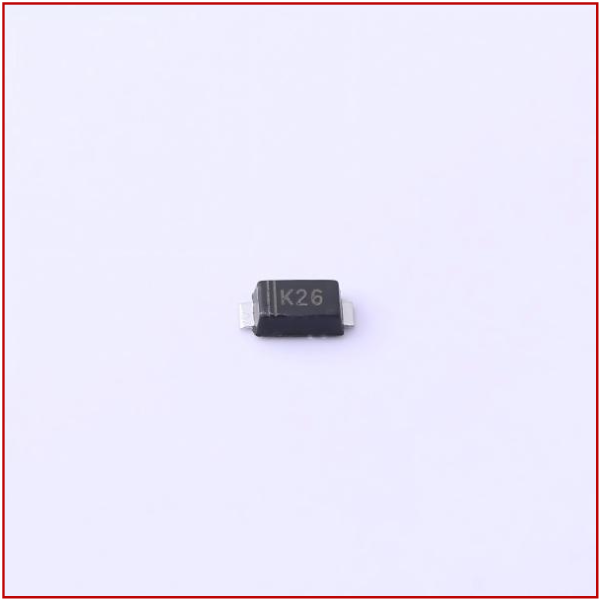

As energy efficiency becomes the central theme of the global electronics industry, the DS26W Schottky diode from Diodes Incorporated is making waves as a "millimeter-scale innovator," sparking a revolution in efficiency across power management, renewable energy, and industrial control applications. This standalone device, with its 60V DC reverse voltage rating, 2A average rectified current, and a golden combination of 700mV @ 2A forward voltage drop, is redefining energy efficiency standards in mid-to-low power applications.

The Voltage drop Revolution: The Efficiency Leap Behind 0.7V

Traditional silicon-based diodes typically have a forward voltage drop of over 1.0V at 2A. In contrast, the DS26W uses innovative Schottky barrier reconstruction technology to reduce this drop to 0.7V. While this might seem like a minor improvement, it equates to a 30% reduction in power loss in high-frequency switching power supplies. For example, in a 5V/2A charger, using the DS26W reduces rectifier losses from 2W to 1.4W, resulting in a direct increase in system efficiency by 2.5 percentage points. More crucially, this low-loss characteristic allows designers to reduce heatsink size, achieving higher power density in compact devices.

Safety Moat: Precision Protection at 60V Reverse Voltage

In automotive electronics, industrial power supplies, and other high-stress environments, transient voltage spikes are a primary cause of device failure. The DS26W's 60V DC reverse voltage rating, combined with a super-low reverse leakage current of 500µA at 60V, creates a dual-layer protection system. Test results show that under 60V reverse bias, its leakage current is only one-third of similar products, effectively defending against power surges, motor back EMF, and other transient high-voltage events. This "balanced" characteristic makes it an ideal choice for 12V/24V/48V battery systems, especially in demanding applications like DC/DC converters for new energy vehicles and solar inverters.

Elastic Design Philosophy: Full-Scene Adaptation at 2A

As a standalone device, the DS26W's 2A rectification capability showcases impressive versatility across a range of applications. In consumer electronics, it perfectly adapts to scenarios requiring precise rectification, such as fast charging for smartphones and laptop adapters. In industrial control, it meets the high reliability demands of motor drives, sensor power supplies, and more. Notably, its linear operating range is a standout feature— even at near 2A current limits, the device maintains stable voltage-current characteristics, avoiding the performance degradation typically caused by overload. This "steady under pressure" feature greatly enhances system reliability.

Craftsmanship Aesthetic: Optimization from Wafer to Packaging

The excellence of the DS26W lies in several technological breakthroughs. In terms of materials, it employs an ultra-thin metal silicide layer structure, ensuring both low forward voltage drop and minimal reverse leakage current. In packaging, optimized pin layout and pad design allow for a compact design in the standard TO-277A package, with a thermal resistance as low as 10°C/W, ensuring that the device's temperature rise stays under 65°C during continuous operation. This full-spectrum optimization from wafer to package enables the DS26W to pack multiple times the performance density of traditional devices within its micro-sized 5.6mm × 4.2mm footprint.

A Green Future: The Standard for High-Efficiency Design

Driven by global "dual carbon" targets, the DS26W is becoming the standard in fields such as green energy equipment, 5G base station power supplies, and new energy vehicle charging modules. Its 60V voltage rating is particularly suited for 48V mild hybrid systems, while its 2A rectification capacity meets the majority of mid-to-low power supply needs. More importantly, its cost-performance ratio far exceeds that of comparable imported products, providing a highly competitive domestic alternative for local electronics design. When engineers hold this millimeter-scale device, they hold not just six metal pins, but the key to a more efficient, reliable, and greener electronic future.

Looking back from the forefront of the energy efficiency revolution, the DS26W has already transcended the realm of a mere device. It embodies the design philosophy of "less is more" with its precise parameters and proves the value of technological innovation through its reliable quality. This is the true charm of the DS26W as an industrial gem – with its millimeter-scale body, it is driving the future revolution of energy efficiency.
