As electronic technology continues to advance rapidly, electronic devices strive for higher performance, smaller size, and lower energy consumption. In this wave of technological transformation, the Slkor SS24B Schottky diode stands out as a shining star. With its excellent performance and unique advantages, it has emerged as an indispensable "assistant" in the fields of high-frequency circuits and efficient power converters.

Unique Structure, Extraordinary Features

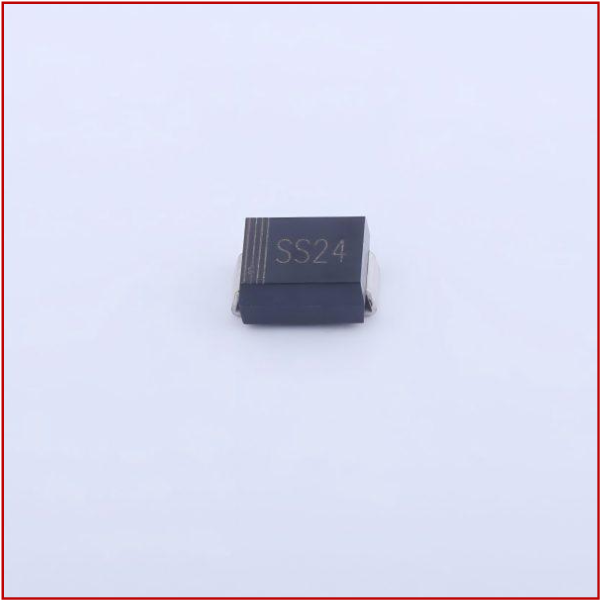

The Slkor SS24B Schottky diode belongs to the category of fast-switching diodes, thanks to its unique metal-semiconductor structure. This structure endows the SS24B with a series of remarkable characteristics. It has a DC reverse voltage rating of 40V, like a steadfast guard, capable of withstanding a certain level of reverse voltage surges, ensuring stable circuit operation in complex voltage environments. The 2A average rectified current allows it to easily handle higher current flows, meeting the demands of various electronic devices. With a forward voltage drop of 500mV at 2A, the SS24B outperforms many competing products, significantly reducing power loss during forward conduction and improving energy utilization efficiency. Additionally, the reverse current is 500μA at 40V, ensuring current stability and control under reverse bias conditions.

Six Key Advantages Opening a New Chapter in Efficient Circuits

1. Fast Switching Speed: In high-frequency applications, switching speed is critical. The SS24B’s fast switching capability allows it to respond quickly to signal changes in the circuit, reducing switching losses and enhancing overall circuit efficiency. Whether for high-speed data transmission or high-frequency signal processing, it excels, ensuring accurate signal transmission and processing.

2. Low Forward Voltage drop: A lower forward voltage drop means less energy is consumed when current flows through the diode. This not only helps reduce power loss and lowers the heat generated by the device, but it also increases the efficiency of power conversion, saving precious energy and extending battery life.

3. Excellent High-Temperature Performance: Electronic devices inevitably generate heat during operation, and the SS24B performs well across a wide temperature range. Whether in hot outdoor environments or high-temperature industrial settings, it maintains exceptional performance, ensuring reliable circuit operation.

4. Compact Package Design: With the ongoing trend of miniaturizing electronic devices, small packaging has become an important advantage. The SS24B adopts a compact package, making it easier to flexibly lay out on a PCB, saving valuable circuit board space, and enabling the design of more compact and lighter electronic devices.

5. High Efficiency: The combination of low forward voltage drop and quick recovery time makes the SS24B highly efficient in power conversion applications. It quickly converts input electrical energy into output power, minimizing energy loss during the conversion process and enhancing the overall performance of power systems.

6. High Reliability and Cost-Effectiveness: Schottky diodes typically have a long lifespan and high reliability, and the SS24B is no exception. It undergoes rigorous quality and reliability testing, maintaining stable performance over long periods of use. Compared to other types of diodes, it offers exceptional cost-effectiveness in many applications, reducing costs and enhancing the market competitiveness of products.

Diverse Applications, Unleashing Unlimited Potential

The SS24B has a broad range of applications. In power management, it is commonly used as a rectifier diode in switch-mode power supplies and adapters to convert AC into stable DC, providing reliable power support for electronic devices. In battery protection, it effectively prevents overcharging or overdischarging, extending battery life and ensuring safe use. In motor drives, it serves as a rectifier and protection element, ensuring stable motor operation and enhancing the efficiency of motor drive systems. In signal processing, it plays an important role in high-speed signal circuits, rectifying and protecting signals to maintain signal quality and integrity.

Precautions for Stable Operation

When using the SS24B, there are a few important precautions. Ensure that the current through the diode does not exceed its maximum rated current to avoid overheating and damage. Do not apply a reverse voltage that exceeds its maximum reverse voltage rating to prevent breakdown. Proper heat management should be in place, and appropriate cooling measures should be taken. When designing circuits, consider parameters such as reverse recovery time and forward voltage drop. During storage and transportation, avoid exposure to high temperatures, high humidity, and static electricity. Use proper soldering techniques and temperatures, and perform aging tests before use. Always read the datasheet thoroughly.

As a manufacturer dedicated to providing high-quality, high-performance semiconductor devices, Slkor offers the best solutions and support for customers' designs. The SS24B Schottky diode represents one of its excellent products, and with its outstanding performance and wide range of applications, it will continue to shine in the field of electronic technology, driving electronic devices toward higher performance and lower energy consumption.
