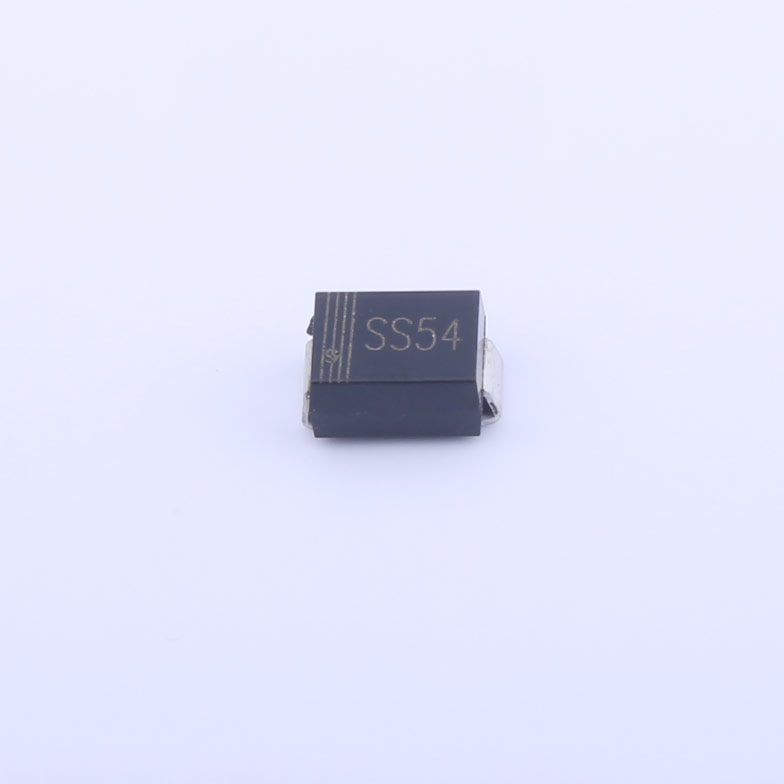

SS54B Power Schottky Diodes SMB

SS54B Power Schottky Diodes SMB

Download Datasheet Online Consultation

SURFACE MOUNT SCHOTTKY BARRIER DIODES


VOLTAGE RANGE: 20-100V

CURRENT: 5.0 A


Features

  • Schottky Barrier Chip

  • Ideally Suited for Automatic Assembly

  • Low Power Loss,High Efficiency

  • Surge Overload Rating to 175A Peak

  • For Use in Low Voltage Application

  • Guard Ring Die Construction


Mechanical Data

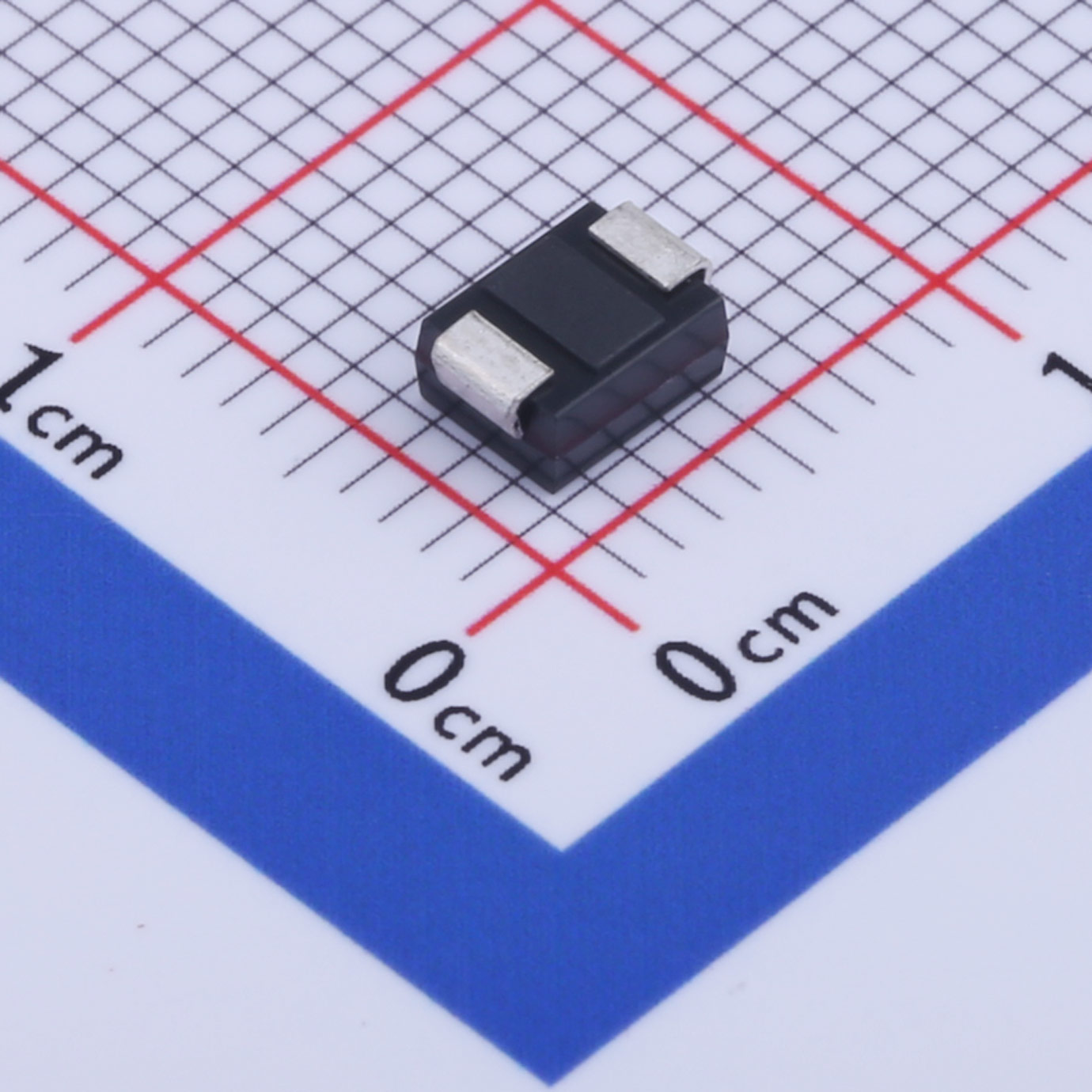

  • Case: SMB/DO-214AA, Molded Plastic

  • Terminals: Solder Plated, Solderable per MIL-STD-750.Method 2026

  • Polarity: Cathode Band or Cathode Notch

  • Marking: Type Number

  • Weight: 0.093 grams (approx.)




Name
Title
Description

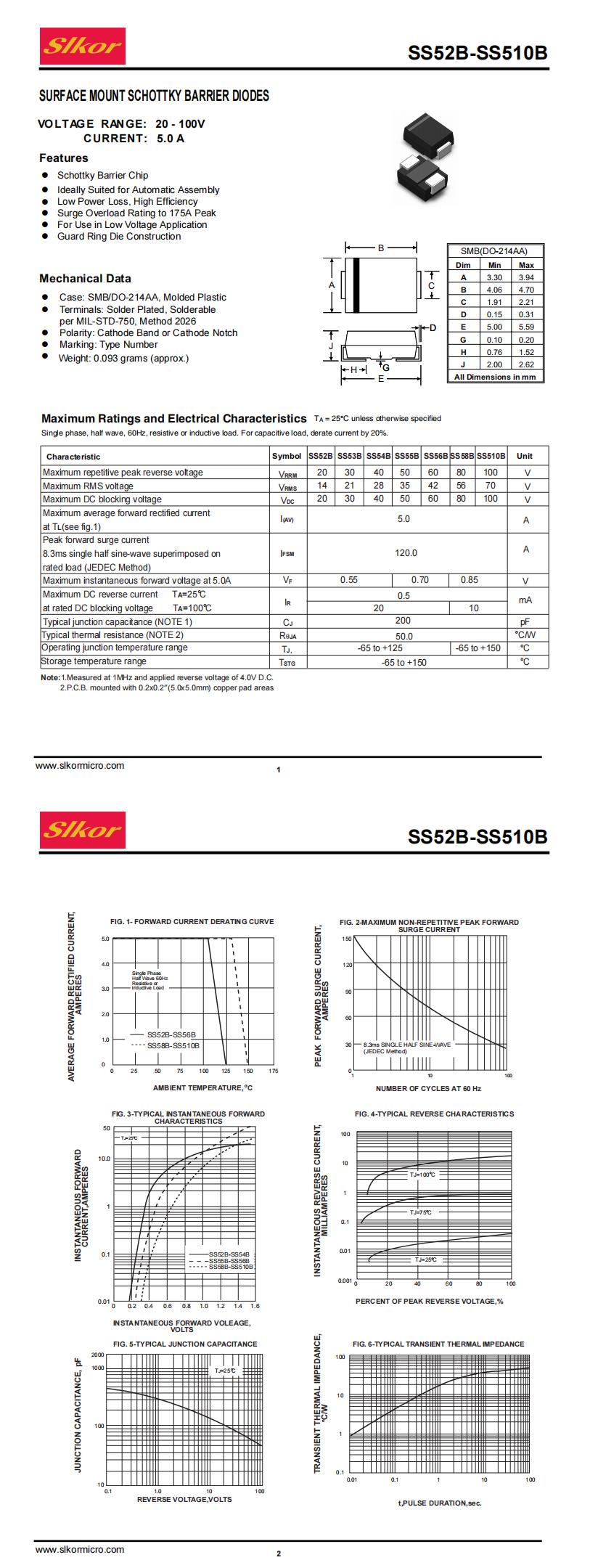

SS54B.pdf
-
Datasheet
