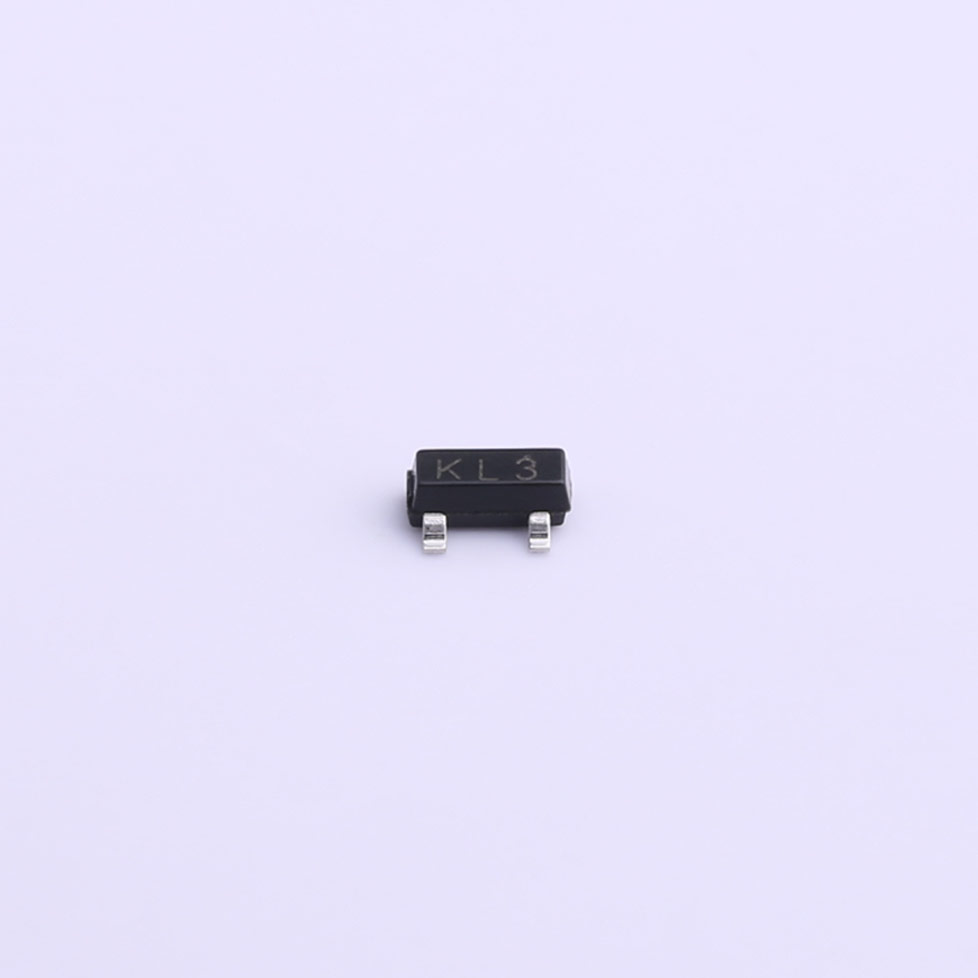

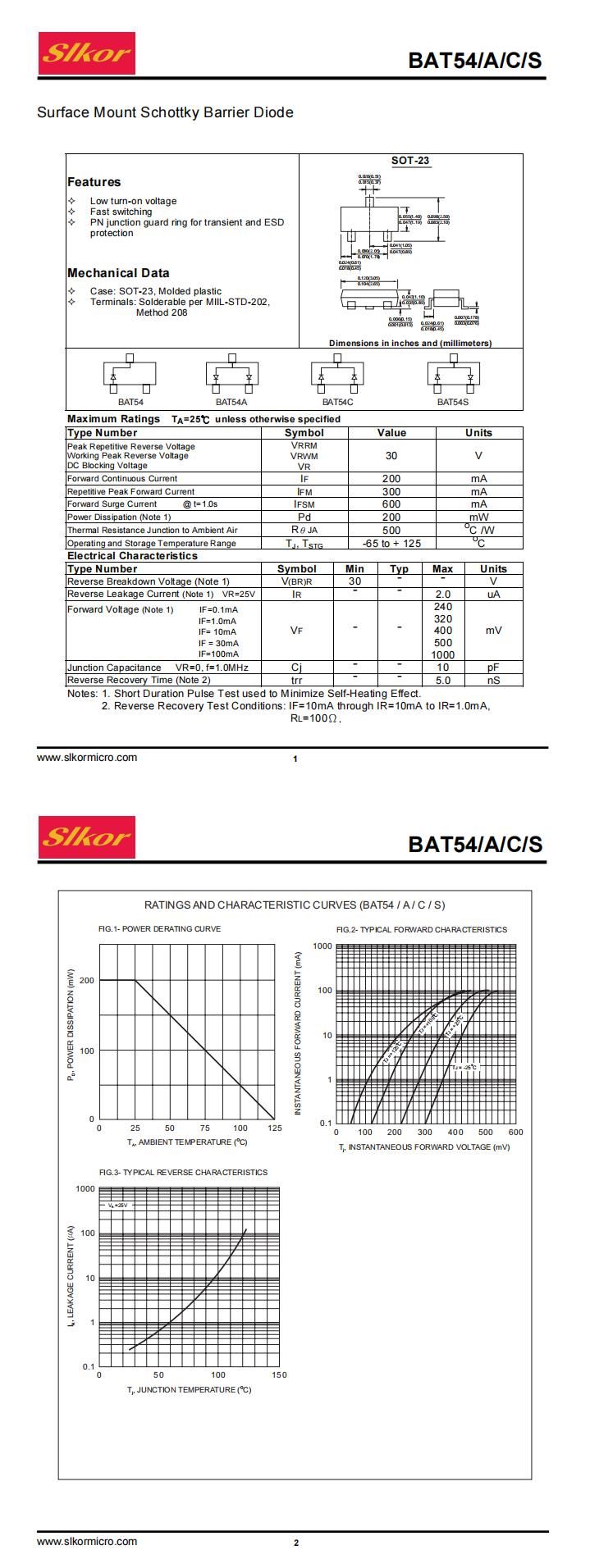

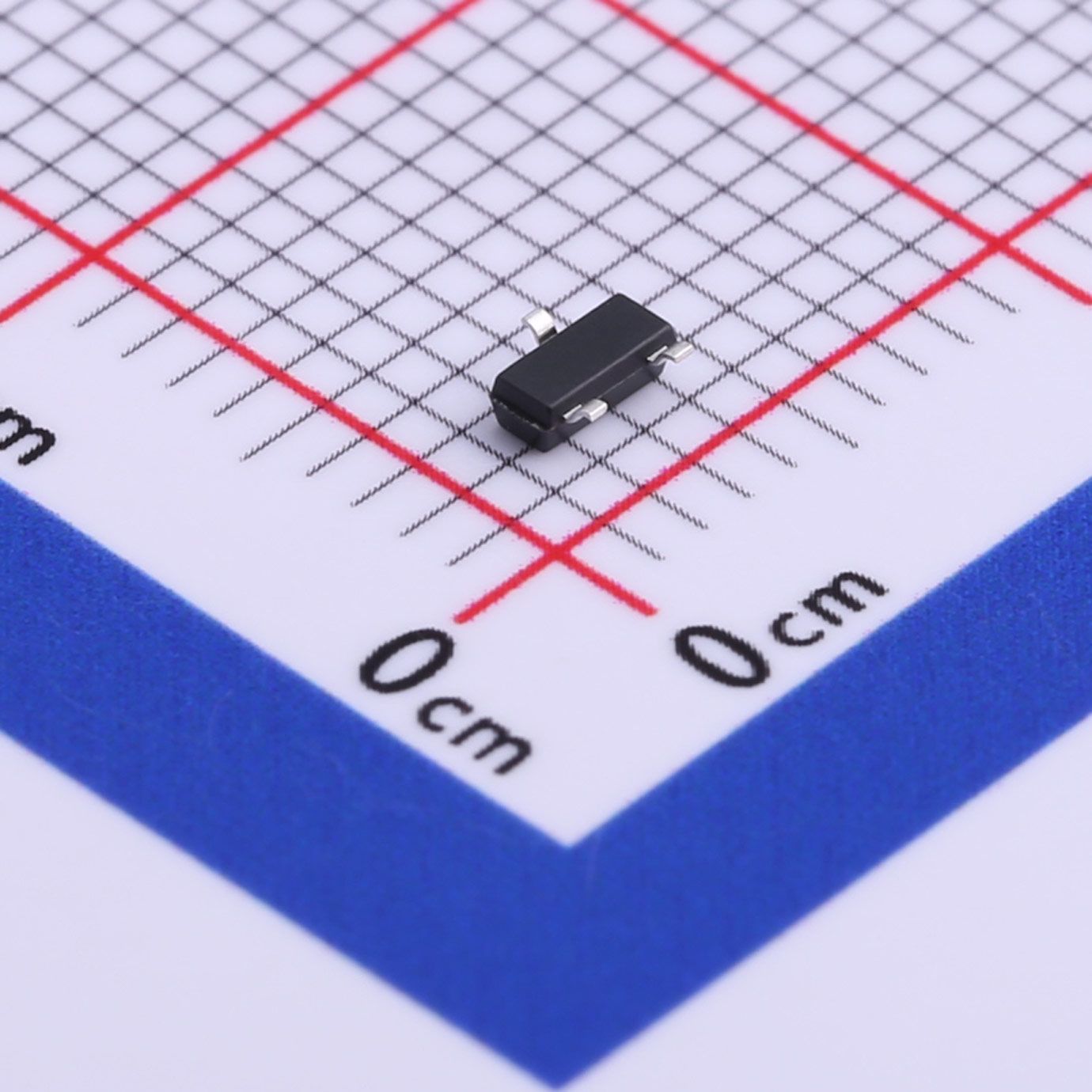

BAT54C Schottky Barrier Diode SOT-23
Planar Schottky barrier diode with an integrated guard ring for stress protection, encapsulated in a small SOT23 Surface-Mounted Device (SMD) plastic package.
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
Planar Schottky barrier diode with an integrated guard ring for stress protection, encapsulated in a small SOT23 Surface-Mounted Device (SMD) plastic package.
Features
● Low forward voltage
● Low capacitance
● Low turn-on voltage
● Fast switching
● PN junction guard ring for transient and ESD protection
Applications
● Ultra high-speed switching
● Line termination
● Voltage clamping
● Reverse polarity protection
Mechanical Data
● Case: SOT-23, Molded plastic
● Terminals: Solderable per MIIL-STD-202. Method 208
Quick reference data
| Symbol | Parameter | Conditions | Max | Unit |
| VR | reverse voltage | 30 | V | |
| VF | forward voltage | IF = 100 mA; tp ≤ 300 μs; δ ≤ 0.02; pulsed; Tamb = 25 °C |
1000 | mV |
| IR | reverse current | VR = 25 V; tp ≤ 300 μs; δ ≤ 0.02; pulsed; Tamb = 25 °C |
2 | μA |
