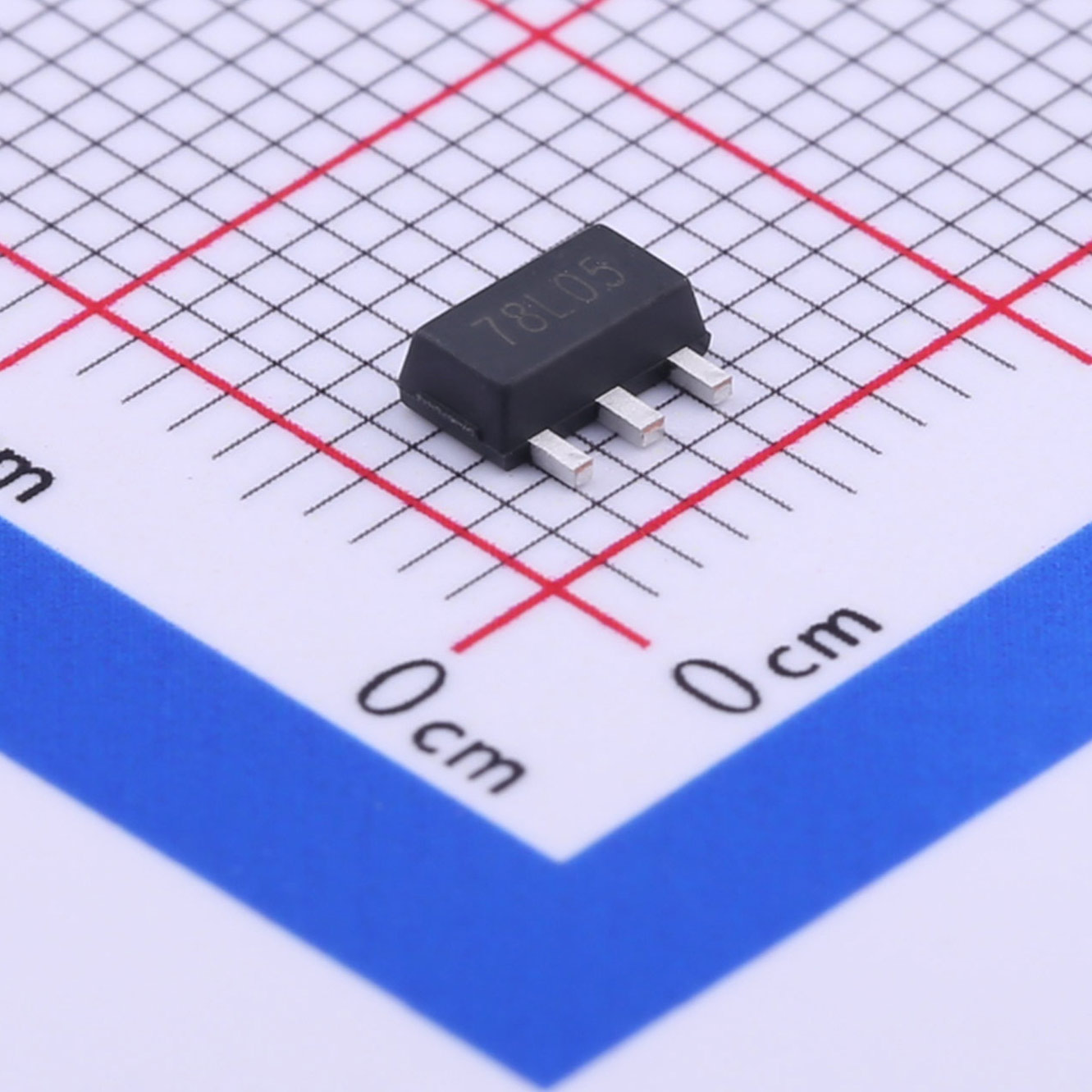

In the design of embedded control boards, sensor modules, compact smart hardware and industrial acquisition terminals, numerous MCUs, logic chips and analog sensors require clean and stable 5V power supply. Featuring no switching noise, minimal peripheral circuits and stable output voltage, linear regulators serve as the top choice for low-power auxiliary power supplies. The Slkor SL78L05 is a 3-terminal positive fixed-output 5V linear regulator. It supports a maximum input voltage of 30V, delivers excellent ripple rejection and low output noise, and boasts industrial-grade wide temperature range together with comprehensive built-in protection circuits. It is widely adopted in various low-to-medium current 5V voltage regulation applications.

1. Core Electrical Parameters

1. Maximum Input Operating Voltage: 30V
2. Fixed Output Voltage: 5V
3. Maximum Output Current: 100mA
4. Power Supply Rejection Ratio (PSRR): 49dB @120Hz
5. Dropout Voltage: 1.7V
6. Quiescent Current: 3.8mA
7. Output Noise Voltage: 42uV
8. Operating Ambient Temperature: -40℃~+125℃(Ta)

2. Key Product Advantages

1. 30V Wide Input Withstand Voltage for Diverse Power Supply Scenarios

The SL78L05 supports up to 30V input voltage, compatible with 12V/24V adapters, vehicle power supplies, lithium battery packs and other power sources. It provides sufficient margin against power voltage fluctuations, suitable for industrial modules, electric equipment, security hardware and other applications with relatively high input voltage. The dropout voltage of 1.7V means stable 5V output can be maintained when the input voltage exceeds 6.7V, offering ample flexibility for power supply designs.

2. Excellent Ripple Rejection and Low-Noise Output

It achieves a PSRR of 49dB at 120Hz, effectively filtering power frequency ripple introduced by the front-end power supply, with typical output noise as low as 42uV for pure output voltage. Unlike switching power supplies, linear regulators generate no high-frequency EMI interference. It is ideal for analog sensors, audio circuits and weak signal acquisition systems to avoid sampling errors and signal distortion caused by power noise.

3. Balanced Quiescent Power Consumption for System-Friendly Design

With typical quiescent current of 3.8mA, the chip features reasonable power consumption, balancing stability of the voltage regulation loop and overall system power draw. It performs steadily in continuously operated equipment such as small and medium-sized industrial control boards and smart controllers.

4. Built-in Multi-Protection Mechanisms for Higher Reliability

The SL78L05 integrates output current limiting and thermal shutdown protection. In cases of load short-circuit or excessive temperature rise caused by long-term overload, the device automatically limits current or cuts off output to prevent chip burnout, reducing equipment failure risks and improving long-term operational reliability.

5. Simple Peripheral Circuits to Facilitate Mass Production

Adopting the standard 3-terminal linear regulator architecture, it only requires a small number of input and output filter capacitors for normal operation, featuring simple schematics and easy PCB layout. It supports automated SMT mass production with good component versatility. Pin definition is fully compatible with mainstream 78L05 devices, facilitating domestic substitution.

3. Typical Applications

1. Embedded control systems: 5V power supply for MCU minimum systems and sensor acquisition modules
2. Industrial electronics: Auxiliary power for compact acquisition terminals, transmitters and control panels
3. Consumer smart hardware: Smart home modules, remote controllers and small household appliance control boards
4. Security and automotive accessories: Monitoring peripherals, vehicle-mounted small peripherals and OBD module voltage regulation
5. Instruments and meters: Power supply for portable testing equipment and analog signal processing units

4. Engineering Design Guidelines

1. Input Voltage and Dropout Design

Ensure the input voltage is at least 1.7V higher than the output voltage during normal operation. Avoid long-term operation close to the 30V upper limit and reserve sufficient safety margin. When input voltage fluctuates drastically, install large-capacity filter capacitors at the input terminal to suppress voltage spikes.

2. Load Current and Thermal Management

The maximum output current of SL78L05 is 100mA. Avoid continuous full-load operation. Higher voltage differential between input and output and larger load current will lead to increased heat generation. Reduce load current under high-temperature conditions if necessary, and expand copper foil area to improve heat dissipation and control device temperature rise.

3. Capacitor Matching and PCB Layout

Place input and output filter capacitors as close to chip pins as possible, shorten traces to reduce line impedance and optimize transient response and noise performance. Low-ESR ceramic capacitors can be matched for high-precision analog sampling circuits to further optimize output noise.

4. EMC System Configuration

The SL78L05 itself generates no switching interference. If a DC-DC converter is used at the front end, add an RC filter between the DC-DC output and SL78L05 input to isolate switching ripple and give full play to its 49dB PSRR performance.

5. Application Scope Reminder

This device is designed for low-power regulation within 100mA and is not suitable for continuous high-current loads exceeding 100mA. Adopt higher-power voltage regulation solutions for high-current 5V power supply requirements.

5. Product Summary

The Slkor SL78L05 linear regulator combines comprehensive strengths: 30V high input withstand voltage, accurate fixed 5V output, 49dB ripple rejection, 42uV low noise and -40℃~+125℃ industrial wide temperature range. It requires few peripheral components, features easy debugging and built-in protection functions.

As a general-purpose 3-terminal linear regulator, the SL78L05 fully meets low-to-medium current 5V power supply demands. It effectively addresses common issues of analog circuits such as excessive power noise and limited input voltage adaptability. Capable of widely replacing imported 78L05 counterparts to lower equipment costs through domestic substitution, it is a cost-effective choice for low-power voltage regulation in industrial modules, smart hardware and sensor circuits.
