Home Product Categories Transistors Bipolar Transistor (BJT)

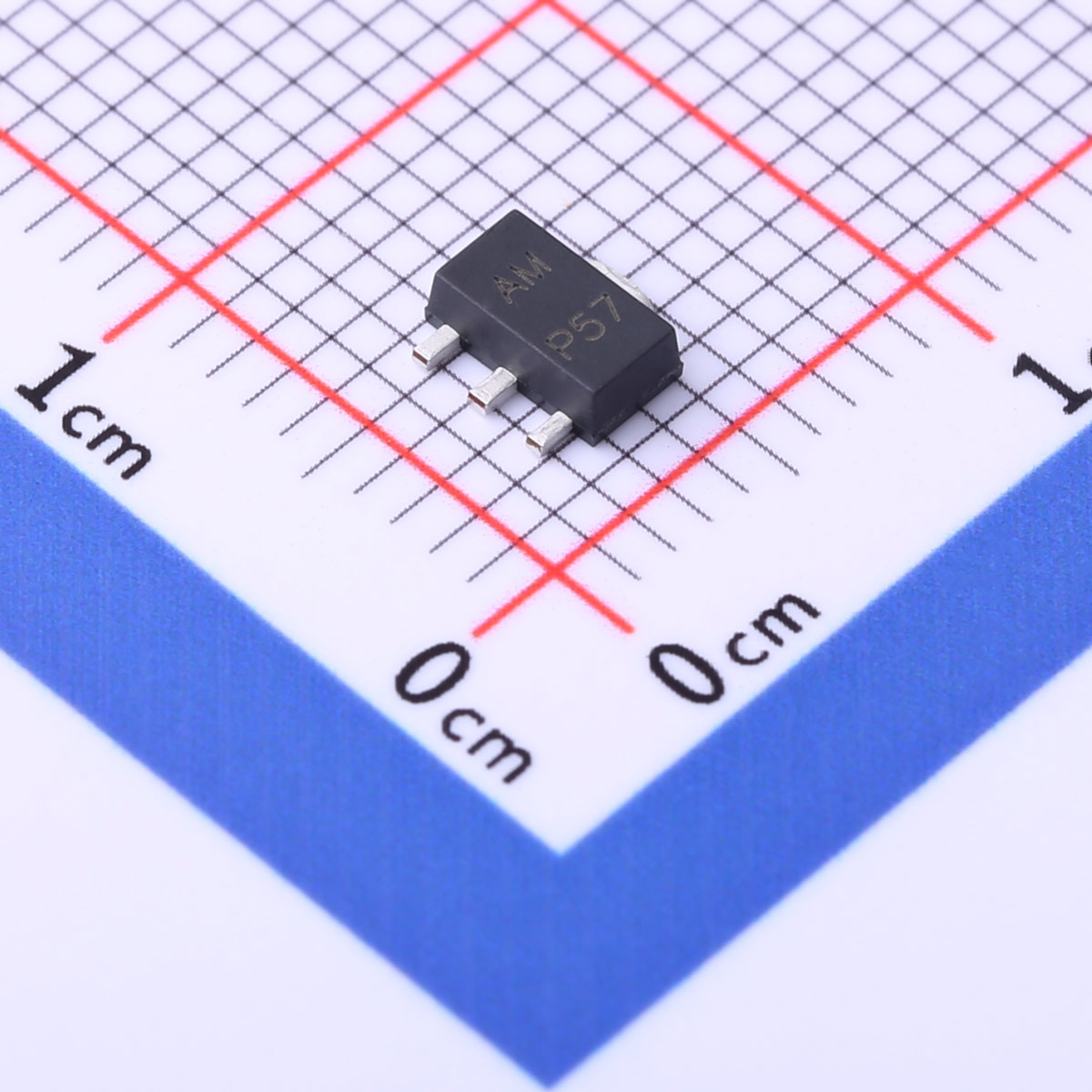

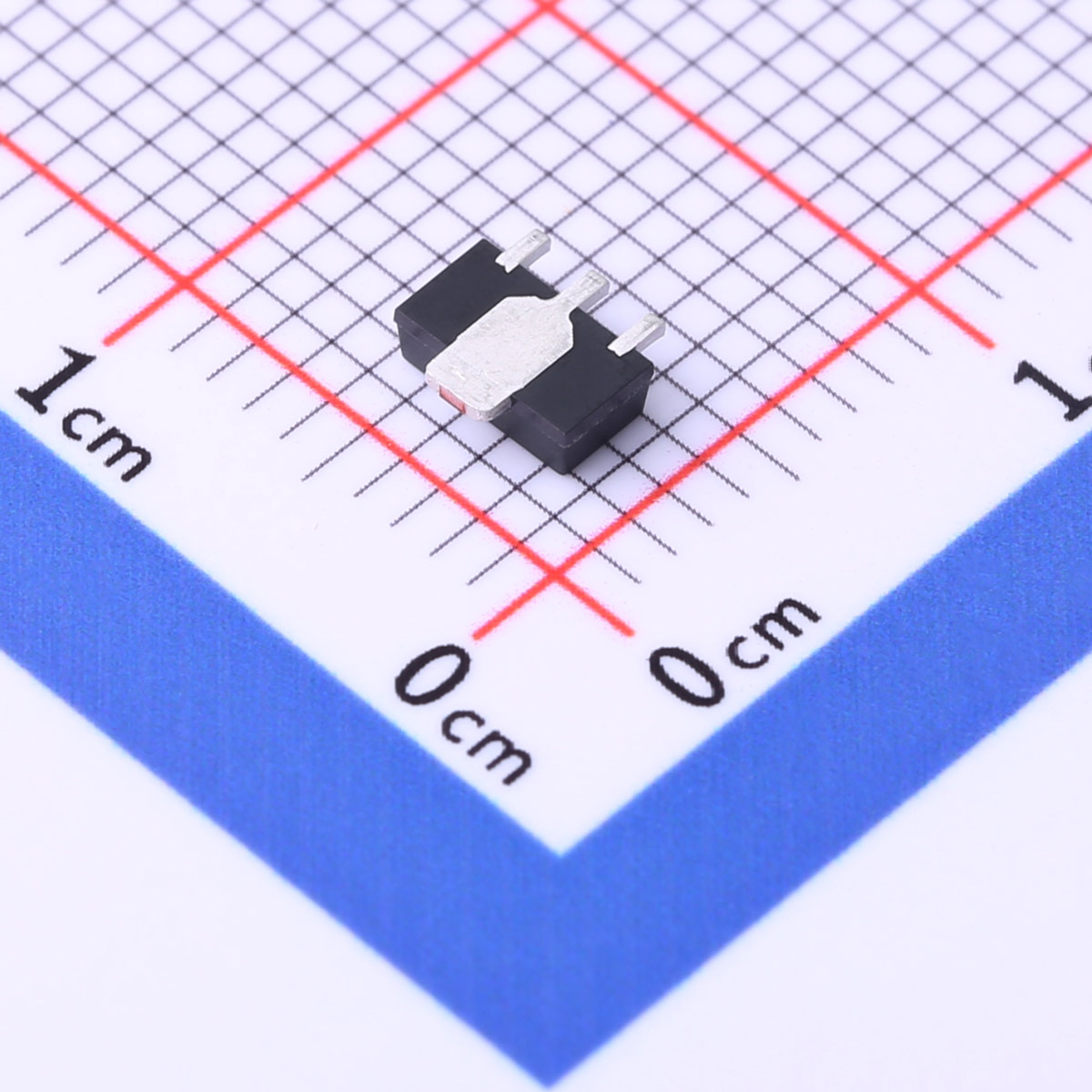

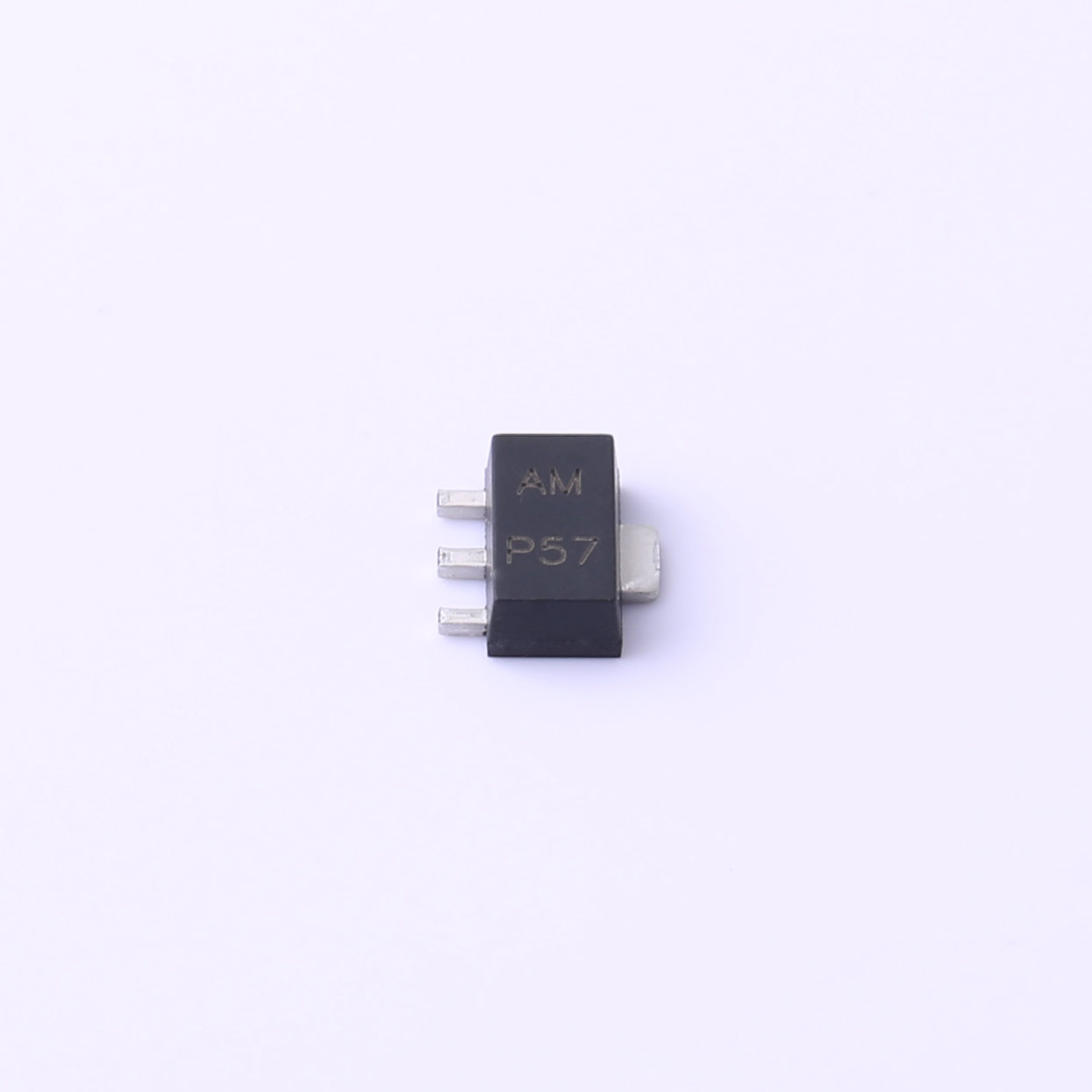

BCX52-16 60V, 1A PNP Medium Power Transistors SOT-89

PNP medium power transistor series in Surface-Mounted Device (SMD) plastic packages.

Download Datasheet Online Consultation

Description

PNP medium power transistor series in Surface-Mounted Device (SMD) plastic packages.


Features

● High current

● Three current gain selections

● High power dissipation capability

● Exposed heatsink for excellent thermal and electrical conductivity (SOT89)

● Leadless very small SMD plastic package with medium power capability (SOT89)


Applications

● Linear voltage regulators

● High-side switches

● Battery-driven devices

● Power management

● MOSFET drivers

● Amplifiers

Quick reference data

Symbol Parameter Conditions Max Unit
VCEO collector-emitter voltage open base 60 V
IC collector current 1 A
VCEsat collector-emitter
saturation voltage		 IC = 500mA; IB = 50mA 0.5 V






Name
Title
Description
BCX52-16 SOT-89.pdf
BCX52-16 SOT-89.pdf
-
Datasheet
