GBU1010 Bridge Rectifier Diode GBU
GBU1010 Bridge Rectifier Diode GBU
Features
l UL recognition, file #E230084
l Ideal for printed circuit boards
l High surge current capability
l Solder dip 275℃max.7s, per JESD 22-B106
Application
l General purpose use in AC/DC bridge full wave rectification formonitor, TV, printer, power supply, switching mode power supply,adapter, audio equipment, and home appliances applications.
Mechanical Data
l Package: GBU Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant
l Terminals: Tin plated leads, solderable perJ-STD-002 and JESD22-B102
l Polarity: As marked on body
Name
Title
Description

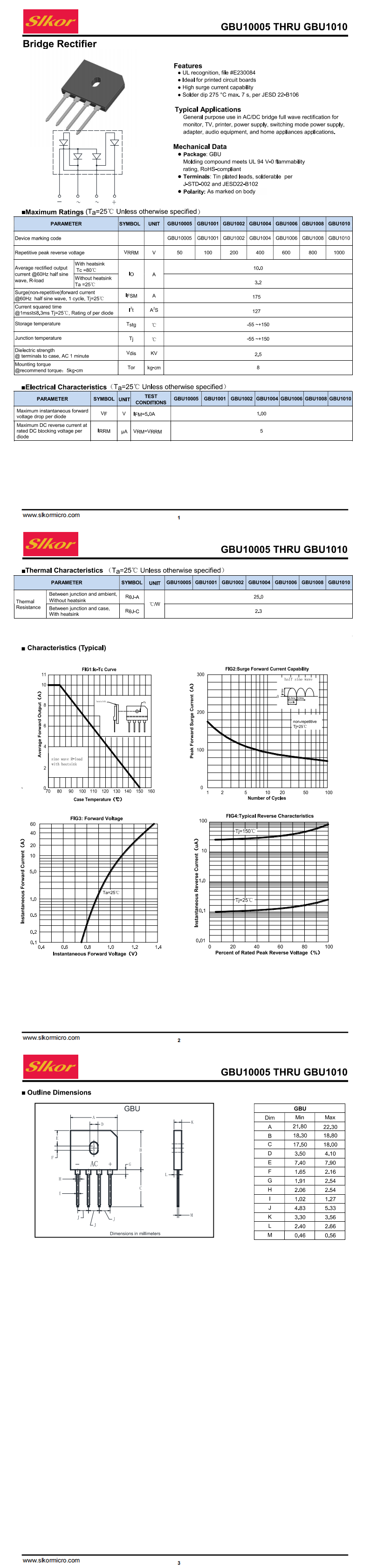

Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
ABS10 Bridge Rectifier Diode ABS
Brand: slkor， VRRM(V)： 1000V IAV(A)： 1A VF（V）： 1V IFSM（A）： 30A Package： ABS
ABS210 Bridge Rectifier Diode ABS
Brand: slkor， VRRM(V)： 1000V IAV(A)： 2.0A VF（V）： 1.0V IFSM（A）： 50A Package： ABS
DB107S Bridge Rectifier Diode DBS
Brand: slkor， VRRM(V)： 1000V IAV(A)： 1.0A VF（V）： 1.1V IFSM（A）： 50A Package： DBS
DB157S Bridge Rectifier Diode DBS
Brand: slkor， VRRM(V)： 1000V IAV(A)： 1.5A VF（V）： 1.1V IFSM（A）： 50A Package： DBS
DB207S Bridge Rectifier DBS
Brand: slkor， VRRM(V)： 1000V IAV(A)： 2.0A VF（V）： 1.1V IFSM（A）： 60A Package： DBS
DB301S Bridge Rectifier Diode DBS
Brand: slkor， VRRM(V)： 50V IAV(A)： 3A VF（V）： 1.1V IFSM（A）： 80A Package： DBS
DB302S Bridge Rectifier Diode DBS
Brand: slkor， VRRM(V)： 100V IAV(A)： 3A VF（V）： 1.1V IFSM（A）： 80A Package： DBS
DB303S Bridge Rectifier Diode DBS
Brand: slkor， VRRM(V)： 200V IAV(A)： 3A VF（V）： 1.1V IFSM（A）： 80A Package： DBS
DB304S Bridge Rectifier Diode DBS
Brand: slkor， VRRM(V)： 400V IAV(A)： 3A VF（V）： 1.1V IFSM（A）： 80A Package： DBS
DB305S Bridge Rectifier Diode DBS
Brand: slkor， VRRM(V)： 600V IAV(A)： 3A VF（V）： 1.1V IFSM（A）： 80A Package： DBS
