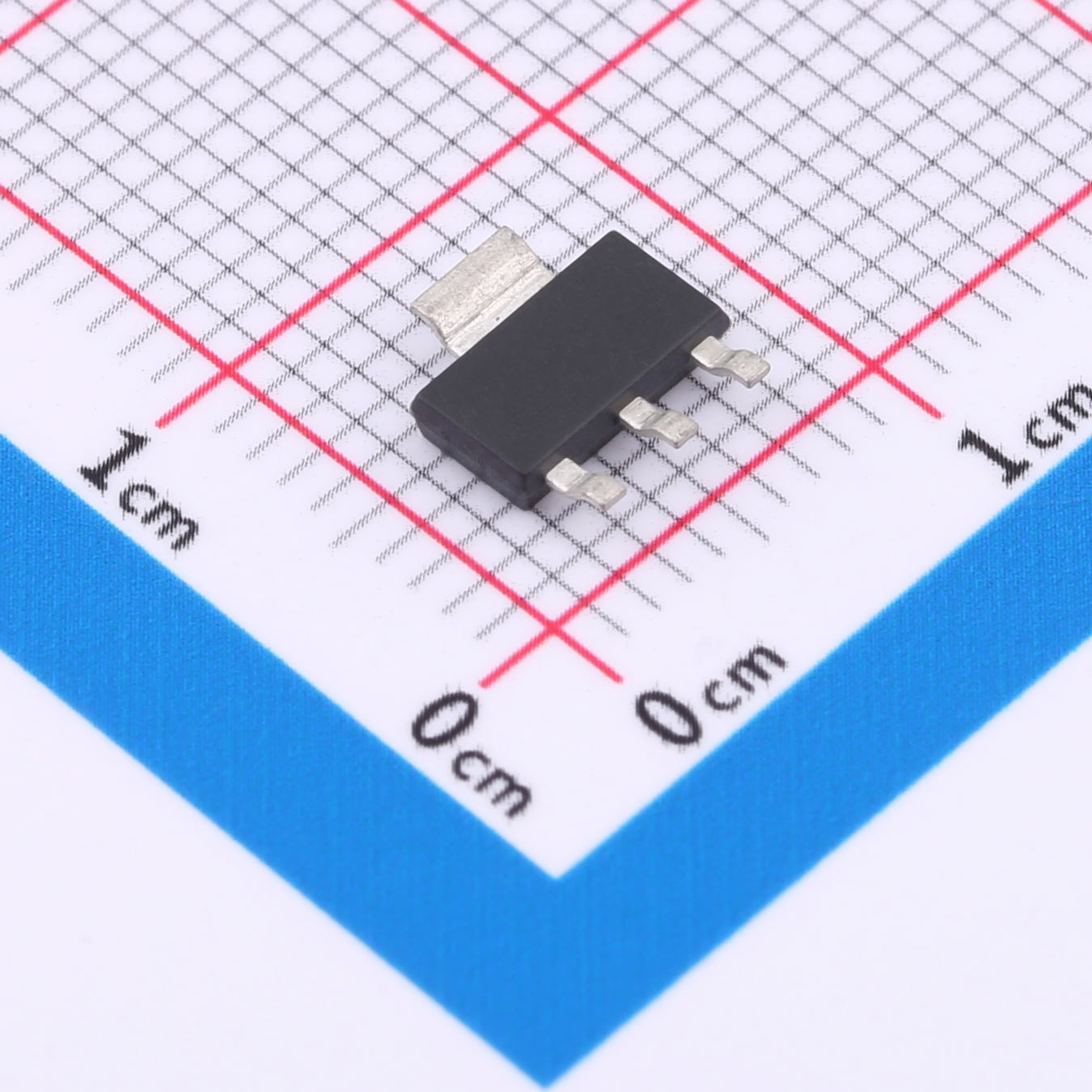

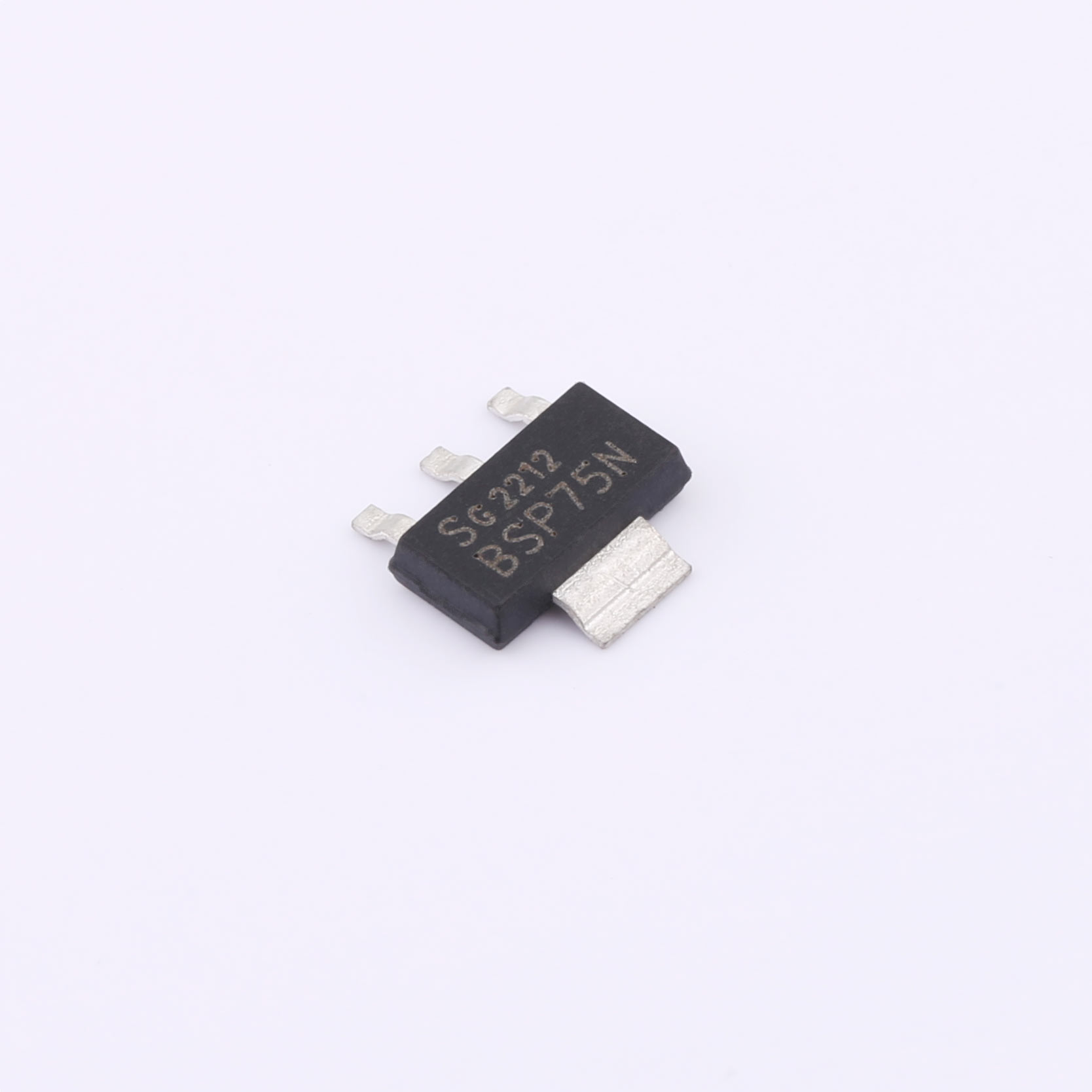

BSP75N Smart Lowside Power Switch SOT-223
VD：60V
VIN：10V
RDS：520mΩ
IIN：0.7mA
ID：1.3A
Package：SOT-223
60v Self-Protected Low-Side Intellifet MOSFET Switch
| Continuous drain source voltage | Vds=60V |
| On-state resistance | 500mΩ |
| Maximum nominal load current(a) | 1.1A(Vin=5V) |
| Minimum nominal foad current(c) | 0.7A(Vin=5V) |
| Clamping energy | 550mJ |
Description
l Self-protected low-side MOSFET.Monolithic over temperature,over current, over voltage (active clamp) and ESD protected logic level functionality. Intended as a general purpose switch.
Features
l Short circuit protection with auto restart
l Over-voltage protection (active clamp)
l Thermal shutdown with auto restart
l Over-current protection
l Input protection (ESD)
l High continuous current rating
l Load dump protection (actively protects load)
l Logic level input
Note:
l The tab is connected to the source pin and must be electrically isolated from the drain pin. Connection of significant copper to the drain pin is recommended for best thermal performance.
