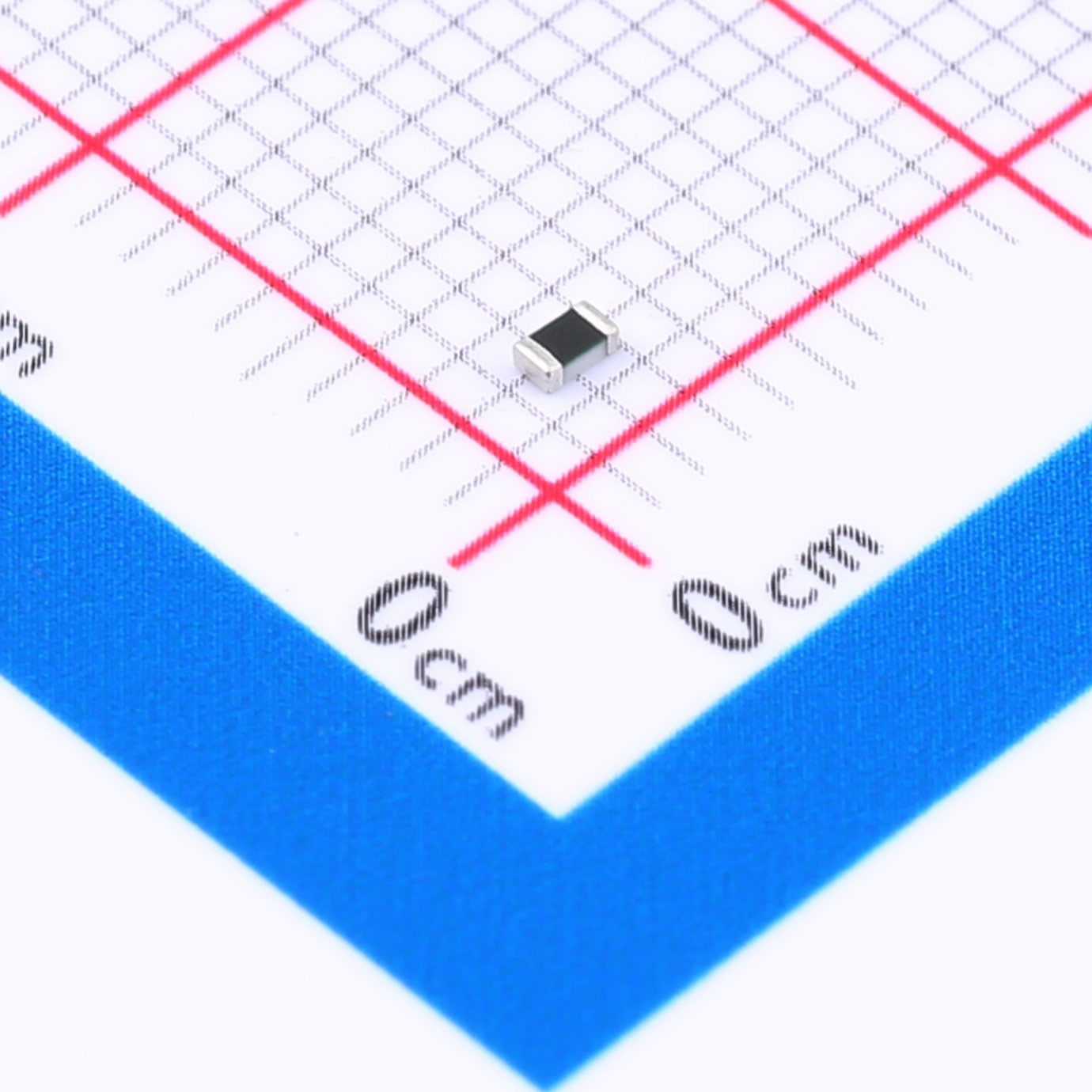

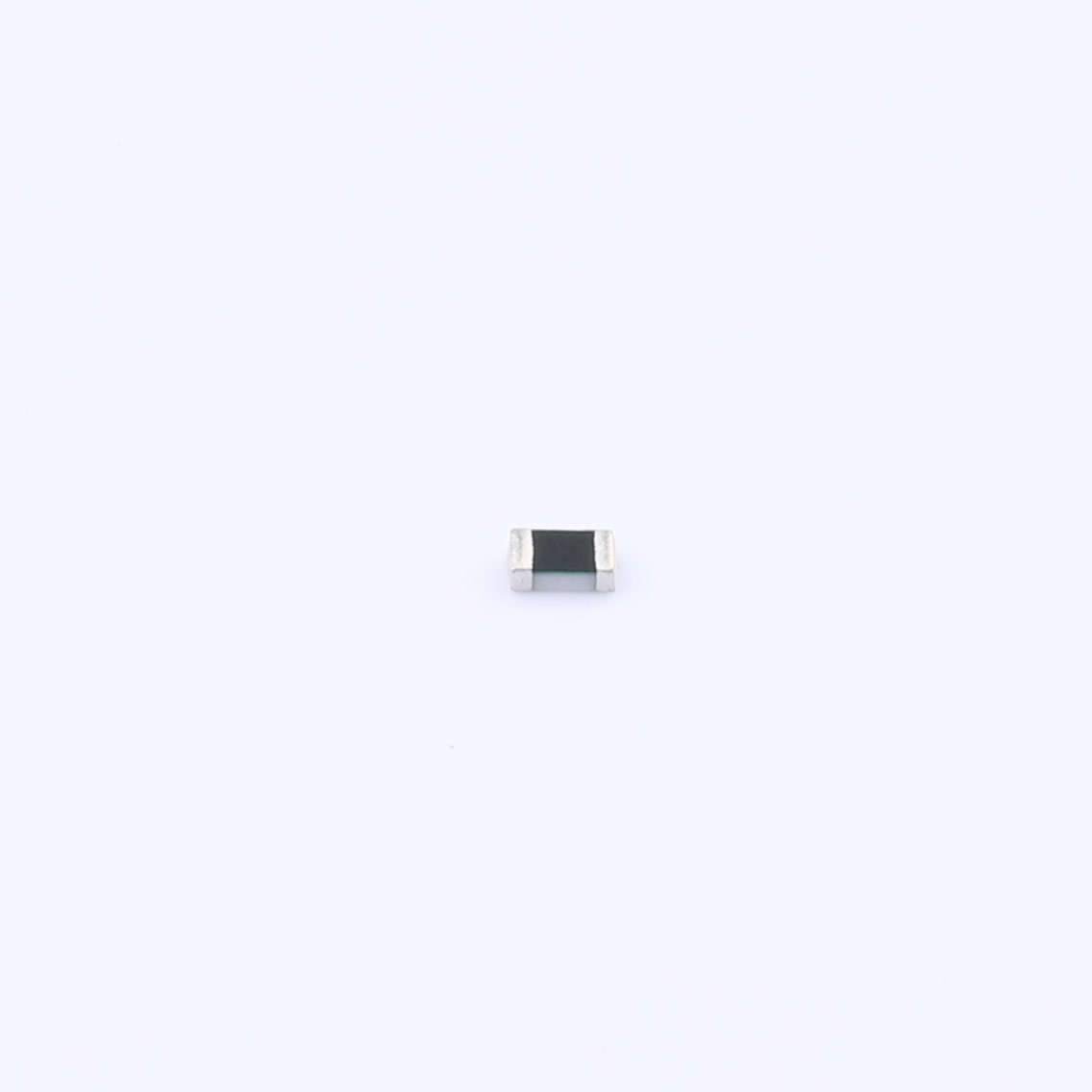

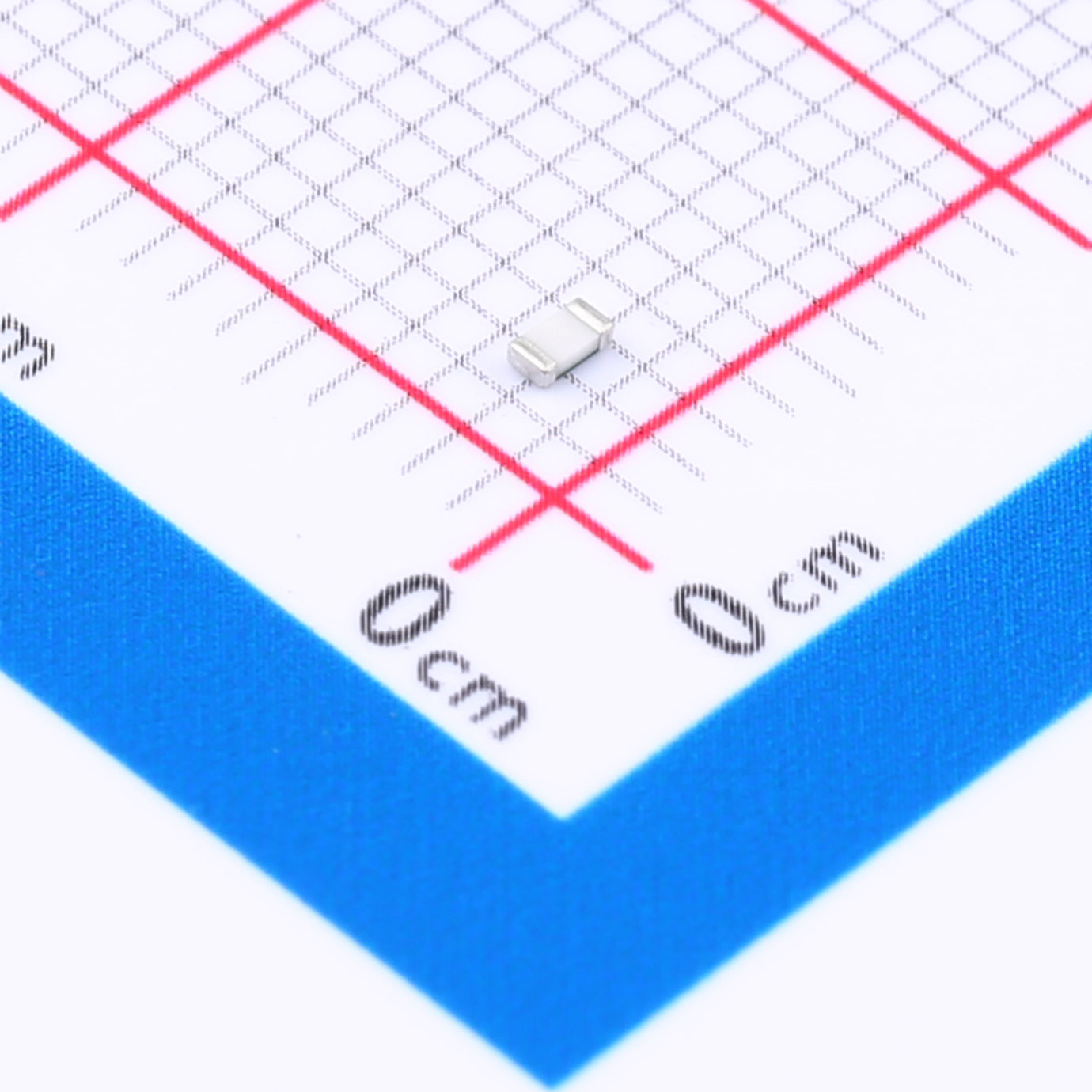

SLCE1005A015FR ESD Protection Devices 0603
ESD Protector Overvoltage Protection Device
ESD Protector Overvoltage Protection Device
Benefits
l ESD protection for high frequency applications (HDMI 1.3)
l Smaller form factor for board space savings
l Helps protect electronic circuits against damage from electrostatic discharge (ESD) events
l Assists equipment to pass IEC 61000-4-2, level 4 testing
Features
l 0.15 pF (typ) Capacitance
l Low leakage current
l Low clamping voltage
l Fast response time (<1ns)
l Capable of withstanding numerous ESD strikes
l Compatible with standard reflow installation procedures
l Thick film technology
l Bi-directional protection
Applications
l HDMI 1.3 interface
l LCD, HDTV
l Cellular phones
l Antennas (cell phones, GPS…)
l Portable video devices (PDA, DSC, Bluetooth…)
l Printer ports
l High speed Ethernet
l USB 2.0 and IEEE 1394 interfaces
l DVI interface
Caution: This device should not be used in Power Bus applications
Name
Title
Description

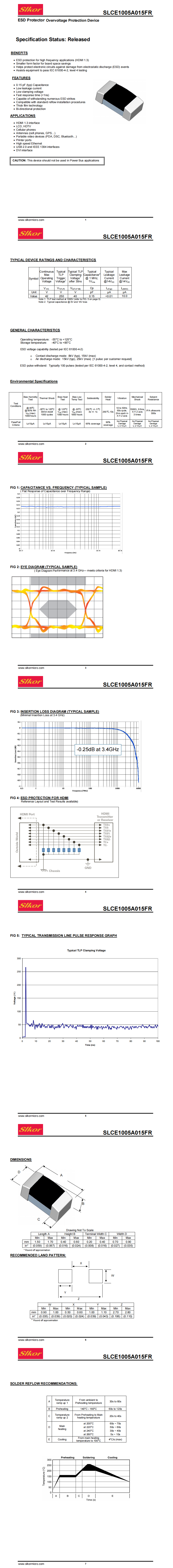

Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
AU0511P1 ESD Protection Diode SOD-323
Brand: slkor， VRWM(V)： 5V VBR min(V)： 5.6V IR(uA)： 1μA VC(V)： 9.5V CJ(pF)： 15 Package： DFN1006
AZ5325-01F ESD Protection Devices DFN1006
Brand: slkor， VRWM(V)： 5V VBR min(V)： 6.0V IR(uA)： 0.1μA VC(V)： 11V CJ(pF)： 0.45pF Package： DFN1006
AZC199-04 ESD Protection Devices SOD-523
Brand: slkor， VRWM(V)： 5V VBR min(V)： 6V IR(uA)： 1μA VC(V)： 15V CJ(pF)： 0.4pF Package： SOD-523
BTRD04A035 ESD Protection Diode DFN1006
Brand: slkor， VRWM(V)： 5 VBR min(V)： 8.4 IR(uA)： 0.1 VC(V)： 10 CJ(pF)： 18 Package： DFN1006
BV-FA05UCA ESD Protection Devices DFN1006
Brand: slkor， VRWM(V)： 5V VBR min(V)： 6.0V IR(uA)： 0.1μA VC(V)： 11V CJ(pF)： 0.45pF Package： DFN1006
CESD2510LC5VU ESD Protection Devices DFN2510
Brand: slkor， VRWM(V)： 5V VBR min(V)： 6V IR(uA)： 1μA VC(V)： 16V@5A CJ(pF)： 0.8pF Package： DFN2510
CESD882UC5VB ESD Protection Devices DFN1006
Brand: slkor， VRWM(V)： 5V VBR min(V)： 6.0V IR(uA)： 0.1μA VC(V)： 11V CJ(pF)： 0.45pF Package： DFN1006
ESD protection diode SLSOT05C SOT-23
Brand: slkor， VRWM(V)： 5V VBR min(V)： 6V IR(uA)： 1μA VC(V)： 7.4V CJ(pF)： 30pF Package： SOT-23
ESDA14V2L ESD Protection Diode SOT-23
Brand: slkor， VRWM(V)： 12V VBR min(V)： 13.3V IR(uA)： 1μA VC(V)： 19V CJ(pF)： 130pF Package： SOT-23
GBLC03C ESD Protection Devices SOD-323
Brand: slkor， VRWM(V)： 3V VBR min(V)： 4V IR(uA)： 5μA VC(V)： 7V CJ(pF)： 0.8pF Package： SOD-323
